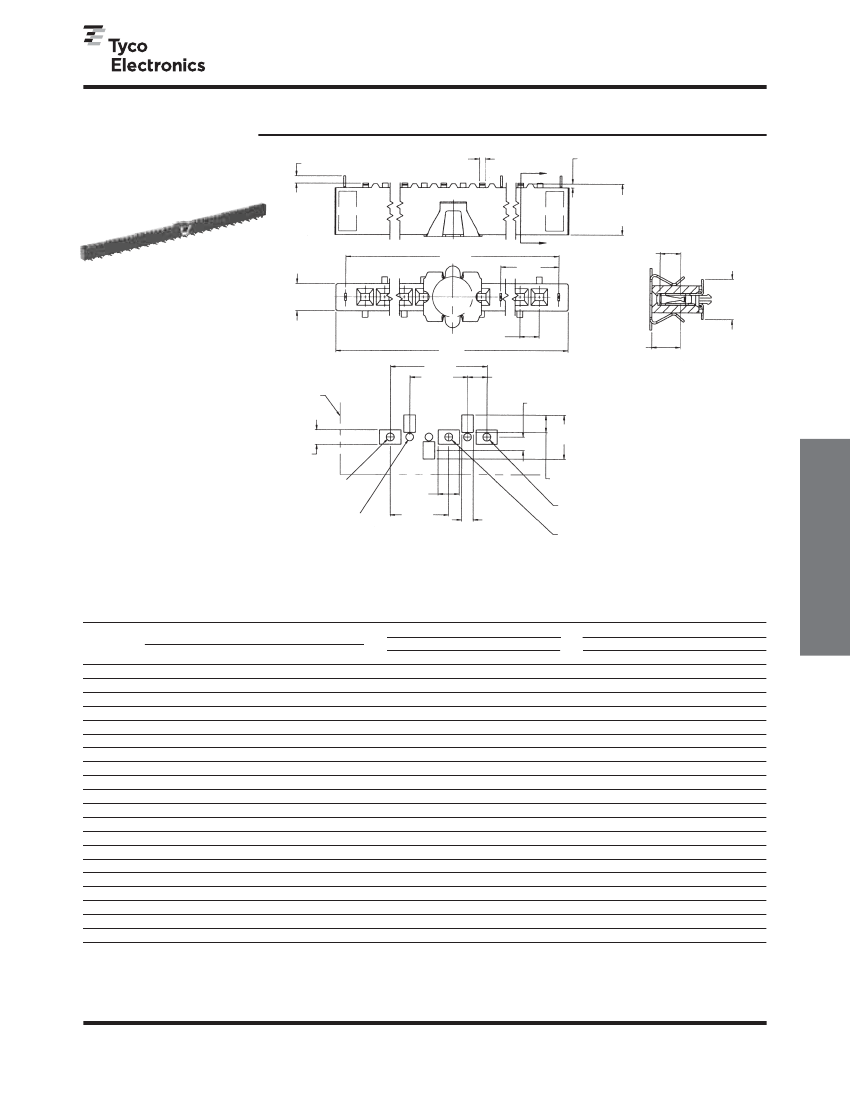

AMPMODU Interconnection System
Mod IV Receptacle Assemblies, Single-Row, Surface Mount,
.100 [2.54] Centerline with Compliant Pin Hold Downs
Surface Mount, Single-Row,
Dual Entry with Compliant
Pin Holddowns
.038
[0.97]
.030
0.76
.025
0.64
Typ.
[ ]
.020
Standoffs
[0.51] Typ.
.265
[6.73]
Typ.
D
C
.107
[2.72]
(Localized Gold
Plate Area)
.208
[5.28] Max.
(Depressed)
Material and Finish
Housing
— Glass-filled thermoplastic,
black, 94V-0 rated
Contacts
— Phosphor bronze, plated
as follows:
Plating A
— Duplex .000030
[0.00076] gold on contact area,
.000150-.000300 [0.00381-0.00762]
matte tin on solder area all over .000050
[0.00127] nickel
Plating B
— Duplex .000010
[0.000254] gold on contact area,
.000150-.000300 [0.00381-0.00762]
matte tin on solder area all over .000050
[0.00127] nickel
Plating C
— .000150-.000300
[0.00381-0.00762] matte tin on solder
leads, all over .000050 [0.00127] nickel
.140
[3.56]
.100
[2.54] Typ.
A
D
B
P.C. Board
.100
[2.54]
.069
[1.75]
.228
[5.78]
.075
[1.91]
.148
[3.77]
Point of
Contact
Surface Mount Receptacle
Assemblies
.042±.003
Dia.
[1.07±0.08]
.110
[2.79]
.090
[2.28] Typ.
.042±.003
Dia.
[1.07±0.08]
.042±.003
Dia.
[1.07±0.08]
Related Product Data
Mateable Headers
—
Refer to Mating Post Selection Guide —
page 90
Performance Specifications
—
page 186
No. of
Pos.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
30
40
Dimensions
B
C
.200
[5.08]
.300
[7.62]
.400
[10.16]
.500
[12.70]
.600
[15.24]
.700
[17.78]
.800
[20.32]
.900
[22.86]
1.000
[25.40]
1.100
[27.94]
1.200
[30.48]
1.300
[33.02]
1.400
[35.56]
1.500
[38.10]
1.600
[40.64]
1.700
[43.18]
1.800
[45.72]
1.900
[48.26]
2.900
[73.66]
4.100
[104.14]
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
See note 3
2.100
[53.34]
.040±.003
C
.060
[1.02±0.08]
Min.
[1.52]
Dia. Typ.
(For bottom
Recommended PC Board Pad Pattern
entry or pass
(.008 [0.20] thick stencil)
thru applica-
tions)
A
.500
[12.70]
.600
[15.24]
.700
[17.78]
.800
[20.32]
.900
[22.86]
1.000
[25.40]
1.100
[27.94]
1.200
[30.48]
1.300
[33.02]
1.400
[35.56]
1.500
[38.10]
1.600
[40.64]
1.700
[43.18]
1.800
[45.72]
1.900
[48.26]
2.000
[50.80]
2.100
[53.34]
2.200
[55.88]
3.200
[81.28]
4.300
[109.22]
D
.400
[10.16]
.500
[12.70]
.600
[15.24]
.700
[17.78]
.800
[20.32]
.900
[22.86]
1.000
[25.40]
1.100
[27.94]
1.200
[30.48]
1.300
[33.02]
1.400
[35.56]
1.500
[38.10]
1.600
[40.64]
1.700
[43.18]
1.800
[45.72]
1.900
[48.26]
2.000
[50.80]
2.100
[53.34]
3.100
[78.74]
4.200
[106.68]
Packaged in Tubes
Contact Plating/ Part Nos.
Plating A
Plating B
Plating C
5-147744-1 5-147743-1 5-147742-1
5-147744-2 5-147743-2 5-147742-2
5-147744-3 5-147743-3 5-147742-3
5-147744-4 5-147743-4 5-147742-4
5-147744-5 5-147743-5 5-147742-5
5-147744-6 5-147743-6 5-147742-6
5-147744-7 5-147743-7 5-147742-7
5-147744-8 5-147743-8 5-147742-8
5-147744-9 5-147743-9 5-147742-9
6-147744-0 6-147743-0 6-147742-0
6-147744-1 6-147743-1 6-147742-1
6-147744-2 6-147743-2 6-147742-2
6-147744-3 6-147743-3 6-147742-3
6-147744-4 6-147743-4 6-147742-4
6-147744-5 6-147743-5 6-147742-5
6-147744-6 6-147743-6 6-147742-6
6-147744-7 6-147743-7 6-147742-7
6-147744-8 6-147743-8 6-147742-8
7-147744-8 7-147743-8 7-147742-8
8-147744-8 8-147743-8 8-147742-8
Packaged in Tape & Reel
Contact Plating/ Part Nos.
Plating A
Plating B
Plating C
5-147724-1
5-147730-1 5-147731-1
5-147724-2
5-147730-2 5-147731-2
5-147724-3
5-147730-3 5-147731-3
5-147724-4
5-147730-4 5-147731-4
5-147724-5
5-147730-5 5-147731-5
5-147724-6
5-147730-6 5-147731-6
5-147724-7
5-147730-7 5-147731-7
5-147724-8
5-147730-8 5-147731-8
5-147724-9
5-147730-9 5-147731-9
6-147724-0
6-147730-0 6-147731-0
6-147724-1
6-147730-1 6-147731-1
6-147724-2
6-147730-2 6-147731-2
6-147724-3
6-147730-3 6-147731-3
6-147724-4
6-147730-4 6-147731-4
6-147724-5
6-147730-5 6-147731-5
6-147724-6
6-147730-6 6-147731-6
6-147724-7
6-147730-7 6-147731-7
6-147724-8
6-147730-8 6-147731-8
7-147724-8
7-147730-8 7-147731-8
8-147724-8
8-147730-8 8-147731-8
5
Notes:
1. Tyco Electronics recommends mating gold or duplex plated headers with duplex plated receptacle assemblies.
2. To obtain the minimum mating post length, add .020 [0.51] (not including the post lead in chamfer) to the maximum point-of-contact dimension, and
.062 [1.57] for recommended board thickness if used in bottom entry application
3. No center hold down.
Note:
All part numbers are RoHS compliant.
