Data Sheet
6.0 Amp MINIATURE
PLASTIC SILICON RECTIFIERS
Mechanical Dimensions
JEDEC
R6
.340
.360
.340
.360
1.00 Min.
FR6A01 . . . 07 Series
Description
.050 typ.
Features
n
LOW COST
n
LOW LEAKAGE
n
DIFFUSED JUNCTION
n
MEETS UL SPECIFICATION 94V-0
FR6A01 . . . 07 Series
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
T
A
= 60°C
(Note 3)
Non-Repetitive Peak Forward Surge Current...I
FSM
@ Rated Current & Temp
Operating & Storage Temperature Range...T
J
, T
STRG
Electrical Characteristics
Maximum Forward Voltage @ 6.0A...V
F
Maximum DC Reverse Current...I
R
@ Rated DC Blocking Voltage
Maximum Full Load Reverse Current...I
R
Typical Junction Capacitance...C
J
(Note 1)
Typical Thermal Resistance...R
θJA
(Note 2)
Page 9-16
@ 25°C
@100°C
............................................. 1.0 ...............................................
FR6A01 FR6A02 FR6A03 FR6A04 FR6A05 FR6A06 FR6A07
50
35
50
100
70
100
200
140
200
400
280
400
600
420
600
800
560
800
1000
700
1000
Units
Volts
Volts
Volts
Amps
Amps
°C
............................................. 6.0 ...............................................
............................................. 400 ...............................................
........................................ -65 to 175 .........................................
Volts
............................................. 1 0 ...............................................
µAmps
............................................. 100 ...............................................
µAmps
............................................. 5 0 ...............................................
µAmps
............................................. 100 ...............................................
............................................. 1 0 ...............................................
pF
°C
/ W
Data Sheet
6.0 Amp MINIATURE
PLASTIC SILICON RECTIFIERS

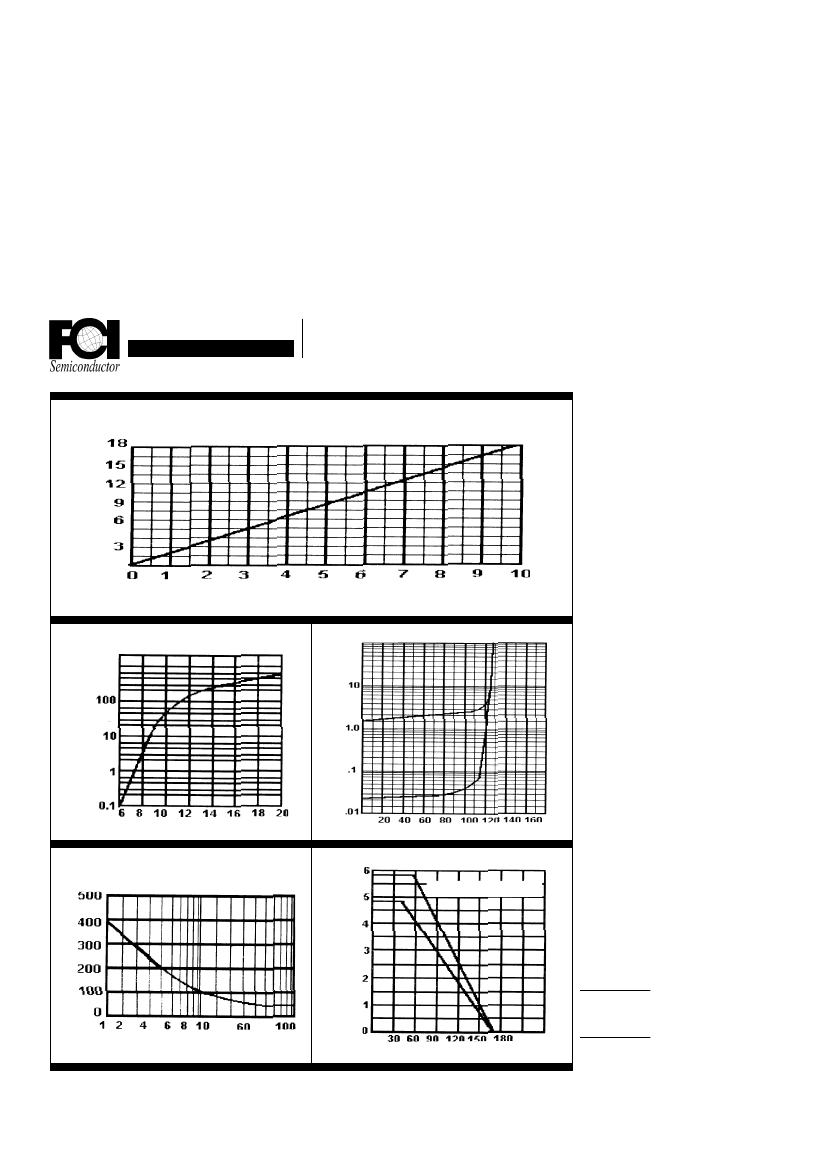

Typical Thermal Resistance vs. Lead Length
Thermal Resistance (
o
C/Watt)
Lead Length (Inches)
Typical Forward Characteristics
Typical Reverse Characteristics
Forward Voltage (V)
Maximim Non-Repetitive Surge
Current
Average Forward Current (A)
Reverse Current (µA)
µ
Forward Current (A)
Percent of Peak Reverse Voltage
Forward Current Derating Curve
LL = Variation to PC Board
Peak Forward Surge Current (A)
Ratings at
25 Deg. C ambient
temperature
unless otherwise
specified.
Single Phase Half
Wave, 60 Hz
Resistive or
Inductive Load.
Number of Cycles @ 60Hz
NOTES:
1. Measured @ 1 MHz and applied reverse voltage of 4.0V.
2. Thermal Resistance Junction to Ambient, Jedec Method.
3. .375", (9.5mm) lead lengths.
Ambient Temperature (°C)
°
For Capacitive
Load, Derate
Current by 20%.
Page 9-17
FR6A01 . . . 07 Series
