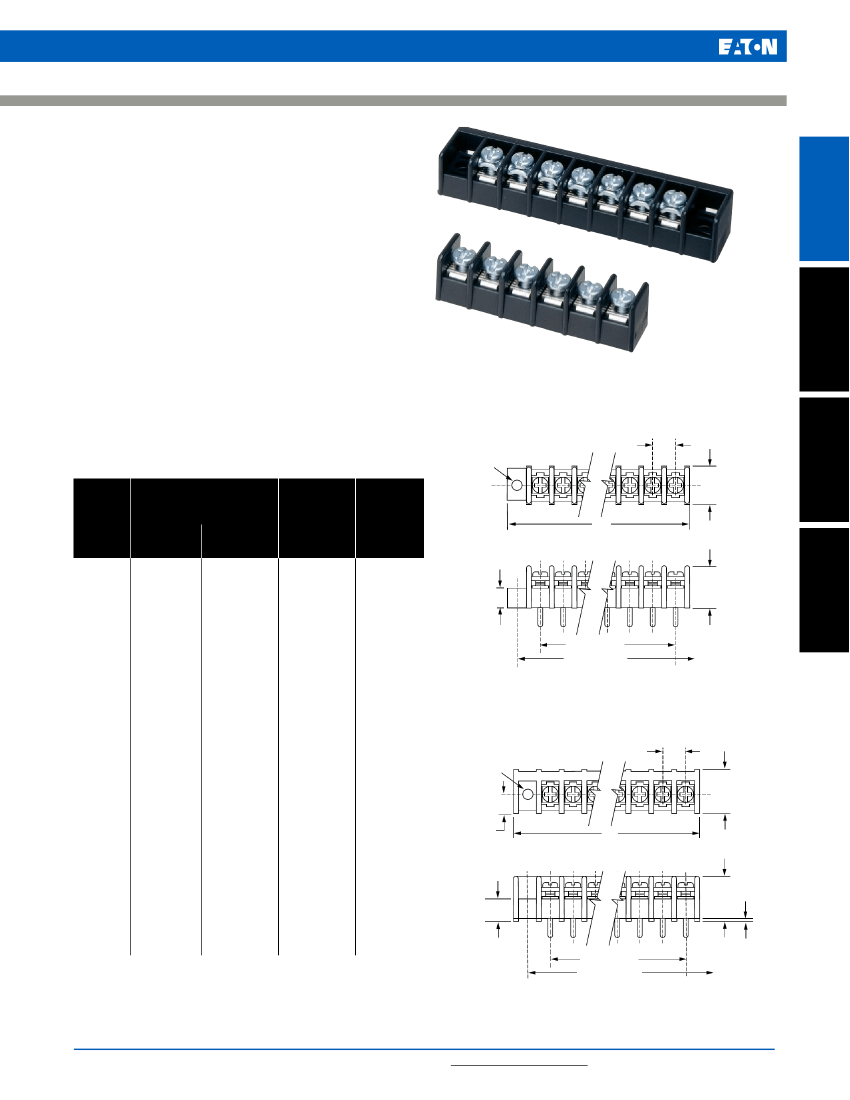

Terminal Blocks - Single Row
Series A1000 & Series CB1000
Single Row Terminal Blocks
SPECIFICATIONS
Rating:
20A, 250V*
Center Spacing:
0.325” (8.26mm)
Wire Range:
#14-22 AWG Cu
Screw Size:
#6-32 zinc-plated philslot wire-ready screws with a
#2 driving recess.
Torque Rating:
9 lb-in.
Base:
Standoffs are standard on CB1000 Series
for easy flux washing.
Distance Between Barriers:
0.26” (6.6mm)
Recommended PCB Hole Diameter:
0.070” (1.78mm)
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Molded Material:
Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage:
1600V
Agency Information:
UL/CSA; IEC Compliance;
CE Certified; UL File: E62622, CSA File: 15364
*General industrial applications
Terminal Blocks:
Single Row
CB10210707
EuroMag Series
A102206
Dimensions - in (mm)
A1000 Series
0.15
(3.8)
Ø
0.325
(8.26)
0.50
(12.7)
C
Mount End
Barrier End
Edge Connectors,
One-Sided Boards
Poles
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
MOUNTING
ENDS
ONLY
A
C
Mount Ctrs.
Length
0.98
1.30
1.63
1.95
2.28
2.60
2.93
3.25
3.58
3.90
4.23
4.55
4.88
5.20
5.53
5.85
6.18
6.50
6.83
7.15
7.48
7.80
8.13
8.45
8.78
9.10
9.43
9.75
10.08
10.40
10.73
11.05
11.38
–
–
1.37
1.69
2.02
2.34
2.67
2.99
3.32
3.64
3.97
4.29
4.62
4.94
5.27
5.59
5.92
6.24
6.57
6.89
7.22
7.54
7.87
8.19
8.52
8.84
9.17
9.49
9.82
10.14
10.47
10.79
11.12
11.44
11.77
–
–
BARRIER &
MOUNTING
ENDS
B
Pole Ctrs.
0.33
0.65
0.98
1.30
1.63
1.95
2.28
2.60
2.93
3.25
3.58
3.90
4.23
4.55
4.88
5.20
5.53
5.85
6.18
6.50
6.83
7.15
7.48
7.80
8.13
8.45
8.78
9.10
9.43
9.75
10.08
10.40
10.73
11.05
11.38
BARRIER
ENDS
ONLY
C
Length
0.72
1.04
1.37
1.69
2.02
2.34
2.67
2.99
3.32
3.64
3.97
4.29
4.62
4.94
5.27
5.59
5.92
6.24
6.57
6.89
7.22
7.54
7.87
8.19
8.52
8.84
9.17
9.49
9.82
10.14
10.47
10.79
11.12
11.44
11.77
Compliance
References
0.25
(6.4)
0.50
(12.7)
B
Pole Centers
A
Mount Centers
Mount End
Barrier End
CB1000 Series
0.15
(3.8)
Ø
0.325
(8.26)
0.60
(15.2)
C
0.25
(6.4)
Mount End
Barrier End
0.27
(6.9)
0.52
(13.2)
B
Pole Centers
A
Mount Centers
Mount End
Barrier End
0.025
(0.64)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
For additional product information, visit www.eaton.com/connectors
5
Terminal Blocks - Single Row
Part Numbering System
Terminal Blocks:
Single Row
Series
A1
- standard barrier
CB1
- closed back
A 1
nn
CB 1
nnn
Terminal Style
Base/End
Poles
Screw Options
Options
qq
02
- printed circuit
03*
- non feed-thru
04*
- wire wrap tail
07
- extended pin
q
1
- mount end
2**
- barrier end
qq
02
to
36
02
to
34
on mount
end base
qqqq
Blank - std. screws
03
- stainless steel
07
- steel SEMS &
washer (not
available with
hardware options)
CA***
- standard captive screw
qqq
DR
- angle mts. (A1 only-pg
7)
B1
to
B9
- 0.187” QC (all positions)
EB
- exit back terminals on CB1 w/07 screw
option only
L1
to
L6
marking options (pg
25)
LT1
to
LT6
marking options (CB1 only-pg
25)
MP
&
MT
- mounting plates 0.150 dia (pg
7)
R26
&
R45
- right angle bends (A1 only-pg
7)
†
JA, JB
&
JC
- barrier jumpers
EuroMag Series
Covers
- (pg
26)
*A1 only
**Not available with 03-non feed-thru terminal style
***Not compatible with 03-stainless steel screws
†Contact factory for configuration

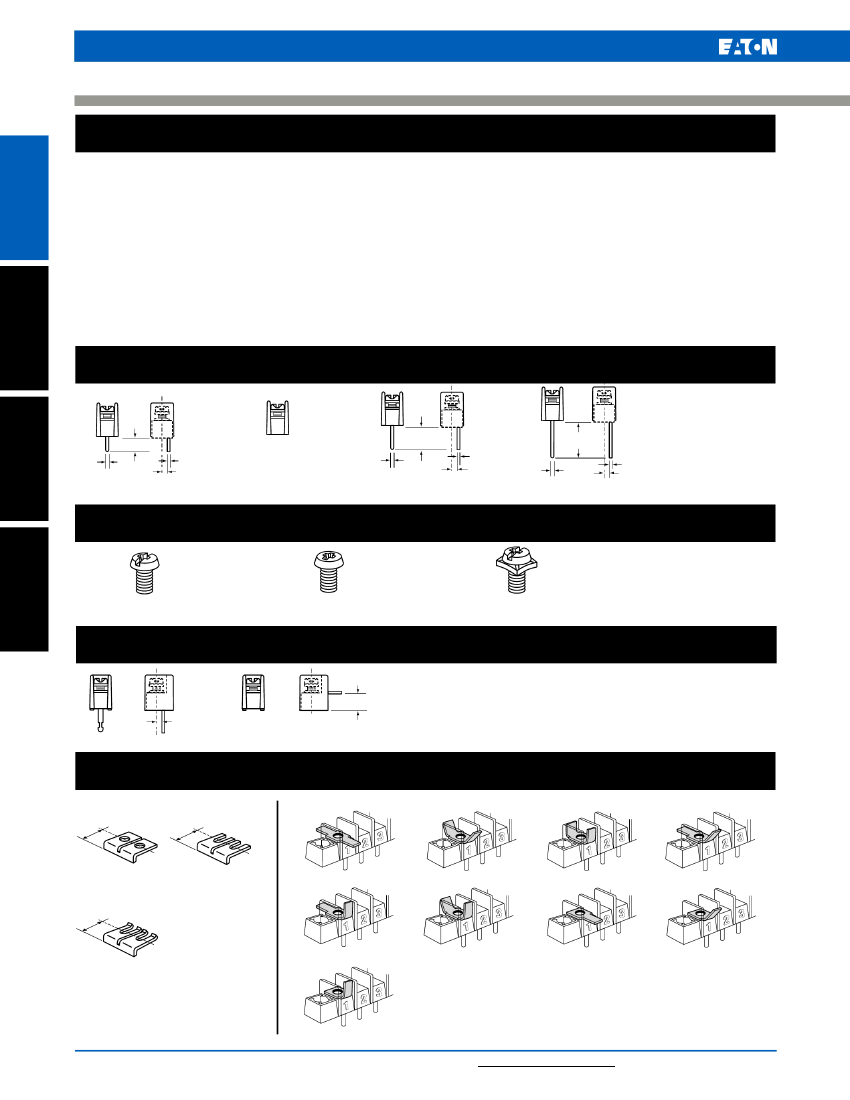

Terminal Styles
Inches (Millimeters)
Edge Connectors,
One-Sided Boards
0.16
(4.1)
0.055
(1.40)
0.032
(0.81)
0.055
(1.40)
0.35
(8.9)
0.032
(0.81)
0.14
(3.6)
0.055
(1.40)
0.54
(13.7)
0.032
(0.81)
0.14
(3.6)
0.14
(3.6)
02
Printed Circuit
03
Non Feed-Thru
04
Wire Wrap Tail
07
Extended Pin
Screw Options
Compliance
References
Wire ready screws standard on all terminal styles
(Bulk ordering part numbers are in parentheses)
Standard
Zinc-Plated Steel - (F508-J)
03
Stainless Steel - (F510-J)
07
Zinc-plated Steel Screws - (F522-J)
CB1 Terminal Exit Options
Inches (Millimeters)
0.275
(6.98)
0.12
(3.0)
Exit Rear (std.)
EB
Exit Back
(Bulk ordering part numbers are in parentheses)
Hardware Options
Jumpers
0.33 (8.4)
0.33 (8.4)
Inches (Millimeters)
Quick Connects
Blade Width B = 0.187”. (For other orientations, contact factory.)
JA (JA1-02)*
JB (JB1-02)*
B1 (1B1-J)**
B2 (1B2-J)**
B3 (1B3-J)**
B4 (1B4-J)**
0.33 (8.4)
B5 (1B5-J)**
JC (JC1-02)*
B6 (1B6-J)**
B7 (1B7-J)
B8 (1B8-J)
*Contact factory for configuration
B9 (1B9-J)
**N/A on CB1 Series
For additional product information, visit
www.eaton.com/connectors
6
Terminal Blocks - Single Row
Series A1000 & CB1000
Single Row Terminal Blocks
Continued
Mounting Options
Right Angle Bends (A1 only)
Right angle terminals are offered on the A1000 Series. Configurations are
defined in these dimensions: X = pin extension beyond the block base;
Z = length from block base to centerline of the terminal tip. Standard bends
consist of the X and Z dimensions shown in the chart. Specify by adding the
selected Bend Option Code to the terminal part number.
Terminal Blocks:
Single Row
Inches (Millimeters)
EuroMag Series
Z
Edge Connectors,
One-Sided Boards
X
Bend
Option
Code
R26
(04 terminal only)
R45
(07 terminal only)
Dimensions: in (mm)
X
Z
0.14 (3.5)
0.33 (8.4)
0.09 (2.3)
0.09 (2.3)
Compliance
References
Drilled Right Angle
(A1 only)
(Dimensions in inches)
0.12
5
0.32
0.144 HOLE
w/0.312 C' BORE
Option DR
Counterbored holes across mount ends of
block enable fastening with two screws at
right angles to normal mount position.
Mounting Plates
MOUNTING
PLATE
MP
MT
Options MP & MT
MP
Metal inserts with 0.150” (3.8) dia. hole
accept
#6 screw.
MT
Metal inserts with tapped hole
accept #6-32 screw.
Bulk part numbers
1MP-J
&
1MT-J.
For additional product information, visit
www.eaton.com/connectors
7
