RM6S/I-3C94 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> RM6S/I-3C94

Preview

RM6S/I-3C94: DescriptionRM CORES 2PC SET; CategoryPassive components; File Size79KB，2 Pages; ManufacturerFerroxcube; Websitehttp://www.ferroxcube.com/; Environmental Compliance

Download Datasheet Parametric View All

RM6S/I-3C94 Overview

RM CORES 2PC SET

RM6S/I-3C94 Parametric

Parameter Name	Attribute value
Kernel type	RM
Tolerance	±25%
gap	No notch
Effective magnetic permeability (µe)	1360
Material	3C94
Magnetic core factor (ΣI/A) mm-1	.784
Effective length (e) mm	29.2
Effective area (Ae) mm²	37
Minimum core cross section (Amin) mm²	31.2
Effective magnet volume (Ve) mm³	1090
surface	Uncoated
Supplier device packaging	RM 6
high	12.40mm
length	17.90mm
width	8.20mm
diameter	-

Preview

Download Datasheet

View All

Product specifications

Core

RM6S/I

Effective parameters

Symbol

∑(I/A)

Ve

Le

Ae

Amin

m

Parameter

core factor (C1)

effective volume

effective length

effective area

minimum area

RM6S/I

Value

0.784

1090

29.2

37

31.2

≈ 5.5

Unit

mm⁻¹

mm³

mm

mm²

g/set

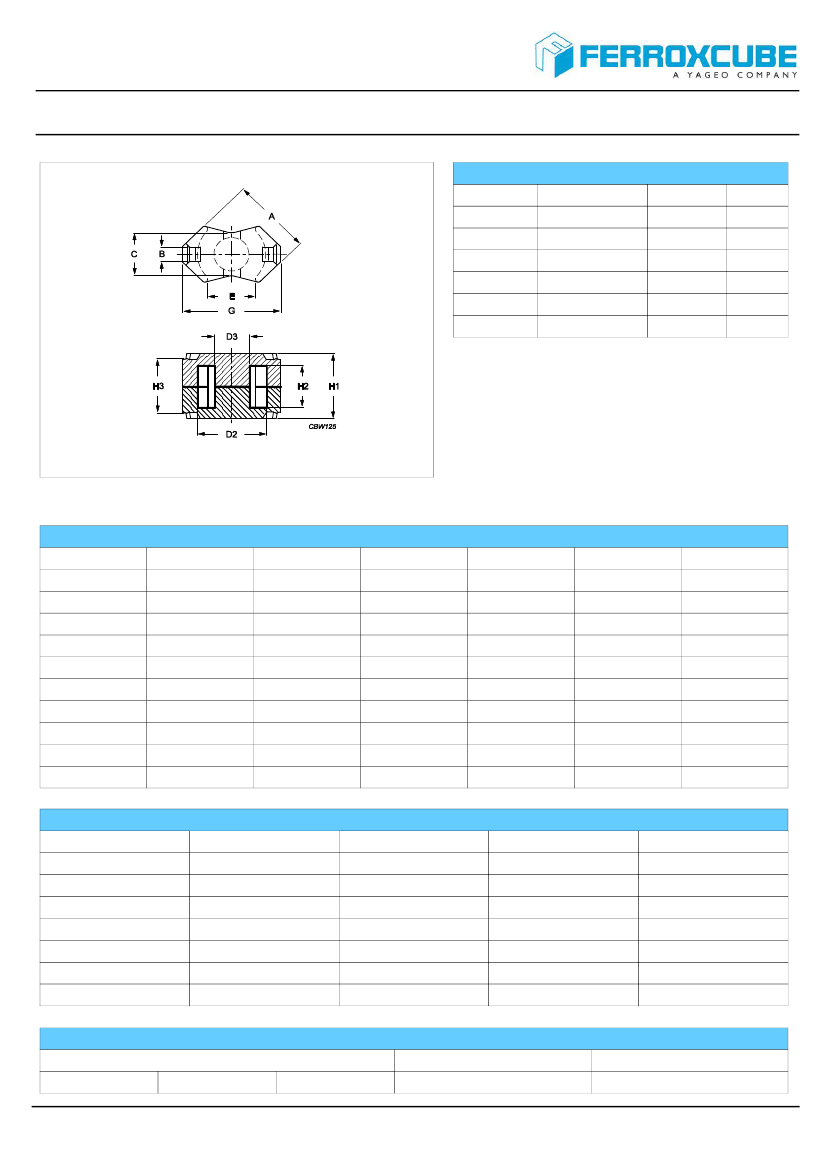

Dimensions for product: RM6S/I

Symbol

A

B

C

D2

D3

E

G

H1

H2

H3

17.90

12.40

8.00

10.35

0.00

0.10

0.40

0.25

0.70

0.10

0.00

0.25

17.90

12.50

8.40

10.60

Nom

14.70

2.90

8.20

12.40

6.40

Tol +

0.00

0.10

0.00

0.50

0.00

Tol -

0.60

0.10

0.40

0.00

0.20

Max

14.70

3.00

8.20

12.90

6.40

Min

14.10

2.80

7.80

12.40

6.20

8.40

17.20

12.30

8.00

10.10

Unit

mm

Inductance factor

Material

3C94

3C95

3C96

3D3

3F36

3F46

3H3

Value

2600

3000

2350

1050

1700

1100

2350

Tol +

25%

Tol -

25%

Unit

nH/turns²

Power loss: 3C94

Measuring conditions

100 kHz

200 mT

100 ºC

Max

0.540

Unit

W/set

2016

Recommended Resources

UHF ultra high frequency motion detector circuit diagram

programmable amplifier circuit

Electronic thermometer

AD594/595 type galvanic amplifier circuit

Welding machine no-load automatic stop circuit

Monostable circuit using operational amplifier
