FLE-140-01-G-DV-A-TR: Description.050 MICRO STRIPS; CategoryThe connector The connector; File Size709KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FLE-140-01-G-DV-A-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FLE-140-01-G-DV-A-TR	-	-	View	Buy Now

FLE-140-01-G-DV-A-TR Overview

.050 MICRO STRIPS

FLE-140-01-G-DV-A-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	TAPE&REEL PKG
Board mount options	LOCATING POSTS
body width	0.131 inch
subject depth	0.172 inch
body length	2.005 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Durability	100 Cycles
maximum insertion force	.417 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	10u inch
Rated current (signal)	1.8 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
Evacuation force-minimum value	.417 N
Base Number Matches	1

Preview

Download Datasheet

View All

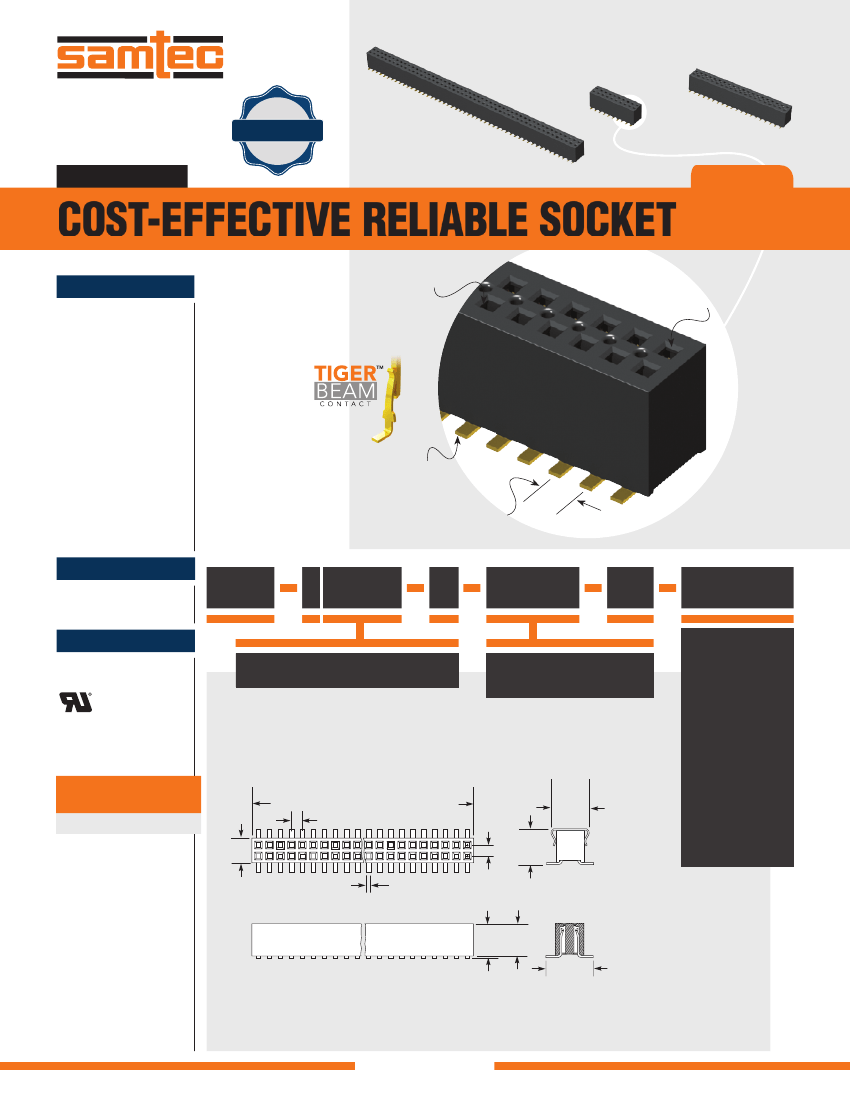

F-219

FLE–110–01–G–DV

10 YEAR MFG

WITH 30 µ" GOLD

EXTENDED LIFE

PRODUCT

HIGH MATING

CYCLES

FLE–120–01–G–DV

FLE–150–01–G–DV

(1.27 mm) .050"

FLE SERIES

COST-EFFECTIVE RELIABLE SOCKET

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?FLE

Insulator Material:

Black Liquid

Crystal Polymer

Contact Material:

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni

Current Rating:

2.9 A per pin

(2 pins powered)

Operating Temp Range:

-55 °C to +125 °C

Insertion Depth:

(1.83 mm) .072" to

(4.37 mm) .172" or

pass-through

Normal Force:

100 grams (0.98 N)

Max Cycles:

100+

RoHS Compliant:

Yes

Board Mates:

FTSH, FTS, FW

Cable Mates:

FFMD

*

, FMTP

Tiger Beam

™

contact

Ideal for

pass-through

applications

Surface

mount

*

Note:

Standard FFMD callout

Available with optional

pick & place pads

(1.27 mm) .050"

micro pitch

will not mate with FLE, SFMC.

Must use gold plated callouts.

(See drawing on web.)

PROCESSING

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

FLE

1

NO. PINS

PER ROW

01

PLATING

OPTION

DV

OPTIONS

RECOGNITIONS

For complete scope

of recognitions see

www.samtec.com/quality

02 thru 50

= 10 µ" (0.25 µm) Gold

–G

= Alignment Pin

(Metal or plastic at

Samtec discretion)

(3 positions minimum)

–A

FILE NO. E111594

= (4.25 mm) .167" DIA

Polyimide film

Pick & Place Pad

(5 positions minimum)

–K

ALSO AVAILABLE

(MOQ Required)

• Other platings

(3.33)

.131

(0.51)

.020

No. of Positions x (1.27) .050 + (0.11) .0045

(1.27)

.050

(1.27)

.050

(4.74)

.187

(6.35)

.250

x

(4.17)

.164

= Metal Pick &

Place Pad

(5 positions minimum)

–P

= Tape & Reel

–TR

–P OPTION

(4.55) (4.36)

.179 .172

(4.60)

.181

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
