A008-L33-01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> A008-L33-01

Preview

A008-L33-01: DescriptionBlindmate Connector, Male, Board Mount, Solder Terminal,; CategoryThe connector; File Size77KB，1 Pages; ManufacturerCorning Cable Systems; Environmental Compliance

Download Datasheet Parametric Compare View All

A008-L33-01 Overview

Blindmate Connector, Male, Board Mount, Solder Terminal,

A008-L33-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Corning Cable Systems
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	GPO
Characteristic impedance	50 Ω
Connector type	BLINDMATE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SLIDE ON
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PTFE
MIL compliance	NO
Installation method	STRAIGHT
Installation type	BOARD
Maximum operating frequency	40 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

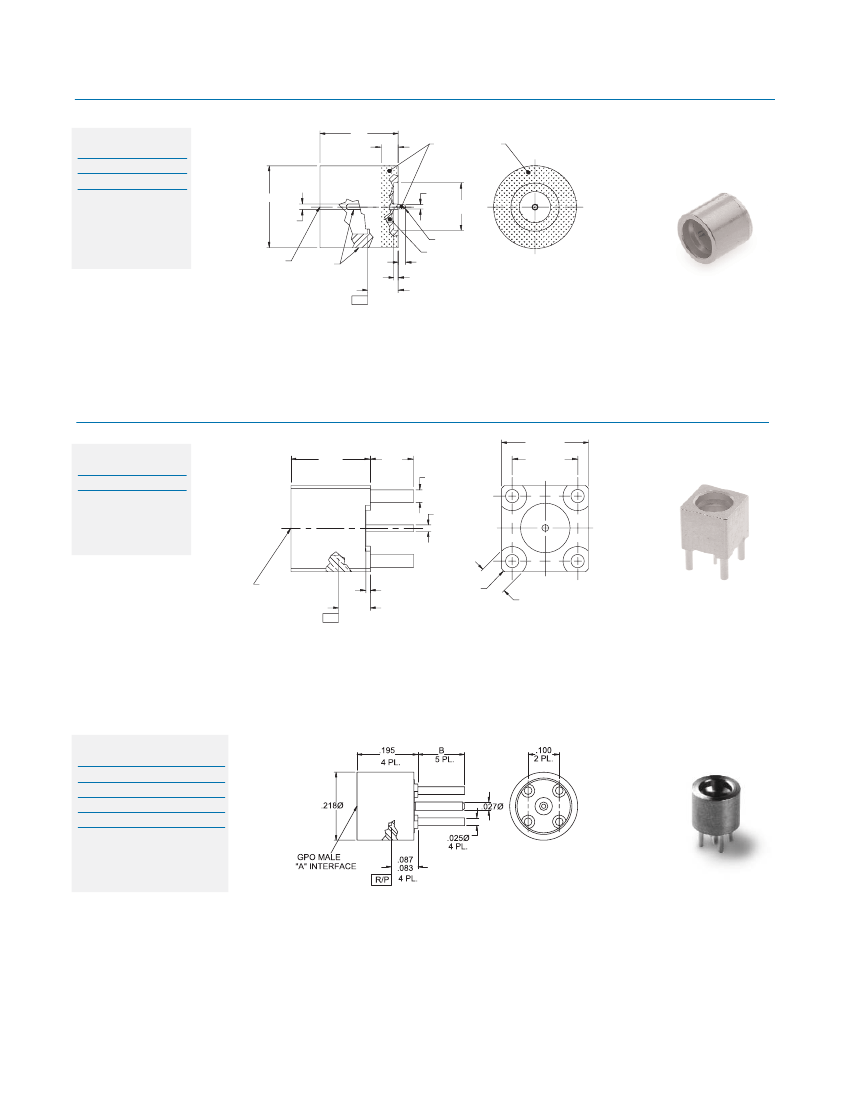

GPO Hermetic Shrouds

Catalog Number

0119-248-1-FD-T

0119-248-1-LD-T

0119-248-1-SB-T

0119-248-1-CM-T

VSWR (TYP)

1.25:1 to 18 GHz

1.35:1 to 26.5 GHz

A

FD

LD

SB

CM

.180

.059

.019

SOLDER DIP USING

SN63 PB37

.190Ø

.012Ø

.112Ø

.108Ø

.016Ø

.014Ø

FULL RAD.

7070 GLASS

.020

.014

.011

.009

R/P

.071

.069

GPO MALE

"A" INTERFACE

KOVAR

Male Solder-in Hermetic Shroud With

Tin Solder Dipping

GPO PCB Mounts

.200 SQ.

Catalog Number

A008-L13-03

A008-L14-03

A008-L15-03

VSWR (TYP)

1.30:1 to 20 GHz

A

FD

LD

SB

.182

4 PL.

.100

5 PL.

.030Ø

4 LEGS

.150 SQ.

.015Ø

GPO MALE

"A" INTERFACE

.074

.070

4 PL.

.010

4 PL.

R/P

.272Ø

ACROSS

CORNERS

.068Ø

4 PADS

Male Straight to PCB

Catalog Number

A008-L33-01

A008-L34-01

A008-L35-01

A008-L33-02

A008-L34-02

A008-L35-02

VSWR (TYP)

1.30:1 to 20 GHz

A

FD

LD

SB

FD

LD

SB

B

.100

.140

Male PCB 4 Leg

Thru Mount Cap Center Conductor

Corning Gilbert, Inc. Microwave Push-on Interconnects

13

A008-L33-01 Related Products

	A008-L33-01	A008-L35-01
Description	Blindmate Connector, Male, Board Mount, Solder Terminal,	Blindmate Connector, Male, Board Mount, Solder Terminal,
Is it Rohs certified?	conform to	conform to
Maker	Corning Cable Systems	Corning Cable Systems
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Other features	GPO	GPO
Characteristic impedance	50 Ω	50 Ω
Connector type	BLINDMATE CONNECTOR	BLINDMATE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Coupling type	SLIDE ON	SLIDE ON
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PTFE	PTFE
MIL compliance	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	40 GHz	40 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.5	1.5
Base Number Matches	1	1
