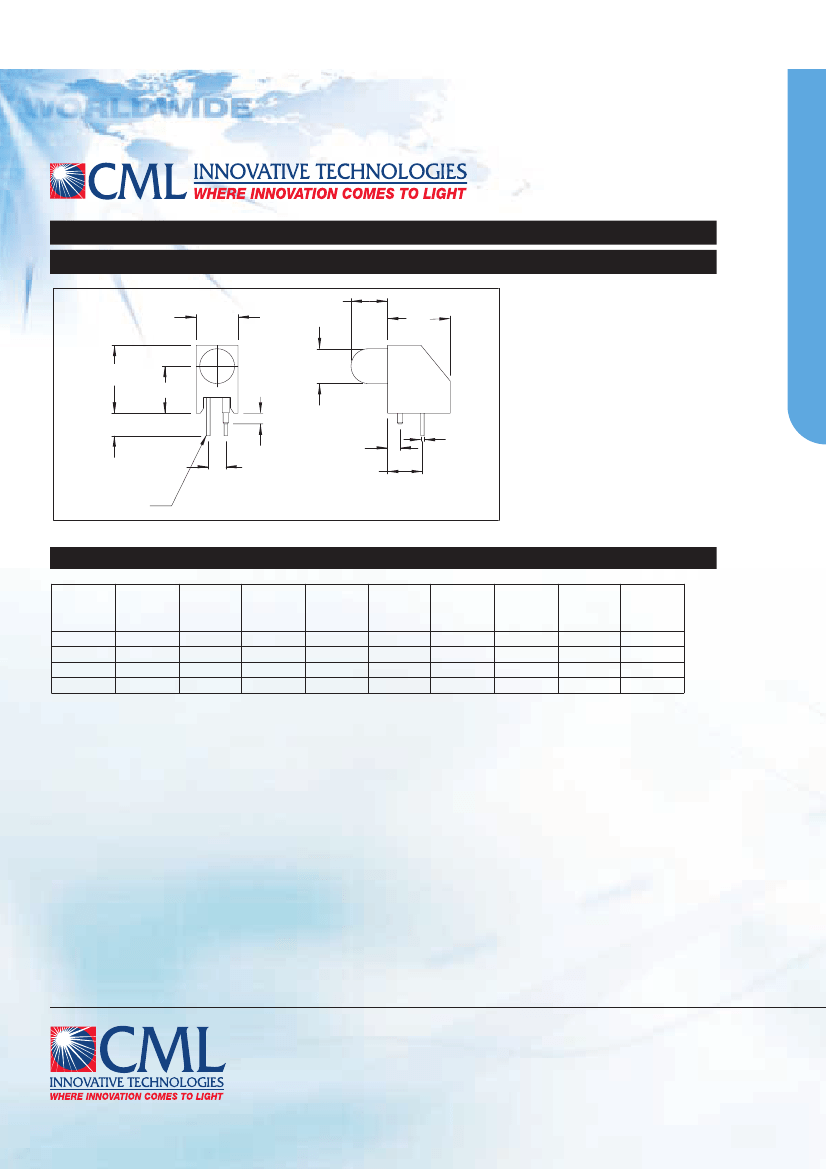

5338 Series T-1 3/4 Right Angle LED Assembly

DESCRIPTION AND FEATURES

.215±.020

.275

.360

.380

.250

.070

.200

MAX.

Features

• Block mounting, height and spacing

alignment saves assembly cost and

time.

• Super Brite LEDs-high intensity light

output.

• Press-in pin secures block to board

for soldering.

• Standoffs prevent flux entrapment.

Housing: Black Nylon, UL94V-O

.120

.130

.100

.230

.020

S Q.

Alternate LEDs are also available in

this package as a standard variation.

Mounting hole pattern on page 1-X6.

ANODE (+)

All dimens ions in inches .

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

Typ.

Intensity

(mcd)

6.3

Part

Number

5338H1

5338H3

5338H5

5338H7

Color

Red

Amber

Green

Yellow

Rated

Current

(mA)

Continuous

Forward

Peak Forward

Forward

Voltage Typ. Voltage Max.

Current @ 1ms-

Current Max.

(V)

300pps (A)

(mA)

1.0

2.0

3.0

2.0

2.2

2.1

3.0

1.0

.09

1.0

Reverse

Break-down

Voltage Min.

(V)

Peak

Wavelength

(nm)

650

608

563

585

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product
