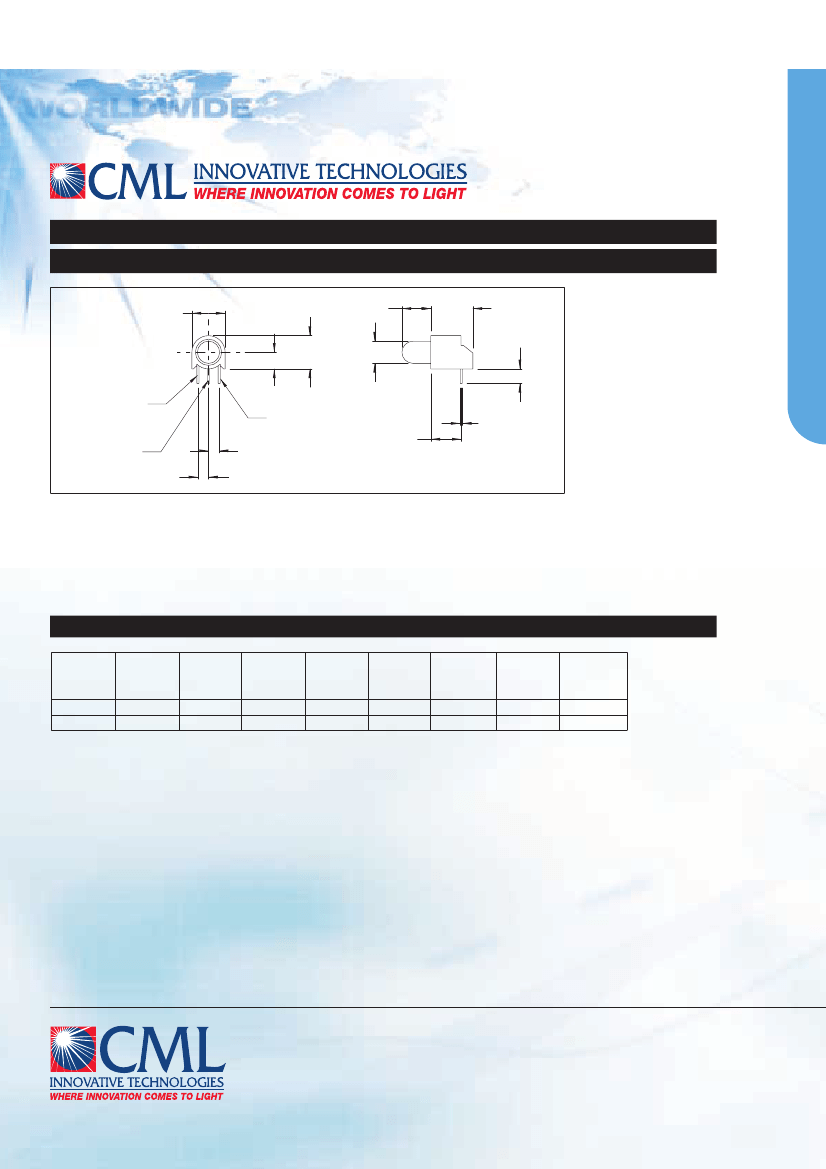

5305 Series T-1 3/4 Tricolor Right Angle LED Assembly
DESCRIPTION AND FEATURES
.300
.260
.380
.130 MIN.
.300
.200
.150
ANODE (+)
RED/AMBER
ANODE (+)
GREEN
.300
.100
.100
All dimens ions in inches .
.
.020 S Q
C AT HODE
C OMMON
Features
• Block mounting, height and spacing
alignment saves assembly cost and
time.
• Super Brite LEDs-high intensity light
output
• Press-in pin secures block to board
for soldering.
• Press-in pin secures block to board
for soldering.
• Standoffs prevent flux entrapment.
Housing: Black Nylon, UL94V-O
Alternate LEDs are also available in
this package as a standard variation.
ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS
Typ.
Intensity
(mcd)
6.3/10
5.0/5.0
Part
Number
5305H1/5
5305H3/5
Color
Red/Green
Amber/Green
Rated
Current
(mA)
10
10
Continuous
Forward
Forward
Forward
Current Max.
Voltage Typ. Voltage Max.
(V)
(V)
(mA)
60
2.1
2.8
20
2.1
2.8
Reverse
Break-down
Voltage Min.
(V)
4
4
Peak
Wavelength
(nm)
650(R)/565(G)
610(A)/565(G)
America:
CML Innovative Technologies,Inc.
147 Central Avenue
Hackensack -NJ 07601 -USA
Tel:1-201-489 -8989
Fax:1-201-489 -6911
e-mail:americas@cml-it.com
Europe:
CML Technologies GmbH &Co.KG
Robert-Bunsen-Str.1
67098 Bad Dürkheim -GERMANY
Tel:+49 (0)6322 9567-0
Fax:+49 (0)6322 9567-88
e-mail:europe@cml-it.com
Asia:
CML Innovative Technologies,Inc.
61 Aida Street
Singapore 459975
Tel:(65)9630 -5003
e-mail:asia@cml-it.com
CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product
