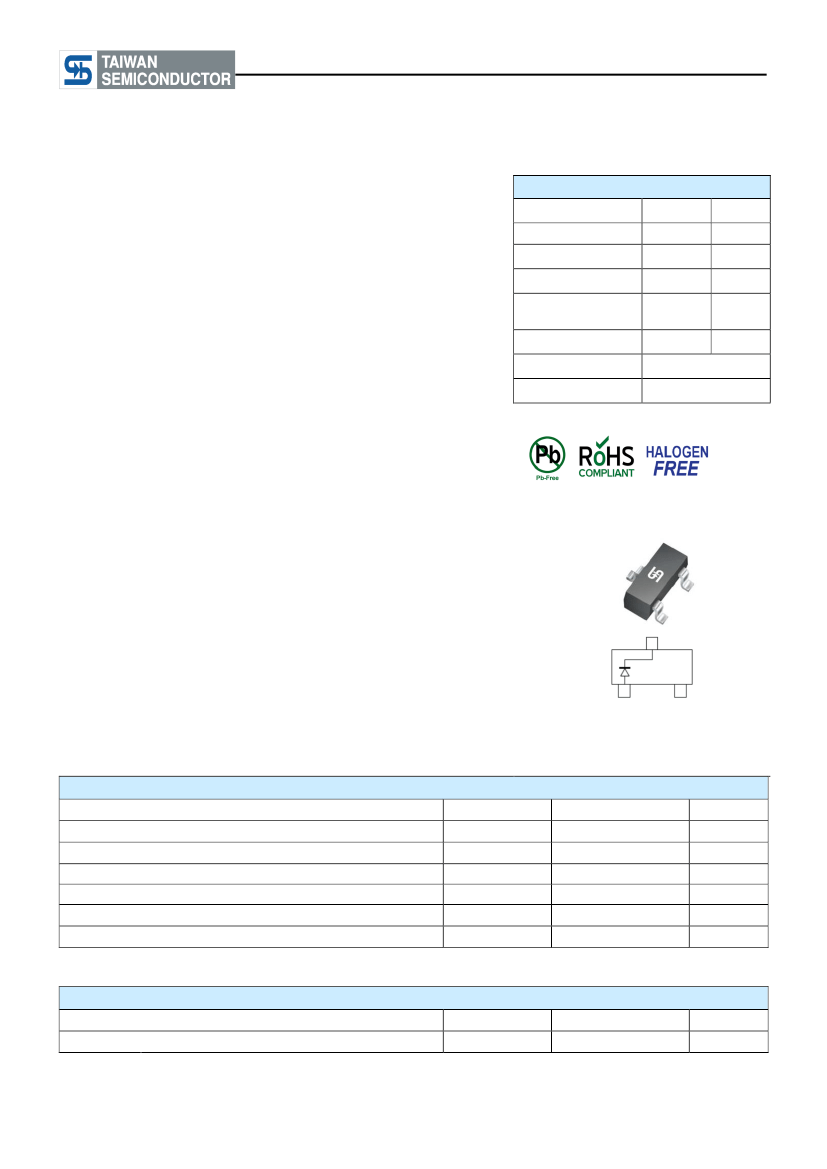

BAS16
Taiwan Semiconductor
150mA, 75V Switching Diode
FEATURES
●
●
●
●
Low power loss, high efficiency
Ideal for automated placement
High surge current capability
Compliant to RoHS directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
● Halogen-free according to IEC 61249-2-21
KEY PARAMETERS
PARAMETER
I
F(AV)
V
RRM
I
FSM
V
F
at I
F
=100mA
T
J MAX
Package
Configuration
VALUE
150
75
2
1.0
150
SOT-23
Single dice
UNIT
mA
V
A
V
°C
APPLICATIONS
● Switching mode power supply (SMPS)
MECHANICAL DATA
● Case: SOT-23
● Molding compound: UL flammability classification
rating 94V-0
● Moisture sensitivity level: level 1, per J-STD-020
● Packing code with suffix "G" means green compound
(halogen-free)
● Terminal: Matte tin plated leads, solderable per J-STD-002
● Meet JESD 201 class 1A whisker test
● Weight: 8± 0.5 mg (approximately)
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise noted)
PARAMETER
Marking code on the device
Repetitive peak reverse voltage
Forward current
Non-repetitive peak forward surge current @ t = 0.001 s
Junction temperature range
Storage temperature range
SYMBOL
V
RRM
I
F(AV)
I
FSM
T
J
T
STG
PART NUMBER
A6
75
150
2
-65 to +150
-65 to +150
V
mA
A
°C
°C
UNIT
THERMAL PERFORMANCE
PARAMETER
Junction-to-ambient thermal resistance
SYMBOL
R
ӨJA
LIMIT
375
UNIT
°C/W
1
Version:E1612
BAS16
Taiwan Semiconductor
ELECTRICAL SPECIFICATIONS
(T
A
= 25°C unless otherwise noted)
PARAMETER
CONDITIONS
I
F
= 1.0mA, T
J
= 25°C
Forward voltage per diode
(1)
SYMBOL
TYP
MAX
0.715
0.855
1.000
1.250
UNIT
I
F
= 10mA, T
J
= 25°C
I
F
= 50mA, T
J
= 25°C
I
F
= 150mA, T
J
= 25°C
V
F
--
V
Reverse current @ rated V
R
per diode
(2)
V
R
=75V T
J
= 25°C
1 MHz, V
R
=0V
I
F
=10mA, I
R
= 60mA,
I
RR
= 10%I
R
,R
L
=100Ω
I
R
C
J
T
rr
--
--
1
2
4
μA
ρF
ns
Junction capacitance
Reverse recovery time
Notes:
1. Pulse test with PW=0.3 ms
2. Pulse test with PW=30 ms
ORDERING INFORMATION
PART NO.
PACKING
CODE
RF
BAS16
R5
Notes:
*: optional available
G
SOT-23
10K / 13" Reel
PACKING CODE
SUFFIX(*)
PACKAGE
PACKING
3K / 7" Reel
EXAMPLE
EXAMPLE P/N
BAS16 RFG
PART NO.
BAS16
PACKING CODE
RF
PACKING CODE
SUFFIX
G
DESCRIPTION
Green compound
2
Version:E1612
BAS16
Taiwan Semiconductor
CHARACTERISTICS CURVES
(T
A
= 25°C unless otherwise noted)
Fig.1 Typical Forward Characteristics
100
Instantaneous Forward Current (mA)
1000
Fig.2 Reverse Current VS. Reverse Voltage
Reverse Current (uA)
10
100
1
10
0.1
0.01
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
Instantaneous Forward Voltage (V)
1
0
20
40
60
80
100
120
Reverse Voltage (V)
Fig.3 Admissible Power Dissipation Curve
300
250
200
150
100
50
0
0
25
50
75
100
125
150
175
Ambient Temperature (
o
C)
Junction Capacitance (pF)
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0
Fig.4 Typical Junction Capacitance
Power Dissipation (mW)
8
16
24
32
40
Reverse Voltage (V)
3
Version:E1612
BAS16
Taiwan Semiconductor

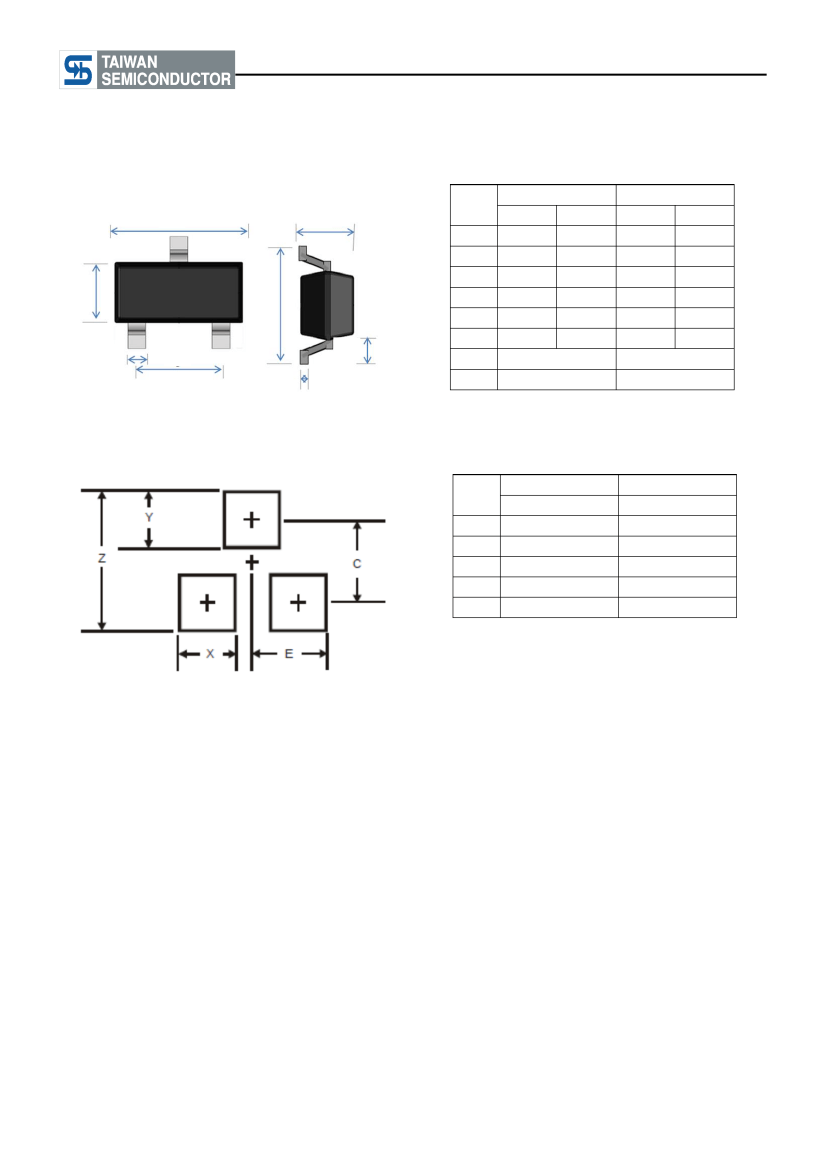

PACKAGE OUTLINE DIMENSION
SOT-23
DIM.
Unit(mm)
Min
2.70
1.10
0.30
1.78
2.10
0.89
Max
3.10
1.50
0.51
2.04
2.64
1.30
Unit(inch)
Min
0.106
0.043
0.012
0.070
0.083
0.035
Max
0.122
0.059
0.020
0.080
0.104
0.051
A
F
A
B
C
B
E
D
E
F
C
D
H
G
G
H
0.55 REF
0.10 REF
0.022 REF
0.004 REF
DIM.
Z
X
Y
C
E
Unit(mm)
Typ.
2.80
0.70
0.90
1.90
1.00
Unit(inch)
Typ.
0.110
0.028
0.035
0.075
0.039
4
Version:E1612
BAS16
Taiwan Semiconductor
