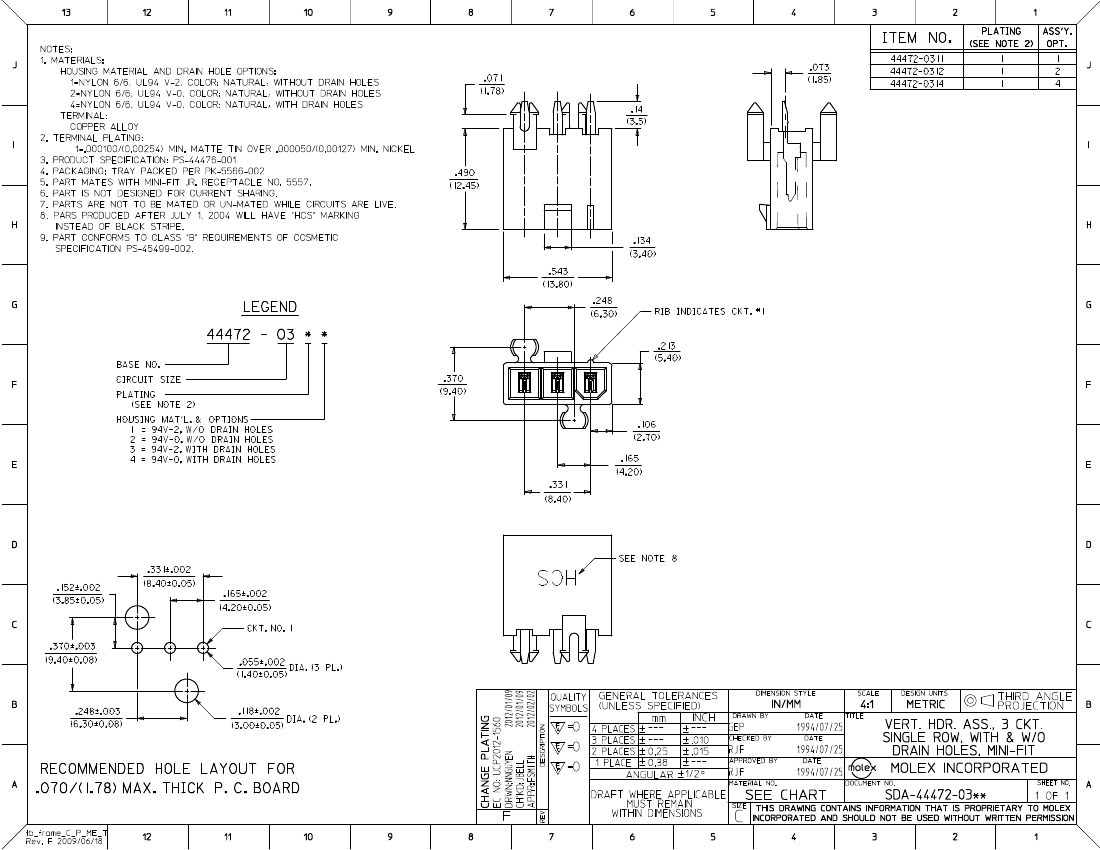

Preview

0444720311: DescriptionMINIFIT HCS SR V/PEGS V-2 3CKT; CategoryThe connector; File Size95KB，1 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0444720311 Overview

MINIFIT HCS SR V/PEGS V-2 3CKT

0444720311 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.165"（4.20mm）
Number of pins	3
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole
Termination	welding
Fastening type	Lock pin slide
Contact Length - Mating	-
Contact length - terminal	0.138"（3.50mm）
Overall contact length	-
Insulation height	0.490"（12.44mm）
Contact shape	Square
Contact surface treatment - mating	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin
Contact material	copper alloy
Insulation Materials	Polyamide (PA66), Nylon 66
characteristic	plate lock
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-2
Insulation color	natural
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）
application	Automotive, general, industrial, medical, telecommunications

Preview

Download Datasheet

View All

0444720311 Related Products

	0444720311	0444720312	0444720314
Description	MINIFIT HCS SR V/PEGS V-2 3CKT	MINIFIT HCS SR V/PEGS V-0 3CKT	MINIFIT HCS SR VERT V-0 3CKT
Connector type	Connector	Connector	Connector
Contact type	Male pin	Male pin	Male pin
Spacing - Mating	0.165"（4.20mm）	0.165"（4.20mm）	0.165"（4.20mm）
Number of pins	3	3	3
Number of rows	1	1	1
Number of pins loaded	all	all	all
style	Board to cable/wire	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls
Installation type	Through hole	Through hole	Through hole
Termination	welding	welding	welding
Fastening type	Lock pin slide	Lock pin slide	Lock pin slide
Contact length - terminal	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）
Insulation height	0.490"（12.44mm）	0.490"（12.44mm）	0.490"（12.44mm）
Contact shape	Square	Square	Square
Contact surface treatment - mating	tin	tin	tin
Contact Surface Treatment Thickness - Mating	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）
Contact Surface Preparation - Column	tin	tin	tin
Contact material	copper alloy	copper alloy	copper alloy
Insulation Materials	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66	Polyamide (PA66), Nylon 66
characteristic	plate lock	plate lock	plate lock
Material flammability rating	UL94 V-2	UL94 V-0	UL94 V-0
Insulation color	natural	natural	natural
Contact Surface Treatment Thickness - Column	100.0µin（2.54µm）	100.0µin（2.54µm）	100.0µin（2.54µm）
application	Automotive, general, industrial, medical, telecommunications	Automotive, general, industrial, medical, telecommunications	Automotive, general, industrial, medical, telecommunications
