HM2P07PDU1H0N9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> HM2P07PDU1H0N9

HM2P07PDU1H0N9: DescriptionMPAC 5R ST PF HDR; CategoryThe connector; File Size129KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM2P07PDU1H0N9 Overview

MPAC 5R ST PF HDR

HM2P07PDU1H0N9 Parametric

Parameter Name	Attribute value
Connector type	Connector, male pin
Connector style	A 22
Number of pins	110
Number of pins loaded	all
spacing	0.079"（2.00mm）
Number of rows	5
Installation type	Through hole
Termination	Press fit
Connector usage	-
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
Rated current	1.5A
Rated voltage	750Vrms
Operating temperature	-55°C ~ 125°C
characteristic	board guide

Preview

Download Datasheet

View All

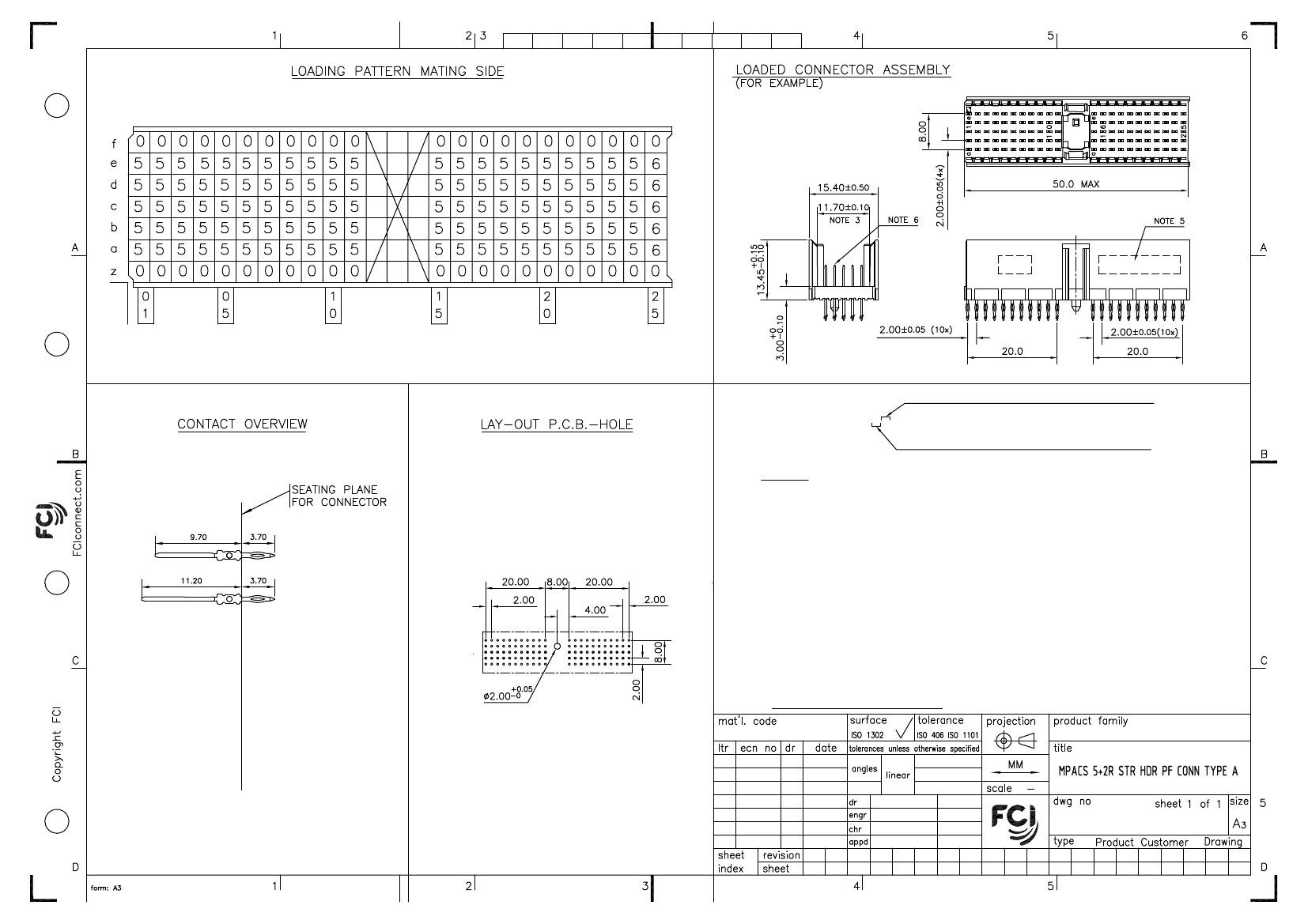

HM2P07PDU1H0----

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

CATALOG NO: HM2P07PDU1H0----

SEE NOTE 4

I03-0021

I05-0171

I06-0077

JAY 06/06/2003

MINI 28/09/2005

MINI 21/06/2006

0°±1°

BIJU K PAUL

.0±0.2

.00±0.1

.000±.00X

MINI K VANDANATH 05/06/2003

05/06/2003

21/06/2006

MILLIPACS

BS, C ,203028, 036

PDM: Rev:C

STATUS:

Released

Printed: Dec 03, 2007

HM2P07PDU1H0N9 Related Products

	HM2P07PDU1H0N9	HM2P07PDU1H0E9	HM2P07PDU1H0E9LF
Description	MPAC 5R ST PF HDR	MPAC 5R ST PF HDR	MPAC 5R ST PF HDR
Connector type	Connector, male pin	Connector, male pin	Connector, male pin
Connector style	A 22	A 22	A 22
Number of pins	110	110	110
Number of pins loaded	all	all	all
spacing	0.079"（2.00mm）	0.079"（2.00mm）	0.079"（2.00mm）
Number of rows	5	5	5
Installation type	Through hole	Through hole	Through hole
Termination	Press fit	Press fit	Press fit
Contact plating	gold	gold	gold
Contact plating thickness	30.0µin（0.76µm）	39.4µin（1.00µm）	39.4µin（1.00µm）
Rated current	1.5A	1.5A	1.5A
Rated voltage	750Vrms	750Vrms	750Vrms
Operating temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
characteristic	board guide	board guide	board guide
