HM2P08PKP1G1GF: DescriptionMPAC 5R ST PF HDR; CategoryThe connector; File Size108KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM2P08PKP1G1GF Overview

MPAC 5R ST PF HDR

HM2P08PKP1G1GF Parametric

Parameter Name	Attribute value
Connector type	Connector, male pin
Connector style	B 25
Number of pins	175 (125 + 50 ground)
Number of pins loaded	all
spacing	0.079"（2.00mm）
Number of rows	5 + 2
Installation type	Through hole
Termination	Press fit
Connector usage	-
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
Rated current	1.5A
Rated voltage	750Vrms
Operating temperature	-55°C ~ 125°C
characteristic	-

Preview

Download Datasheet

View All

1 e

P

O

S

HM2P08PKP1G1----

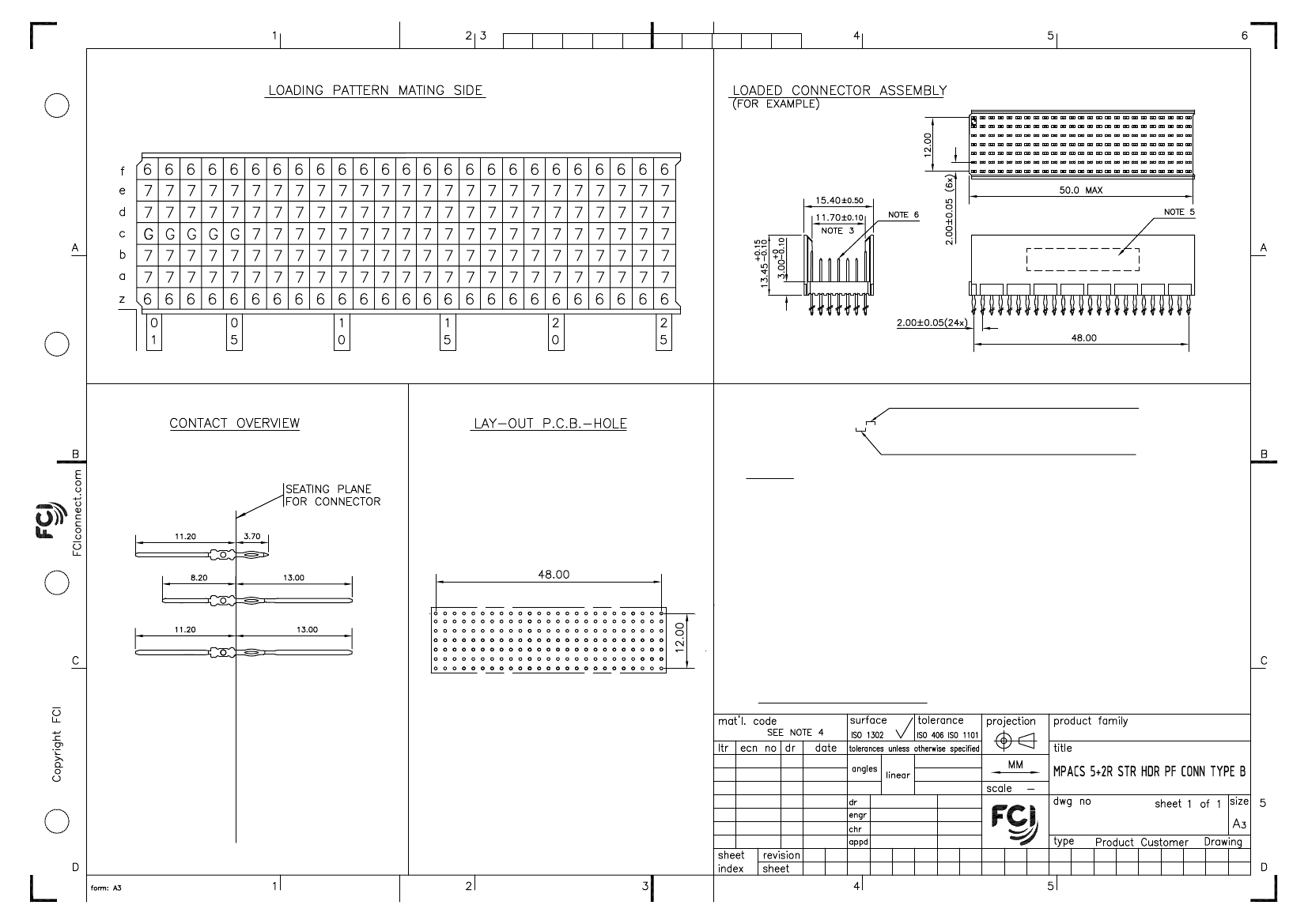

NOTES

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

(REF DRW NO. BS,C , 201844 , 003)

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

6

7

G

CATALOG NO: HM2P08PKP1G1----

a

MILLIPACS

A

B

I05-0266

I06-0141

MINI

2005-12-05

2006-08-05

0°±1°

MINI K VANDANATH 2005-12-05

BIJU K PAUL

B

1

2005-12-05

2006-08-05

.0±0.2

.00±0.1

BS, C ,203028,643

6

PDM: Rev:B

STATUS:

Released

Printed: Dec 04, 2007

.

2 5

HM2P08PKP1G1GF Related Products

	HM2P08PKP1G1GF	HM2P08PKPIG1GC	HM2P08PKPIG1GCLF	HM2P08PKPIG1GF	HM2P08PKPIG1GFLF	HM2P08PKPIG1GL	HM2P08PKPIG1GLLF	HM2P08PKP1G1GFLF
Description	MPAC 5R ST PF HDR	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 175 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	MPAC 5R ST PF HDR
Connector type	Connector, male pin	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	Connector, male pin
Installation type	Through hole	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	Through hole
Maker	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	-
Reach Compliance Code	-	compliant	compliant	compliant	compliant	compliant	compliant	-
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Contact completed and terminated	-	TIN LEAD	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD	MATTE TIN	-
Contact point gender	-	MALE	MALE	MALE	MALE	MALE	MALE	-
DIN compliance	-	NO	NO	NO	NO	NO	NO	-
Filter function	-	NO	NO	NO	NO	NO	NO	-
IEC compliance	-	NO	NO	NO	NO	NO	NO	-
JESD-609 code	-	e0	e3	e0	e3	e0	e3	-
MIL compliance	-	NO	NO	NO	NO	NO	NO	-
Manufacturer's serial number	-	HM2	HM2	HM2	HM2	HM2	HM2	-
Mixed contacts	-	NO	NO	NO	NO	NO	NO	-
Installation method	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Number of rows loaded	-	7	7	7	7	7	7	-
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-
Terminal pitch	-	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	-
Termination type	-	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	-
Total number of contacts	-	175	175	175	175	175	175	-
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	-
