HM2P70PNM3K5GF: DescriptionMPAC 5R ST PF HDR; CategoryThe connector; File Size292KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HM2P70PNM3K5GF Overview

MPAC 5R ST PF HDR

HM2P70PNM3K5GF Parametric

Parameter Name	Attribute value
Connector type	Connector, male pin
Connector style	B 22
Number of pins	154 (110 + 44 ground)
Number of pins loaded	all
spacing	0.079"（2.00mm）
Number of rows	5 + 2
Installation type	Through hole
Termination	Press fit
Connector usage	-
Contact plating	gold
Contact plating thickness	30.0µin（0.76µm）
Rated current	1.5A
Rated voltage	750Vrms
Operating temperature	-55°C ~ 125°C
characteristic	-

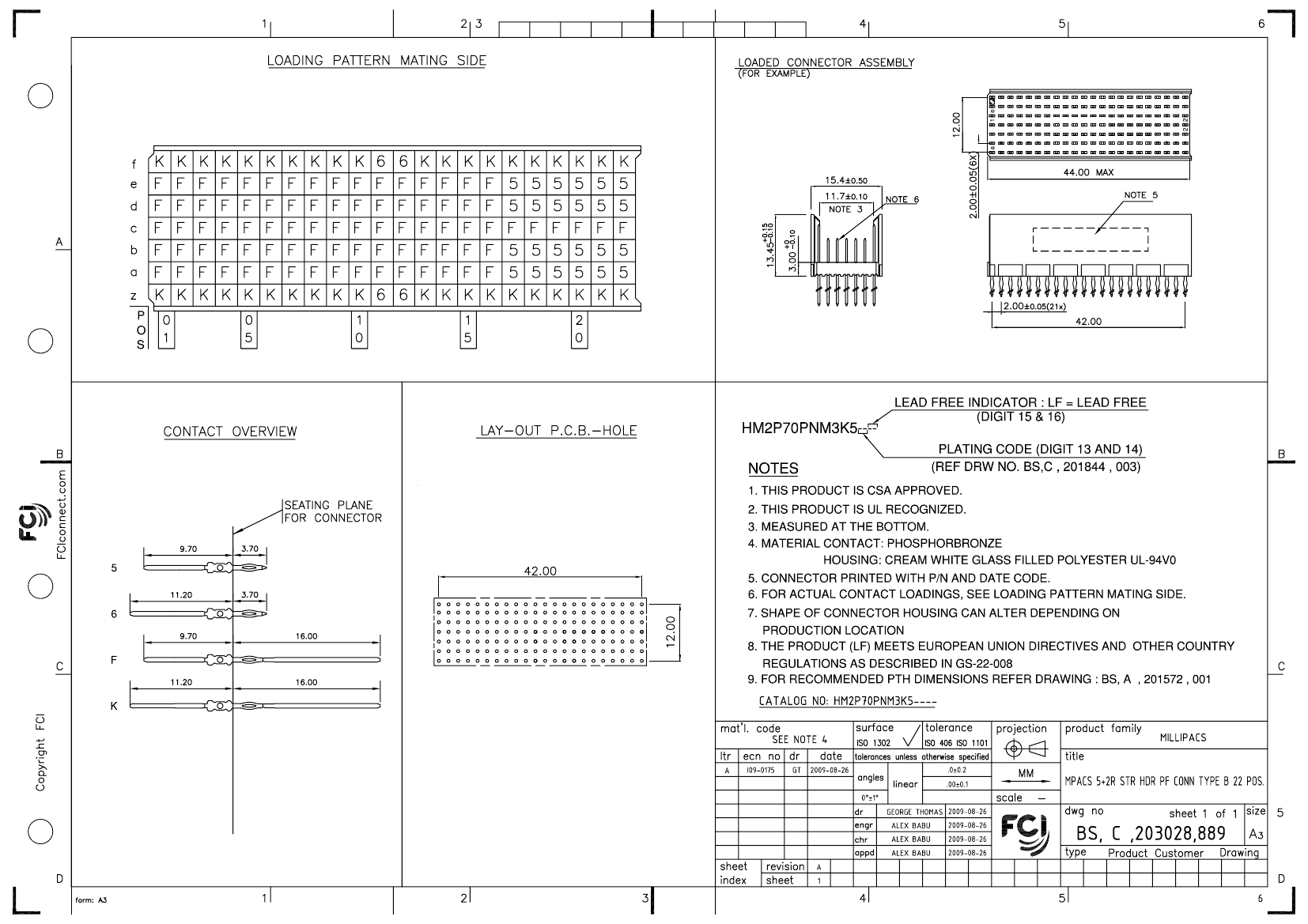

Preview

Download Datasheet

PDM: Rev:A

STATUS:

Released

Printed: Aug 28, 2009

.

HM2P70PNM3K5GF Related Products

	HM2P70PNM3K5GF	HM2P70PNM3K5GFLF
Description	MPAC 5R ST PF HDR	MPAC 5R ST PF HDR
Connector type	Connector, male pin	Connector, male pin
Connector style	B 22	B 22
Number of pins	154 (110 + 44 ground)	154 (110 + 44 ground)
Number of pins loaded	all	all
spacing	0.079"（2.00mm）	0.079"（2.00mm）
Number of rows	5 + 2	5 + 2
Installation type	Through hole	Through hole
Termination	Press fit	Press fit
Contact plating	gold	gold
Contact plating thickness	30.0µin（0.76µm）	30.0µin（0.76µm）
Rated current	1.5A	1.5A
Rated voltage	750Vrms	750Vrms
Operating temperature	-55°C ~ 125°C	-55°C ~ 125°C
