Data Sheet
2.0 Amp FAST SWITCHING
MEGARECTIFIERS
Mechanical Dimensions
JEDEC
D0-15
.104
.140
.230
.300
1.00 Min.
RGP20A . . . 20J Series
Description
.031 typ.
Features
n
HIGH TEMPERATURE METALLURGI-
CALLY BONDED CONSTRUCTION
n
SINTERED GLASS CAVITY-FREE
JUNCTION
n
2.0 AMP OPERATION @ T
A
= 55°C, WITH
NO THERMAL RUNAWAY
n
TYPICAL I
R
< 0.1
µAmp
Electrical Characteristics @ 25
o
C.
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
Current 3/8" Lead Length @ T
A
= 55°C
Non-Repetitive Peak Forward Surge Current...I
FSM
8.3mS, ½ Sine Wave Superimposed on Rated Load
Forward Voltage @ Rated Forward Current
and 25°C...V
F
Full Load Reverse Current...I
R
(av)
Full Cycle Average @ T
A
= 55°C
DC Reverse Current...I
R
@ Rated DC Blocking Voltage
T
A
= 25°C
T
A
= 150°C
RGP20A . . . RGP20J Series
RGP20A
50
35
50
RGP20B
100
70
100
RGP20D
200
140
200
RGP20G
400
280
400
RGP20J
600
420
600
Units
Volts
Volts
Volts
Amps
Amps
............................................. 2.0 ...............................................
............................................. 8 0 ...............................................
............................................. 1.3 ...............................................
Volts
............................................. 1 0 0 ...............................................
µAmps
............................................. 5.0 ...............................................
µAmps
............................................. 2 0 0 ...............................................
µAmps
............................................. 3 5 ...............................................
............................................. 2 2 ...............................................
< ............................. 1 5 0 .......................... > < .... 2 5 0 .... >
......................................... -65 to 175 ..........................................
pF
°C
/ W
nS
°C
Typical Junction Capacitance...C
J
(Note 1)
Typical Thermal Resistance...R
θJA
(Note 2)
Typical Reverse Recovery Time...t
RR
(Note 3)
Operating & Storage Temperature Range...T
J
, T
STRG
Page 6-24
Data Sheet
2.0 Amp FAST SWITCHING
MEGARECTIFIERS

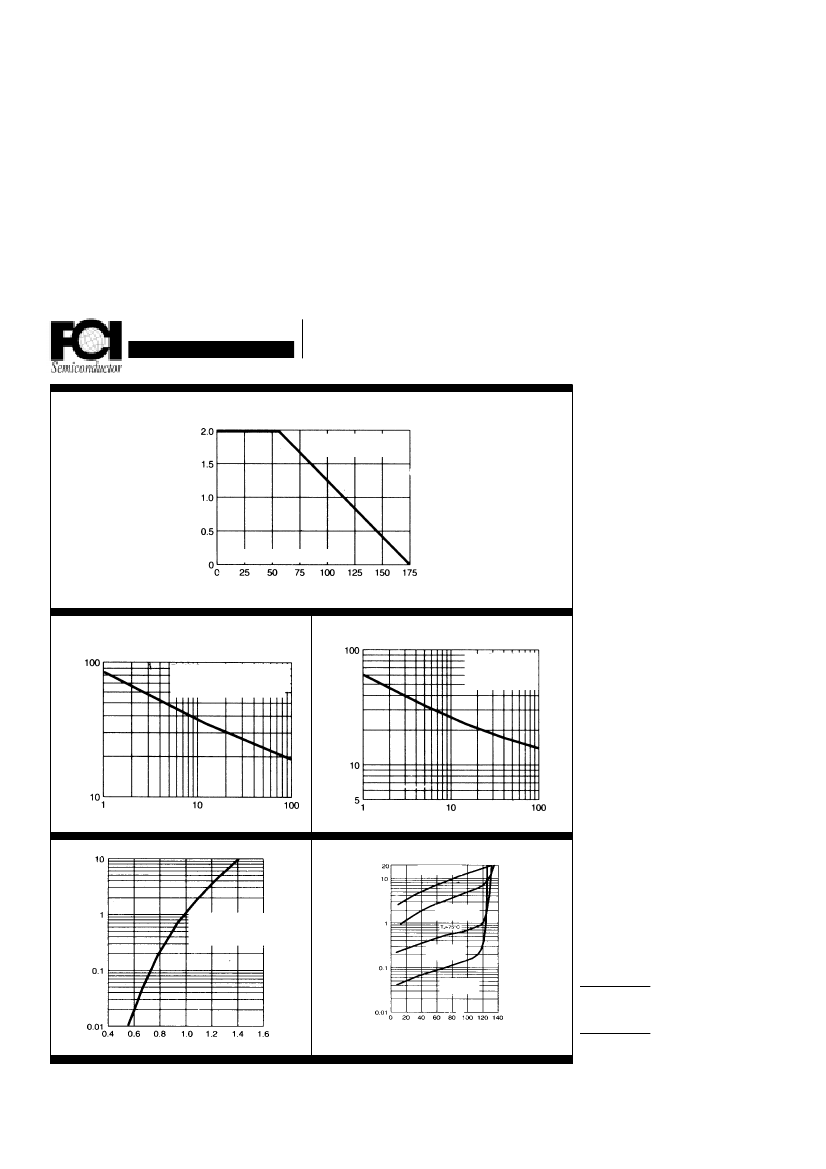

Forward Current Derating Curve
RESISTIVE OR
INDUCTIVE LOAD
0.375″ (9.5mm) LEAD LENGTH
″
T
A
= Ambient Temperature (°C)
°
Typical Junction Capacitance
T
J
= 25°C
°
f = 1.0 MHZ
V
SIG
= 50mVp-p
Non-Repetitive
Peak Forward Surge Current
T
J
= T
J
max.
8.3 mS Single Half Sine Wave
(Jedec Method)
Amps
Number of Cycles @ 60 HZ
Typical Instantaneous Forward Characteristics
pF
Reverse Voltage (Volts)
Typical Reverse Characteristics
T
J
= 125°C
°
µ
Amps
Amps
T
J
= 25°C
°
Pulse Width = 300µS
µ
1% Duty Cycle
T
J
= 100°C
°
Ratings at
25 Deg. C ambient
temperature
unless otherwise
specified.
Single Phase Half
Wave, 60 HZ
Resistive or
Inductive Load.
For Capacitive
Load, Derate
Current by 20%.
T
J
=75°C
°
T
J
= 25°C
°
Volts
Percent of Rated Peak Voltage
NOTES:
1. Measured @ 1 MHZ and applied reverse voltage of 4.0V.
2. Thermal Resistance from Junction to Ambient at 3/8" Lead Length, P.C. Board Mounted.
3. Reverse Recovery Condition I
F
= 0.5A, I
R
= 1.0A, I
RR
= 0.25A.
Page 6-25
