84516-092 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 84516-092

84516-092: DescriptionBoard Stacking Connector, 200 Contact(s), 10 Row(s), Male, Straight, 0.05 inch Pitch, Locking, Plug; CategoryThe connector The connector; File Size2MB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

84516-092 Overview

Board Stacking Connector, 200 Contact(s), 10 Row(s), Male, Straight, 0.05 inch Pitch, Locking, Plug

84516-092 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1278374448
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.75
body width	0.683 inch
subject depth	0.153 inch
body length	1.236 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	200VAC V
Durability	50 Cycles
Filter function	NO
Insulation resistance	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e0
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	10
Number of rows loaded	10
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.45 A
Guideline	CSA,CUL,UL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	200
UL Flammability Code	94V-0

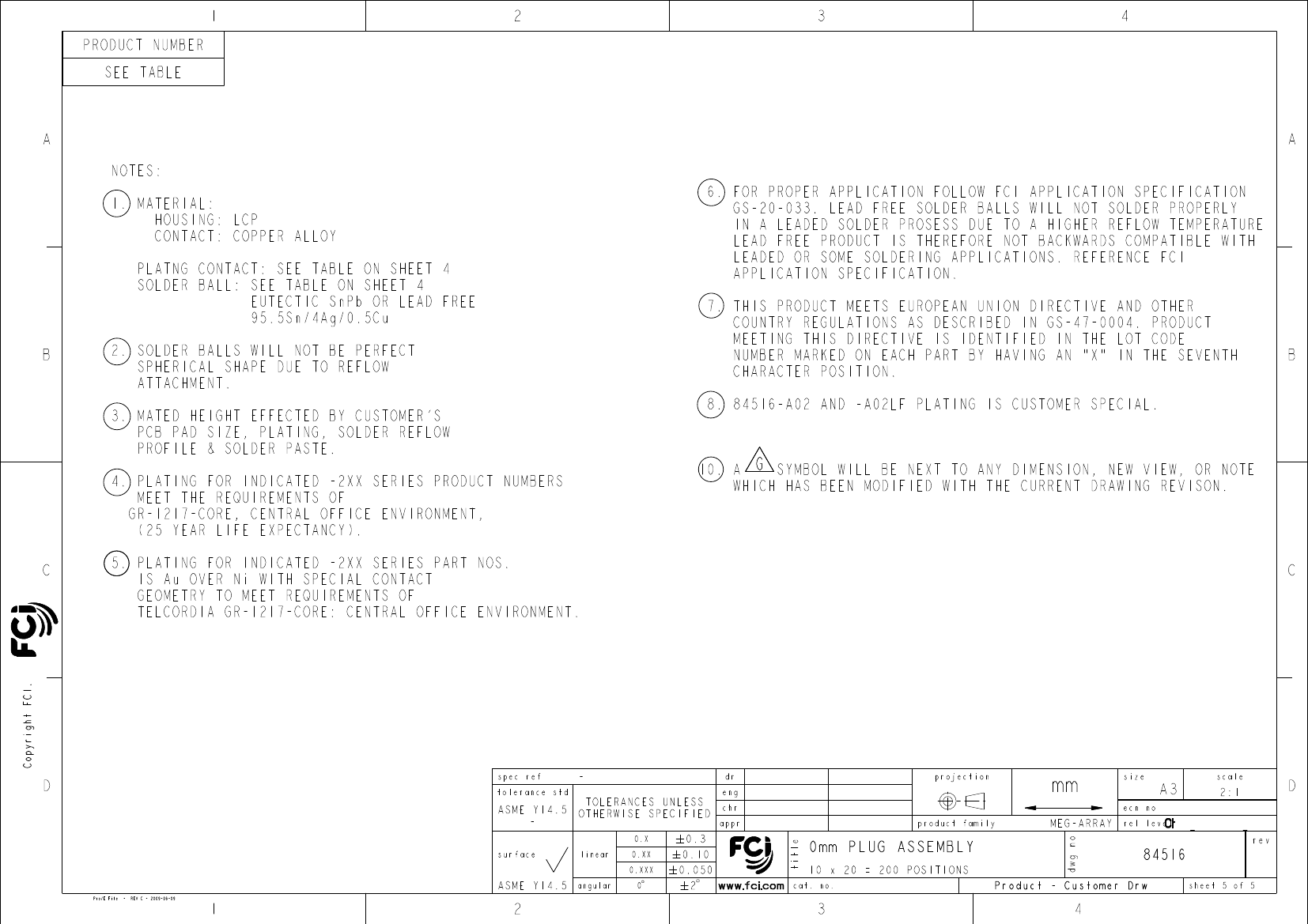

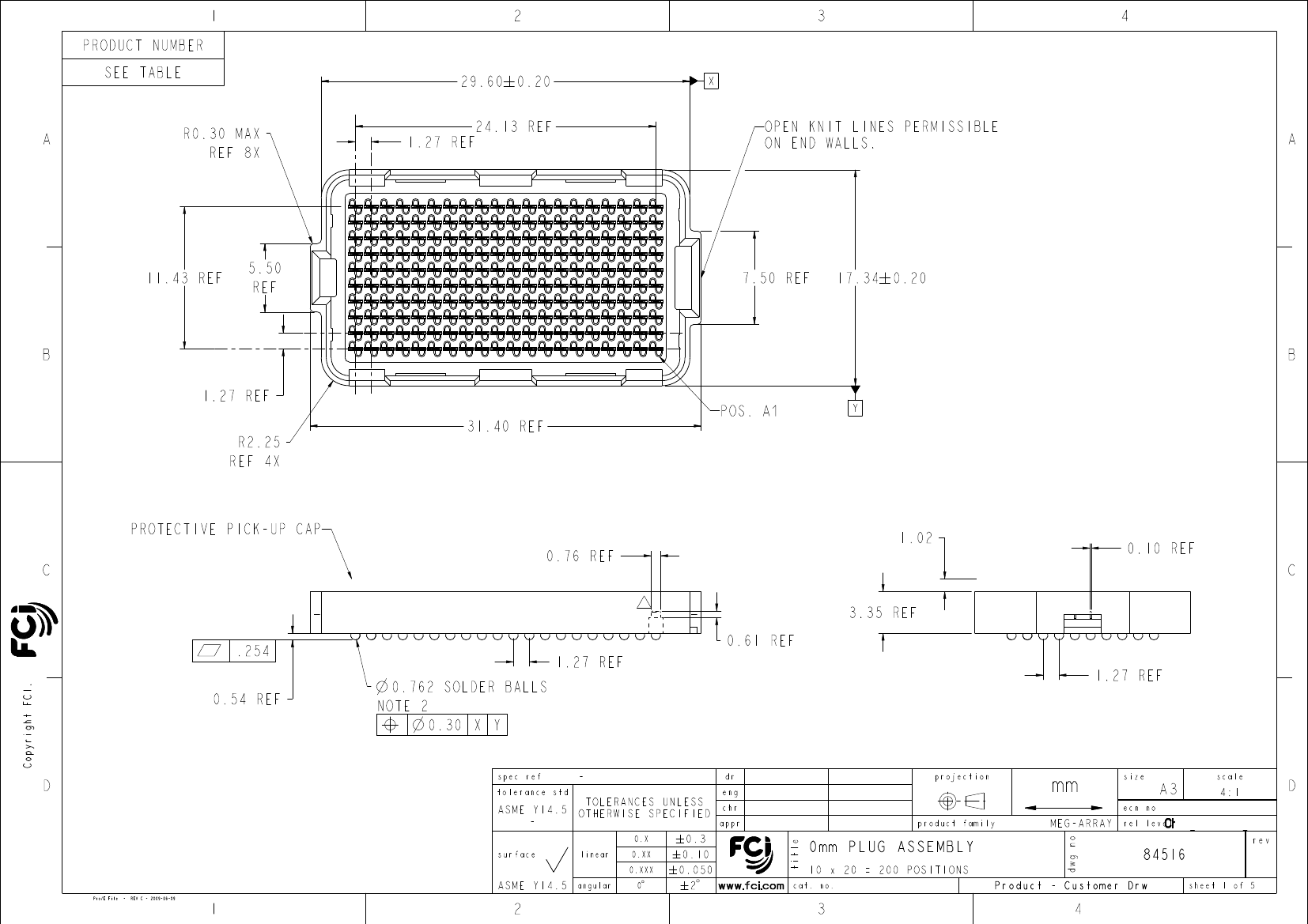

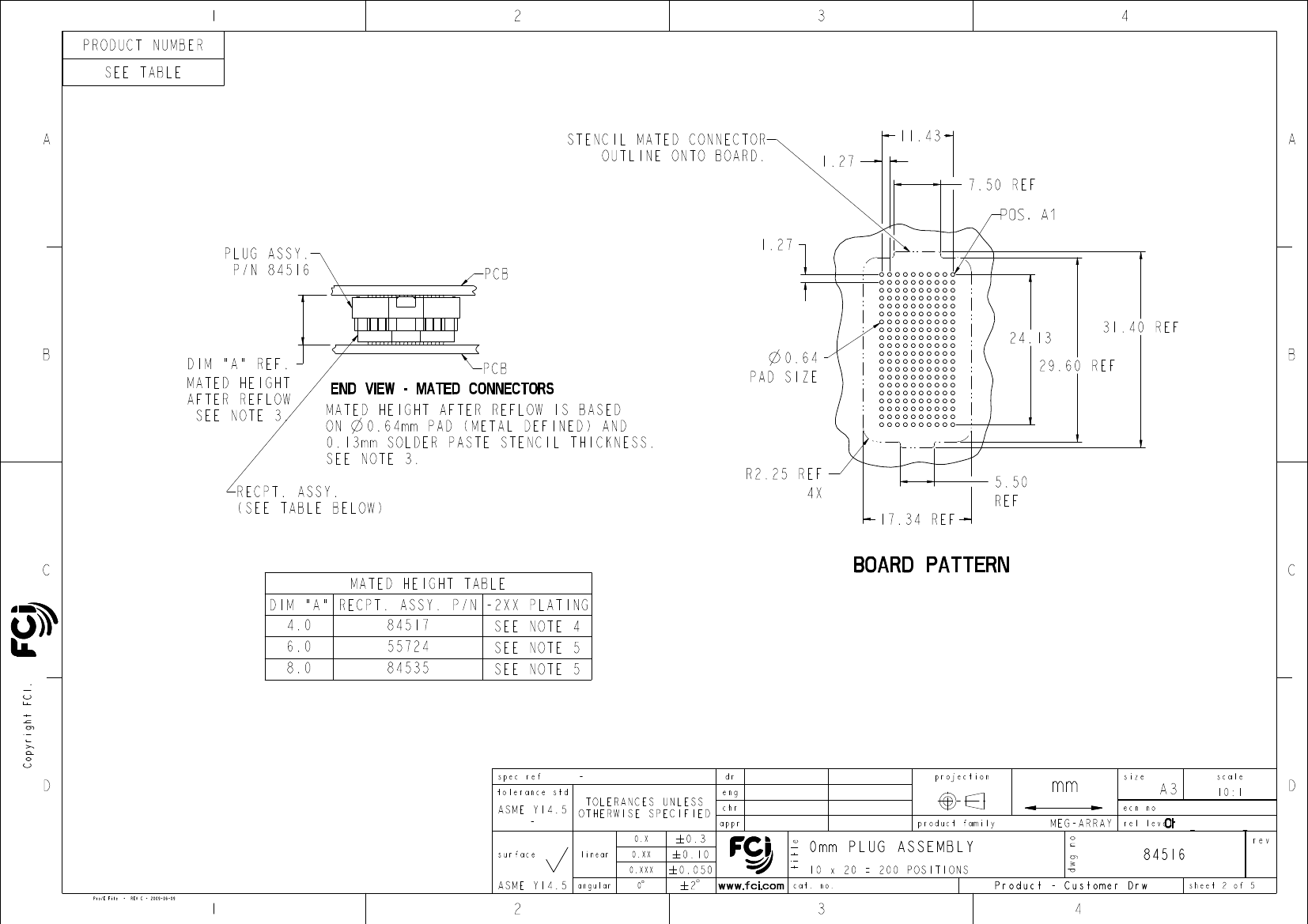

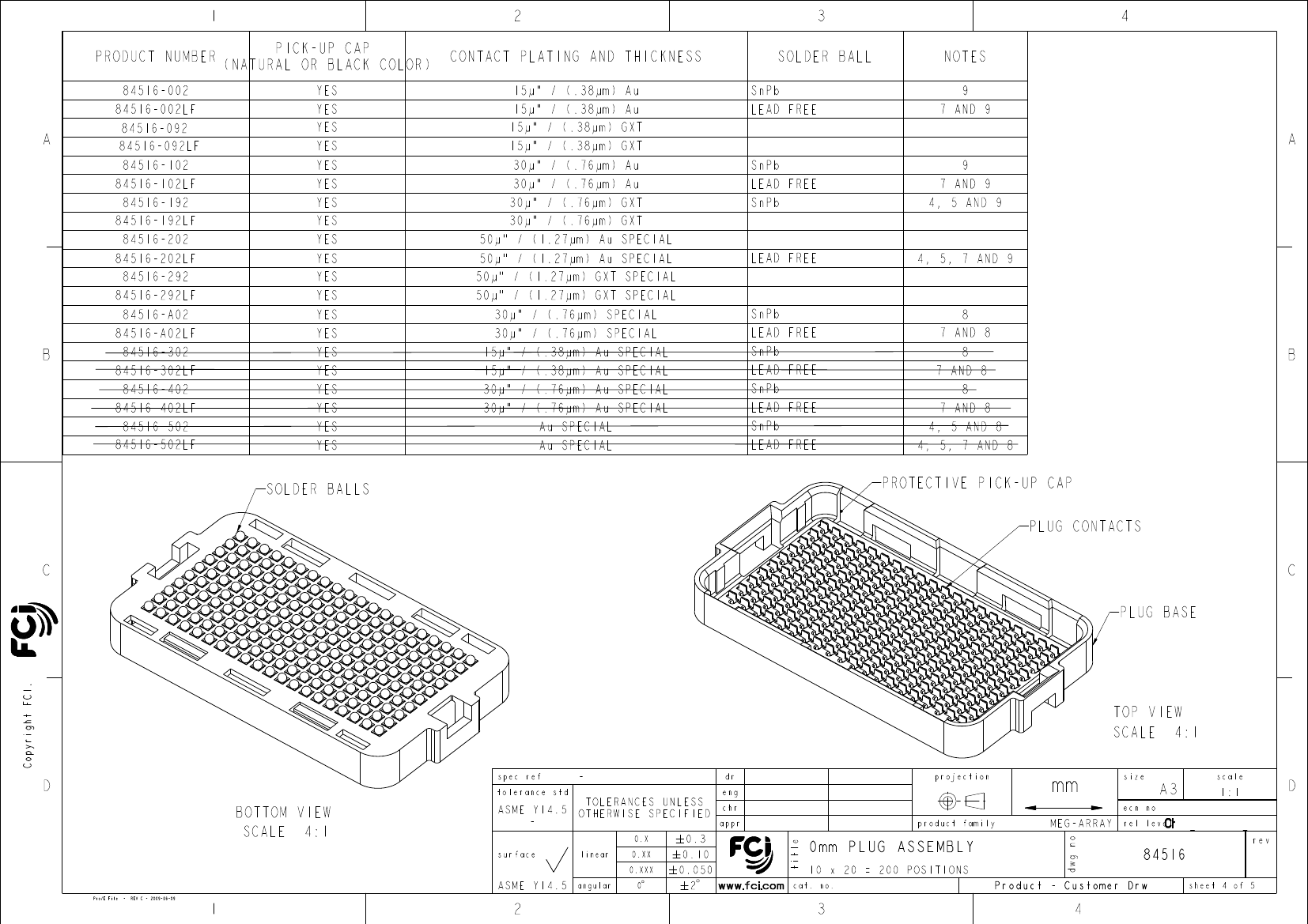

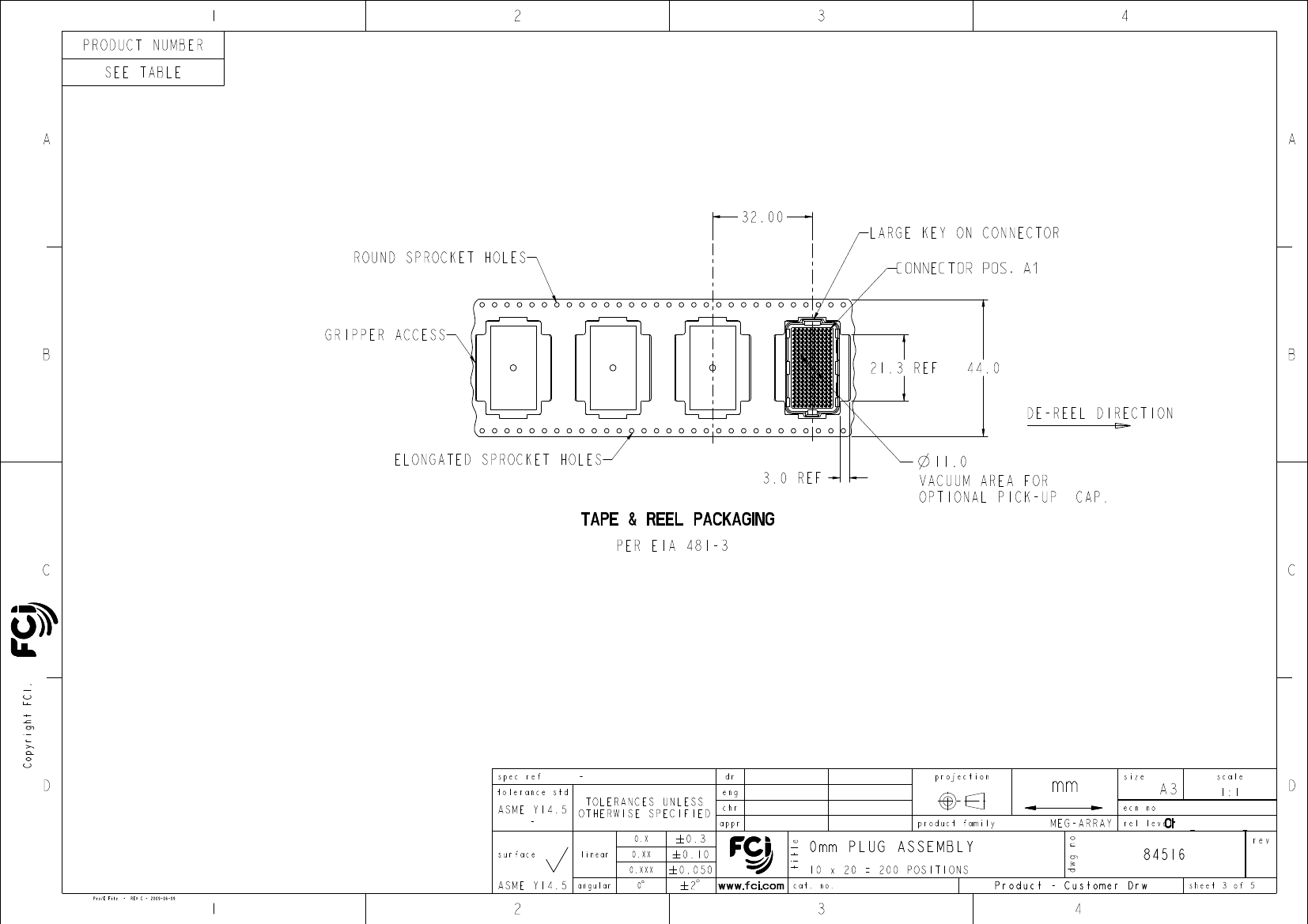

Preview

Download Datasheet

View All

w wcadmin

Dave Horchler

R Marshall

2001/11/16

2012/11/21

2012/11/26

ELX-V-13512-1

Released

PDS: Rev :H

STATUS:Released

Printed: Nov 27, 2012

84516-092 Related Products

	84516-092	84516-192LF	84516-192	84516-292	84516-292LF	84516-092LF	84516-A02	84516-002LF	84516-002
Description	Board Stacking Connector, 200 Contact(s), 10 Row(s), Male, Straight, 0.05 inch Pitch, Locking, Plug	CONN ARRAY MALE 200POS SMD	Board Stacking Connector, 200 Contact(s), 10 Row(s), Male, Straight, 0.05 inch Pitch, Locking, Plug	Board Stacking Connector, 200 Contact(s), 10 Row(s), Male, Straight, 0.05 inch Pitch, Locking, Plug	Board Stacking Connector, 200 Contact(s), 10 Row(s), Male, Straight, 0.05 inch Pitch, Locking, Plug, ROHS COMPLIANT	CONN ARRAY MALE 200POS SMD	Board Stacking Connector, 200 Contact(s), 10 Row(s), Male, Straight, 0.05 inch Pitch, Locking, Plug	CONN ARRAY MALE 200POS SMD	200 Position BGA Plug, 0mm Component Height, 1.27mm x 1.27mm Array
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	conform to	conform to	incompatible	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.683 inch	0.683 inch	0.683 inch	0.683 inch	0.683 inch	0.683 inch	0.683 inch	0.683 inch	0.683 inch
subject depth	0.153 inch	0.132 inch	0.153 inch	0.153 inch	0.153 inch	0.132 inch	0.132 inch	0.132 inch	0.153 inch
body length	1.236 inch	1.236 inch	1.236 inch	1.236 inch	1.236 inch	1.236 inch	1.236 inch	1.236 inch	1.236 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	35 mΩ	25 mΩ	25 mΩ	25 mΩ	35 mΩ	35 mΩ	35 mΩ	25 mΩ
Durability	50 Cycles	100 Cycles	100 Cycles	200 Cycles	200 Cycles	50 Cycles	100 Cycles	50 Cycles	50 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Match contact row spacing	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	10	10	10	10	10	10	10	10	10
Number of rows loaded	10	10	10	10	10	10	10	10	10
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Plating thickness	15u inch	30u inch	30u inch	50u inch	50u inch	15u inch	30u inch	15u inch	15u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.45 A	2 A	0.45 A	0.45 A	0.45 A	2 A	2 A	2 A	0.45 A
Guideline	CSA,CUL,UL	UL	CSA,CUL,UL	CSA,CUL,UL	CSA,CUL,UL	UL	UL	UL	CSA,CUL,UL
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Total number of contacts	200	200	200	200	200	200	200	200	200
Objectid	1278374448	-	1278374450	1278374452	1278374451	-	1236752543	-	2121394906
ECCN code	EAR99	-	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
YTEOL	8.75	-	8.75	8.76	8.75	-	-	-	6.56
Contact completed and terminated	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)	TIN SILVER COPPER	TIN LEAD
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-	-	SQ PIN-SKT
Dielectric withstand voltage	200VAC V	-	200VAC V	200VAC V	200VAC V	-	-	-	200VAC V
Filter function	NO	-	NO	NO	NO	-	-	NO	NO
JESD-609 code	e0	-	e0	e0	-	-	e0	e1	e0
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	-	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO	NO	NO	-	NO	NO	NO
Installation type	BOARD	-	BOARD	BOARD	BOARD	-	-	BOARD	BOARD
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0	-	-	-	94V-0
