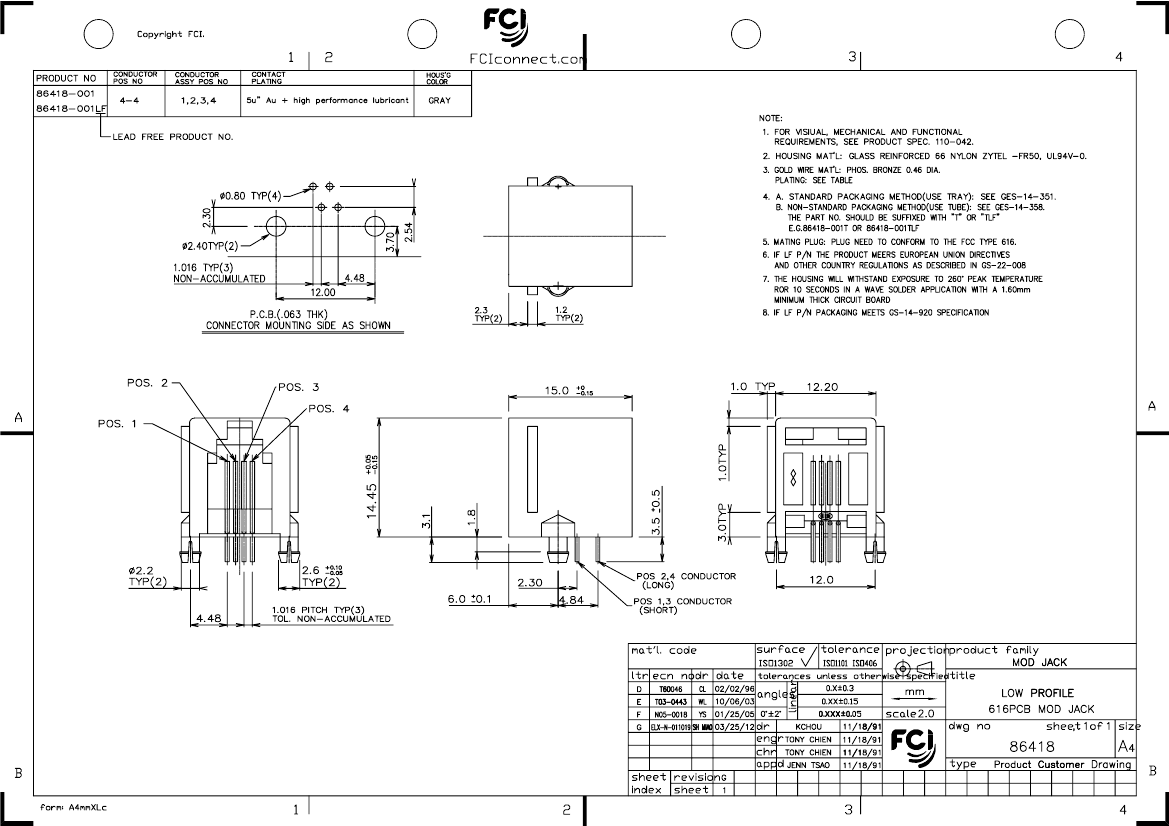

Preview

86418-001: DescriptionCONN MOD JACK 4P4C R/A UNSHLD; CategoryThe connector The connector; File Size75KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86418-001 Overview

CONN MOD JACK 4P4C R/A UNSHLD

86418-001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
Other features	LOW PROFILE
Board mount options	SPLIT BOARD LOCK
body width	0.569 inch
subject depth	0.591 inch
body length	0.559 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	NICKEL PALLADIUM GOLD (30)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Durability	250 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	GRAY
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	86418
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	5u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE66
Terminal length	0.138 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDS: Rev :G

STATUS:Released

Printed: Apr 24, 2012

86418-001 Related Products

	86418-001	86418-001LF
Description	CONN MOD JACK 4P4C R/A UNSHLD	Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, LEAD FREE
Is it Rohs certified?	incompatible	conform to
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.569 inch	0.569 inch
subject depth	0.591 inch	0.591 inch
body length	0.559 inch	0.559 inch
Body/casing type	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO
Durability	250 Cycles	250 Cycles
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
Insulation resistance	500000000 Ω	500000000 Ω
Insulator color	GRAY	GRAY
MIL compliance	NO	NO
Manufacturer's serial number	86418	86418
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
Plating thickness	5u inch	5u inch
Rated current (signal)	1 A	1 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE66	GLASS FILLED POLYAMIDE66
Terminal length	0.138 inch	0.138 inch
Terminal pitch	2.032 mm	2.032 mm
Termination type	SOLDER	SOLDER
Total number of contacts	4	4
UL Flammability Code	94V-0	94V-0
