0.3 mm Pitch, 1.5 mm Mated Height, Board- to-Fine Coaxial Cable Connectors
DF38 Series
High contact reliability –
Effective mating length of 0.4 mm
3.7±0.15
1.5 ±0.15 (Mated height)
(0.4) Effective mating length
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Features
1. Small mated height and board occupied
space
Small pitch (0.3mm) and mated height (1.5mm)
allows use in space-restricted areas.
Plug’s height of 1.3mm and width of 2.38mm allow
its passage through narrow openings in small-
diameter hinge applications.
Enhanced shielding
2. Enhanced shielding and ground connections
Metal shells on the plug and receptacle connect to
each other with a reliable multi-point ground
contacts, assuring reliable ground connection and
EMC protection.
3. Reliable lock
Fully mated condition is assured with reliable locks at
4 locations, confirming it with a distinct tactile click.
Multi-point ground contacts
4-point lock:
2 points at each end
4. Reliable electrical and mechanical
connection
Despite its small mated height, unique contact
configuration assures highly reliable connection,
with effective mating length of 0.4mm.
5. Solder wicking prevention
Nickel barriers prevent solder wicking in the critical
contact areas.
6. Durable plug construction
Formed metal shells on the top and side surfaces
form a strong and rigid assembly.
7. RoHS, Halogen-free*
*As
defined by IEC61249-2-21
Br-900 ppm maximum,Cl-900 ppm maximum, Cl+Br
combined-1,500 ppm maximum
Distinct tactile click
■Connector
for conductivity tests
We have a line-up of connectors for inspection,
usable for electrical testing of both plug and
receptacle connectors.
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
2014.3w
1
DF38 Series●0.3 mm Pitch, 1.5 mm Mated Height, Board- to-Fine Coaxial Cable Connectors
■Specifications
Ratings
AWG #42: 0.15 A
Current rating Wire size AWG #44: 0.1 A (Note.3)
AWG #46: 0.1 A
Voltage rating
Item
1.Insulation resistance
2.Withstanding voltage
3.Contact resistance
30 V AC
Specification
50Mø min
No flashover or insulation breakdown
Signal: 80mø max., Ground: 80mø max.
No electrical discontinuity of 1 µs or longer
Contact resistance (change from initial value)
50 mø max.
Insulation resistance: 25 Mø min.
Contact resistance (change from initial value)
50 mø max.
Insulation resistance: 50 Mø min.
Contact resistance (change from initial value)
50 mø max.
No deformation of affecting performance
100V DC
100 V AC / 1 minute
100mA (DC or 1,000Hz)
Operating temperature range
Operating humidity range
Storage temperature range
Storage humidity range
-35 to +85°C (Note 1)
RH 20% to 80%
-10 to +60°C (Note 2)
RH 40% to 70% (Note 2)
Conditions
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4.Vibration
5.Humidity
Frequency: 10 to 55 Hz, single amplitude of
0.75 mm, 3 directions, 2 hours
96 hours at of 40 ±2°C, and humidity of 90 to
95%
-55°C
➝
5 to 35°C
➝
85°C
➝
5 to 35°C
Time: 30 min.
➝
2 to 3 min.
➝
30 min.
➝
2 to
3 min.
5 cycles
30 cycles
Reflow: At the recommended temperature
profile
Manual soldering: 350°C for 3 seconds
6.Temperature cycle
7.Durability
8.Resistance to
soldering heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of connectors after board mounting
and the temporary storage conditions of transportation, etc.
Note 3: With only the connector portion at an elevated temperature level, the rated current value is set.
■Material
Product
Receptacle
Plug
Part
Insulator
Contacts
Metal cover
Vacuum cap
Insulator
Contacts
Metal cover
Material
LCP
Phosphor bronze
Polyamide
LCP
Phosphor bronze
Finish
Color: Black
Gold plating
Tin plating
Color: Black
Color: Natural, Black
Gold plating
Tin plating
Remarks
UL94-V0
---------------
---------------
UL94-HB
UL94-V0
---------------
---------------
2
DF38 Series●0.3 mm Pitch, 1.5 mm Mated Height, Board- to-Fine Coaxial Cable Connectors
■Ordering
information
●Connector
DF 38 A J –
*
S – 0.3 V (
**
)
1
2
3
4
5
6
7
8
9
DF 38 J –
*
P – SHL
1
2
4
5
6
10
6
Connector type
S : Receptacle
P : Plug
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1
Series name : DF
2
Series No.
: 38
3
Insulator typestyle
Receptacle A : Standard
Plug Blank : Standard
7
Contact pitch : 0.3mm
8
Termination type
V : Straight SMT
SD : Fine coaxial cable plug
4
Connector style
Receptacle/Shell
J : Receptacle for conductivity tests
Blank : Standard
9
Packaging
(51) : Embossed tape packaging
5
Number of positions : 30, 32, 40
10
Installation item (separate)
SHL : Metal cover
■Combinations
●Standard
use
DF38A-*S-0.3V(**)
+ DF38-*P-ASSY
(
●Receptacle
conductivity test
DF38A-*S-0.3V(**)
DF38-*P-0.3SD(**)
DF38-*P-SHL
)
)
Note: The product specification of the above combination is shown on page 2.
+ DF38J-*P-ASSY ··· (Note)
(
●Plug
conductivity test
DF38AJ-*S-0.3V(**) ··· (Note)
DF38-*P-0.3SD(**)
DF38J-*P-SHL
Note: This harness item is only usable for the receptacle test.
For the product specification of the above combination, please contact our sales department.
+ DF38-*P-ASSY
(
* : ASSY means a harness item.
DF38-*P-0.3SD(**)
DF38-*P-SHL
)
Note: This harness item is only usable for the plug test.
For the product specification of the above combination, please contact our sales department.
3
DF38 Series●0.3 mm Pitch, 1.5 mm Mated Height, Board- to-Fine Coaxial Cable Connectors
■

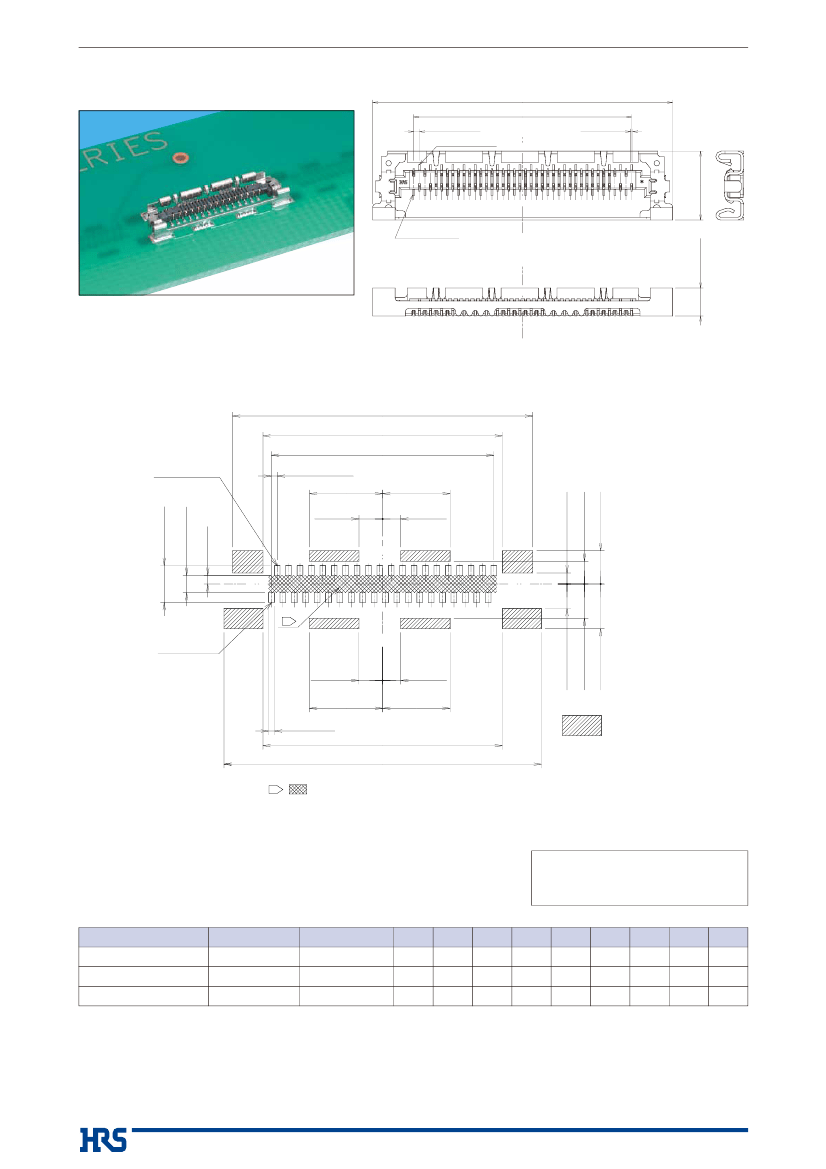

Receptacles
P=0.3±0.1
Contact No.2
B±0.2
A±0.15
0.1±0.05
Contact No.1
1.5±0.15
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■
Recommended PCB mounting pattern
D±0.05
C±0.05
A±0.02
Contact No.2
P=0.3±0.02
H±0.05
1.94±0.05
0.92±0.05
F±0.05
(0.46 )
J±0.05
0.58±0.05
G±0.05
1.2±0.05
1.75±0.05
1
1.28±0.05
F±0.05
H±0.05
0.3±0.02
C±0.05
E±0.05
G±0.05
J±0.05
2.35±0.05
Contact No.1
1.8±0.05
Ground areas
Refer to User Recommendation page
(Para. 3) for the recommended metal
mask dimensions and open area ratios.
Note
1
:
Area indicated must be free of conductive
traces or the conductive traces must be covered by resist film.
[Specifications number] - * *, (* *)
(51) : Embossed tape packaging
(5,000 pieces per reel)
All dimensions: mm
Part Number
CL No.
Number of Contacts
A
8.7
B
C
D
E
F
G
H
3.7±0.15
J
DF38A-30S-0.3V(**)
DF38A-32S-0.3V(**)
DF38A-40S-0.3V(**)
662-4505-4-**
662-4028-7-**
662-4501-3-**
30
32
40
13.1
13.7
16.1
9.6
10.2
12.6
12.8
13.4
15.8
13.7
14.3
16.7
0.95
1.25
1.25
1.25
0.95
0.95
2.95
3.25
3.85
3.25
2.95
3.55
9.3
11.7
Note 1: Tape and reel packaging (5,000 pieces/reel).
Order by number of reels.
4
DF38 Series●0.3 mm Pitch, 1.5 mm Mated Height, Board- to-Fine Coaxial Cable Connectors
■

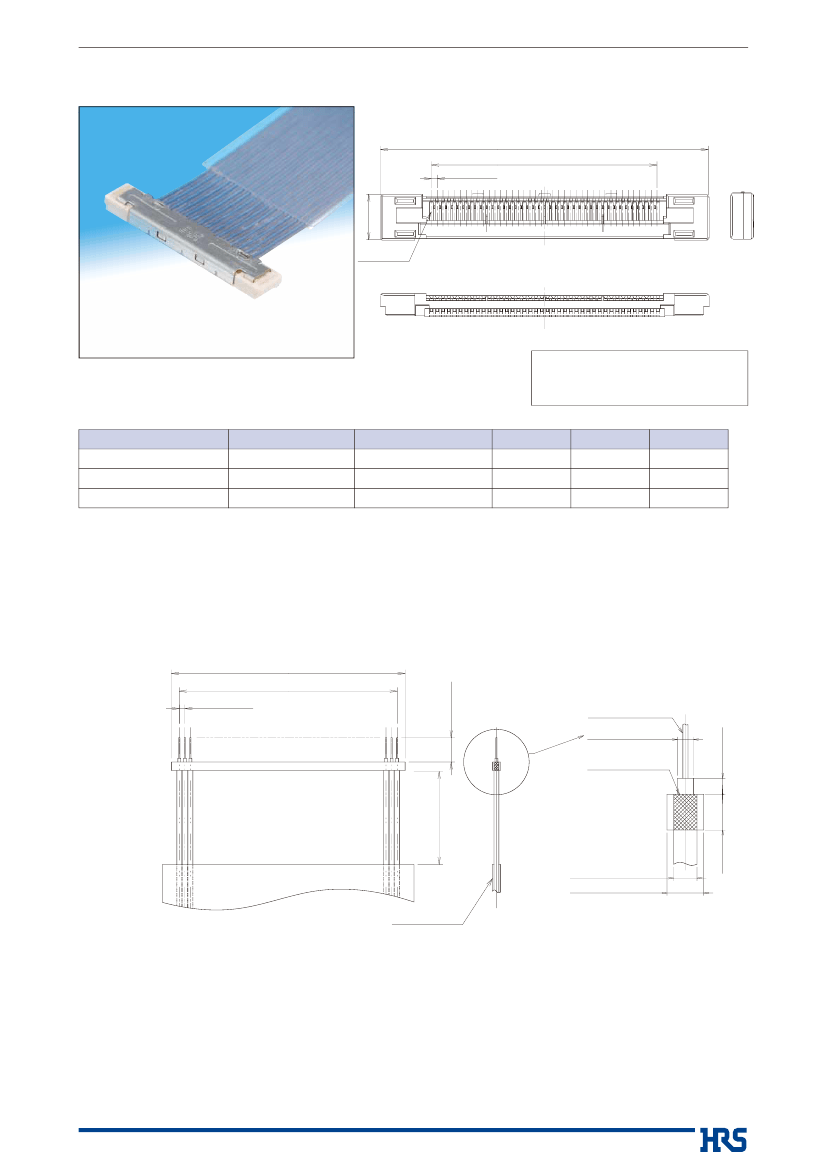

Plug - separate metal cover required
A±0.15
B±0.15
P=0.3±0.1
2.38±0.15
Contact No.1
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
[Specifications number] - * *, (* *)
(51) : Embossed tape packaging
(5,000 pieces per reel)
All dimensions: mm
Part Number
DF38B-30P-0.3SD(**)
DF38-32P-0.3SD(**)
DF38-40P-0.3SD(**)
CL No.
662-4515-8-**
662-4027-4-**
662-4502-6-**
Number of Contacts
30
32
40
A
14.0
14.6
17.0
B
8.7
9.3
11.7
C
9.55
10.15
12.55
Note 1: Tape and reel packaging (5,000 pieces/reel).
Order by number of reels.
Note 2: The metal cover is required for fine coaxial cable termination.
■Recommended
Fine Coaxial Cable Preparation
C±0.1
B±0.15
P=0.3±0.07
1.3±0.05
Inner conductor
(Pre-soldering
required)
0.2±0.05
0.45
+0.08
0
0.2 MAX (Insulator)
Outer shield
(NO protrusion)
(5)
Ø0.3 MAX (Jacket)
0.46 MAX
(Ground bar)
Laminated tape
Note 1: Contact Hirose for Termination Procedures.
5
