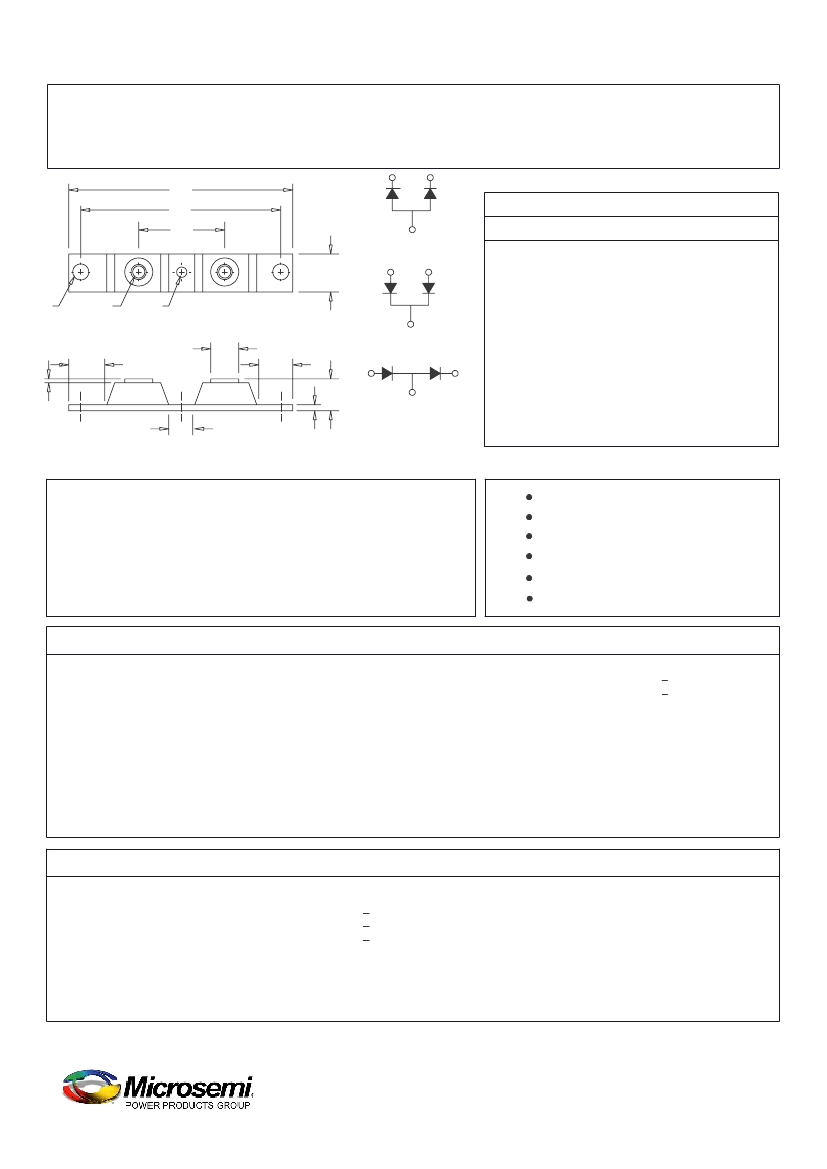

CPT600120 - CPT600150
A
R
G
Baseplate
A=Common Anode
B
Q
N
W
Baseplate
Common Cathode
U
C
H
V
E
Baseplate
D=Doubler
Notes:
Baseplate: Nickel plated
copper
Schottky PowerMod
Dim. Inches
Min.
A
B
C
E
F
G
H
N
Q
R
U
V
W
Millimeters
Min.
Max.
Notes
Max.
F
U
---
3.630
0.800
0.700
---
.680
0.130
0.120
0.510
0.490
1.375 BSC
---
0.050
---
---
0.290
0.275
3.150 BSC
0.600
---
0.312
0.340
0.180
0.195
---
92.20
17.78
20.32
---
17.28
3.30
3.05
12.45
12.95
34.92 BSC
---
1.25
---
---
6.99
7.37
80.01 BSC
15.24
---
7.92
8.64
4.57
4.95
1/4-20
Dia.
Dia.
Microsemi
Catalog Number
CPT600120*
CPT600150*
Industry
Repetitive Peak
Working Peak
Part Number Reverse Voltage Reverse Voltage
120V
150V
120V
150V
Schottky Barrier Rectifier
Guard ring protection
600 Amperes/ 120 to 150 Volts
175°C junction temperature
Reverse energy tested
*Add Suffix A for Common Anode, D for Doubler
ROHS Compliant
Electrical Characteristics
I F(AV) 600 Amps
Average forward current per pkg
I F(AV) 300 Amps
Average forward current per leg
I FSM 6000 Amps
Maximum surge current per leg
Maximum repetitive reverse current per leg I R(OV) 2 Amps
VFM
0.85 Volts
Max peak forward voltage per leg
VFM
0.62 Volts
Max peak forward voltage per leg
I RM
75 mA
Max peak reverse current per leg
I RM
7.0 mA
Max peak reverse current per leg
CJ
7000 pF
Typical junction capacitance per leg
TC = 132°C, Square wave, R0JC = 0.10°C/W
TC = 132°C, Square wave, R0JC = 0.20°C/W
8.3ms, half sine,T J = 175°C
f = 1 KHZ, 25°C, 1µsec square wave
I FM = 300A: J = 25°C
T
I FM = 300A: J = 175°C
T
VRRM, TJ = 125°C*
VRRM, TJ = 25°C
VR = 5.0V,T C = 25°C
*Pulse test: Pulse width 300µsec, Duty cycle 2%
Thermal and Mechanical Characteristics
Storage temp range
Operating junction temp range
Max thermal resistance per leg
Max thermal resistance per pkg
Typical thermal resistance (greased)
Terminal Torque
Mounting Base Torque (outside holes)
Mounting Base Torque (center hole)
center hole must be torqued first
Weight
T STG
TJ
R OJC
R OJC
R OCS
-55°C to 175°C
-55°C to 175°C
0.20°C/W Junction to case
0.10°C/W Junction to case
0.08°C/W Case to sink
35-40 inch pounds
30-40 inch pounds
8-10 inch pounds
2.8 ounces (78 grams) typical
www.microsemi.com
September, 2014 - Rev. 4
CPT600120 - CPT600150

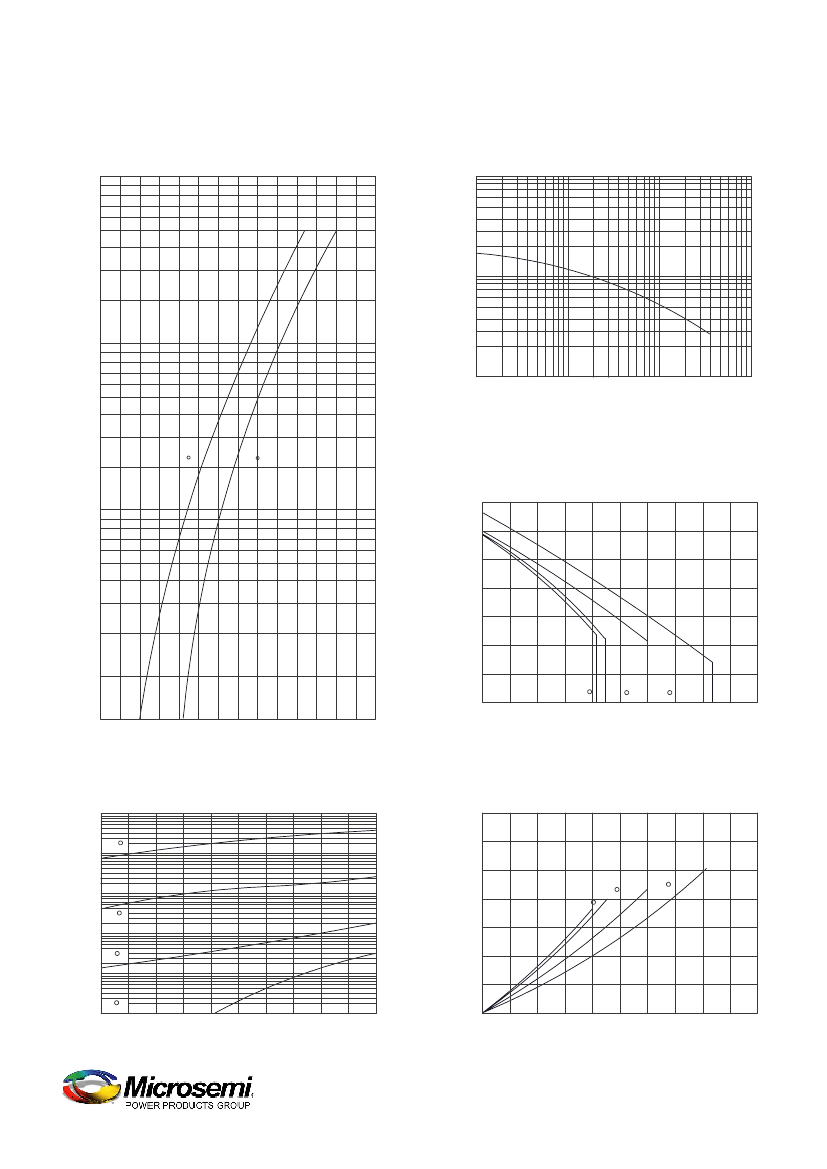

Figure 1
