TC4S69F(TE85L,F)

Description
IC INVERTER 1CH 1-INP SMV
Categorylogic    logic
File Size255KB,5 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

TC4S69F(TE85L,F) Overview

IC INVERTER 1CH 1-INP SMV

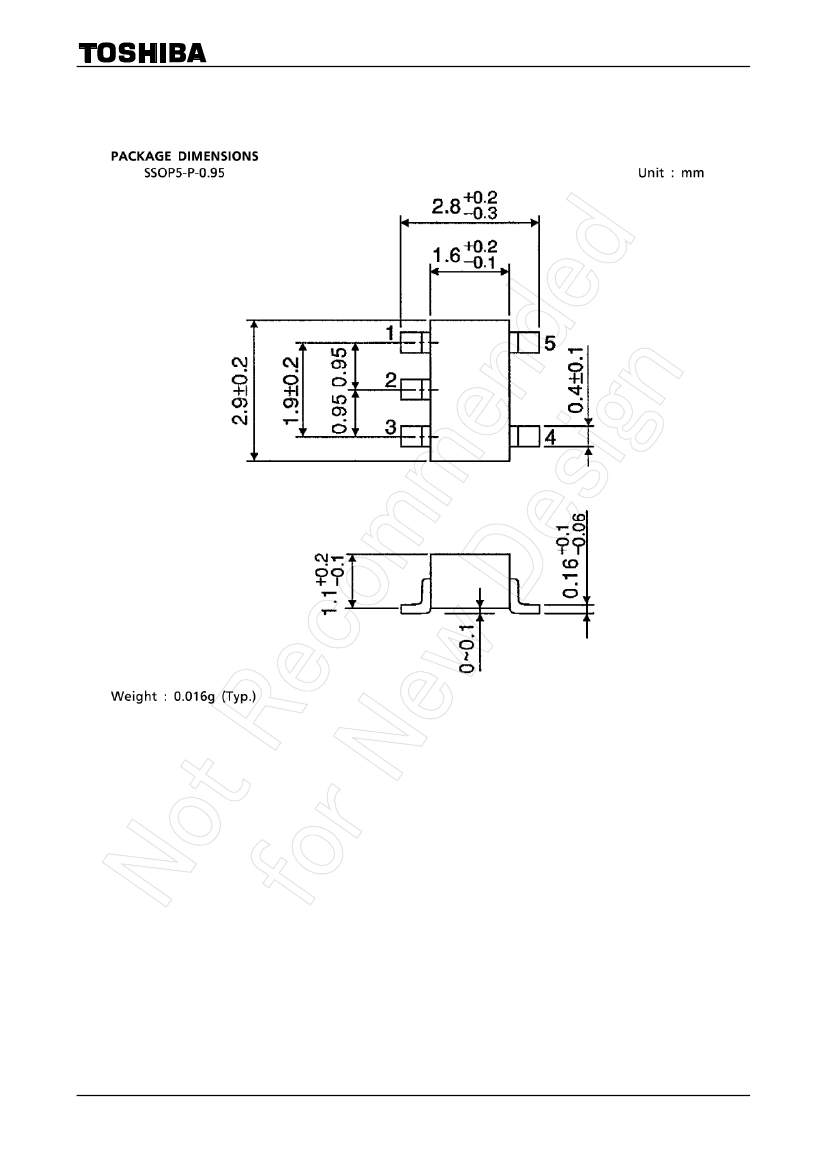

TC4S69F(TE85L,F) Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerToshiba Semiconductor
Parts packaging codeSSOP
package instruction0.95 MM PITCH, PLASTIC, SSOP-5
Contacts5
Reach Compliance Codeunknown
series4000/14000/40000
JESD-30 codeR-PDSO-G5
length2.9 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeINVERTER
Number of functions1
Number of entries1
Number of terminals5
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Encapsulate equivalent codeTSOP5/6,.11,37
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packingTAPE AND REEL
power supply5/15 V

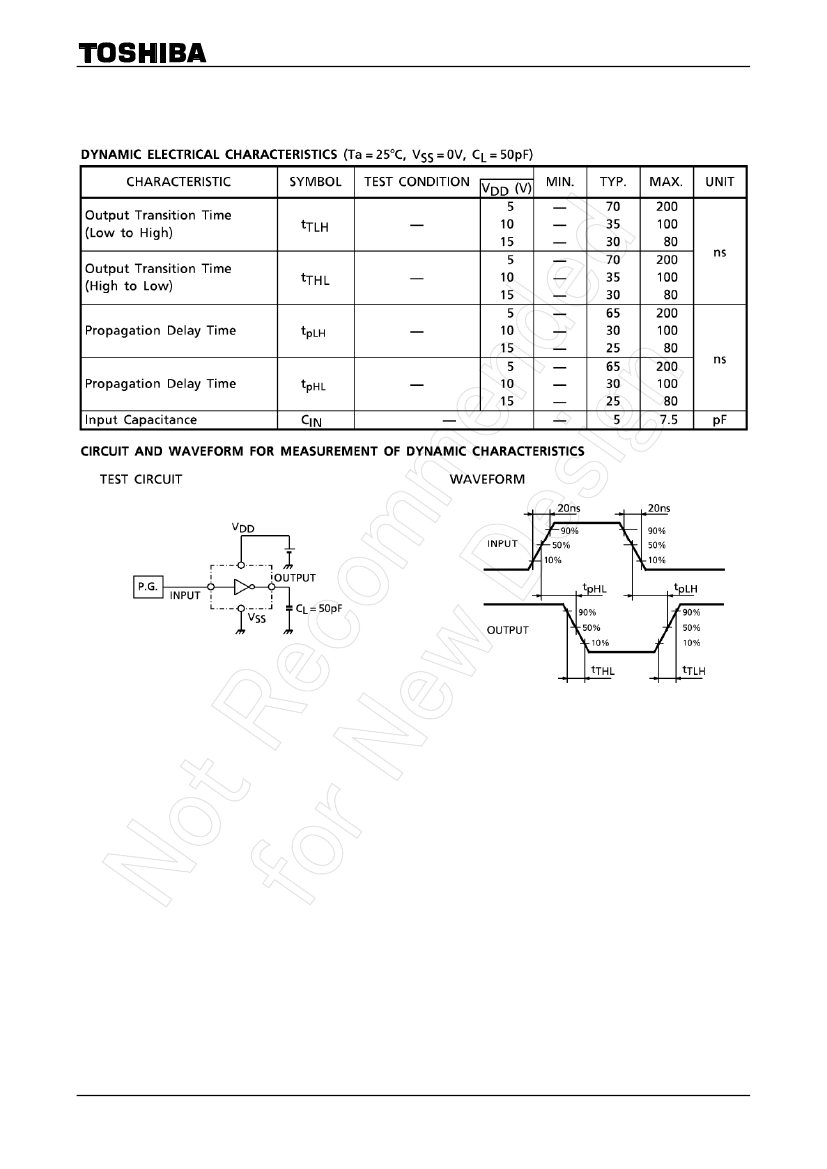

Prop。Delay @ Nom-Sup200 ns
propagation delay (tpd)200 ns
Certification statusNot Qualified
Schmitt triggerNO
Maximum seat height1.4 mm
Maximum supply voltage (Vsup)18 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
width1.6 mm

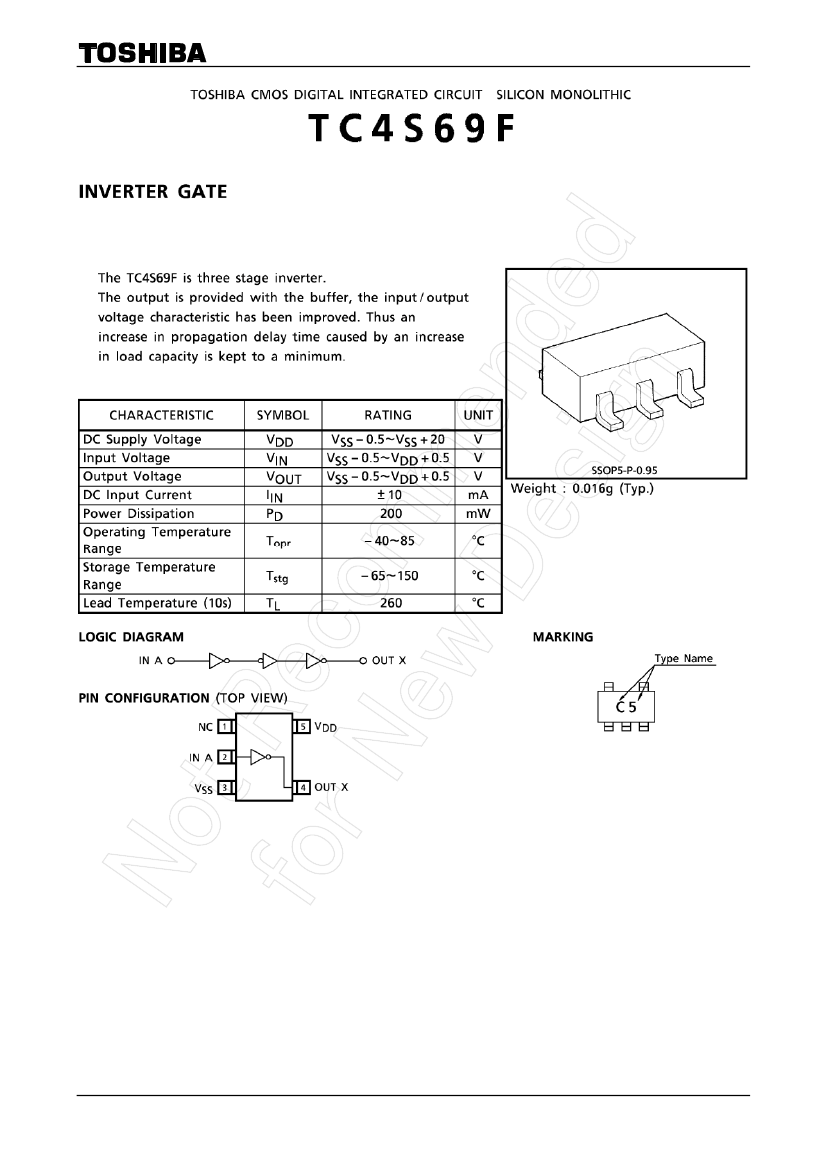

TC4S69F

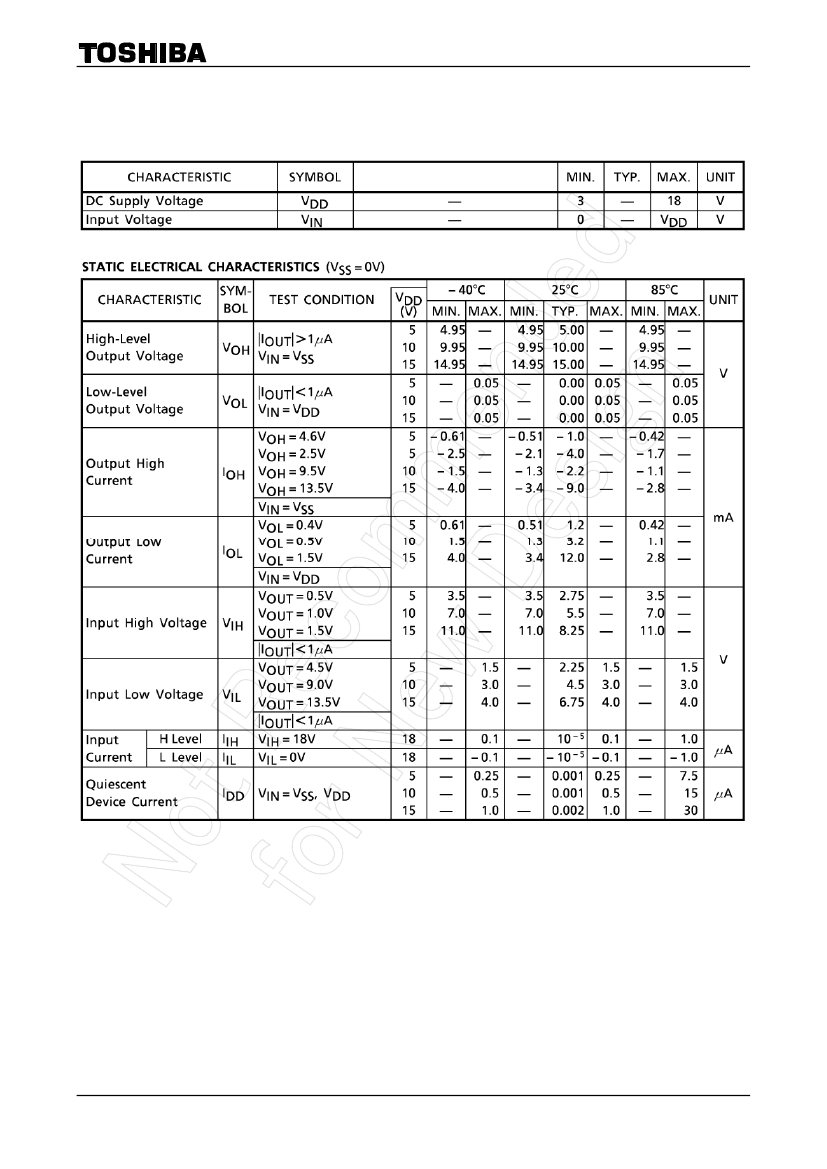

ABSOLUTE MAXIMUM RANGES (Ta = 25°C)
Start of commercial production
1987-02
1
2014-03-01

TC4S69F(TE85L,F) Related Products

TC4S69F(TE85L,F) TC4S69F(TE85R)
Description IC INVERTER 1CH 1-INP SMV Inverter
Reach Compliance Code unknown unknown
Logic integrated circuit type INVERTER INVERTER
