1272.1018 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 1272.1018

1272.1018: DescriptionLED Mounting Hardware,; CategoryLED optoelectronic/LED photoelectric; File Size77KB，1 Pages; ManufacturerMentor( a Siemens Business); Websitehttps://www.mentor.com; Environmental Compliance

Download Datasheet Parametric View All

1272.1018 Overview

LED Mounting Hardware,

1272.1018 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Optoelectronic device types	LED MOUNTING HARDWARE
Base Number Matches	1

Preview

Download Datasheet

View All

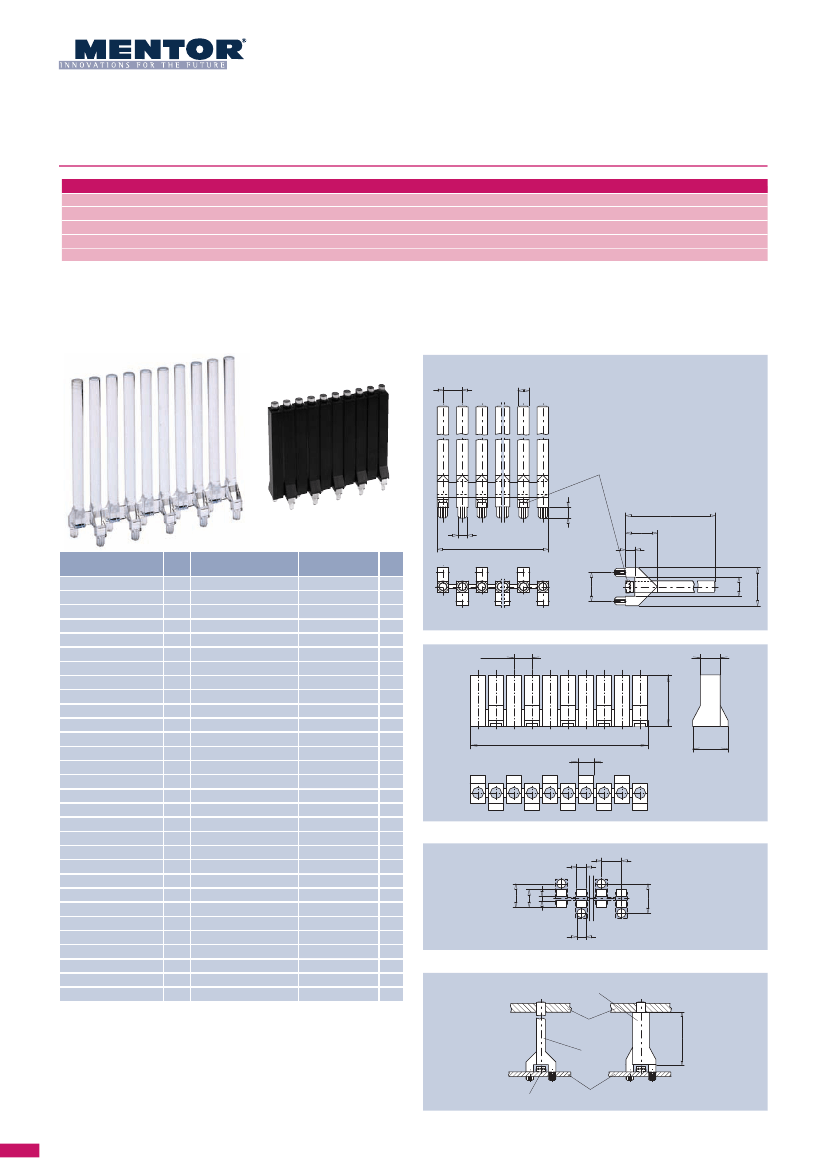

Mehrfach-Anzeigen, stehend

Ø3mm

Allgemeine Hinweise und Technische Daten

Allgemeine Hinweise: siehe Seite 3

Technische Daten LED’s: siehe Seite 39

LL-Werkstoff: PC glasklar UL94

Umgebungstemperatur: -40°C ... +85°C

ESD-Schutz: <12kV

Dieses Lichtleiter-System in stehender Ausführung bringt Licht in Form einer Ø3mm

LED an die Frontplatte. Über Einpresszapfen wird der Lichtleiter in der Leiterkarte

gehalten. Die Länge A der Lichtleiter ist variabel von 9-45mm möglich. Die Verwen-

dung der Lichtleiter erfolgt in Verbindung mit SMD LED’s. Das System kann von

2-fach bis 10-fach geliefert werden, z.B. als Bargraph-Anzeige.

Multiple Displays, upright

Ø3mm

General Remarks and Technical Data

General Remarks: see page 3

Technical Data LEDs: see page 39

LL-Material: PC clear UL94

Ambient Temperature: -40°C ... +85°C

ESD-Protection: <12kV

This light guide system for upright mounting provides light in form of a Ø3mm

LED on the front panel. The light guide is held in place on the printed board via

press-in lugs. The length A of the light guide is variable from 9-45mm. The light

guide is used in conjunction with SMD LEDs. The system is available from 2-fold

up to 10-fold, e.g. as a bargraph display.

x-fach Anzeige

x-fold Display

9,6

24,6

39,6

Empfohlene LED’s

Recommended LEDs

L1 - L12

Überstrahlschutz · Cover

L1 - L12

Übertstrahlschutz · Cover

L1 - L12

Übertstrahlschutz · Cover

Art.-Nr.

1272.1012

1272.1013

1272.1014

1272.1015

1272.1016

1272.1017

1272.1018

1272.1019

1272.1010

1272.0010

1272.1022

1272.1023

1272.1024

1272.1025

1272.1026

1272.1027

1272.1028

1272.1029

1272.1020

1272.0020

1272.1032

1272.1033

1272.1034

1272.1035

1272.1036

1272.1037

1272.1038

1272.1039

1272.1030

1272.0030

1707

1708

1709

1710

1711

1712

1713

1714

1715

1988

1716

1717

1718

1719

1720

1721

1722

1723

1724

1989

1725

1726

1727

1728

1729

1730

1731

1732

1733

1990

Überstrahlschutz · Cover

2.4

1.2

5.08

4.5

Ø 2.4

Montagebohrung

Mounting hole

Layoutvorschlag · Layout Suggestion

Überstrahlschutz

Cover

Mindestmengen für 2- bis 9-fach Anzeigen = 1.000 Stück

Sonderlänge auf Anfrage

Minimum quantity for 2- up to 9-fold displays = 1.000 pieces

Special lengths on request

LED

Frontplatte

Front panel

Lichtleiter

Light guide

Leiterkarte

PCB

Einbaubeispiel · Mounting Example

Magerdruck keine Lagerware · Bestellmenge und Preise auf Anfrage · Light printing non-stock item · Quantity and prices on request
