CMZ5913B THRU CMZ5956B
SURFACE MOUNT SILICON
ZENER DIODES
1.5 WATT, 3.3 THRU 200 VOLT
± 5% TOLERANCE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMZ5913B series
1.5 Watt surface mount silicon Zener diodes are highly
reliable components designed for use in all types of
commercial, industrial, entertainment, computer, and
automotive applications where small size is required.
The SMA case occupies 30% less board space than
the SMB case.
MARKING: SEE MARKING CODE ON
ELECTRICAL CHARACTERISTIC TABLE
SMA CASE
FEATURES:
• Super miniature case
• 200 Watts of TVS power
• ± 5% Tolerance
• High reliability
• “C” bend construction provides strain relief when mounted
on pc board
SYMBOL
IFSM
PD
PD
PPK
PPK
TJ, Tstg
Θ
JL
Θ
JA
UNITS
A
W
W
W
W
°C
°C/W
°C/W
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
Peak Forward Surge Current, tp=8.3ms
Power Dissipation (TL=75°C)
Power Dissipation (Note 1)
Peak Power Dissipation, tp=10x1000µs (TL<25°C)
Peak Power Dissipation, tp=8x20µs (TL<25°C)
Operating and Storage Junction Temperature
Thermal Resistance
Thermal Resistance (Note 1)
10
1.5
0.5
200
1000
-65 to +150
50
250
Note 1: Mounted on 2 inch square FR-4 PCB with minimum recommended SMA copper pad area.
ELECTRICAL CHARACTERISTICS:
(TA=25°C) VF=1.5V MAX @ IF=200mA (for all types)
ZENER
VOLTAGE
TYPE
MIN
V
CMZ5913B*
CMZ5914B*
CMZ5915B*
CMZ5916B*
CMZ5917B*
CMZ5918B*
CMZ5919B
CMZ5920B
CMZ5921B
CMZ5922B
CMZ5923B
CMZ5924B
CMZ5925B
CMZ5926B
3.135
3.420
3.705
4.085
4.465
4.845
5.320
5.890
6.460
7.125
7.790
8.645
9.500
10.45
VZ @ IZT
NOM
V
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
MAX
V
3.465
3.780
4.095
4.515
4.935
5.355
5.880
6.510
7.140
7.875
8.610
9.555
10.50
11.55
IZT
mA
113.6
104.2
96.1
87.2
79.8
73.5
66.9
60.5
55.1
50.0
45.7
41.2
37.5
34.1
TEST
CURRENT
MAXIMUM
ZENER
IMPEDANCE
ZZT @ IZT
Ω
10
9.0
7.5
6.0
5.0
4.0
2.0
2.0
2.5
3.0
3.5
4.0
4.5
5.5
ZZK @ IZK
Ω
500
500
500
500
500
350
250
200
200
400
400
500
500
550
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.25
0.25
MAXIMUM
REVERSE
CURRENT
IR @ VR
μA
100
75
25
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
1.0
V
1.0
1.0
1.0
1.0
1.5
2.0
3.0
4.0
5.2
6.0
6.5
7.0
8.0
8.4
MAXIMUM
ZENER
CURRENT
(TL=75°C)
IZM
mA
454
416
384
348
319
294
267
241
221
200
183
165
150
136
C5913B
C5914B
C5915B
C5916B
C5917B
C5918B
C5919B
C5920B
C5921B
C5922B
C5923B
C5924B
C5925B
C5926B
MARKING
CODE
*Available on special order; minimum quantity may apply; consult factory.
R11 (13-November 2018)
CMZ5913B THRU CMZ5956B
SURFACE MOUNT SILICON
ZENER DIODES
1.5 WATT, 3.3 THRU 200 VOLT
± 5% TOLERANCE
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C) VF=1.5V MAX @ IF=200mA (for all types)
ZENER
VOLTAGE
TYPE
MIN
V
CMZ5927B
CMZ5928B
CMZ5929B
CMZ5930B
CMZ5931B
CMZ5932B
CMZ5933B
CMZ5934B
CMZ5935B
CMZ5936B
CMZ5937B
CMZ5938B
CMZ5939B
CMZ5940B
CMZ5941B
CMZ5942B
CMZ5943B
CMZ5944B
CMZ5945B
CMZ5946B
CMZ5947B
CMZ5948B
CMZ5949B
CMZ5950B
CMZ5951B
CMZ5952B
CMZ5953B
CMZ5954B
CMZ5955B
CMZ5956B
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
58.90
64.60
71.25
77.90
86.45
95.00
104.5
114.0
123.5
142.5
152.0
171.0
190.0
VZ @ IZT
NOM
V
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
MAX
V
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
65.10
71.40
78.75
86.10
95.55
105.0
115.5
126.0
136.5
157.5
168.0
189.0
210.0
IZT
mA
31.2
28.8
25.0
23.4
20.8
18.7
17.0
15.6
13.9
12.5
11.4
10.4
9.6
8.7
8.0
7.3
6.7
6.0
5.5
5.0
4.6
4.1
3.7
3.4
3.1
2.9
2.5
2.3
2.1
1.9
TEST
CURRENT
MAXIMUM
ZENER
IMPEDANCE
ZZT @ IZT
Ω
6.5
7.0
9.0
10
12
14
17.5
19
23
26
33
38
45
53
67
70
86
100
120
140
160
200
250
300
360
450
600
700
900
1200
ZZK @ IZK
Ω
550
550
600
600
650
650
650
700
700
750
800
850
900
950
1000
1100
1300
1500
1700
2000
2500
3000
3100
4000
4500
5000
6000
6500
7000
8000
mA
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
MAXIMUM
REVERSE
CURRENT
IR @ VR
μA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
V
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
114.0
121.6
136.8
152.0
MAXIMUM
ZENER
CURRENT
(TL=75°C)
IZM
mA
125
115
100
94
83
75
68
63
56
50
45
42
38
35
32
29
27
24
22
20
18
16
15
13
12
11
10
9.0
8.0
7.0
C5927B
C5928B
C5929B
C5930B
C5931B
C5932B
C5933B
C5934B
C5935B
C5936B
C5937B
C5938B
C5939B
C5940B
C5941B
C5942B
C5943B
C5944B
C5945B
C5946B
C5947B
C5948B
C5949B
C5950B
C5951B
C5952B
C5953B
C5954B
C5955B
C5956B
MARKING
CODE

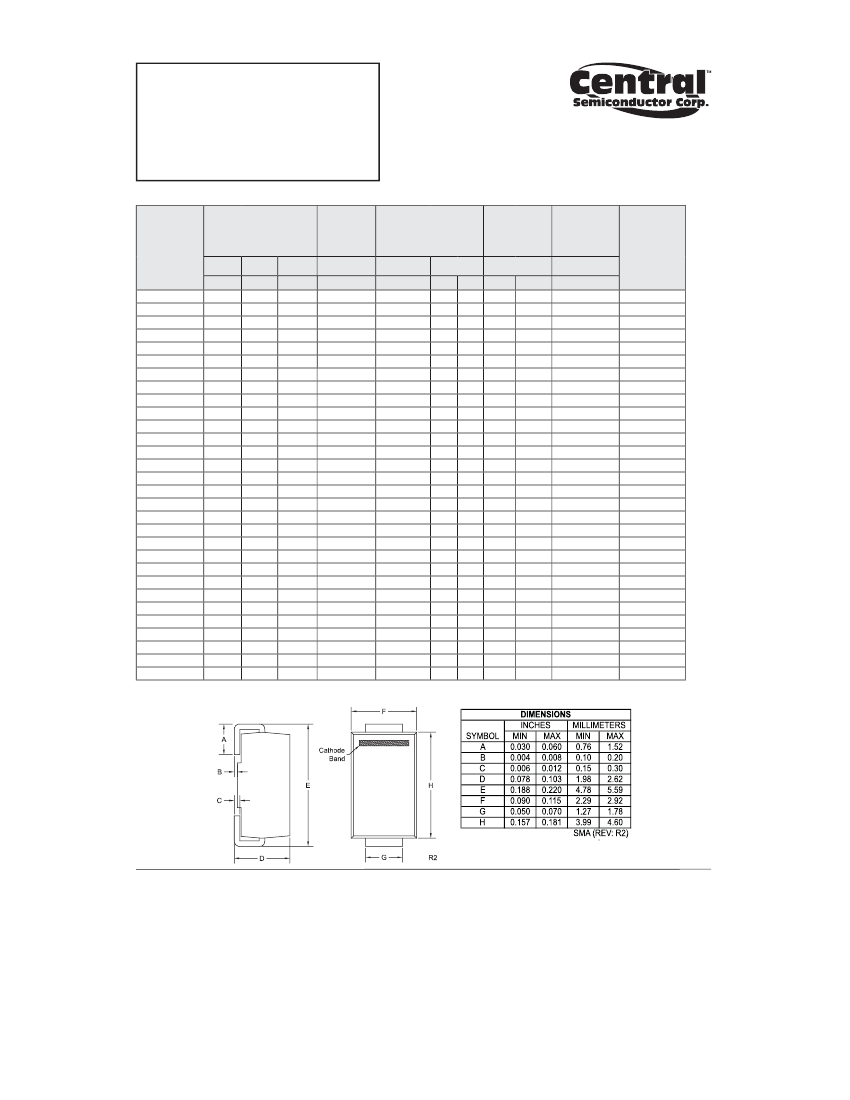

SMA CASE - MECHANICAL OUTLINE
