DF13-15P-1.25H(75)

Description
CONNECTOR
CategoryThe connector
File Size143KB,2 Pages
ManufacturerHirose Electric
Environmental Compliance
Download Datasheet Parametric View All

DF13-15P-1.25H(75) Overview

CONNECTOR

DF13-15P-1.25H(75) Parametric

Parameter NameAttribute value
Connector typeConnector
Contact typeMale pin
Spacing - Mating0.049"(1.25mm)
Number of pins15
Number of rows1
Line spacing - patching-
Number of pins loadedall
styleBoard to cable/wire
shieldCovered - 4 walls
Installation typeSurface mount, right angle
Terminationwelding
Fastening typepin lock
Contact Length - Mating-
Contact length - terminal-
Overall contact length-
Insulation height0.142"(3.60mm)
Contact shapeSquare
Contact surface treatment - matingtin
Contact Surface Treatment Thickness - Mating39.4µin(1.00µm)
Contact Surface Preparation - Columntin
Contact materialbrass
Insulation MaterialsPolyamide (PA), nylon
characteristicBoard guide, fixed solder tail
Operating temperature-35°C ~ 85°C
Intrusion protection-
Material flammability ratingUL94 V-0
Insulation colorbeige
Rated current1A
Rated voltage150V
Joint stack height-
Contact Surface Treatment Thickness - Column39.4µin(1.00µm)
application-
Nov.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
In case that the application demands a high level of reliability, such as automotive,
please contact a company representative for further information.

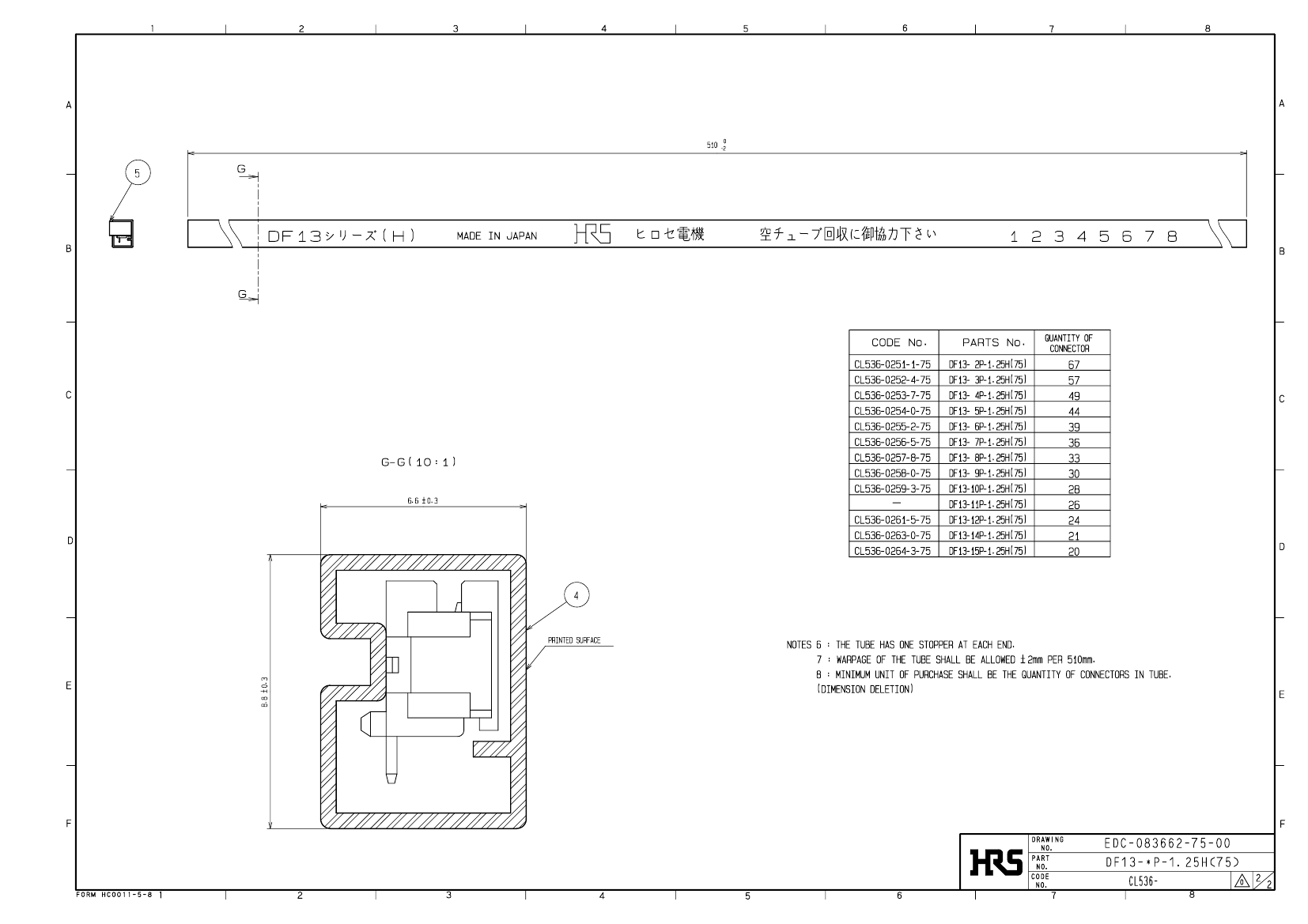

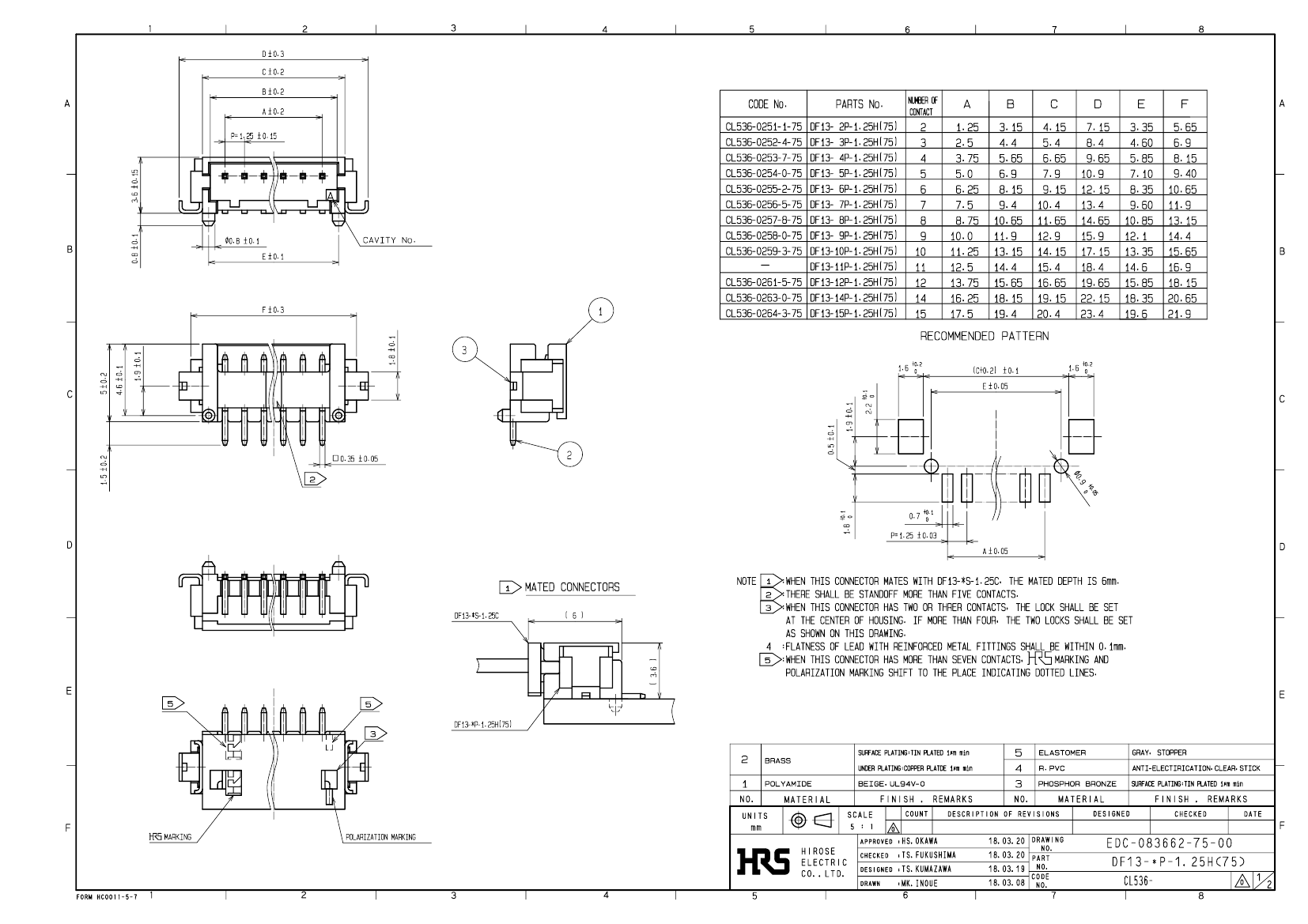

HR
S
DR
AW
IN
G
FO
R
RE
FE
RE
NC
E
