0524352971 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0524352971

0524352971: DescriptionCONN FFC TOP 29POS 0.50MM R/A; CategoryThe connector; File Size430KB，6 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

0524352971 Overview

CONN FFC TOP 29POS 0.50MM R/A

0524352971 Parametric

Parameter Name	Attribute value
Flat flexible type	FFC，FPC
Installation type	Surface mount, right angle
Connector/contact type	contacts, top
Number of pins	29
spacing	0.020"（0.50mm）
Termination	welding
FFC, FCB thickness	0.30mm
board height	0.079"（2.00mm）
Lock function	slide lock
Cable end type	straight, tapered
Contact material	Phosphor bronze
Contact plating	gold
Shell material	Polyamide (PA46), Nylon 4/6
Actuator material	Polyphenylene sulfide (PPS)
characteristic	Fixed solder tail, zero insertion force (ZIF)
Rated voltage	50V
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.5A
Contact plating thickness	-
Shell color	-
Actuator color	-
Number of patches	20

Preview

Download Datasheet

View All

ターミナル

TERMINAL

(2.55)

0.5

(ピッチ)

(PITCH)

(A)

0.25

0.2

0.7

0.2

0.5

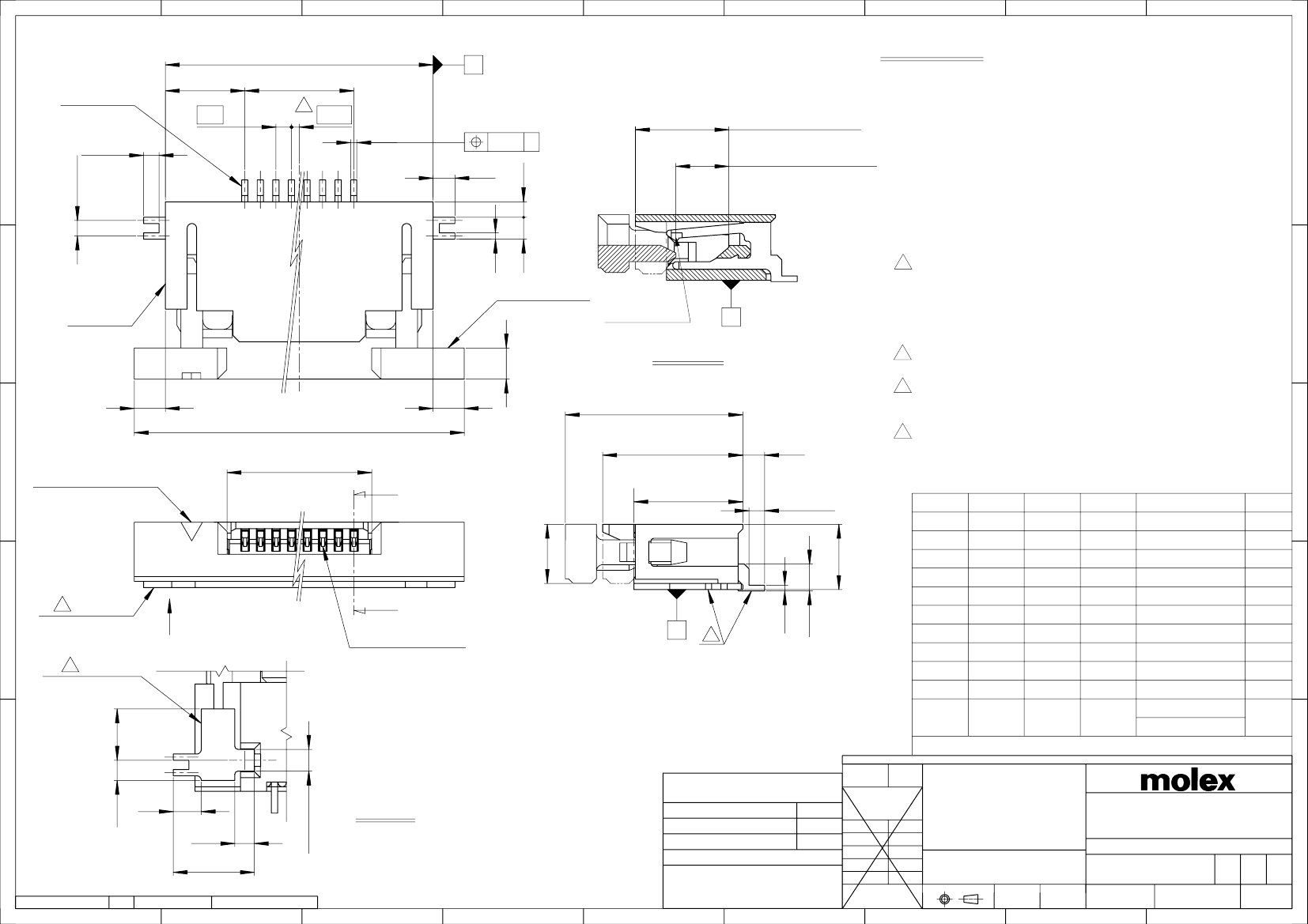

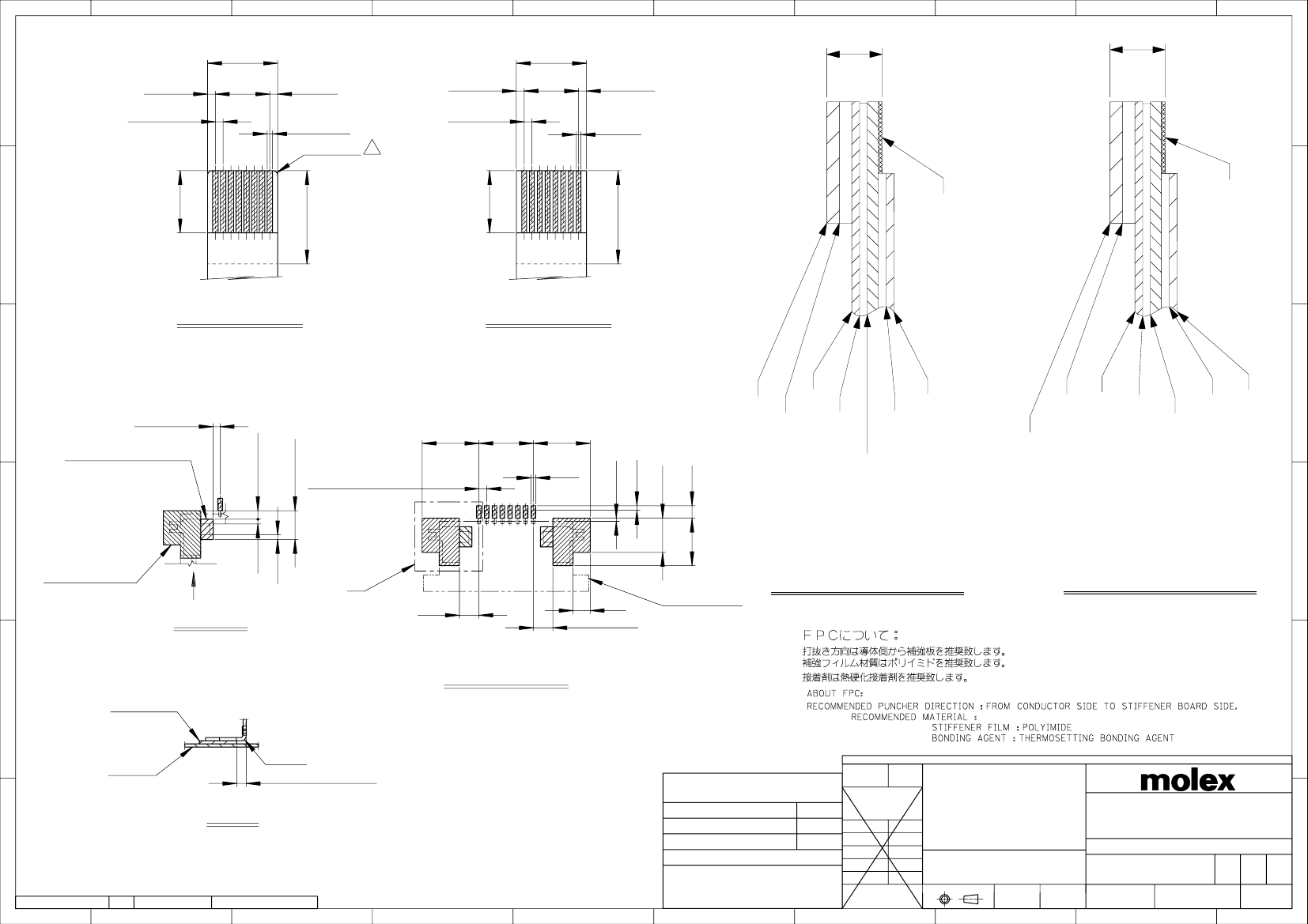

注記 NOTES

1. ½用材料 : MATERIAL

ハウジング

: 46ナイロン UL94V-0

HOUSING

46NYLON

アクチュエータ

: PPS UL94V-0

ACTUATOR

ターミナル

: リン青銅金メッキ(t=0.2)

TERMINAL

PHOS-BRONZE GOLD-PLATED

金具

: リン青銅錫メッキ(t=0.2)

FITTING NAIL PHOS-BRONZE TIN-PLATED

2. エンボステープ梱包時は、アクチュエータがロックした状態とする。

IN THE PACKAGE, ACTUATOR OF PART NO. 52435-**29

SHOULD BE LOCKED.

½ルダーテール半田付け面のズレ量、および金具半田付け面のズレ量は、基準面

Hに対し上方向 0.1MAXIMUM、下方向 0.15MAXIMUM とし、相互のばらつきは

0.1MAXIMUMとする。

MISALIGNMENT OF SOLDER TAILS AND FITTING NAILS FROM DATUM-H

UPPER DIRECTION : 0.1MAXIMUM, LOWER DIRECTION : 0.15MAXIMUM

OFFSET BETWEEN UPPER AND LOWER : 0.1MAXIMUM.

偶数極に適用。

APPLY FOR EVEN CIRCUIT.

パターンはく離止め金具。

FITTING NAIL FOR PREVENTION OF PEELING

OF P.W.B PATTERN.

R0.3はFPCの導½部にかからないこと。

R0.3 MUST NOT BE OVERLAPPED TO PATTERN OF FPC.

7. ELV および RoHS 適合品。

ELV AND RoHS COMPLIANT.

(3)

(FPC挿入深さ)

(INSERTION DEPTH OF FPC)

0.5

0.1

0.5

0.05

(1.7)

(接点½½)

(LENGTH TO CONTACT POINT)

0.2

アクチュエータ

ハウジング

HOUSING

ACTUATOR

0.7

接点部(上面)

CONTACT POINT

(UPPER SIDE)

(1)

SECT.J-J

(5.9)

(アクチュエータが開口した状態)

(WHEN ACTUATOR IS OPENED)

0.1

4.5

(アクチュエータがロックした状態)

(WHEN ACTUATOR IS LOCKED)

0.7

回路番号1用マーク

CKT. NO.1 MARK

3.5

0.5

0.05

FITTING NAIL

接点部(上面)

CONTACT POINT

(UPPER SIDE)

FITTING NAIL

金具

0.82

0.18

金具

21.6

21.1

20.6

20.1

19.6

19.1

18.6

18.1

17.6

17.1

14.6

19.6

19.1

18.6

18.1

17.6

17.1

16.6

16.1

15.6

15.1

12.6

15.65

15.15

14.65

14.15

13.65

13.15

12.65

12.15

11.65

11.15

8.65

14.5

14.0

13.5

13.0

12.5

12.0

11.5

11.0

10.5

10.0

7.5

(A)

52435-3071

52435-2971

52435-2871

52435-2771

52435-2671

52435-2571

52435-2471

52435-2371

52435-2271

52435-2171

52435-1671

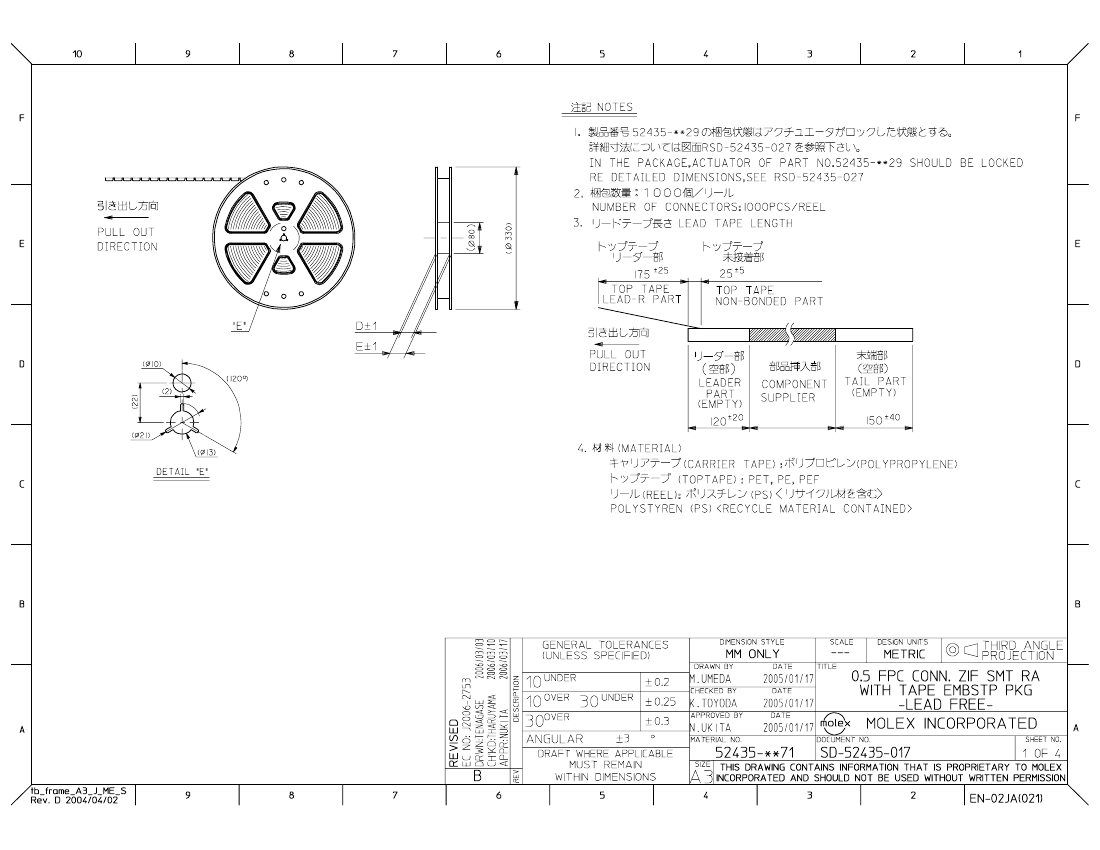

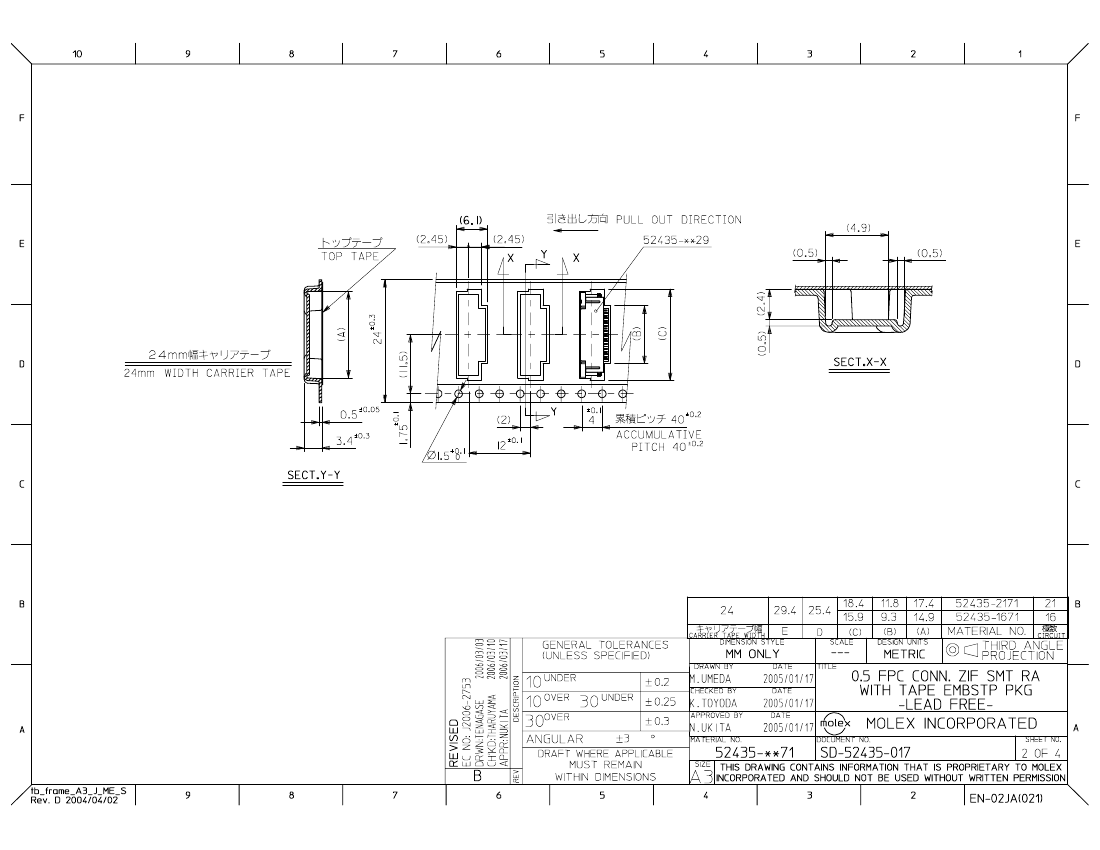

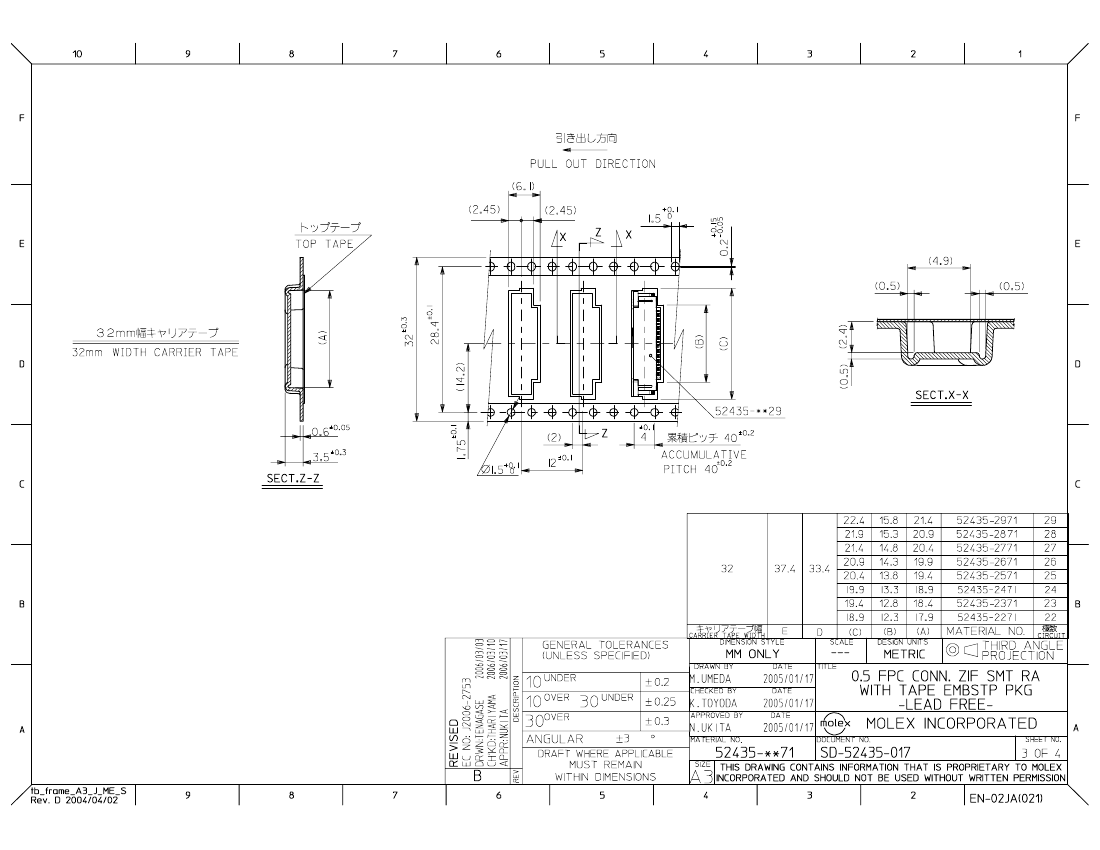

EMBOSSED PACKAGE

ORDER No. オーダー番号

1.65

極数

CKT.

1.9

CONNECTOR SERIES NO. : 52435-**29

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

0.65

0.9

0.7

VIEW K

0.63

2.605

(金具部投½図)

(DETAIL OF FITTING NAIL)

DOCUMENT STATUS

FORMAT: master-tb-prod-A3

REVISION: H

DATE: 2018/01/18

RELEASE DATE

2018/03/14

07:58:46

GENERAL TOLERANCES

(UNLESS SPECIFIED)

10 UNDER

±　0.2

10 OVER 30 UNDER

±　0.25

±　0.3

30 OVER

ANGULAR 　　±　3　°

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

ANGULAR TOL

10:1

3.0 °

CURRENT REV DESC:

GENERAL TOLERANCES

(UNLESS SPECIFIED)

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0 PLACES

0.2

0.25

0.3

DRWN:

YCHEN128

CHK'D: KTAKAHASHI

APPR: NUKITA

INITIAL REVISION:

DRWN: MUMEDA

APPR: NUKITA

THIRD ANGLE PROJECTION

DRAWING

EC NO:

600082

2018/02/27

2018/03/14

2005/02/04

2005/02/17

SERIES

0.5 FPC CONN. ZIF FOR

SMT R/A(TOP CONTACT)

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

SD-52435-016

MATERIAL NUMBER

CUSTOMER

PSD

001

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

52435

SEE TABLE

GENERAL MARKET

1 OF 2
