F1857RD400: DescriptionDIODE MODULE 400V 55A; Categorysemiconductor Discrete semiconductor; File Size74KB，1 Pages; ManufacturerSensata; Environmental Compliance

Download Datasheet Parametric View All

F1857RD400 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F1857RD400	-	-	View	Buy Now

F1857RD400 Overview

DIODE MODULE 400V 55A

F1857RD400 Parametric

Parameter Name	Attribute value
Diode configuration	1 pair in series
Diode type	standard
Voltage - DC Reverse (Vr) (Maximum)	400V
Current - average rectification (Io) (per diode)	55A（DC）
Voltage at different If - Forward (Vf	1.4V @ 165A
speed	Standard recovery >500ns, >200mA (Io)
Operating Temperature - Junction	-40°C ~ 125°C
Installation type	Base installation
Package/casing	module
Supplier device packaging	module

Preview

Download Datasheet

View All

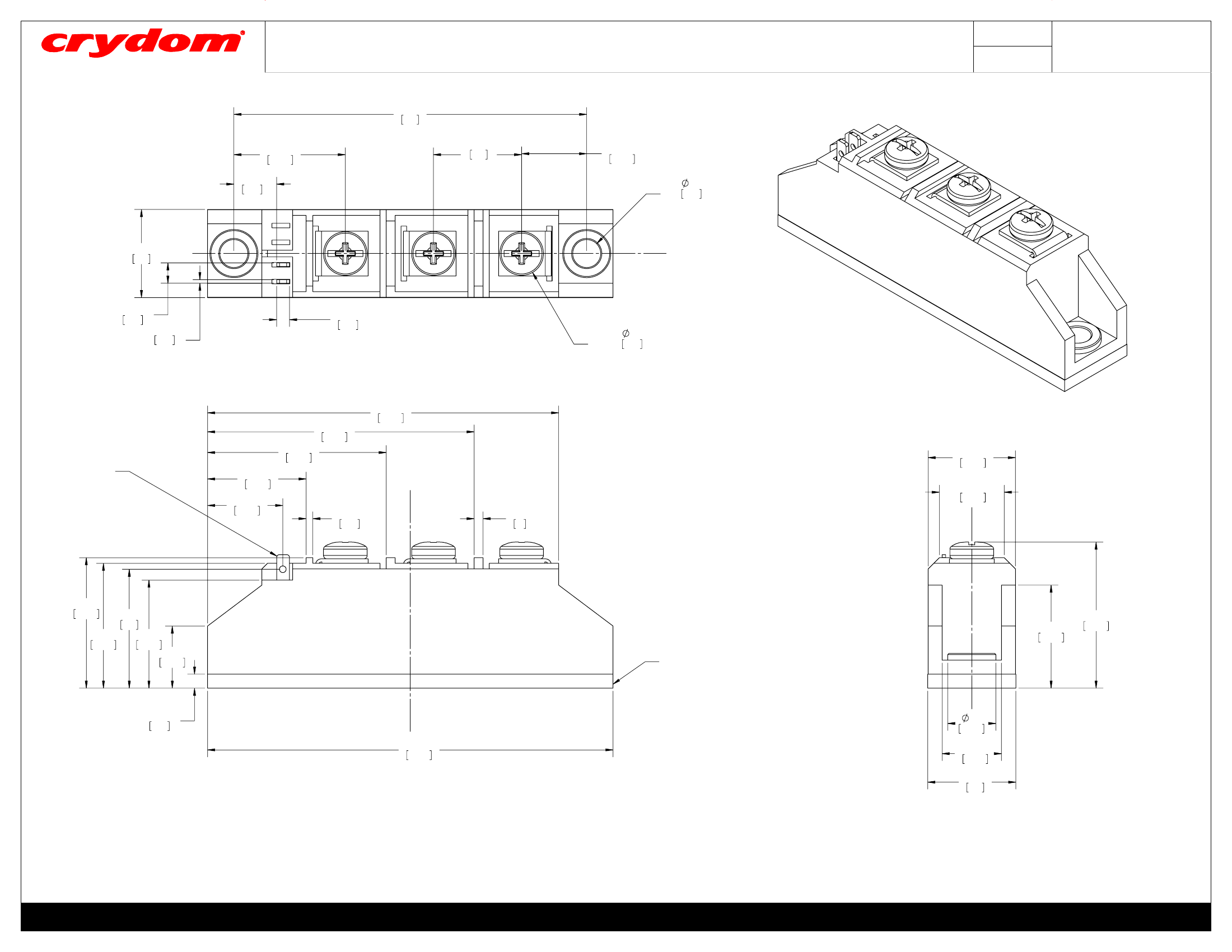

www.crydom.com

F18 DH, CCH SERIES

3.15

80

1.00

25.3

.38

9.7

.79

20

(2 PL)

.58

14.8

.25

6.4

RIVET (2PL)

REV. DATE

11/27/10

For Technical Support:

support@crydom.com

support-europe@crydom.com

.79

20

C

L

.18

4.6

.03

0.8

(2 PL)

.12 (2 PL)

2.9

.39

9.9

M5 SCREW (3 PL)

TERMINAL .12x.03

(2 PL)

1.60

40.5

.88

22.4

.67

17.1

2.38

60.5

3.14

79.6

.78

19.8

.58

14.7

.06

1.5

.08 (2 PL)

2

C

L

1.17

29.6

1.12

28.3

1.06

27

.97

24.5

.92

23.4

.56

14.1

BASEPLATE

1.31

33.1

.13

3.2

C

L

3.62

91.9

.43

10.9

.53

13.5

.79

20

Tolerances: ± 0.02 in / 0.5 mm. All dimensions are in: inches [millimeters]
