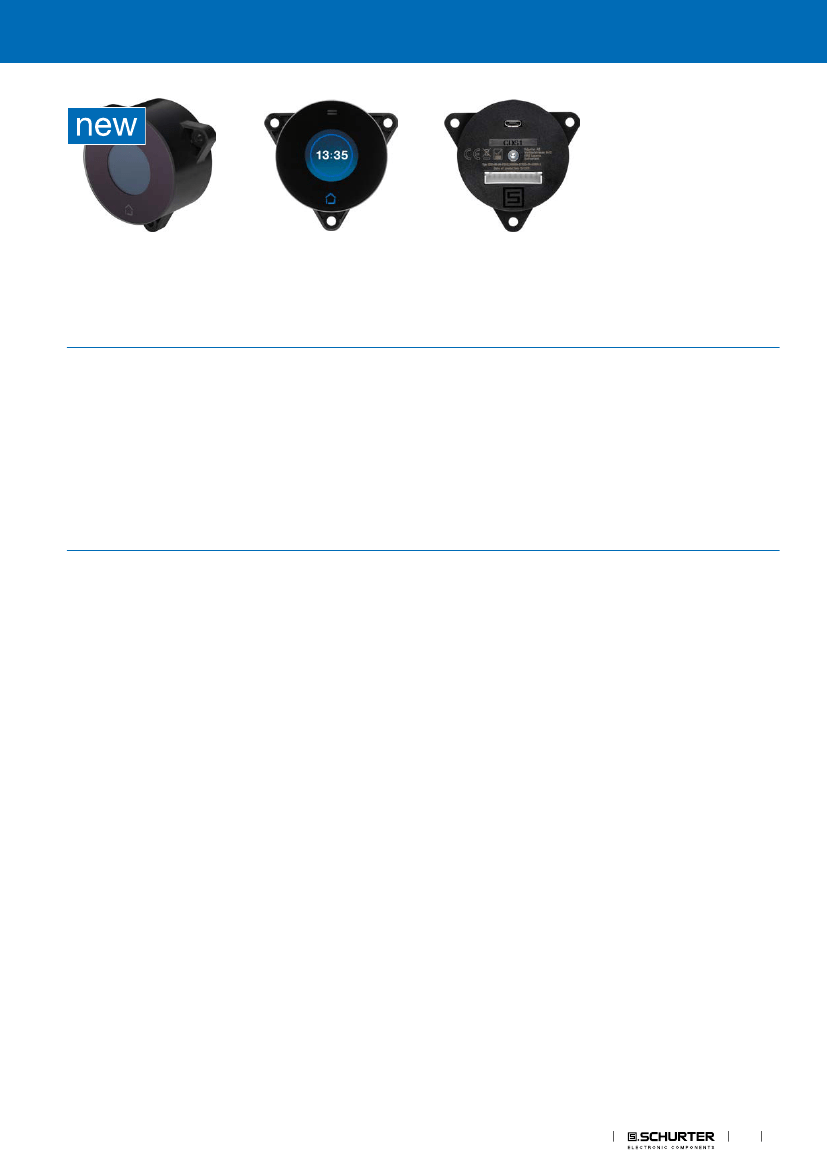

Capacitive touch technology in combination with an OLED Display
Four softkeys and one touch button
Functions: rotating, swiping horizontally or vertically, and tapping
Upload of own pictures in png format and animated gif videos via USB
Interface
- No operation system software necessary for the operation of the
CDS1, only the machine simulator runs on MS Windows 7 and higher
- Selection from three interfaces: I2C, SPI, RS232
Weblinks
html-datasheet, General Product Information, CAD-Drawings, Product
News, Detailed request for product, Landing Page, Video
Unique Selling Proposition
-
-
-
-
Configurable Input System
Full Size Touchscreen
Round shaped OLED Display
Plug and Play
Switches
1
CDS1
Technical Data
Electrical Data
Supply Voltage Vcc
3.3 VDC ± 5%
Logic Input Low
min. 70% Vcc
Logic Input High
max. 30% Vcc
Reverse Polarity Protection¹⁾
yes
Connector to internal Mass
Micro USB-B 2.0
Storage
Connector to Customer Sys- JST XHP 10, protected against torsion
tem Control Unit
Interface to Customer System I2C (100 kHz or 400 kHz), 4-line SPI or
Control Unit
RS232
Current Consumption (Vcc = 3.3 VDC, RS232 Interface)
All features off, sleep mode
20 mA
Only Touch active
20 mA
Only LED active (white)
110 mA
Only Display active, full white 210 mA
All features on, LED and Dis- 260 mA
play full white
Display
Type
Graphic-PMOLED
Color Resolution
65k colors
Resolution
128 x 128 RGB Pixels
Brightness
90 cd/m2, adjustable in 16 steps
Contrast
2000:1
Viewing Angle
160°
Refresh Rate
25 Pictures per sec.
Display Life Time²⁾³⁾
min. 11000 h
Home Button LED on 6 o'clock position
Type
RGB
Illumination Pattern
constant, blinking 2x per sec., pumping
from 0% to 100% within 1 sec and back
Brightness
adjustable in 16 steps
Touch Data
Technology
PCAP
Touch Pattern
Full X-Y
Soft Key Positions
3, 6, 9, and 12 o'clock position on the
Touch Wheel
Touch Button Position
Center of the display
Soft Key / Touch Button short 128 to 500 ms
Soft Key / Touch Button long > 500 ms
Touch Movements
Swipe Left to Right
␣
Swipe Right to Left
␣
Swipe Top to Bottom
␣
Swipe Bottom to Top
␣
Rotation Left
␣
Rotation Right
␣
Tap on Soft Key / Touch Button
System Response Time
< 150 ms
Media Data
Mass Storage Size
Picture Format
Picture Size⁴⁾
File Size for Pictures
Video Format
Video Picture Size
File Size for Videos
Frame Rate for animated gif
videos
Ambient Light Sensor
Sensitive Wavelength Range
Resolution
Mechanical Data
Shock Protection
Screw Tightening Torque for
Mounting Ring
Climatical Data
Operating Temperature
Storage Temperature
IP Protection Class Front Side
Moisture sensitivity level
Material
Housings
Mounting Ring⁵⁾
Seal Ring
Touch Surface
Product Tests
EMC
https://www.schurter.com /PG70
Metal Line Switches
4 Mbyte
png
128 x 128 pixel
max. 20 kByte
gif
128 x 128 pixel
max. 128 kByte
min. 60 ms
390 - 700 nm
12 Bit
IK 05 acc. to IEC/EN 62262
max. 0.2 Nm
-20 to 60 °C
-20 to 70 °C
IP 67 when mounted with Seal Ring⁵⁾,
IP40 otherwise
MSL 1
PC
PC
NBR70
Glass
IEC/EN 61000-4-2
IEC/EN 61000-4-3
IEC/EN 61000-4-4
IEC/EN 61000-4-6
IEC/EN 61000-4-8
IEC/EN 61000-6-1:2016
IEC/EN 61000-6-2:2016
IEC/EN 61000-6-3:2011
IEC/EN 61000-6-4:2011
EN 61326-1:2013
EN 55014-1:2006 + A1:2009 +
A2:2011
EN 55014-2:2015
EN 61058-1-1:2015-05
-25°C / +65°C / 50%RH according to
IEC 60068-2-14 Test N
40°C / 95%RH / 21 days according to
IEC 60068-2-78
750°C and 850°C according to IEC/EN
60695-2-11:2014 and IEC/EN 60335-1
Change of temperature
Damp heat, steady state
Glow wire test
1) mechanical reverse polarity protection made from the combination of the plug and the socket, no internal reverse polarity protection
2) The life time of the display is typically defined as the time it takes for the display to lose half of its brightness and depends on the displayed pictures and animated gif video
pictures. The darker the picutes and the lower the brightness, the longer the display life time
3) The display of static images or videos with static image areas over a long period of time may lead to a so-called burn-in effect, in which the static image remains perma-
nently visible on the display
4) Partial pictures are allowed to have smaller size
5) O-Ring is not included in the 10 pcs package
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
2
Switches
Metal Line Switches
https://www.schurter.com /PG70
CDS1
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

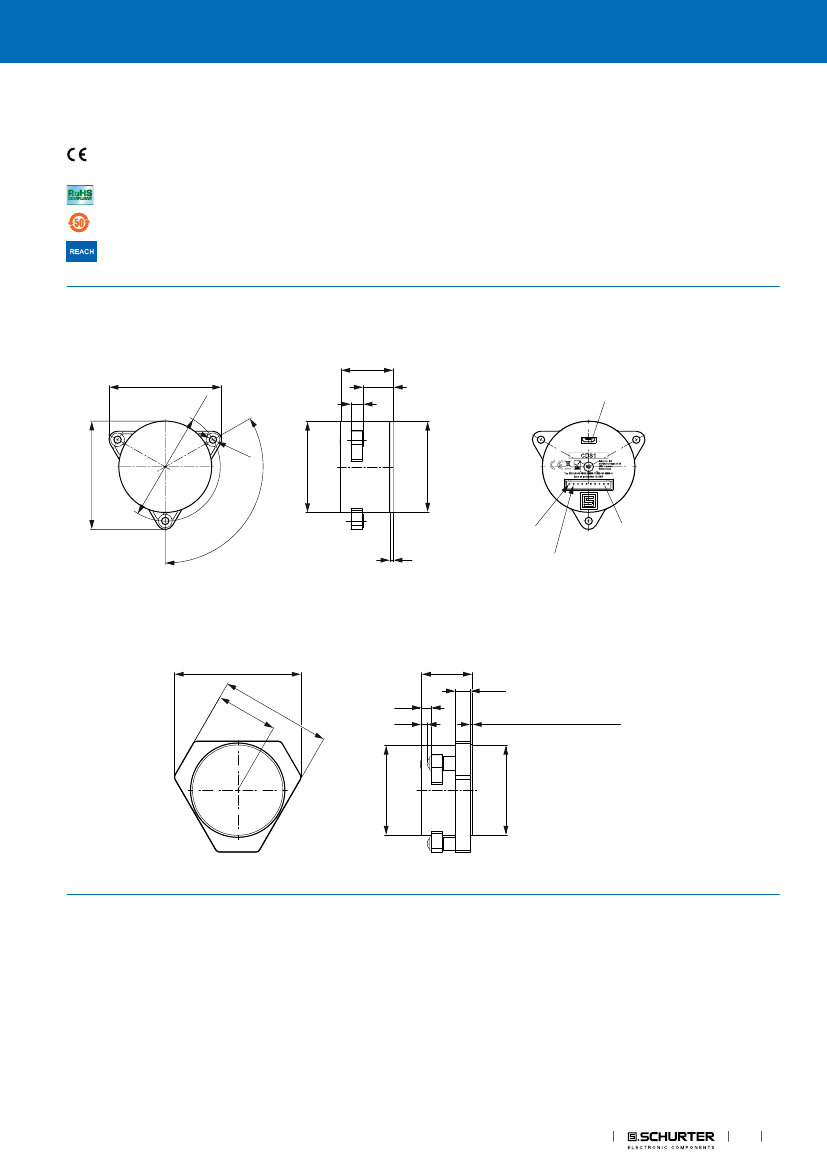

Dimension [mm]
CDS1 Module
30.4
17.5
7
Ø4
65.4
Ø
64
Mini USB-B
to mass storage
Ø 53.8
.3
64
12
0°
Ø 54
Pin 1
supply voltage (+)
2
interface connector
to customer system control
Pin 2
supply voltage (-)
Mounting ring
75.7
30.4
9.1
37
66
.3
5.9
3.5
variable for Front-Panel thickness
1 ...6
Ø 53.8
Ø 54
Switches
3
CDS1

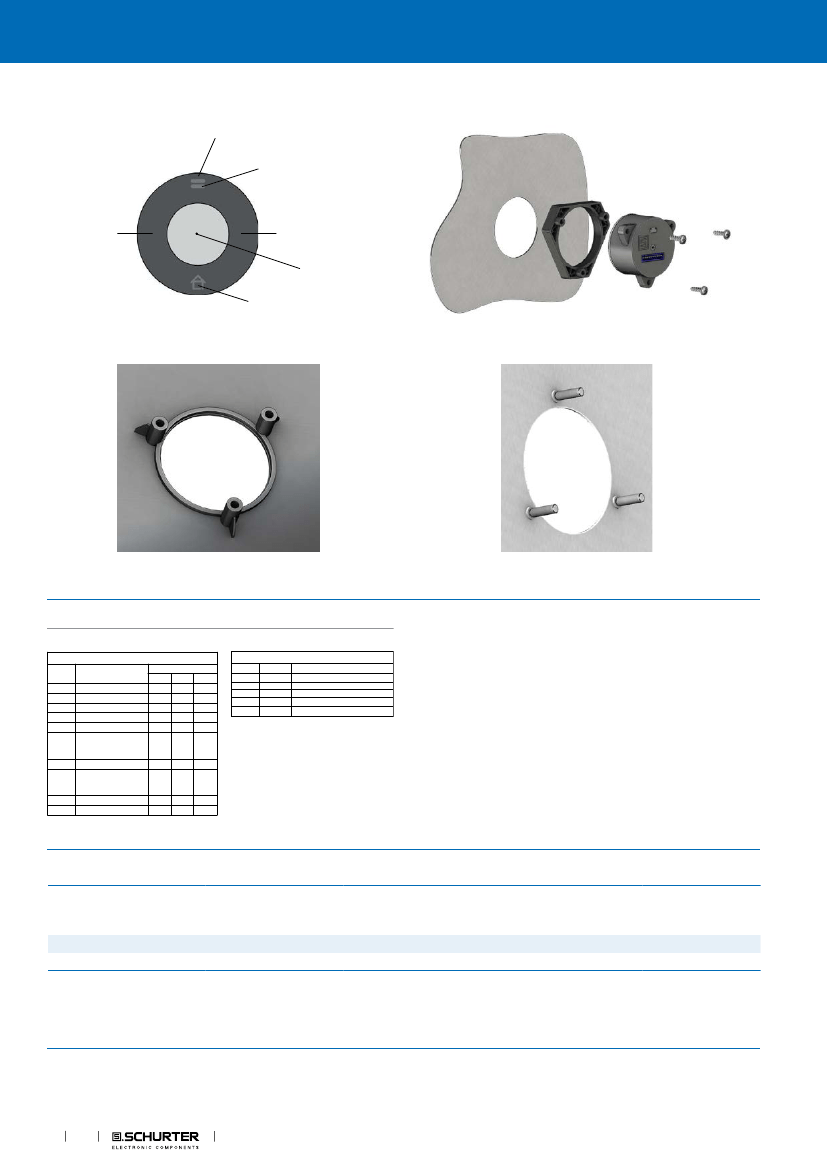

Assembly Instructions
12 o‘clock
https://www.schurter.com /PG70
Metal Line Switches
Ambient light sensor
9 o‘clock
3 o‘clock
Touch Button
6 o‘clock
(Home Button)
SoftKey and Touch Button positions
Mounting of the Design-In-Kit using the mounting ring (with double-sided adhesive
tape)
Example for housing with integrated screw domes for mounting without mounting
ring
Example for housing with screws from the panel front for mounting without moun-
ting ring
Diagrams
Pinout of FST XHP-10
Pin-Nr.:
1
2
3
4
5
6
7
8
9
10
Signal
VCC
GND
IRQ_n²
CS_n²
GND
SCLK / SCL
(external pull-up
resistance 2.7
k )
GND
MOSI / TX / SDA
(external pull-up
resistance 2.7
k )
GND
MISO / RX
application in
SPI I2C RS232
x
x
x
x
x
x
x¹
x¹
x¹
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
Pinout USB Port
Pin-Nr.: Name
1
VBUS
2
D-
D+
3
4
ID
5
GND
Signal
not connected
negative differential data line
positive differential data line
not connected
ground
¹ Optional signal
² Signal is active low
All Variants
Packaging unit
10 pack
Design-In-Kit
Design-In-Kit
Line Connector
-
EU
EU / US
Configurations Code
CDS1-00-10-PBKGLS00000-SYRGB-00-X0000-S
CDS1-00-DI-PBKGLS00000-SYRGB-EU-X0000-S
CDS1-00-DI-PBKGLS00000-SYRGB-US-X0000-S
Order Number
3-102-423
3-102-424
3-102-436
█
█
█
█
Most Popular.
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
4
Switches
Metal Line Switches
https://www.schurter.com /PG70
CDS1
Contents of the Design-In-Kit
Contents of the 10 pack
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
