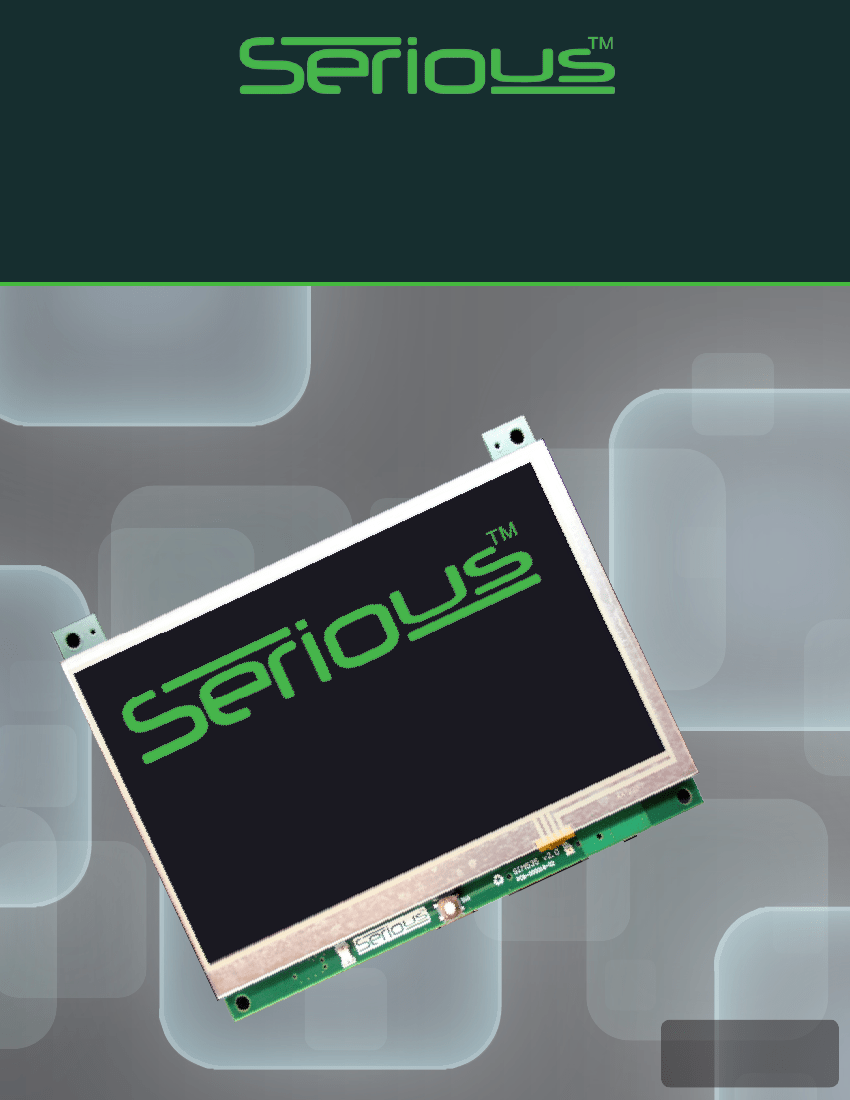

SIM535 7.0” WVGA
Graphic/Touch Module Family
IM
S
5
3
5
Product Brief
Pre-release Information
SIM535_PB_B0ENUS
SIM535
Pre-release
Information
7.0” WVGA Graphic/Touch Module Family
Powered by the Renesas SH7269
CPU
Update your product’s front
panel with
Serious
modules:
123mm
P
Production worthy
P
Prototype friendly
P
Rapid GUI development
165mm
Family Highlights
• 266MHz 32-bit Renesas SH7269 CPU
• 7.0” WVGA 800x480 color TFT display
• On-chip 2.5MB RAM, FPU, 2D GFX
• Various touch, backlight, color depth options
• Proximity and Ambient Light Sensing options
• 2.5MB On-Chip RAM
• 2D Graphics Controller/Accelerator
The SIM535 delivers a high performance
user interface experience powered by the
Renesas SH2 MPU.
Featuring a 7" wide format 800x480 LCD color TFT
screen, and extended -20 to +70C operating range,
the family has various brightness, touch, and back-
light longevity options.
Standard high speed UART, SPI and power connec-
tivity is provided by a 16-pin Power/Communica-
tions Connector – perfect for simple wire-harness
attachment to existing systems. A low-profile
board-to-board 60-pin expansion connector sup-
ports easy custom daughter card development for
more complex connectivity.
The SIM535 is an Extended Lifetime Roadmap Prod-
uct and is fully supported by the
Serious Human In-
terface™ Platform (SHIP)
rapid GUI development and
deployment system.
• 266MHz 32-bit Renesas SH7269 MPU
• On Module Memory
• Extensive I/O
•
•
•
•
•
•
•
• 32MB SDRAM
• 2 or 4GB eMMC FLASH
• 8MB boot Serial FLASH + 2Kbit EEPROM

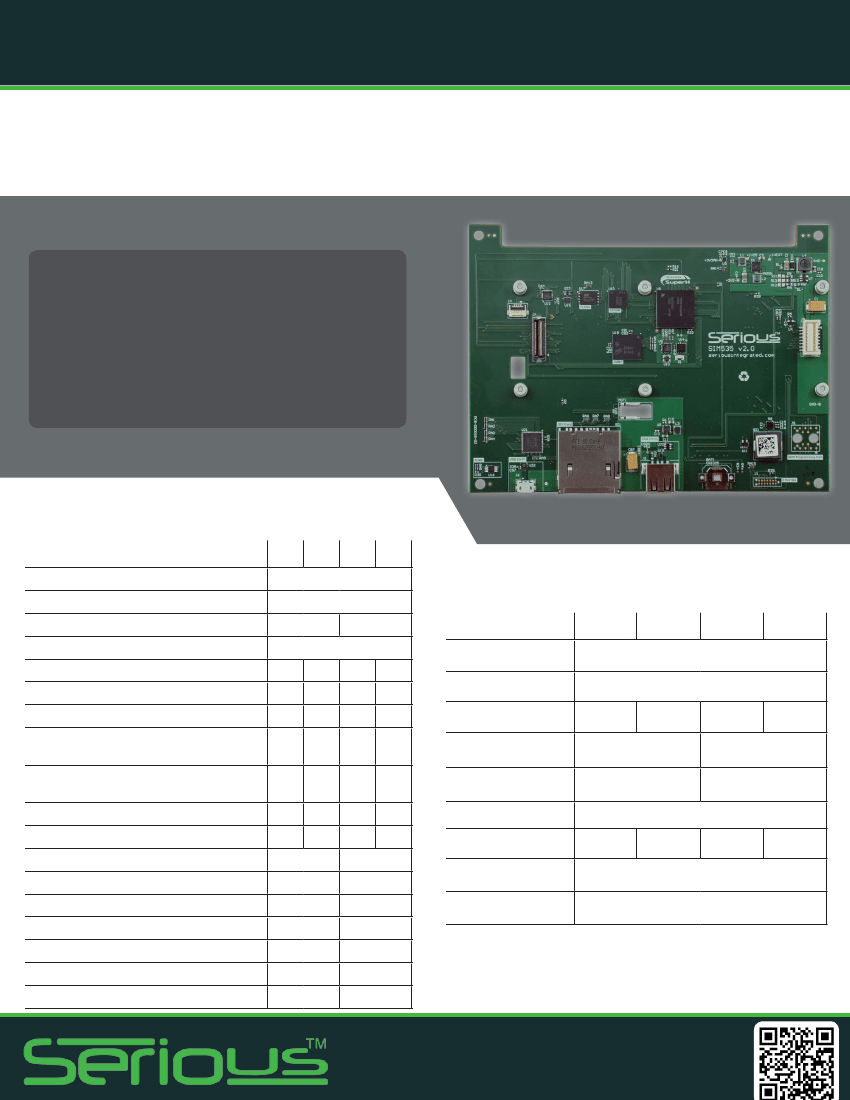

16-pin Power/Communications Connector
60-pin serial expansion connector
SDCard socket
USB 2.0 HS Embedded Host
USB 2.0 HS Device
SHIP Programming Port
Tag-Connect TC2070 JTAG
• Wide Operating Range
• -20 to +70°C extended operating temperature
• 3.6 to 5.50 VDC Input Power
seriousintegrated.com/SIM535
SIM535
Product & LCD Options
Product and LCD Options to fit
your feature, performance and
cost targets
Family Variants
A01 A02 A03 A04
MCU Frequency
MCU RAM
FLASH e-MMC/Serial
SDRAM
Touch
Proximity Detect
Ambient Light Sensor
• UART, SPI, I2C, DAC
266MHz
2560kB
4GB/8MB 2GB/8MB
32MB
R4
R4
Size
Resolution (WxH)
Touch
NITs
Backlight Life (kHr)
Viewing
Proximity Capable
Color Depth (bits)
Temp Range (°C)
R4
200+
20K+
LCD Options
R22ALL N22ALL R55ALL N55ALL
7” Diagonal Active
800x480
R4
500+
50K+
Land
24
-20/+70
16-Pin Power/Comms Connector
60 Pin Board-to-Board Expansion
SHIP Programming Connector
Tag-Connect TC2070 JTAG
USB HS Device Micro B
USB HS Host A
SDCard socket
Battery Backed Real Time Clock
Piezo Audio Sounder
Dual Color User LED & Pushbutton
PCB Temp Sensor
• UARTs, I2S, SPI, I2C, CAN, DAC, USB Device
Visit www.seriousintegrated.com/SIM535
for complete, up-to-date variant and LCD options.
Pre-release
Information
SIM535

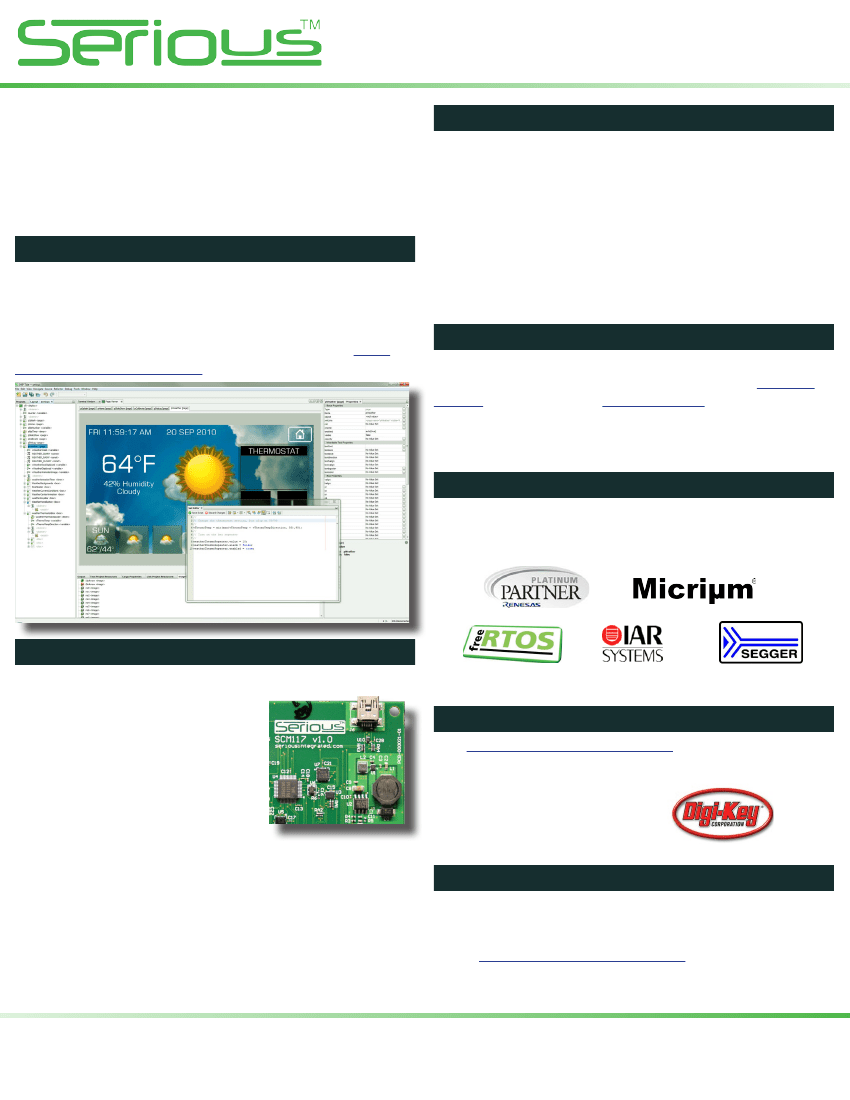

Building a GUI can be hard. We can help.
Develop your GUI using the Serious Human
Interface™ Platform for professional results
in a fraction of the time of traditional coded
development.
Looking for comprehensive PC/MAC/Linux-based
WYSIWYG rapid-GUI development environment with
minimal coding? Use the Serious Human Interface™
Platform (SHIP) to create a complete, communicating
and functioning GUI in as little as
hours.
See
www.
seriousintegrated.com/SHIP
for details.
The SIM535-A01-DEV-01 development kit contains ev-
erything you need to start working with the SIM535
family, including:
•
•
•
•
•
•
SIM535-A01-R55ALL module
Acrylic demo enclosure
AC power adapter
Sample 16-pin cable
*SHIP Programming Cable 200 (SPC200)
*SHIP Programming Adapter 200 (SPA200)
*coupon included prior to SPA200/SPC200 release
Development Kits
Fast GUI Development with SHIP
Serious
offers comprehensive software, hardware and
GUI customization and development services.
Contact
Serious
for information.
mySerious.com
offers commu-
nity and
Serious
support for all registered users of
Seri-
ous
modules.
Support and Services
Serious
is a Renesas Platinum Partner:
Serious
Inte-
grated Modules are supported with software and ser-
vices from Renesas and
Serious
strategic partners.
Partner Support
Serious
offers numerous communications daughter
cards for the SIM535 to help
complete your hardware design in
industrial network environments,
including CAN, RS232, RS485, and
more.
The
Serious
Communications
Module 117 (SCM117), available
separately,
docks into the back of
Communications Daughter Cards
Visit
seriousintegrated.com/SIM535
for up-to-date
ordering information, or contact an authorized
Serious
distributor:
Ordering Information
newer SIMs including SIM535, SIM115, and SIM231,
and provides CAN, RS232, and RS485 connectivity,
9-25VDC to 5VDC power conversion for the SCM
and SIM, and an optional on-board 32-bit RX111
MCU for custom protocol conversion between the
network and the SIM.
• C
ontact your local
Serious
Representative
• Contact your Arrow Electronics Applications Engineer
• Visit
seriousintegrated.com/SIM535
• Ordering information
• Mechanical Design Package (MDP)
Need More Info?
www.seriousintegrated.com
SIM535_PB_B0ENUS
