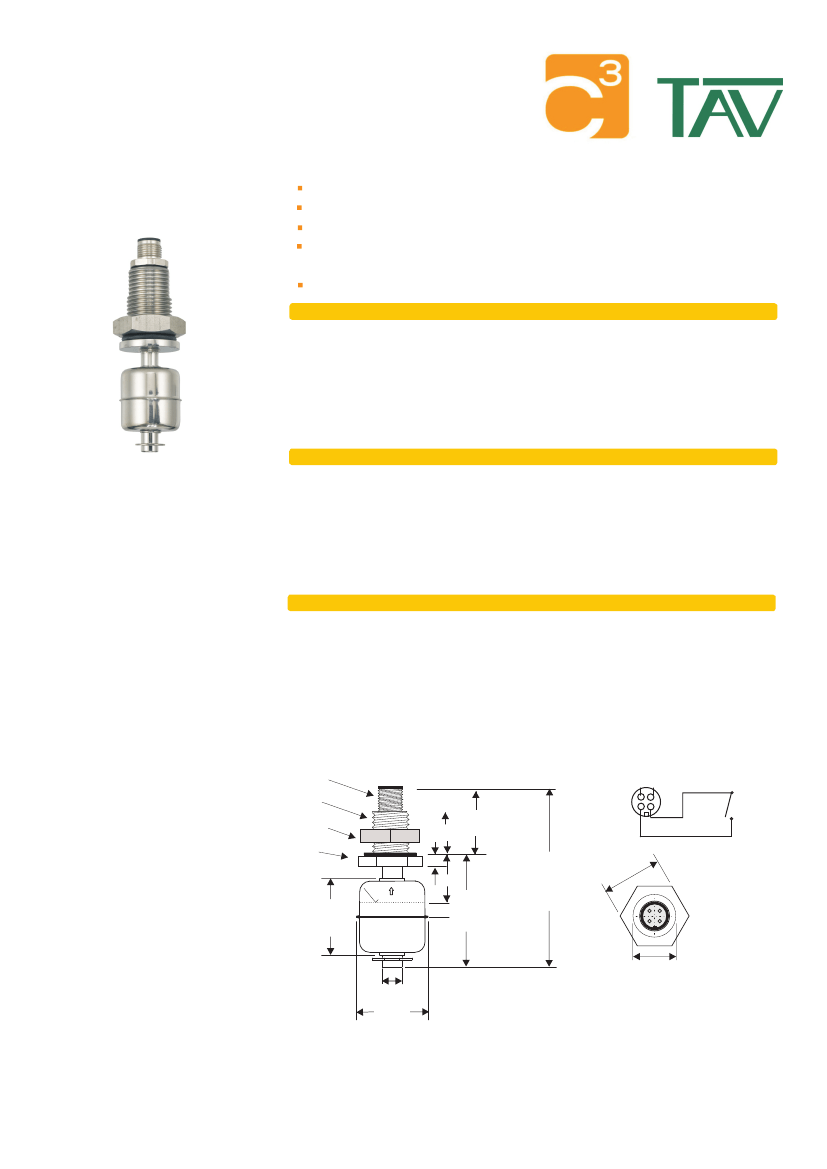

SSF25 Series
½”BSP internal fitting switch with M12 plug
Internal fitting via ½”BSP thread
Stainless steel 316
Miniature design
Temperature up to 120ºC
User configurable N/O (make on rise) or N/C (make on fall)
T
echnical Specification
Mounting style
Mounting thread
Float & Stem material
Maximum Temperature
Maximum pressure
Float SG
Minimum fluid SG
Electrical Specification
Contact Form
Switching Power Max
Switching Voltage AC Max
Switching Voltage DC Max
Switching Current Max
Internal
1/2”BSP
316grade SS
120ºC
10 bar
0.7
0.8
Connection
4 pin M12 plug
Cable size
N/A
Cable conductor material
N/A
Cable sheath material
N/A
Cable temperature rating
N/A
Sealing gasket
Nitrile
Tightening torque for fixing nut 2.0kg/cm
The SSF25 series is a compact vertical
internally mounted device. Mounting is in
the top or bottom of the tank from the
inside, so requires access to the inside of
the tank.
This version has a M12 connector for rapid
connection to system.
These are manufactured in 316 grade
Stainless steel.
The switch action may be reversed by
removing the float, inverting and then
refitting it to the stem.
VA
V
V
A
N/O (N/C)
50
300
300
0.5
All ratings are for resistive load only.
Standard Parts
SSF25XPM12
Material
SS 316
Max Power
50VA
Connection
M12 connector
Custom versions can be made for particular applications. Please contact Cynergy3 with your requirements.
Mechanical Dimensions
M12x1
1/2”BSP
28
Plug connections
4
1
3
2
Hex Nut 24mm AF
Hex 24mm AF
5
Immersion
depth
20
19.5
6
50
76.3
x
He
24
30.8
