TECHNICAL BULLETIN TB-2055

Statshield

Smocks

Grounding, Testing and Maintenance

NO WRISTBAND

NECESSARY

Made in the

United States of America

clothing fabrics can dissipate a charge to that person’s

skin and then to ground. Personnel clothing usually is

electrically separate or isolated from the body.” “Groundable

Static Control Garment System, Garments that are used to

establish the primary ground path for a person shall provide

a resistance of less than 35 megohms from the person to

the groundable point of the garment.”[ESD TR20.20-2008

section 5.3.13 Garments]

Statshield

smocks are constructed of a lightweight

dissipative material which made from texturized polyester

and a minimum of 9% carbon nylon monofilament. The

conductive nylon fibers are woven in a chain-link design

throughout the material, providing continuous and consistent

charge dissipation. All of the seams in Statshield

smocks

are designed to maintain electrical continuity from panel to

panel and from sleeve to sleeve in accordance with the ESD

Association Garment Standard, ESD-STM2.1.

“After verifying that the garment has electrical conductivity

through all panels, the garment should be electrically

bonded to the grounding system of the wearer so as not to

act as a floating conductor.” [ESD TR20.20-2008 section

5.3.13 Garments] The conductive fabric in smock is a

conductor. If not grounded, the smock can become an

isolated charged conductor. If not grounded via a wrist strap

coil cord, ground the ESD garment using ESD footwear to

ESD flooring.

The dissipative material becomes part of the ground path

to remove static charges. Statshield

smocks are available

in two lengths -- the lab coat length and the jacket length.

Both lengths are available in two styles - with snaps and

with conductive elastic cuffs. Smocks are available in eight

colors* -- blue, white, teal, black, pink, grey and orange.

Statshield

smocks incorporate a “hip-to-cuff” grounding

feature which allows for hands-free grounding with no

cord attached to the operator’s wrist. This feature allows

connection of a ground cord to a 4mm snap stud on the hip.

A seam of carbon-suffused threads provides a secure and

direct electrical connection from the snap stud on the hip

to conductive elastic cuffs. Statshield

smocks ground the

person when used in this manner. Standard touch testing or

continuous monitoring can be used to test the “hip-to-cuff”

function.

*Fabric lots vary slightly in color.

COIL CORD (NOT INCLUDED)

TO GROUND

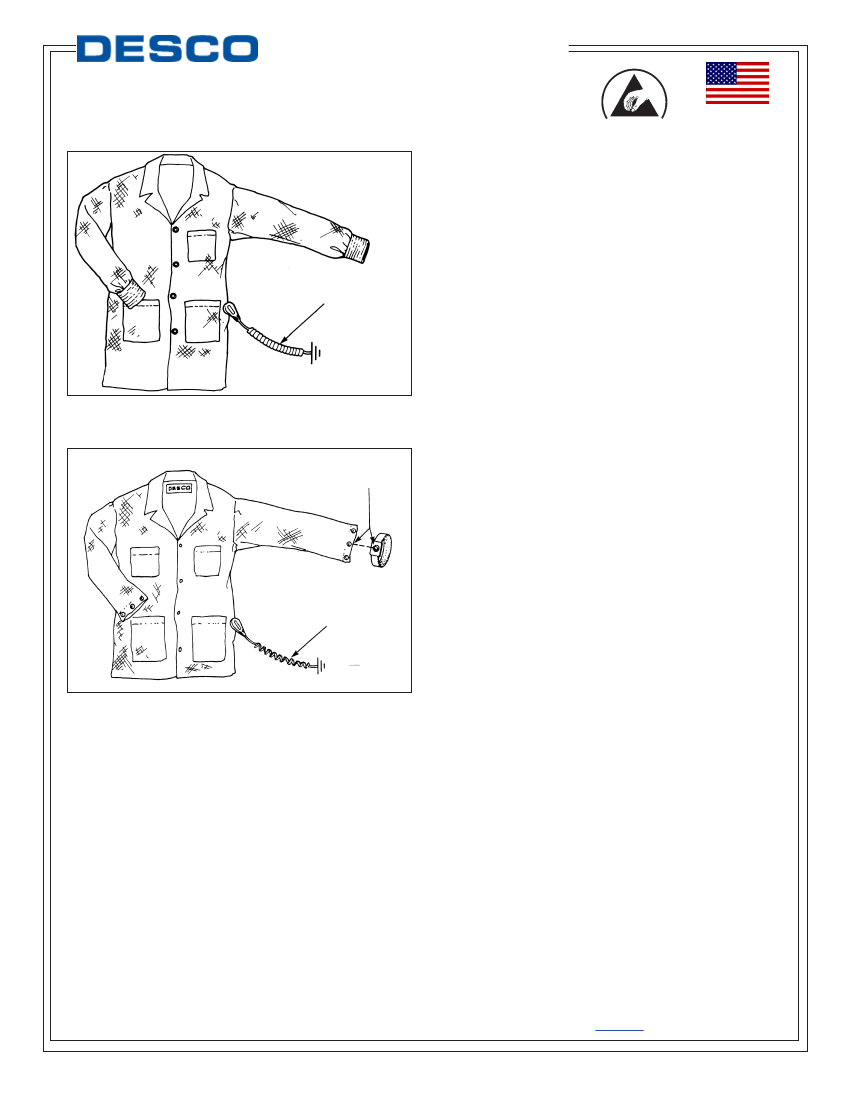

Figure 1. Desco Statshield

Premium Lab Coat with

Conductive Cuffs. Also available in Jacket length.

WRISTBAND (NOT INCLUDED)

SNAPS TO CONNECT TO GARMENT

COIL CORD (NOT INCLUDED)

TO GROUND

Figure 2. Desco Statshield

Premium Jacket with Snaps.

Also available in Lab Coat length.

Description

Desco’ Statshield

smocks smocks are designed to be

antistatic, low tribocharging, and create a Faraday Cage

around the torso and arms of the wearer to protect ESD

susceptible items from electrostatic fields generated by

clothing on the operator’s clothing. Static control garments

are intended to attenuate electrostatic fields that may be

present on personnel clothing. Statshield

Smocks meet the

requirement for Groundable Static Control Garment System

per ANSI/ESD S20.20 required limit of < 3.5 x 10

ohm Rtg

tested per ANSI/ESD STM2.1 and ESD TR53 (23° ± 1° C,

12% ± 3% RH, and 50% ± 5% RH).

“While a person may be grounded using a wrist strap or

other grounding methods, that does not mean that insulative

DESCO WEST -

3651 Walnut Avenue, Chino, CA 91710 • (909) 627-8178

DESCO EAST

- One Colgate Way, Canton, MA 02021-1407 • (781) 821-8370 • Web Site:

Desco.com

TB-2055

September 2018 Page 1 of 4

Employee Owned
