RoHS Recast Compliant
SATA-Disk Module 5A-M
SDM5A-M 7P/90D MP2 Product Specifications
(Toshiba 15nm)
November 24, 2016
Version 1.1
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
SATA-Disk Module 5A-M
APSDMxxxGQ2XN-ETM1XX
Features:
Standard Serial ATA Interface
–
Serial ATA Revision 3.1
–
SATA 6.0 Gbps interface
–
ATA-8 command set
–
Backward compatible with SATA 1.5/3.0
Gbps
Capacity
–
8, 16, 32, 64 GB
Performance*
–
Burst read/write: 600 MB/sec
–
Sustained read: up to 245 MB/sec
–
Sustained write: up to 75 MB/sec
Flash Management
–
Built-in hardware ECC
–
Static/dynamic wear-leveling
–
Flash bad-block management
–
S.M.A.R.T.
–
Power Failure Management
–
ATA Secure Erase
NAND Flash Type:
MLC
MTBF:
>1,000,000 hours
Temperature Range
–
Operating:
Standard: 0°C to 70°C
Extended: -40°C to 85°C
–
Storage: -40°C to 100°C
Supply Voltage
–
5.0 V
±
5%
Power Consumption*
–
Active mode: 205 mA
–
Idle mode: 80 mA
Connector Type
–
7-pin SATA signal connector
–
15-pin SATA power connector
Form Factor
–
SATA Disk Module: 7-pin/90 degree Middle
Profile 2
–
Dimensions: 52.25x24.00x15.20, unit: mm
Shock & Vibration**
–
Shock:1,500 G
–
Vibration: 15 G
Write Protect Switch (optional)
RoHS Recast Compliant
–
Complies with 2011/65/EU standard
*Varies from capacities. The values for performances and power consumptions presented are typical and may vary depending on flash configurations
or platform settings. The term idle refers to the standby state of the device.
**Non-operating
1
© 2016 Apacer Technology Inc.
Rev. 1.1
SATA-Disk Module 5A-M
APSDMxxxGQ2XN-ETM1XX
Table of Contents
1. GENERAL DESCRIPTION .................................................................................................... 3
2. PIN ASSIGNMENTS ............................................................................................................... 3
3. PRODUCT SPECIFICATIONS .............................................................................................. 4
3.1 C
APACITY
............................................................................................................................................................. 4
3.2 P
ERFORMANCE
.....................................................................................................................................................4
3.3 E
NVIRONMENTAL
S
PECIFICATIONS
.......................................................................................................................4
3.4 M
EAN
T
IME
B
ETWEEN
F
AILURES
(MTBF) ...........................................................................................................5
3.5 C
ERTIFICATION AND
C
OMPLIANCE
.......................................................................................................................5
4. FLASH MANAGEMENT ........................................................................................................ 6
4.1 E
RROR
C
ORRECTION
/D
ETECTION
.........................................................................................................................6
4.2 B
AD
B
LOCK
M
ANAGEMENT
.................................................................................................................................6
4.3 W
EAR
L
EVELING
..................................................................................................................................................6
4.4 P
AGE
M
APPING
FTL .............................................................................................................................................6
4.5 P
OWER
F
AILURE
M
ANAGEMENT
........................................................................................................................... 6
4.6 ATA S
ECURE
E
RASE
............................................................................................................................................7
5. SOFTWARE INTERFACE ..................................................................................................... 8
5.1 C
OMMAND
S
ET
.....................................................................................................................................................8
5.2 S.M.A.R.T............................................................................................................................................................ 8
6. ELECTRICAL SPECIFICATIONS ..................................................................................... 10
7. MECHANICAL SPECIFICATIONS ................................................................................... 11
7.1 D
IMENSIONS
....................................................................................................................................................... 11
7.2 W
RITE
P
ROTECT
S
WITCH
(
OPTIONAL
) ................................................................................................................ 12
8. PRODUCT ORDERING INFORMATION ......................................................................... 13
8.1 P
RODUCT
C
ODE
D
ESIGNATIONS
......................................................................................................................... 13
2
© 2016 Apacer Technology Inc.
Rev. 1.1
SATA-Disk Module 5A-M
APSDMxxxGQ2XN-ETM1XX
1. General Description
Apacer’s SDM5A-M (SATA Disk Module 5A-M) is our next generation disk-on-module (DOM) series that
offers elevated speed boost and higher error correction capabilities. Built with SATA 6.0 Gb/s interface,
SDM5A-M delivers higher performance in data transfer than its previous SDM selections, reaching up to
245 MB/s in read and 75 MB/s in write.
With its SATA interface compliance and compact size, this high-speed disk module defines an ideal
balance of performance, capacities, reliability and cost. SDM5A-M comes in moderate capacities that are
suitable to boot industrial applications and light operating systems for specific operations, while with some
extra memory space for data storage. The architectural nature of SATA disk module provides higher
resistance to external environmental influences and better flexibility for motherboard space.
Regarding data reliability, SDM5A-M is built in with powerful ECC engine that can correct up to 40 bits per
1KB data. In addition, the controller unit of this DOM device supports wear-leveling, SMART and power
failure management for data integrity. With its trustable reliability, performance and cost effectiveness,
Apacer’s SDM5A-M is definitely the ideal storage or cache solution for embedded and industrial
computers, servers and thin clients.

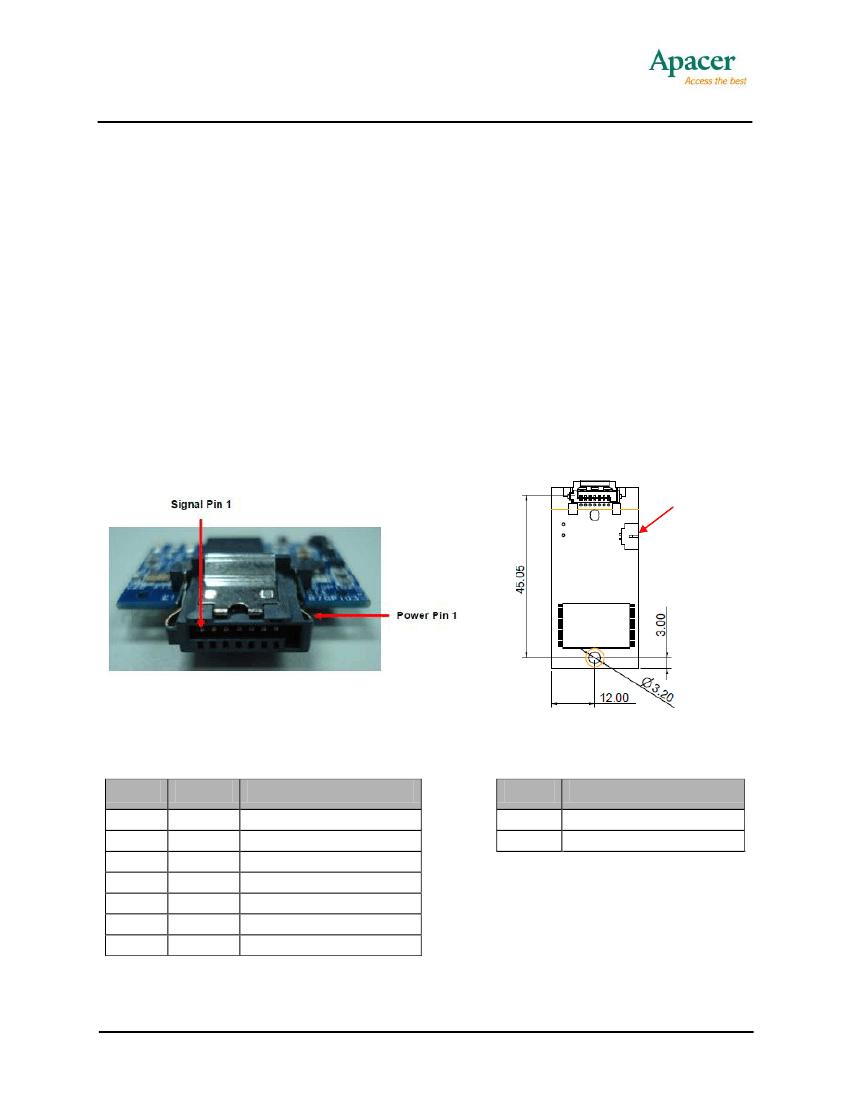

2. Pin Assignments
Power P1 of
power cable
connector
Table 1-1
Signal Segment
Pin
S1
S2
S3
S4
S5
S6
S7
Type
GND
RxP
RxN
GND
TxN
TxP
GND
- Differential Transmit Signal
+ Differential Transmit Signal
+ Differential Receive Signal
- Differential Receive Signal
Description
Pin
P1
P2
Table 1-2
Power Segment
Signal/Description
VCC (5V)
GND
3
© 2016 Apacer Technology Inc.
Rev. 1.1
SATA-Disk Module 5A-M
APSDMxxxGQ2XN-ETM1XX
3. Product Specifications
3.1 Capacity
Capacity specifications of SDM5A-M are available as shown in Table 3-1. It lists the specific capacity and
the default numbers of heads, sectors and cylinders for each product line.
Table 3-1
Capacity Specifications
Capacity
8 GB
16 GB
32 GB
64 GB
Total bytes*
8,012,390,400
16,013,942,784
32,017,047,552
64,023,257,088
Cylinders
15,525
16,383
16,383
16,383
Heads
16
16
16
16
Sectors
63
63
63
63
Max LBA
15,649,200
31,277,232
62,533,296
125,045,424
*Display of total bytes varies from file systems, which means not all of the bytes can be used for storage.
**Notes: 1 GB = 1,000,000,000 bytes; 1 sector = 512 bytes.
LBA count addressed in the table above indicates total user storage capacity and will remain the same throughout the lifespan of the
device. However, the total usable capacity of the SSD is most likely to be less than the total physical capacity because a small portion
of the capacity is reserved for device maintenance usages.
3.2 Performance
Performance of SDM5A-M is listed below in Table 3-2.
Table 3-2
Performance
Capacity
Performance
Sustained Read (MB/s)
Sustained Write (MB/s)
8 GB
105
24
16 GB
215
48
32 GB
210
42
64 GB
245
75
Note: Results may differ from various flash configurations or host system setting.
3.3 Environmental Specifications
Environmental specifications of SDM5A-M product family follow the MIL-STD-810 standards are available
as shown in Table 3-3.
Table 3-3
Environmental Specifications
Item
Operating temp.
Non-operating temp.
Operating vibration
Non-operating vibration
Operating shock
Non-operating shock
Specifications
0°C to 70°C (Standard); -40°C to 85°C (Extended)
-40°C to 100°C
7.69 Grms, 20~2000 Hz/random (compliant with MIL-STD-810G)
4.02 Grms, 15 ~ 2000 Hz/sine (compliant with MIL-STD-810G)
50(G), 11(ms), half-sine wave
1,500(G), 0.5(ms), half-sine wave
4
© 2016 Apacer Technology Inc.
Rev. 1.1
