Model 5515A PLCC Test Adapters Kit
Model 5279, 5280, 5733, 5281, 5312, 5401, 5402
FEATURES:

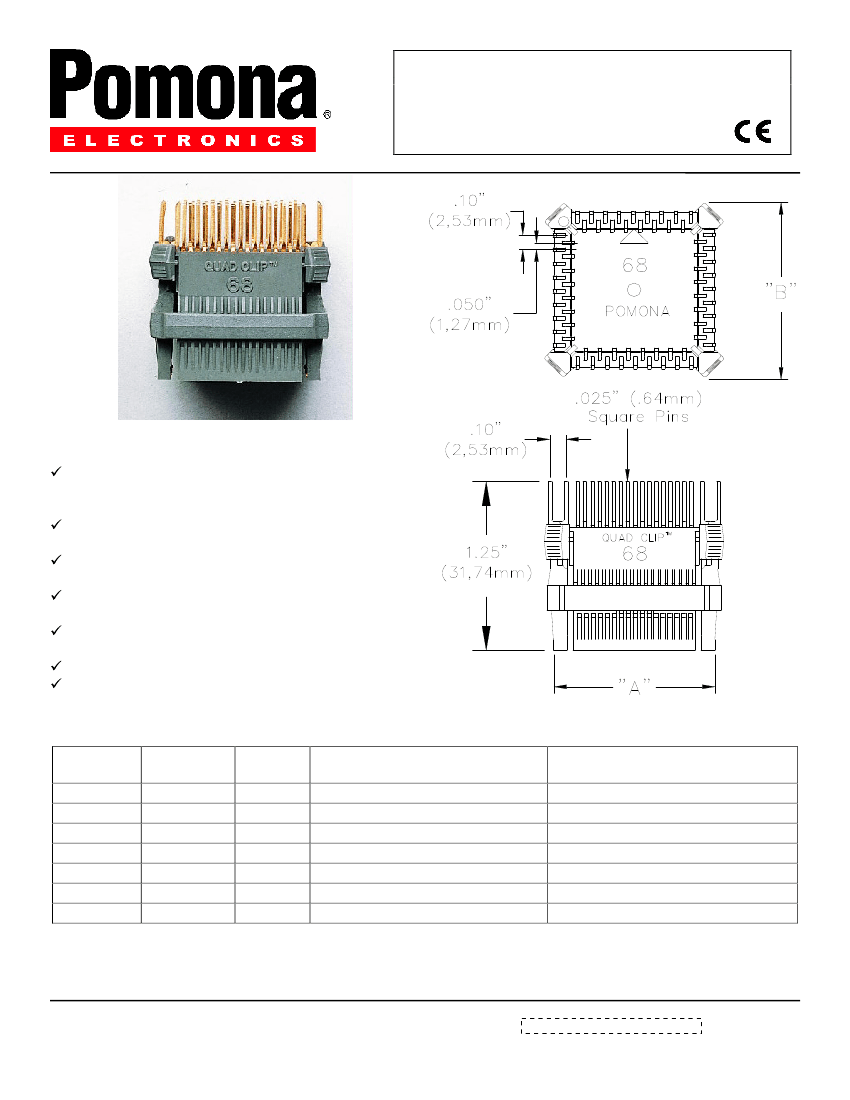

Test adapters are designed for testing surface
mounted PLCC chips with "J" leads (JEDEC MO-
047 and MO-052).
The patented lock-on design attaches directly to the
surface mounted
IC and provides hands-free access to all of the chip
leads.
Gold plated upper contacts assure noise free, low
resistance connections.
Standard .025 square pins accept wire-wrap, .025 sq.
receptacle or soldered wires.
Pins are staggered to use the least space
Gold plated lower contacts assure the best connection
to chip leads.
ORDERING INFORMATION: (single PLCC clip)
Model
Pins per
No. of Pins
Space Required "B"
Number
Side
5279
20
5x5
.675" (17,14mm)
5280
28
7x7
.775" (19,68mm)
5733
32
7x9
.775"x.875" (19,68mm x 22,22mm)
5281
44
11x11
975" (24,77mm)
5312
52
13x13
1.075" (27,31mm)
5401
68
17x17
1.275" (32.39mm)
5402
84
21x21
1.520" (38,60mm)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Board Footprint "A"
0.560" (14,23mm)
0.665" (16,89mm)
.665" x .765" (16,89mm x 19,43mm)
0.865" (21,97mm)
0.965" (24,51mm)
1.180" (29,97mm)
1.350" (34,29mm)
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev:100
D1094335, D1094408, D1094409, D1094629
D1094410, D1094370, D1094382, D1094383
Page 1 of 2
Model 5515A PLCC Test Adapters Kit
Model 5279, 5280, 5733, 5281, 5312, 5401, 5402

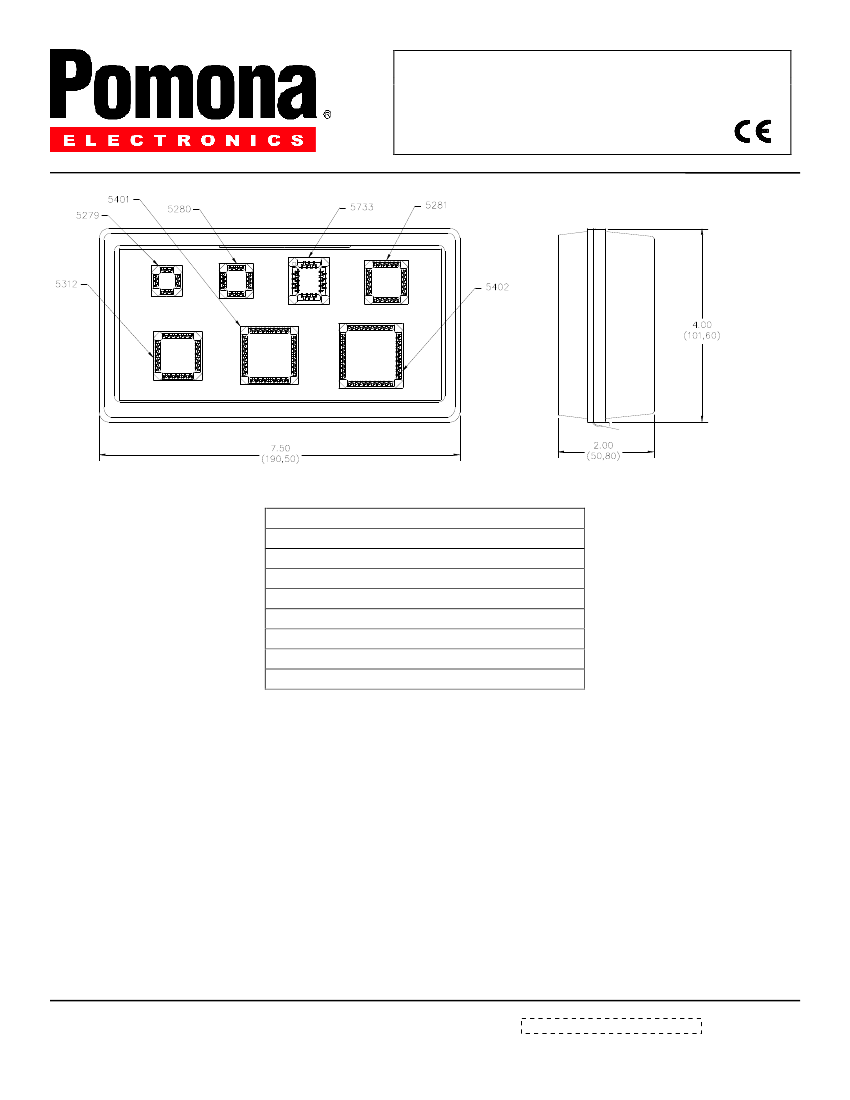

5515A PLCC Test Clip Kit
Kit includes:
1 each of the following PLCC test clips:
5279 (20 pins)
5280 (28 pins)
5733 (32 pins)
5281 (44 pins)
5312 (52 pins)
5401 (68 pins)
5402 (84 pins)
RATINGS:
Operating Voltage: Hands free usage in controlled voltage environments: 500 Vrms maximum.
For CE compliance:
not
intended for hand-held use at voltages above 33 Vrms/70 Vdc.
Current: 1 Amperes
Operating Temperature: +215°F (+102°C)
MATERIALS:
Lower Contacts: Gold Plated Beryllium Copper per QQ-C-533, Alloy 172, HM.
Upper Contacts: Gold Plated Phosphor Bronze, Alloy 510, Grade A
Body: Gray, glass-filled nylon
ORDERING INFORMATION:
Model 5515A (PLCC kit)
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies.
Sales: 800-490-2361 Fax: 888-403-3360 Technical Support: 800-241-2060 (technicalsupport@pomonatest.com)
For “Where to Buy” information, visit the Pomona web site at www.pomonaelectronics.com
Rev:100
D1094335, D1094408, D1094409, D1094629
D1094410, D1094370, D1094382, D1094383
Page 2 of 2
