Technical Data
4426
Effective May 2017
Supersedes March 2015
H15

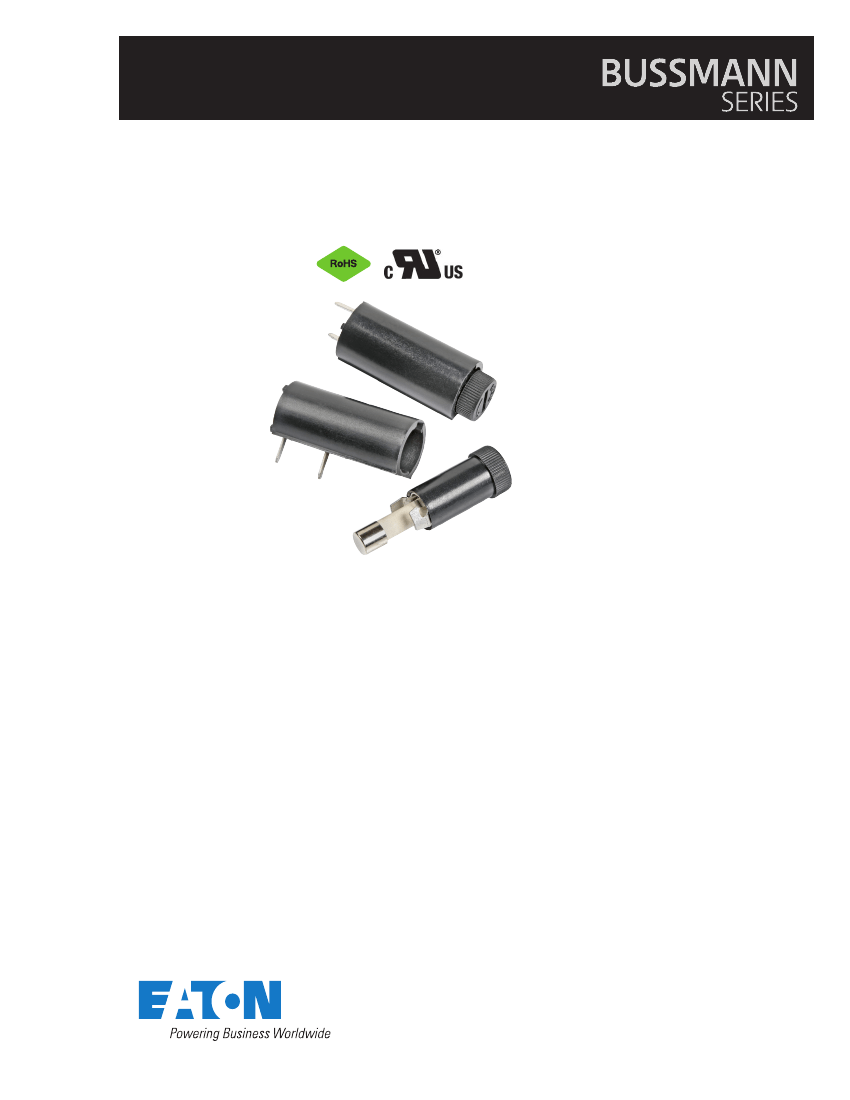

PCB fuse holders for 5 mm x 20 mm fuses
Agency information
•
cURs Recognition file number:
E14853 Guide IZLT2/IZLT8
VDE file 40039714
•
Ordering
•
Specify packaging prefix, part number, and
option code as shown
Packaging prefix
BK-
Part number
H15-V-1
Option code
B
Packaging prefixes
•
BK- (Bulk, 200 parts per box--100 parts per box
if using option code B or K)
BK1- (Bulk, 1000 parts per box)
•
Option code
•
Blank (Fuse holder body and knob set)
B- (Fuse holder body)
K- (Fuse holder knob)
Product features
•
•
•
•
•
•
For 5 mm x 20 mm fuses
Fuse carriers are interchangeable
Vertical (-V) or horizontal (-H) mounting
Fuse carrier and knob are spring loaded bayonet
type with screwdriver slot
Solderability in accordance with IEC 68-2-20
Shock safety of PC2
High temperature thermoplastic meets:
- UL 94V0
- Glow wire test: 960°C per IEC 695-2-1
•
•
•
Technical Data
4426
Effective May 2017
H15
PCB fuse holders for 5 mm x 20 mm fuses
Dimensions (mm)
Drawing Not to Scale
H15-V-1
(33.1mm)
H15-H-1
Mounting Holes
1.303"
Mounting Holes
.051" ± .002" Dia. (Typ.)
(1.30 ± .05mm)
1.303
"
(33.1mm)
Printed Circuit
Board
.394"
(10.0mm)
.051" ± .002" Dia. (Typ.)
(1.30 ± .05mm)
Printed Circuit
Board
.512"
SE
FU
(10.0mm)
Component Material
.394"
.512"
SE
FU
(13.0mm)
(13.0mm)
Clip
Terminals
Body
Tin plated
Copper, Tin plated
Thermoplastic
(11.7mm)
.461"
(11.7mm)
.461"
Product specifications
Agency information/current rating
Part Number
1
Orientation/ Mounting
Voltage rating Vac
Ambient temperature
Temperature rise
VDE
cURus
H15-V-1
H15-H-1
Vertical
Horizontal
250
250
24 °C
24 °C
41 °C
41 °C
10 A
6.3 A
10 A
10 A
1. Part number definition H15-x-1
H15= Product code and size
x= V (Vertical), H (Horizontal)
1= Threaded cap/carrier
Soldering Method
Wave immersion: 260 °C, 10 seconds maximum
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/elx
© 2017 Eaton
All Rights Reserved
Printed in USA
Publication No. 4426-EE-PCN17019
May 2017
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
