IRFR3711TRL

Description
MOSFET N-CH 20V 100A DPAK
Categorysemiconductor    Discrete semiconductor
File Size162KB,11 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

IRFR3711TRL Overview

MOSFET N-CH 20V 100A DPAK

IRFR3711TRL Parametric

Parameter NameAttribute value
FET typeN channel
technologyMOSFET (metal oxide)
Drain-source voltage (Vdss)20V
Current - Continuous Drain (Id) at 25°C100A(Tc)
Drive voltage (maximum Rds On, minimum Rds On)4.5V,10V
Rds On (maximum value) when different Id, Vgs6.5 milliohms @ 15A, 10V
Vgs (th) (maximum value) when different Id3V @ 250µA
Gate charge (Qg) at different Vgs (maximum value)44nC @ 4.5V
Vgs (maximum value)±20V
Input capacitance (Ciss) at different Vds (maximum value)2980pF @ 10V
FET function-
Power dissipation (maximum)2.5W(Ta),120W(Tc)
Operating temperature-55°C ~ 150°C(TJ)
Installation typesurface mount
Supplier device packagingD-Pak
Package/casingTO-252-3, DPak (2 leads + tab), SC-63

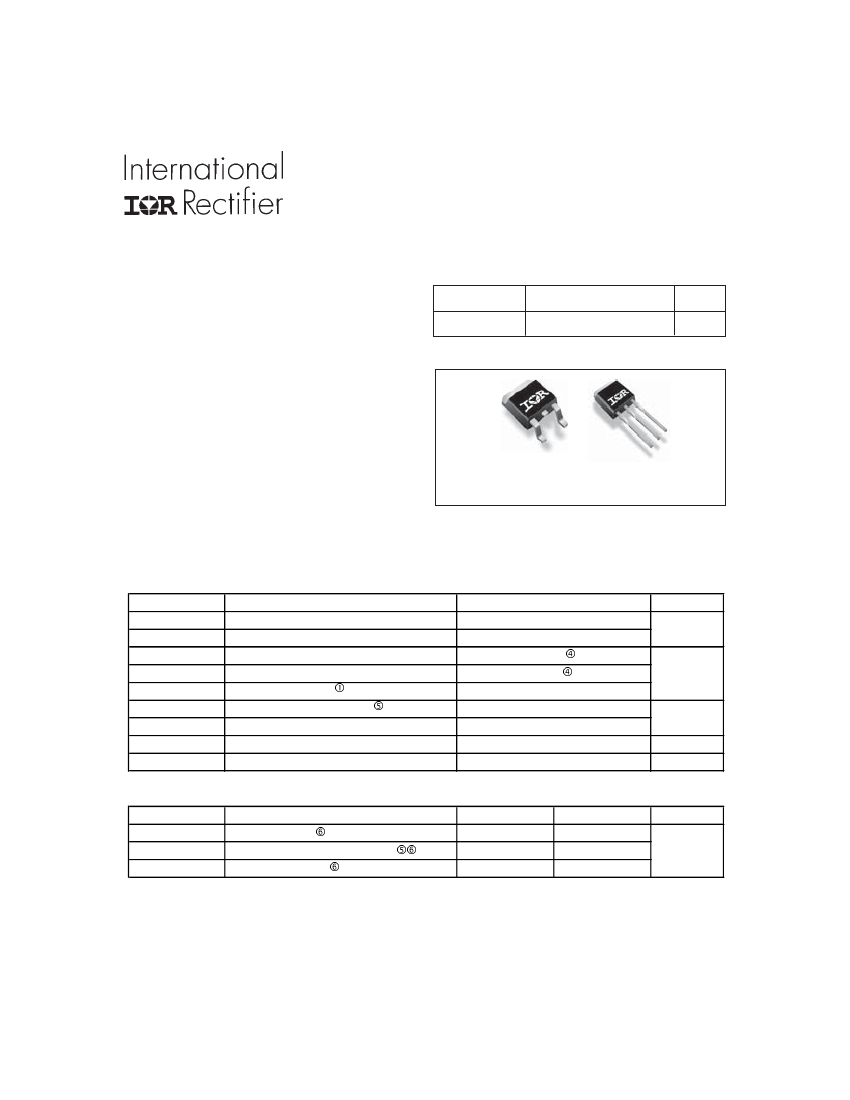

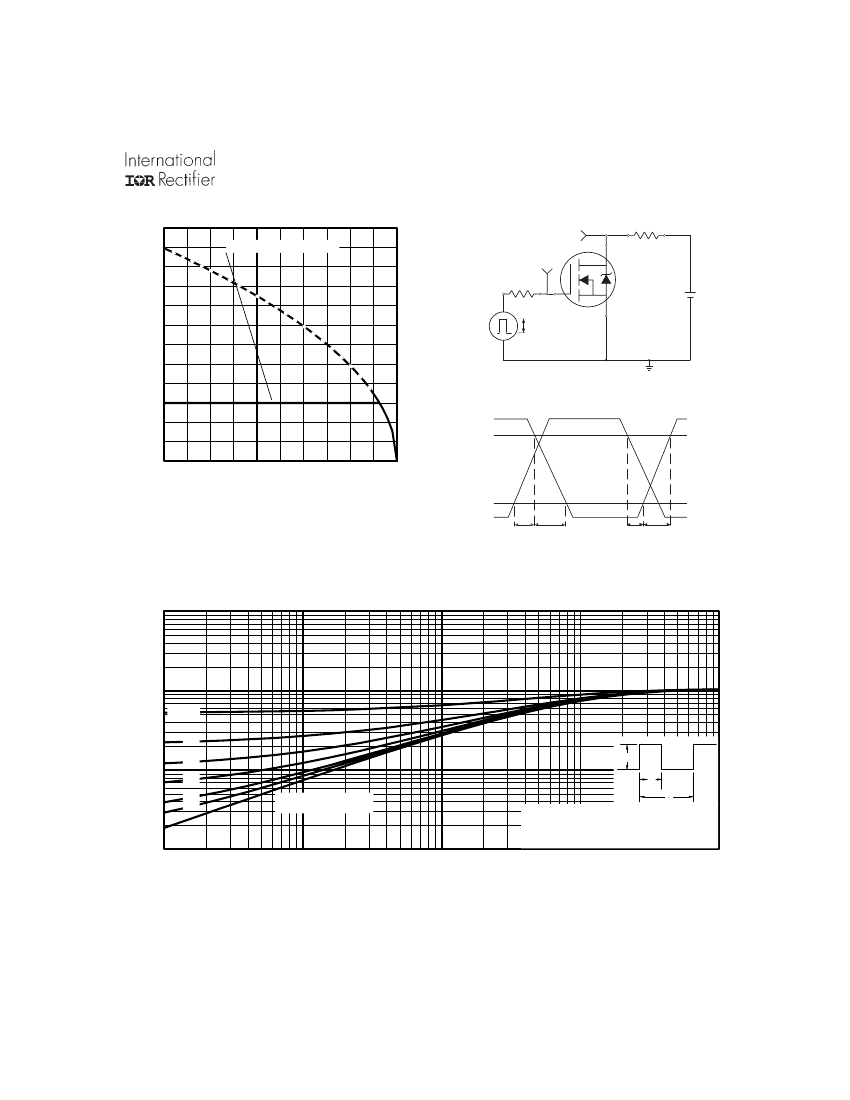

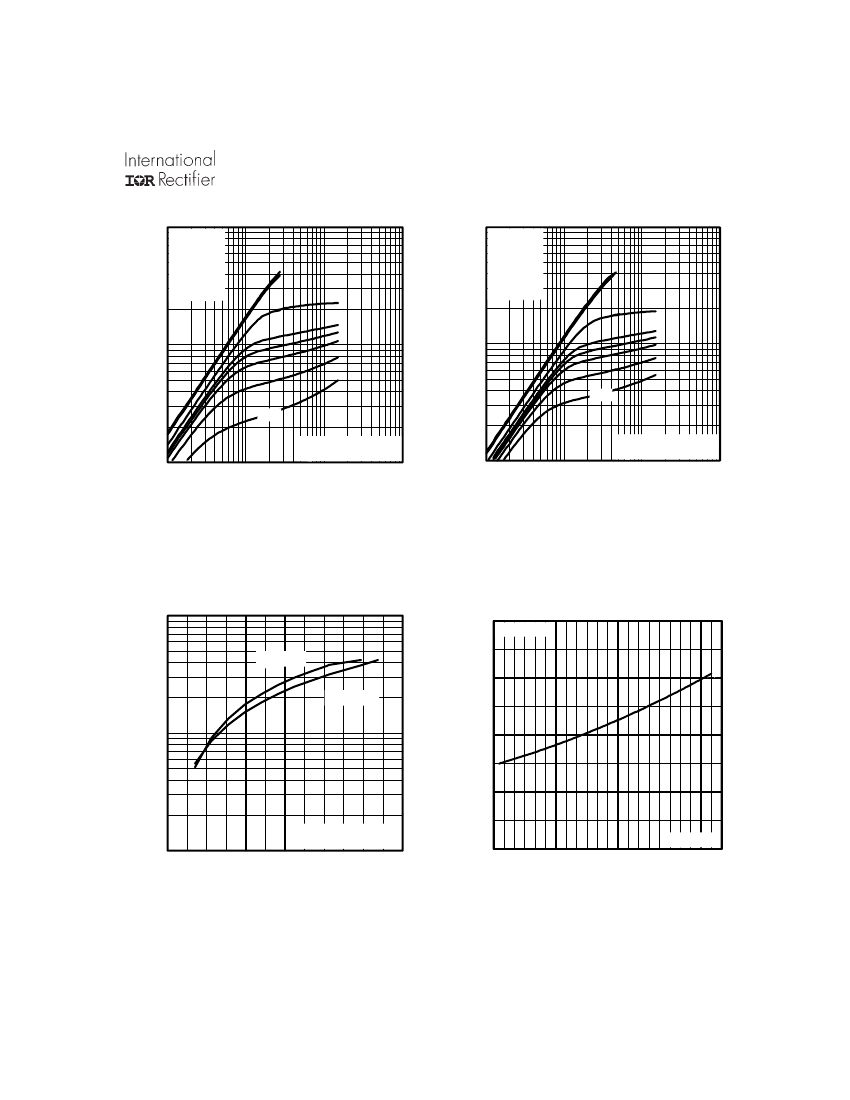

PD- 94061B
SMPS MOSFET
Applications
l
High Frequency Isolated DC-DC
Converters with Synchronous Rectification
for Telecom and Industrial Use
l
High Frequency Buck Converters for
Server Processor Power Synchronous FET
l
Optimized for Synchronous Buck
Converters Including Capacitive Induced
Turn-on Immunity
l
100% R
G
Tested
Benefits
l
Ultra-Low Gate Impedance
l
Very Low RDS(on) at 4.5V V
GS
l
Fully Characterized Avalanche Voltage
and Current
IRFR3711
IRFU3711
HEXFET
®
Power MOSFET
V
DSS
20V
R
DS(on)
max
6.5mΩ
I
D
110A
„
D-Pak
IRFR3711
I-Pak
IRFU3711
Absolute Maximum Ratings
Symbol
V
DS
V
GS
I
D
@ T
C
= 25°C
I
D
@ T
C
= 100°C
I
DM
P
D
@T
A
= 25°C
P
D
@T
C
= 25°C
T
J
, T
STG
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current, V
GS
@ 10V
Continuous Drain Current, V
GS
@ 10V
Pulsed Drain Current
Max
20
± 20
100
440
2.5
120
0.96
-55 to +150
Units
V
c
f
69
f
A
W
W/°C
°C
Maximum Power Dissipation
Maximum Power Dissipation
g
Linear Derating Factor
Junction and Storage Temperature Range
Thermal Resistance
Symbol
R
θJC
R
θJA
R
θJA
Parameter
Junction-to-Case
h
Typ
Max
1.04
50
110
Units
°C/W
Junction-to-Ambient (PCB Mount)
Junction-to-Ambient
h
gh
–––
–––
–––
Notes

through
†
are on page 10
www.irf.com
1
1/27/04

IRFR3711TRL Related Products

IRFR3711TRL IRFU3711 IRFR3711 IRFR3711TR IRFR3711TRR
Description MOSFET N-CH 20V 100A DPAK MOSFET N-CH 20V 100A I-PAK MOSFET N-CH 20V 100A DPAK MOSFET N-CH 20V 100A DPAK MOSFET N-CH 20V 100A DPAK
FET type N channel N channel - N channel N channel
technology MOSFET (metal oxide) MOSFET (metal oxide) - MOSFET (metal oxide) MOSFET (metal oxide)
Drain-source voltage (Vdss) 20V 20V - 20V 20V
Current - Continuous Drain (Id) at 25°C 100A(Tc) 100A(Tc) - 100A(Tc) 100A(Tc)
Drive voltage (maximum Rds On, minimum Rds On) 4.5V,10V 4.5V,10V - 4.5V,10V 4.5V,10V
Rds On (maximum value) when different Id, Vgs 6.5 milliohms @ 15A, 10V 6.5 milliohms @ 15A, 10V - 6.5 milliohms @ 15A, 10V 6.5 milliohms @ 15A, 10V
Vgs (th) (maximum value) when different Id 3V @ 250µA 3V @ 250µA - 3V @ 250µA 3V @ 250µA
Gate charge (Qg) at different Vgs (maximum value) 44nC @ 4.5V 44nC @ 4.5V - 44nC @ 4.5V 44nC @ 4.5V
Vgs (maximum value) ±20V ±20V - ±20V ±20V
Input capacitance (Ciss) at different Vds (maximum value) 2980pF @ 10V 2980pF @ 10V - 2980pF @ 10V 2980pF @ 10V
Power dissipation (maximum) 2.5W(Ta),120W(Tc) 2.5W(Ta),120W(Tc) - 2.5W(Ta),120W(Tc) 2.5W(Ta),120W(Tc)
Operating temperature -55°C ~ 150°C(TJ) -55°C ~ 150°C(TJ) - -55°C ~ 150°C(TJ) -55°C ~ 150°C(TJ)
Installation type surface mount Through hole - surface mount surface mount
Supplier device packaging D-Pak IPAK(TO-251) - D-Pak D-Pak
Package/casing TO-252-3, DPak (2 leads + tab), SC-63 TO-251-3 short lead, IPak, TO-251AA - TO-252-3, DPak (2 leads + tab), SC-63 TO-252-3, DPak (2 leads + tab), SC-63
