Stainless Steel Ties –
Overview
PANDUIT P
AN
-S
TEEL
Stainless Steel Locking Tie
Design Features (MLT Series)
The
P
AN
-S
TEEL
system provides a strong, durable method of bundling, identifying and fastening, which
can be used in virtually all indoor, outdoor and underground (including direct burial) applications, including
applications where severe environmental conditions exist. The ties are designed for use in critical
applications where vibration, radiation, weathering, corrosion and temperature extremes are a factor
(refer to
page 21
for chemical resistance char t).
HIGH STRENGTH
•
100 lb. (445N) and 250 lb. (1112N) minimum loop tensile strengths per Military Standard MIL-S-23190
(refer to
page 20
for details); 120 lb. (534N) for the coated cable ties per Military Standard MIL-S-23190
and 600 lb. (2668N) for the double wrapped ties per Military Standard MIL-S-23190
SAFE TO HANDLE
•
Rounded sides and smooth surfaces—safe to handle (see below)
FAST INSTALLATION
•
Low profile, self-locking tie is easy to
thread for fast installation
•
No special tools required for installation
MATERIAL
Height o f locking head
Stand ard Cross
Section T ies
H = .16" (4.1mm )
Heavy Cross
Section Co ated Ties
H = .235" (6.0mm )
Non-magnetic stainless steel
•
304—most common for typical outdoor applications
•
316—for superior corrosion resistance in salt water and spray applications
TEMPERATURE CAPABILITY
Type 304 – -112°F (-80°C) to 1000°F (538°C)
Type 316 – -112°F (-80°C) to 1000°F (538°C)
Type 321 – -112°F (-80°C) to 1700°F (925°C)
(Refer to
page 20
for details.)
Heavy Cross
Section T ies
H = .21" (5.3mm )
Heavy Cross
Section Do uble
Wrap ped Ties
H = .21" (5.7mm )
Contact the facto ry for registrar and
product sco pe informatio n

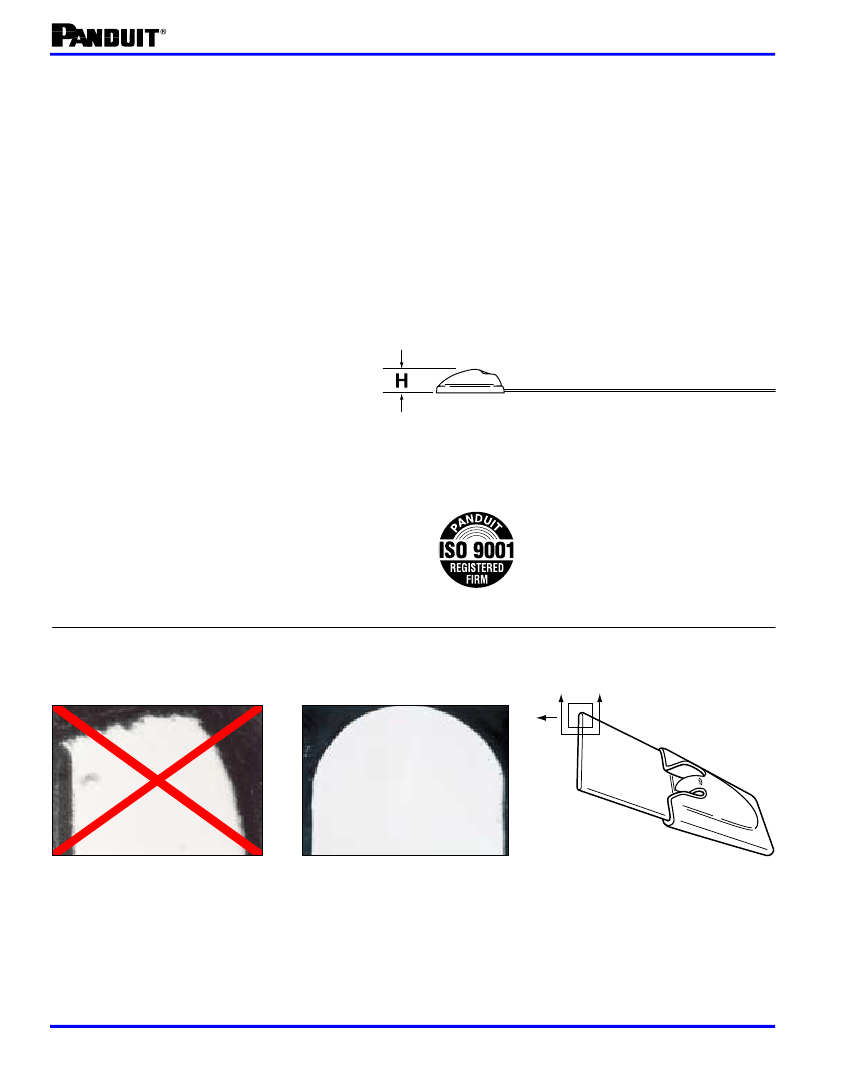

Advantages of the Rounded Sides of
P
AN
-S
TEEL
Stainless Steel Ties
Cross sectional view of other
manufacturer’s tie body. (Photo
micrograph shown is magnified 150X.)
Cross sectional view of
PANDUIT
tie
body. (Photo micrograph shown is
magnified 150X.)
Side view of
PANDUIT
tie.
The
P
A N
-S
TEEL
Stainless Steel cable tie is designed for superior comfor t and safety when handling due to its
fully rounded sides and smooth surfaces. Smooth surfaces and rounded sides assure cable protection and
operator safety.
PANDUIT
not only removes the burr, but actually passes the material through a secondary
process which removes the top and bottom corners of the material.
2
This
Overview
P
AN
-S
TEEL
™
Stainless Steel Ties –
is Header-18pt.
PANDUIT P
A N
-S
TEEL
Stainless Steel Locking Tie (MLT Series)
The unique self-locking design simplifies installation and
eliminates any protruding ends when used with
PANDUIT
installation tooling (refer to
pages 8, 9
and
10)
on resilient bundles.
Other bundles can be made resilient by the use of PCS cushion
sleeving (refer to
page 6).
Two widths are available: .18" (4.4mm)
and .31" (7.9mm) both .010" (0.254mm) thick and provide 100 lb.
(445N) or 250 lb. (1112N) minimum loop tensile strength per
MIL-S-23190. Available in stock lengths for outside bundle
diameters up to 14" (356mm). Large lengths can be custom made
or use the custom length banding system to provide unlimited
lengths (see
page 5
for details).

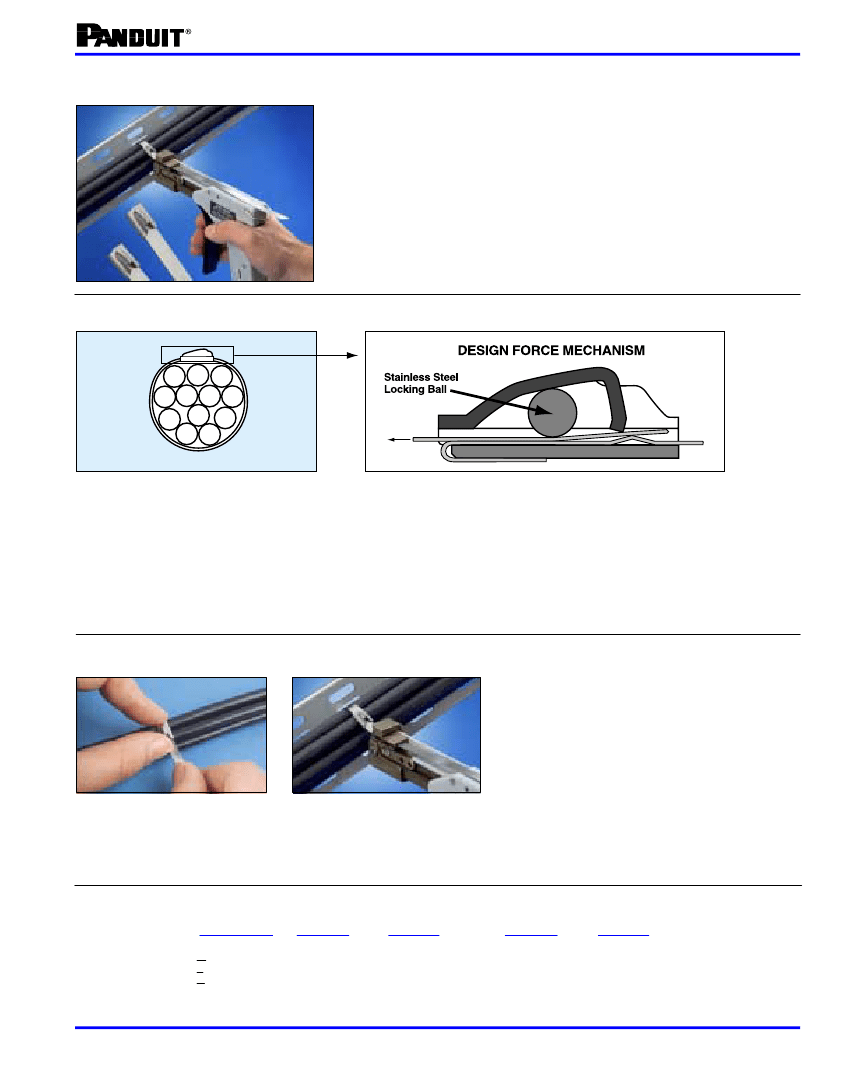

Exclusive Locking Method
Typical Cable Bundle
Locking Head Cross Section
Unique stainless steel ball locking design allows smooth entry of the tie body for ease of threading. The ball
is permanently entrapped in the head portion of the tie. When the tail of the tie is passed through the locking
head, the tail is forced upward by the ramp (see drawing) which creates constant contact between the tie
and the locking ball. This contact assures locking in any position (upside down, sideways, etc.). When
locked on a bundle, the ball, working in conjunction with the angled ramp of the head, provides a positive
mechanical wedge locking action. The forces created by this wedging action are so great that mechanical
deformation of the tie body occurs at the point of contact between the ball and tie, locking the tie.
Self-Locking Head for Fast Installation
1. Place tie around bundle, put tip
2. Use one of the
PANDUIT
P
AN
-S
TEEL
installation tools
through head and pull up tight
by hand.
to tension and cut off excess
tail quickly.
For additional tool information
refer to
pages 8
,
9
and
10
for details.
The stainless steel metal locking tie series
can be fastened by hand as shown in
Photo 1.
No tools are required. Just place
around bundle, pull the tip of the tail through
the locking head and pull up tight by hand.
The self-locking head secures the tie in place.
Photo 2
shows the metal locking tie series
being installed with the
PANDUIT
GS4MT tool
which automatically tensions and cuts off
excess tie. The system provides adjustable
tension control and automatic cut-off for quick,
consistent and secure installation with the
lowest installed cost.
