838-22-012-30-001101 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 838-22-012-30-001101

838-22-012-30-001101: DescriptionCONN SPRING-LOADED; CategoryThe connector The connector; File Size566KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

838-22-012-30-001101 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	838-22-012-30-001101	-	-	View	Buy Now

838-22-012-30-001101 Overview

CONN SPRING-LOADED

838-22-012-30-001101 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR

Preview

Download Datasheet

View All

SPRING-LOADED

CONNECTORS

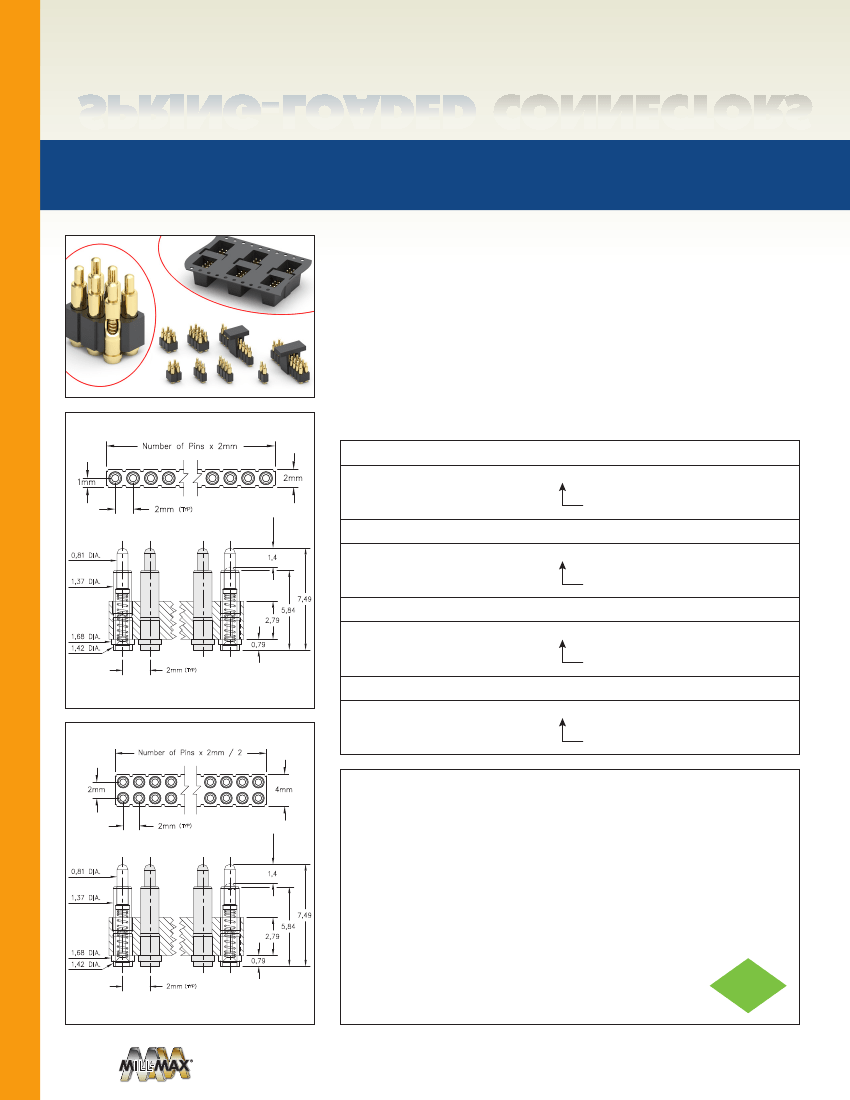

SERIES 836 & 838 • 2mm GRID SURFACE MOUNT •

SINGLE AND DOUBLE ROW STRIPS

• Modular contacts for use on 2mm grid, available in single and double row contact strips

with working travel of 0,7 and max. stroke of 1,4

• Precision-machined piston / base and gold-plated components assure up to 1,000,000

cycle life durability

• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak

• High temperature thermoplastic insulators are suitable for SMT soldering processes

• Both 836 & 838 series, are available on 32mm wide carrier tape and fitted with vacuum

pick-up clips for automated pick and place assembly. Tape and Reel packaging per EIA-481

• 836 & 838 series contact strips are designed for manual or automatic placement onto

1,68 Ø solder pads

SINGLE ROW Series 836

ORDERING INFORMATION

Series 836 (Bulk Packaged)

836-22-0XX-30-001101

Specify number of contacts

02-10

Stroke

Series 836 (Tape & Reel Packaged, 400 parts per 330mm Reel)

836-22-0XX-30-001191

Specify number of contacts

02-10

Series 838 (Bulk Packaged)

838-22-0XX-30-001101

Specify number of contacts

04-20

Coplanarity 0,13. For Pin Counts >10 positions

consult Technical Support

Series 838 (Tape & Reel Packaged, 400 parts per 330mm Reel)

838-22-0XX-30-001191

DOUBLE ROW Series 838

PAGE 19.2 | SPRING-LOADED CONNECTORS

Specify number of contacts

04-20

Materials:

Technical Specifications

Coplanarity 0,13. For Pin Counts >20 positions

consult Technical Support

Contact piston & base: Machined copper alloy plated 0,51μmgold over

2,54μm nickel

Spring: Stainless Steel-plated 0,25μm gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height: 25 grams

Spring force @ mid stroke (0,7): 60 grams

Durability: Up to 1,000,000 cycles

Electrical:

Voltage rating: 100Vrms/150Vdc

Current rating: 2A (continous), 3A (peak) per contact

Contact resistance: 20mW max.

RoHS - 2

Insulation resistance: 10,000MW min.

2011/65/EU

Dielectric strength: 700Vrms min.

Capacitance: 1pF max.
