WAU090-1200T-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> WAU090-1200T-G

WAU090-1200T-G: DescriptionAC/AC WALL MNT ADPTER 9VAC 1A; CategoryPower/power management; File Size161KB，1 Pages; ManufacturerTriad Magnetics; Websitehttps://www.triadmagnetics.com/; Environmental Compliance

Download Datasheet Parametric View All

WAU090-1200T-G Overview

AC/AC WALL MNT ADPTER 9VAC 1A

WAU090-1200T-G Parametric

Parameter Name	Attribute value
Use area	Applicable to North America
form	Wall mounting
input type	Fixed insert
Voltage - input	120VAC
Voltage - Output	9VAC
Current - Output (maximum)	1.2A
Power (W)	12W
No-load power consumption	210mW (maximum)
application	ITE (Business)
efficiency	83%
Operating temperature	-10°C ~ 40°C
Output connector	Rectangular, 3-pin position
size/dimensions	1.89" long x 2.36" wide x 3.15" high (48.0mm x 60.0mm x 80.0mm)
Approval	cULus
input connector	NEMA 1-15P
Wire length	72"（1.83m）

Preview

Download Datasheet

View All

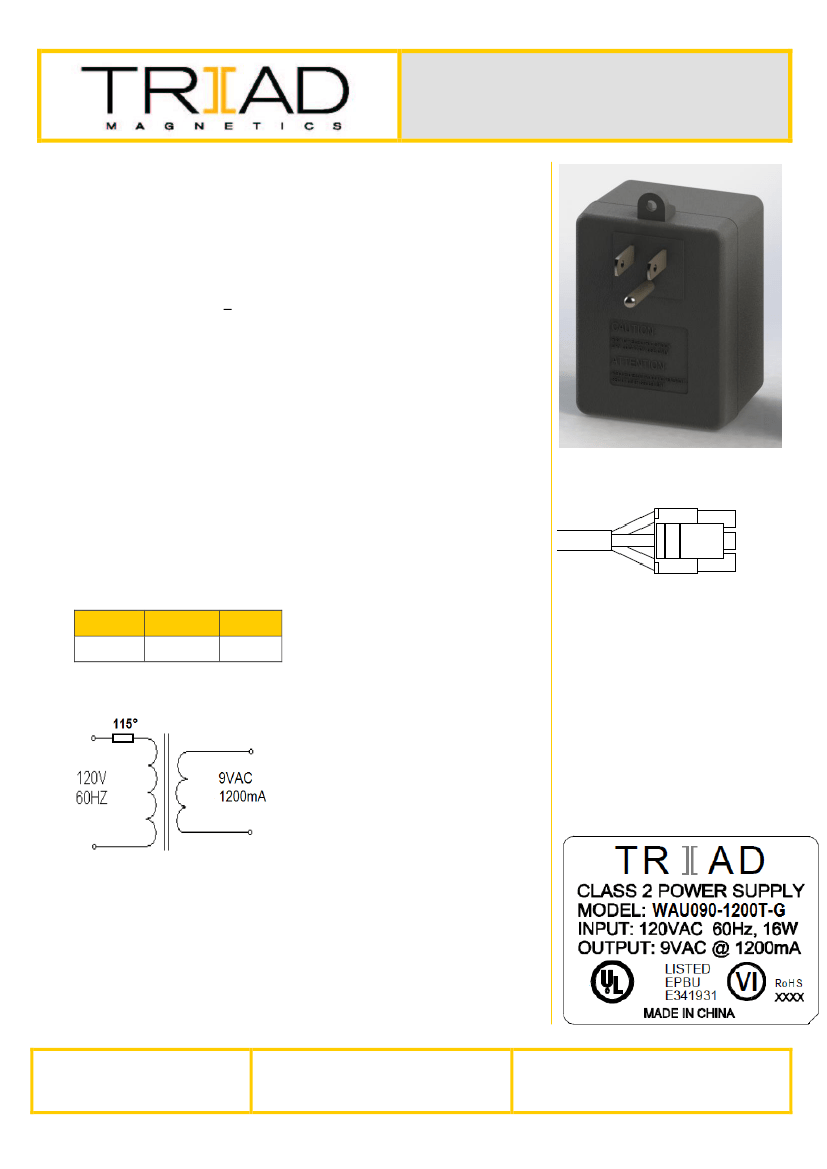

Wall Plug - Ins

WAU090-1200T-G

Electrical Specifications (@25C)

1. Primary Rating: 120V 60Hz

2. Primary Excitation Current: <4mA

3. Secondary Rating: 9VAC ± 5%, 1200mA AC

4. Secondary No-Load Rating: <11.6VAC Ref.

5. No Load Power (stand by): <0.21W

6. Average Efficiency: 82.38%. Meets minimum level VI efficiency*

7. Operating Temperature Range: -10 Deg C to +40 Deg C

8. Temperature Rise: 30 Deg C Max at rated load

Mechanical Parameters:

Case Type: Thermoplastic molded enclosure.

Output Cord: 22 AWG, 6 Ft. Long Min.

Mating Connector:

MOLEX 43640-0300 or equivalent

Warranty:

10 Years

Agency File:

UL: File E341931, UL 1310

A. Dimensions:

79.6

59.7

48.1

*Units: In Millimeter

B. Schematic:

DOE/CEC Compliance:

This power supply meets the minimum efficiency

levels for direct operation as defined by DOE Docket Number

EERE-2008-BT-STD-0005-0219.

RoHS Compliance:

As of manufacturing date February 2005, all standard

products meet the requirements of 2011/65/EU, known as the RoHS initiative.

* Upon printing, this document is considered “uncontrolled”. Please contact

Triad Magnetics’ website for the most current version.

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: January 24, 2017
