DZ,DZH
DZ,DZH
●
●

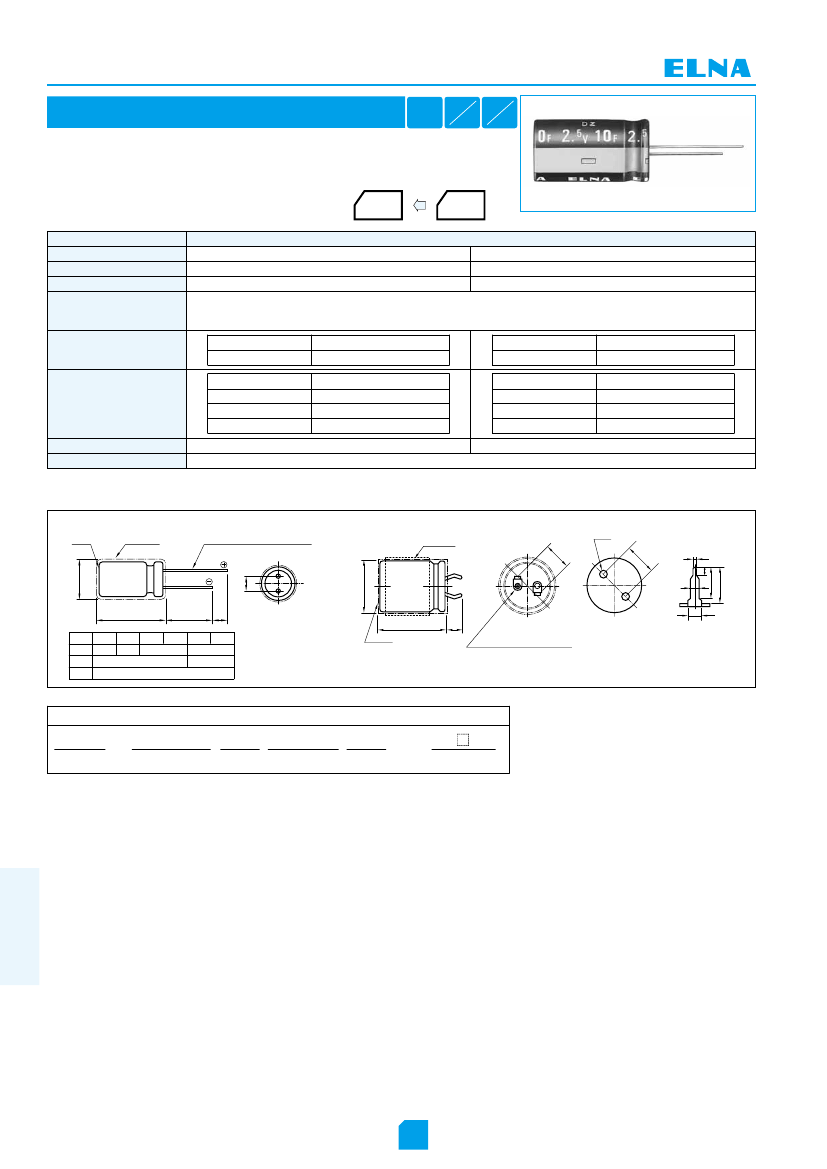

ELECTRIC DOUBLE LAYER CAPACITORS “DYNACAP”
ELECTRIC DOUBLE LAYER CAPACITORS “DYNACAP”
GREEN
CAP
60˚C
70˚C
2.5V
2.7V
®
®
Standard, Large Capacitance Type Capacitors
Pollution-Free ; with no pollutants such as Cd or Pb.
Unlike batteries ; excellent charge and
discharge characteristics with no chemical
reactions
Large capacitance
Specifications
Item
Series name
Category temperature range (℃)
Tolerance at rated capacitance (%)
Internal resistance
at 1kHz
Characteristics at high and
low temperature
Percentage of capacitance change
DZH
DZ
Performance
Marking color : White print on a black sleeve
Series DZ
ー25 to ＋70
ー20 to ＋80
Refer to the following page
Within ±30% of the value at 20℃
Less than five times of the value at 20℃
Series DZH
ー25 to ＋60
ー20 to ＋80
Percentage of capacitance change
Within ±30% of the value at 20℃
Less than eight times of the value at 20℃
Internal resistance
Test temperature
Internal resistance
Test temperature
Test time
Percentage of capacitance change
70℃
1000 hours
Within ±30% of the initial measured value
Less than four times of the initial specified value
60℃
2000 hours
Within ±30% of the initial measured value
Less than four times of the initial specified value
Endurance
Test time
Percentage of capacitance change
Internal resistance
Shelf life
Applicable standards
Internal resistance
Same as endurance
Same as endurance
Conforms to JIS C5160-1 2009 (IEC 62391-1 2006)
Outline Drawing
φ6.3 to φ18
Vent
φD＋0.5max.
Sleeve
φd±0.05
copper clad steel wire (tinned)
Unit : mm
φ25, 35
Sleeve
2‒φ2
Lug terminal details
0.9±0.1 Thickness : 0.8t
2.6
10
10
0.
±
φD＋1max.
1
F±0.5
Markings
1.5±0.1
L＋ max.
α
15min.
5
min.
L＋2max.
Vent
φD
F
φd
α
6.3
2.5
8
10 12.5
3.5
5.0
0.6
2.0
16
7.5
0.8
18
6.3
±1
(‒) Negative terminal
indicated by cross notching
Position of printed
circuit board holes
2.1
Part numbering system (example : 2.5V10F)
DZ
Series code
̶
2R5
Max. operating voltage
symbol
D
Terminal
code
106
Rated capacitance
symbol
(Z6)(S)
Casing
symbol
T ̶
Taping (Forming)
symbol
Part number is refer to the following page.
CAT.No.2017/2018E
230
NOTE : Design, Specifications are subject to change without notice.
It is recommended that you shall obtain technical specifications
from ELNA to ensure that the component is suitable for your use.
6.8
7.5
EDLC
®
ELECTRIC DOUBLE LAYER CAPACITORS “DYNACAP”
ELNA Parts No.
DZ-2R5D105F4T
DZ-2R5D105G3T
DZ-2R5D275G5ST
DZ-2R5D335H5T
DZ-2R5D475H5T
DZ-2R5D565H5T
DZ-2R5D685H6T
DZ-2R5D106H8T
DZ-2R5D106Z6ST
DZ-2R5D156Z8ST
DZ-2R5D156J5T
DZ-2R5D226J6T
DZ-2R5D336J8T
DZ-2R5D406K9T
DZ-2R5D506T
DZ-2R5D107S37T
DZ-2R5D207S57T
φD × L (mm)
6.3 × 14
8 × 12
8 × 20
10 × 20
10 × 20
10 × 20
10 × 25
10 × 35
12.5 × 25
12.5 × 35
16 × 20
16 × 25
16 × 35.5
18 × 40
25 × 40
25 × 50
35 × 50
Standard Ratings (Series DZ 2.5V)
Max. operating voltage (V) Rated capacitance (F)
Max. Leakage Current (mA) after 24h
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
1
1
2.7
3.3
4.7
5.6
6.8
10
10
15
15
22
33
40
50
100
200
0.1
0.1
0.2
0.2
0.3
0.3
0.4
0.5
0.5
0.7
0.7
0.8
0.8
0.8
1.0
1.0
2.0
DZ,DZH
Internal resistance
( Ω max.) at 1kHz
Internal resistance (m Ω )
at 1kHz (measurement value)
1.0
1.0
0.5
0.3
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.08
0.08
0.08
400
200
150
130
80
70
60
40
40
35
35
30
30
30
20
15
15
We tailor packaged product in series and parallel arrangements according to voltage and capacitance as required.
Standard Ratings (Series DZ 2.7V)
Max. operating voltage (V) Rated capacitance (F)
Max. Leakage Current (mA) after 24h
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
2.7
1
1
2.7
3.3
4.7
5.6
6.8
10
10
15
15
22
33
0.2
0.2
0.3
0.3
0.4
0.4
0.5
0.6
0.6
0.8
0.8
1.0
1.0
ELNA Parts No.
DZ-2R7D105F4T
DZ-2R7D105G3T
DZ-2R7D275G5ST
DZ-2R7D335H5T
DZ-2R7D475H5T
DZ-2R7D565H5T
DZ-2R7D685H6T
DZ-2R7D106H8T
DZ-2R7D106Z6ST
DZ-2R7D156Z8ST
DZ-2R7D156J6T
DZ-2R7D226J7T
DZ-2R7D336J9T
φD × L (mm)
6.3 × 14
8 × 12
8 × 20
10 × 20
10 × 20
10 × 20
10 × 25
10 × 35
12.5 × 25
12.5 × 35
16 × 25
16 × 31.5
16 × 40
Internal resistance
( Ω max.) at 1kHz
Internal resistance (m Ω )
at 1kHz (measurement value)
1.0
1.0
0.5
0.3
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
400
200
150
130
80
70
60
40
40
35
35
30
30
We tailor packaged product in series and parallel arrangements according to voltage and capacitance as required.
Standard Ratings (Series DZH 2.5V)
Max. operating voltage (V) Rated capacitance (F)
Max. Leakage Current (mA) after 24h
2.5
2.5
2.5
2.5
22
50
100
300
0.8
1.0
2.0
5.0
ELNA Parts No.
DZH-2R5D226Z8ST
DZH-2R5D506K9T
DZH-2R5D107S35T
DZH-2R5D307S57T
φD × L (mm)
12.5 × 35
18 × 40
25 × 40
35 × 50
Internal resistance
( Ω max.) at 1kHz
Internal resistance (m Ω )
at 1kHz (measurement value)
0.2
0.08
0.08
0.08
55
30
20
15
We tailor packaged product in series and parallel arrangements according to voltage and capacitance as required.
EDLC
NOTE : Design, Specifications are subject to change without notice.
It is recommended that you shall obtain technical specifications
from ELNA to ensure that the component is suitable for your use.
231
CAT.No.2017/2018E
