330-10-116-00-240000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 330-10-116-00-240000

330-10-116-00-240000: DescriptionCONN SPRING TARGET; CategoryThe connector The connector; File Size561KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

330-10-116-00-240000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	330-10-116-00-240000	-	-	View	Buy Now

330-10-116-00-240000 Overview

CONN SPRING TARGET

330-10-116-00-240000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	PFOA, PFOS, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
Other features	PANEL MOUNTABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

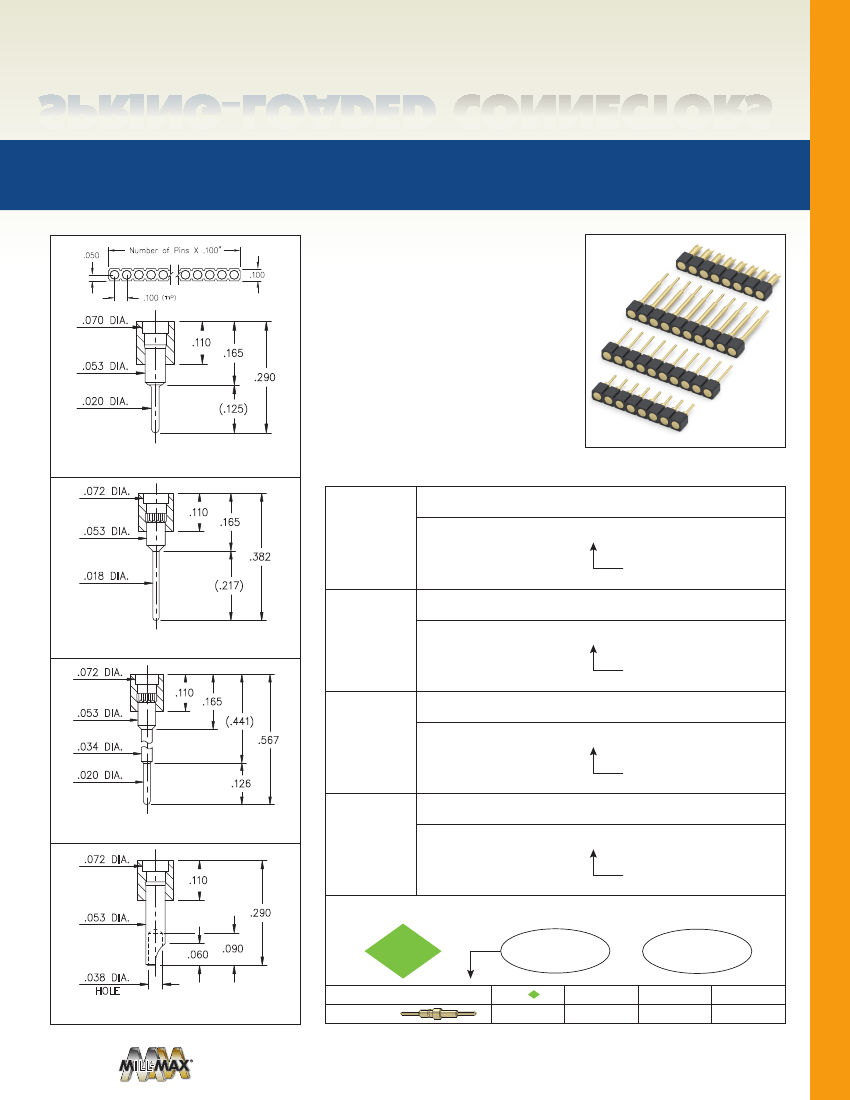

SPRING-LOADED

CONNECTORS

SERIES 319, 330 • .100” GRID TARGET CONNECTORS

FOR SPRING-LOADED ASSEMBLIES • SINGLE ROW STRIPS

• Series 319 and 330 Spring Target Connectors,

supplied in single row strips. Available in

through-hole and wire termination

configurations

• Target Connectors provide an excellent gold-

plated conductive mating surface for spring

loaded connectors. These series are offered

with a flat face for making contact with our

standard .042” dia. spring pin plungers

• Target connectors use MM #1938, #1940,

#1942 and #3024 pins. See page 218 for details

.050

Number of Pins X .100"

.100

FIG. 1

• Insulators are high temperature thermoplastic

ORDERING INFORMATION

Series 319...001

Standard Solder Tails

319-10-1_ _-00-001000

Specify number of pins

01-64

FIG. 1

Series 319...002

Long Solder Tails

319-10-1_ _-00-002000

FIG. 2

Series 319...005

Specify number of pins

01-64

Elevated with Solder Tails

319-10-1_ _-00-005000

PAGE 20 | SPRING-LOADED CONNECTORS

FIG. 3

Series 330...240

Specify number of pins

01-64

FIG. 3

Solder Cups

330-10-1_ _-00-240000

FIG. 4

Specify number of pins

01-64

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

μ”

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
