KTPS24-12020DT-2P-VI-P1: DescriptionAC/DC DESKTOP ADAPTER 12V 24W; CategoryPower/power management; File Size442KB，3 Pages; ManufacturerKAGA ELECTRONICS CO.,LTD; Websitehttp://www.volgen.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

KTPS24-12020DT-2P-VI-P1 Overview

AC/DC DESKTOP ADAPTER 12V 24W

KTPS24-12020DT-2P-VI-P1 Parametric

Parameter Name	Attribute value
Use area	internationality
form	Desktop (Class II)
input type	Cable (sold separately)
Voltage - input	100 ~ 240 VAC
Voltage - Output	12V
Current - Output (maximum)	2A
Power (W)	24W
No-load power consumption	-
polarization	positive center
application	ITE (Business)
efficiency	Class VI
Operating temperature	0°C ~ 40°C
Output connector	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm
size/dimensions	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)
Approval	-
input connector	IEC 320-C8
Wire length	59"（1.50m）
weight	-

Preview

Download Datasheet

View All

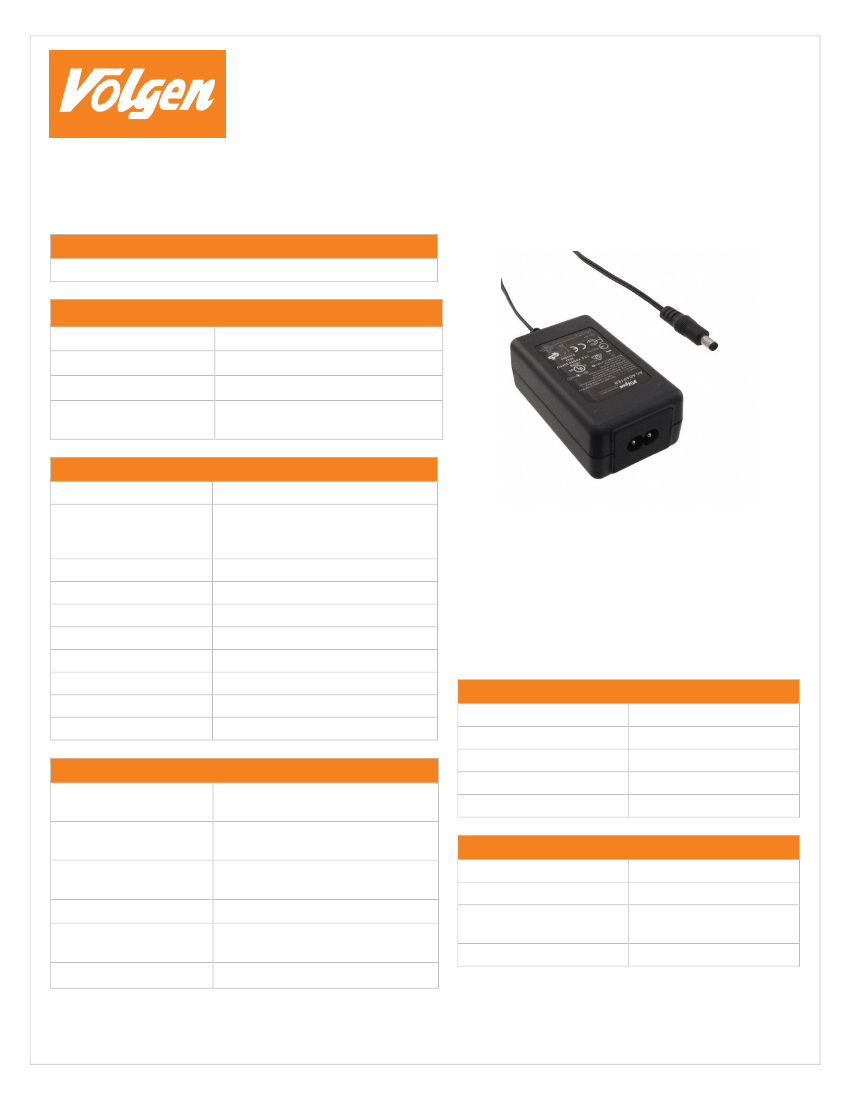

KTPS24 Series

DoE/CEC Level VI

24 Watt DoE/CEC Level VI

Universal Input, Desktop Adapter

INPUT SPECIFICATIONS

All specifications are typical at nominal input, full load.

INPUT SPECIFICATIONS

Input Voltage

Input Frequency

Input Current

Protection

AC 100 – 240VAC

50 – 60Hz

0.58A Max

Internal Primary Current Fuse

Inrush Limiting

OUTPUT SPECIFICATIONS

Output Voltage

Efficiency

See Chart

CEC, DoE Level VI, Energy Star,

ErP Stage 2, NRCan & Gems

Level VI

Short Circuit Protection

Over Current Protection

Over Voltage Protection

Ripple

Hold-Up Time

Transient Response

Load Regulation

Leakage Current

1 - 2 % Vp-p (max)

10 mS (min)

0.5mS for 50% Load Change(typ)

± 5% (typ)

0.25mA @ 2 pin

FEATURES



UNIVERSAL INPUT (AC100-240V)

CEC LEVEL VI

OVER VOLTAGE PROTECTION

OVER CURRENT PROTECTION

SHORT CIRCUIT PROTECTION

ROHS COMPLIANT

Protection

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

Storage Temperature

Cooling.

Operating Humidity

Storage Humidity

0°C~+40°C

-20°C ~ +80°C

Convection

20 – 80% Rh

10 – 90% Rh

GENERAL SPECIFICATIONS

MTBF(Calculated)

Dielectric Withstanding

Voltage

EMI

Conduction & Radiation

Harmonic Current

EMS Immunity

Safety Approvals

300,000 Calculated hours at 25°C

by Telcordia SR-332

3,000 VAC Primary – Secondary

MECHANICAL SPECIFICATIONS

Compliance to EN55022 Class B

Compliance to EN61000-3-2,3

Compliance to EN61000-4-

2,3,4,5,6,8,11

UL/cUL/CE/CB/GS/PSE/FCC

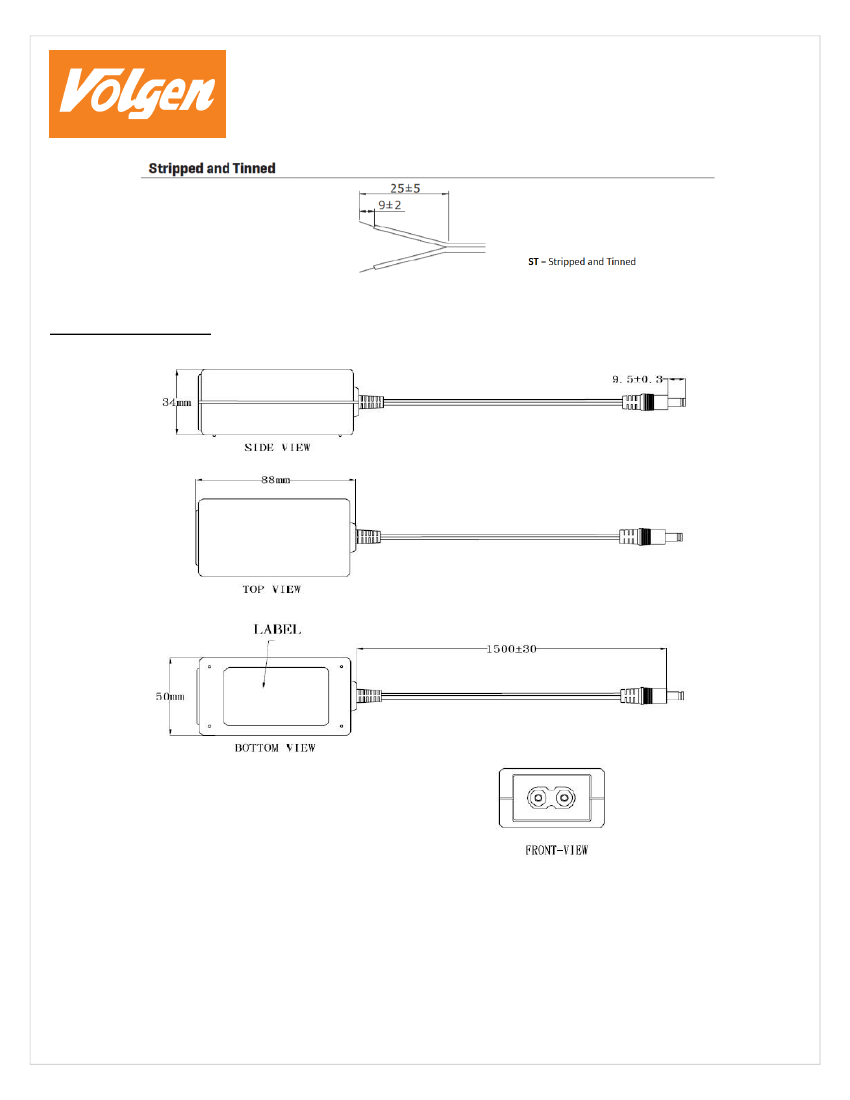

Case Dimension

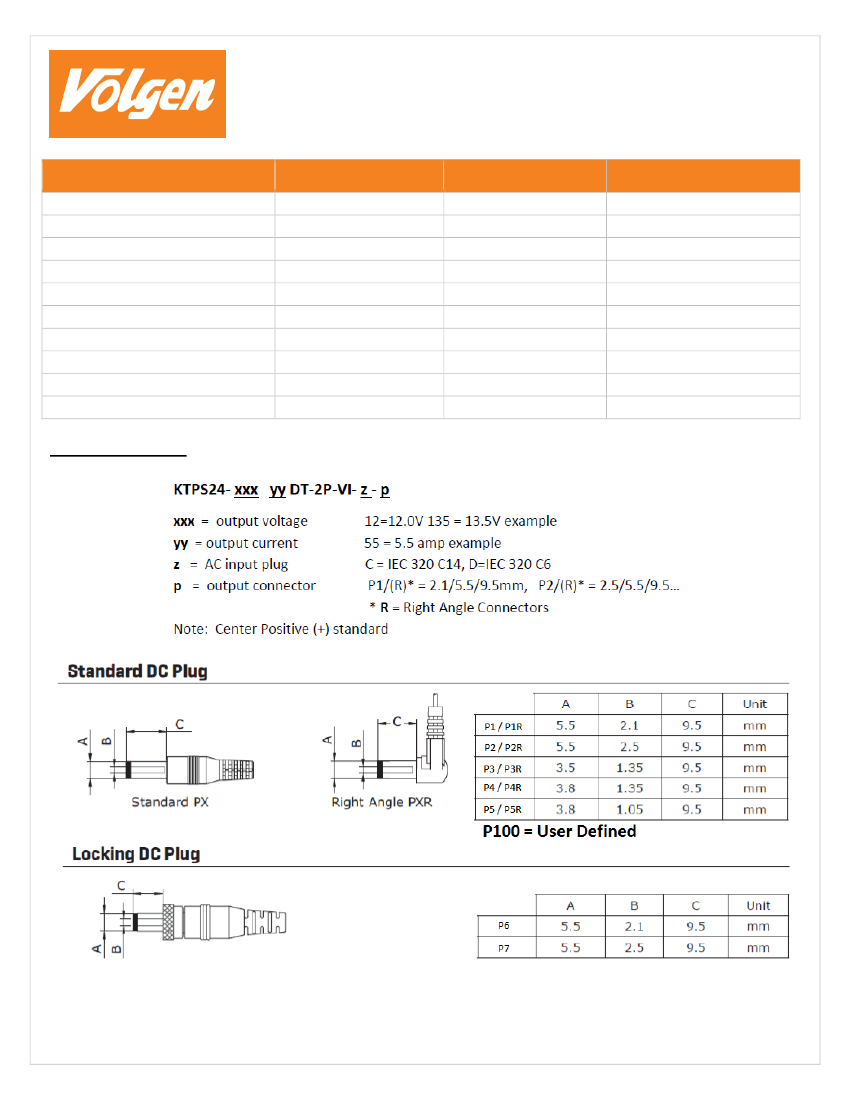

Input Configuration

DC Cord

Output Connector

L88 x W50 x H34(mm)

IEC320-C8

18AWG

(Optional 20 & 22 AWG)

5.5 x 2.1 x 9.5 mm C+

Kaga Electronics (USA) Inc. 2480 N. First St., Suite #100, San Jose, CA 95131

Phone: (408) 570-0955 | Fax: (408) 570-0186 | Toll Free: (888) 2-VOLGEN (888-286-5436)

www.volgen.com

KTPS24-12020DT-2P-VI-P1 Related Products

	KTPS24-12020DT-2P-VI-P1	KTPS24-05940DT-2P-VI-P1	KTPS24-07030DT-2P-VI-P1	KTPS24-07530DT-2P-VI-P1	KTPS24-09025DT-2P-VI-P1	KTPS24-15016DT-2P-VI-P1	KTPS24-48005DT-2P-VI-P1	KTPS24-05040DT-2P-VI-P1	KTPS24-24010DT-2P-VI-P1
Description	AC/DC DESKTOP ADAPTER 12V 24W	AC/DC DESKTOP ADAPTER 5.9V 24W	AC/DC DESKTOP ADAPTER 7V 24W	AC/DC DESKTOP ADAPTER 7.5V 24W	AC/DC DESKTOP ADAPTER 9V 24W	AC/DC DESKTOP ADAPTER 15V 24W	AC/DC DESKTOP ADAPTER 48V 24W	AC/DC DESKTOP ADAPTER 5V 24W	AC/DC DESKTOP ADAPTER 24V 24W
Use area	internationality	internationality	internationality	internationality	internationality	internationality	internationality	internationality	internationality
form	Desktop (Class II)	Desktop (Class II)	Desktop (Class II)	Desktop (Class II)	Desktop (Class II)	Desktop (Class II)	Desktop (Class II)	Desktop (Class II)	Desktop (Class II)
input type	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)
Voltage - input	100 ~ 240 VAC	100 ~ 240 VAC	100 ~ 240 VAC	100 ~ 240 VAC	100 ~ 240 VAC	100 ~ 240 VAC	100 ~ 240 VAC	100 ~ 240 VAC	100 ~ 240 VAC
Voltage - Output	12V	5.9V	7V	7.5V	9V	15V	48V	5V	24V
Current - Output (maximum)	2A	4A	3A	3A	2.5A	1.6A	500mA	4A	1A
Power (W)	24W	24W	21W	23W	23W	24W	24W	20W	24W
polarization	positive center	positive center	positive center	positive center	positive center	positive center	positive center	positive center	positive center
application	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)
efficiency	Class VI	Class VI	Class VI	Class VI	Class VI	Class VI	Class VI	Class VI	Class VI
Operating temperature	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C	0°C ~ 40°C
Output connector	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm	Round tube plug, 2.1mm inner diameter x 5.5mm outer diameter x 9.5mm
size/dimensions	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)	3.46" long x 1.97" wide x 1.34" high (88.0mm x 50.0mm x 34.0mm)
input connector	IEC 320-C8	IEC 320-C8	IEC 320-C8	IEC 320-C8	IEC 320-C8	IEC 320-C8	IEC 320-C8	IEC 320-C8	IEC 320-C8
Wire length	59"（1.50m）	59"（1.50m）	59"（1.50m）	59"（1.50m）	59"（1.50m）	59"（1.50m）	59"（1.50m）	59"（1.50m）	59"（1.50m）
