51866-014LF: DescriptionCONN RECEPT 6P/24S/5P R/A PRSFT; CategoryThe connector The connector; File Size300KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51866-014LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51866-014LF	-	-	View	Buy Now

51866-014LF Overview

CONN RECEPT 6P/24S/5P R/A PRSFT

51866-014LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .138-.163
body width	0.47 inch
subject depth	0.865 inch
body length	3.95 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S32P10
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.154 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	42
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N

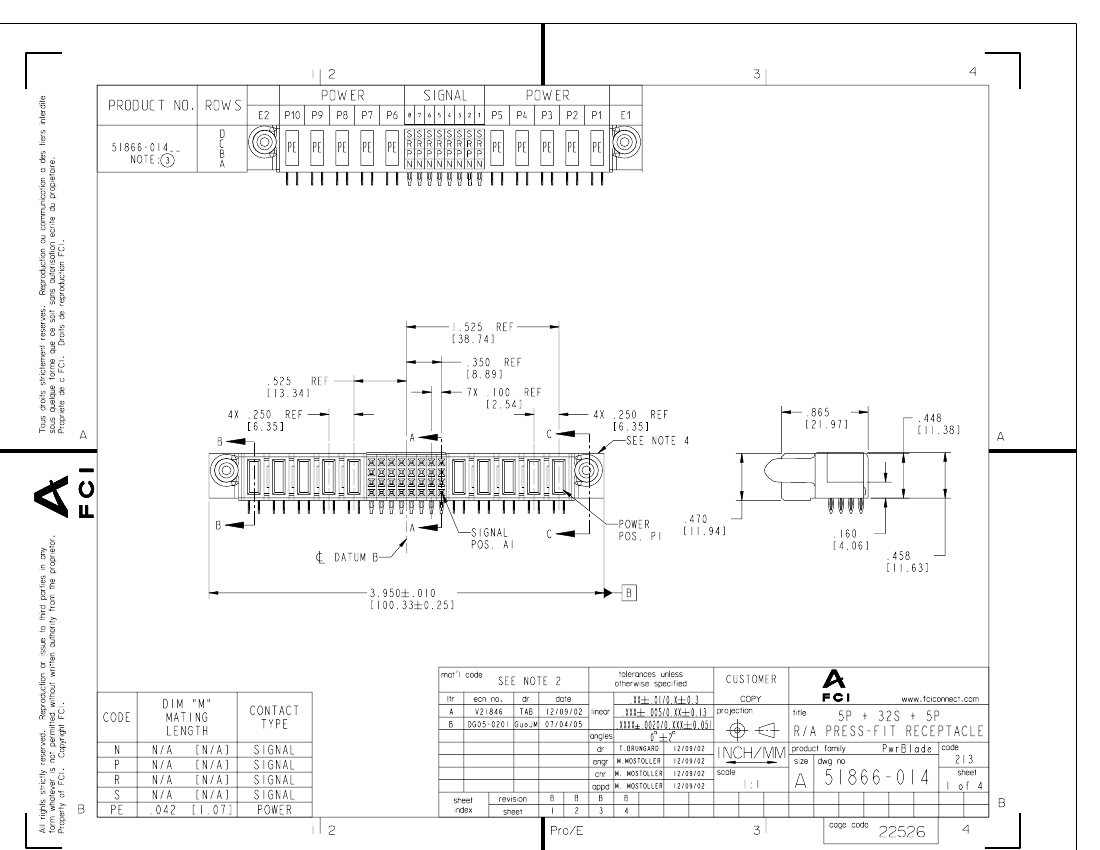

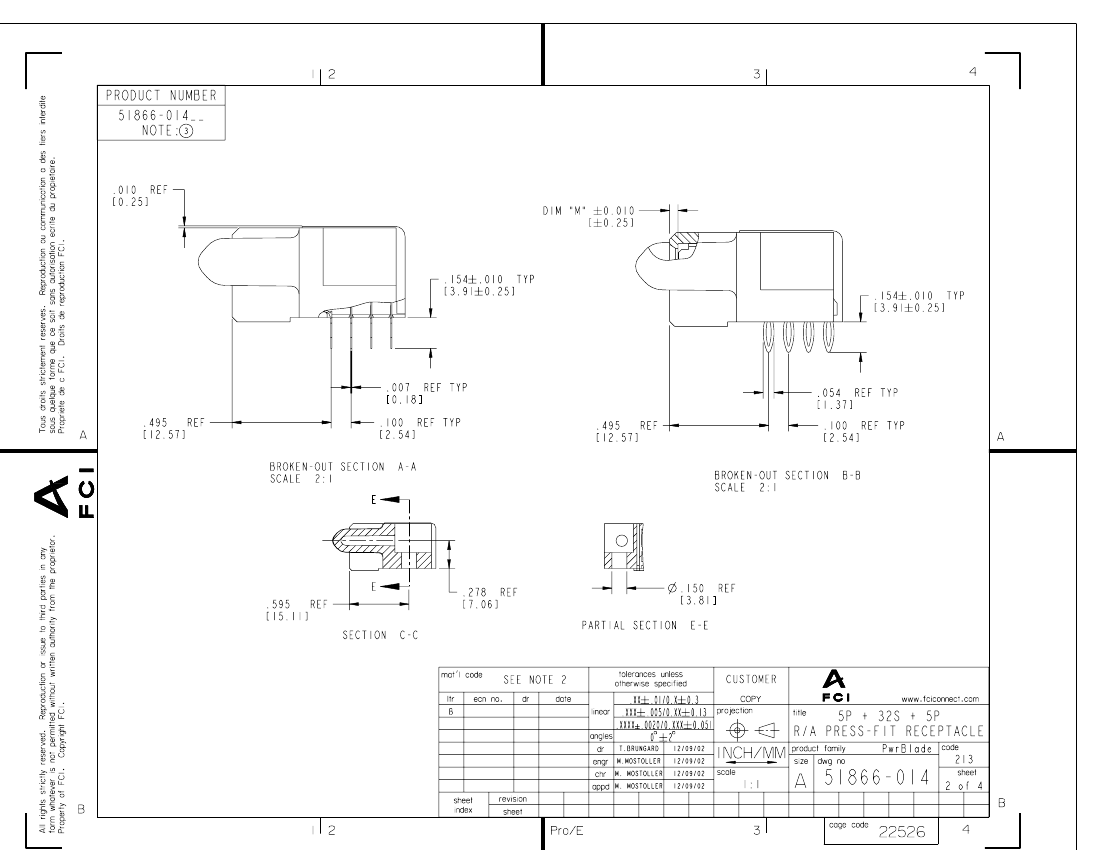

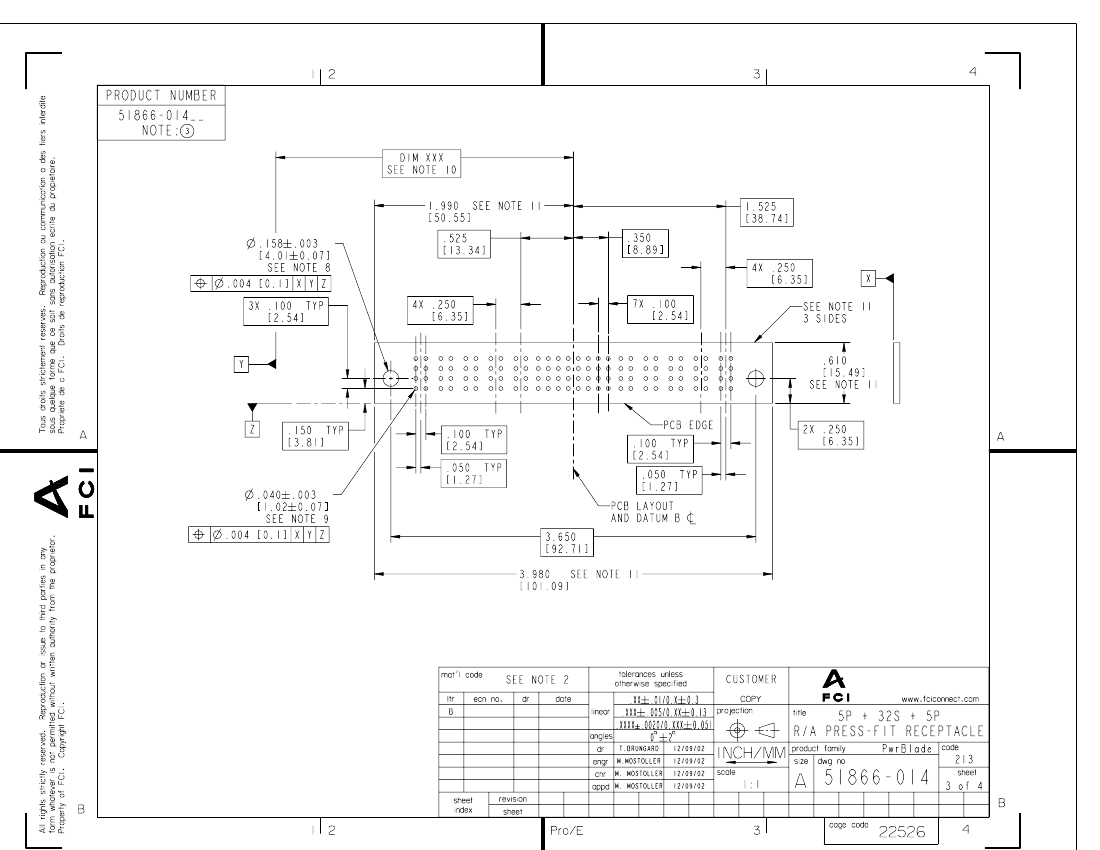

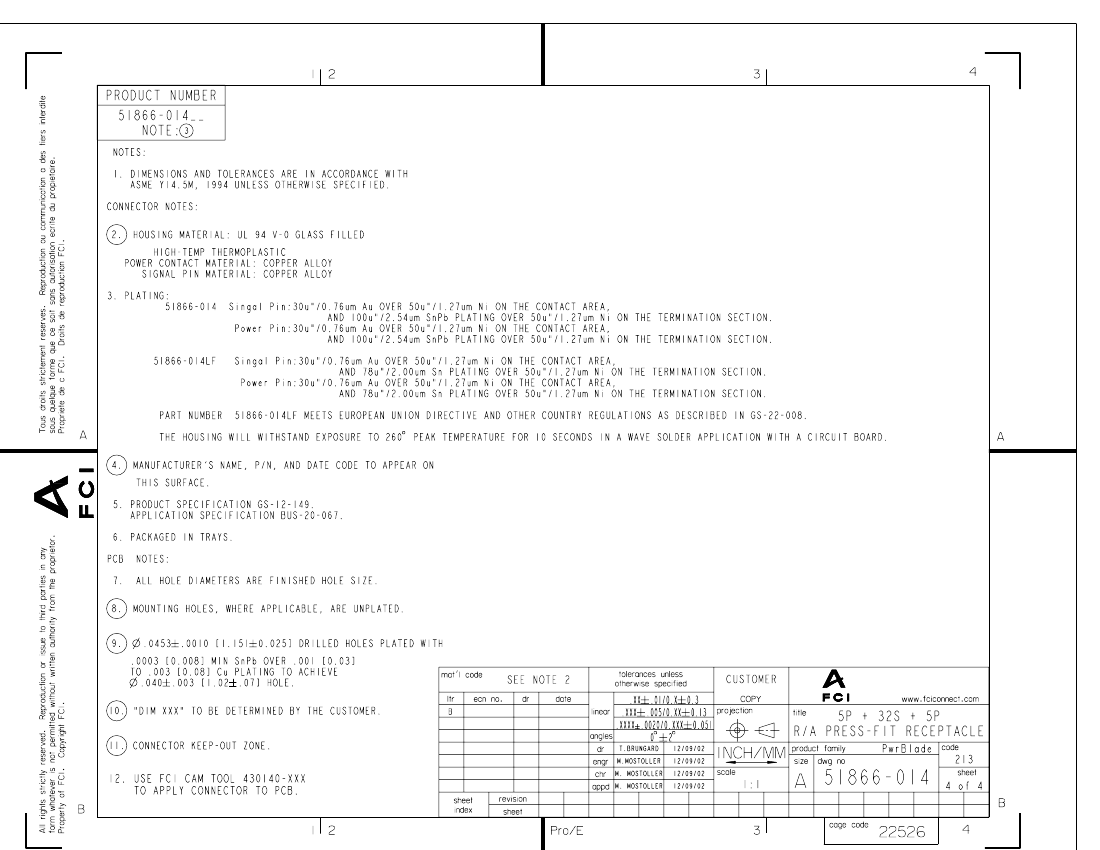

Preview

Download Datasheet

View All

PDM: Rev:B

STATUS:

Released

Printed: Oct 08, 2006

.

51866-014LF Related Products

	51866-014LF	51866-014
Description	CONN RECEPT 6P/24S/5P R/A PRSFT	Board Connector, 42 Contact(s), 4 Row(s), Female, Right Angle, Press Fit Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	incompatible
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Board mount options	HOLE .138-.163	HOLE .138-.163
body width	0.47 inch	0.47 inch
subject depth	0.865 inch	0.865 inch
body length	3.95 inch	3.95 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S32P10	S32P10
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	30u inch
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.154 inch	0.154 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	42	42
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N
