Panel feed-through terminal block - UWV 16-POT/S - 3073555
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

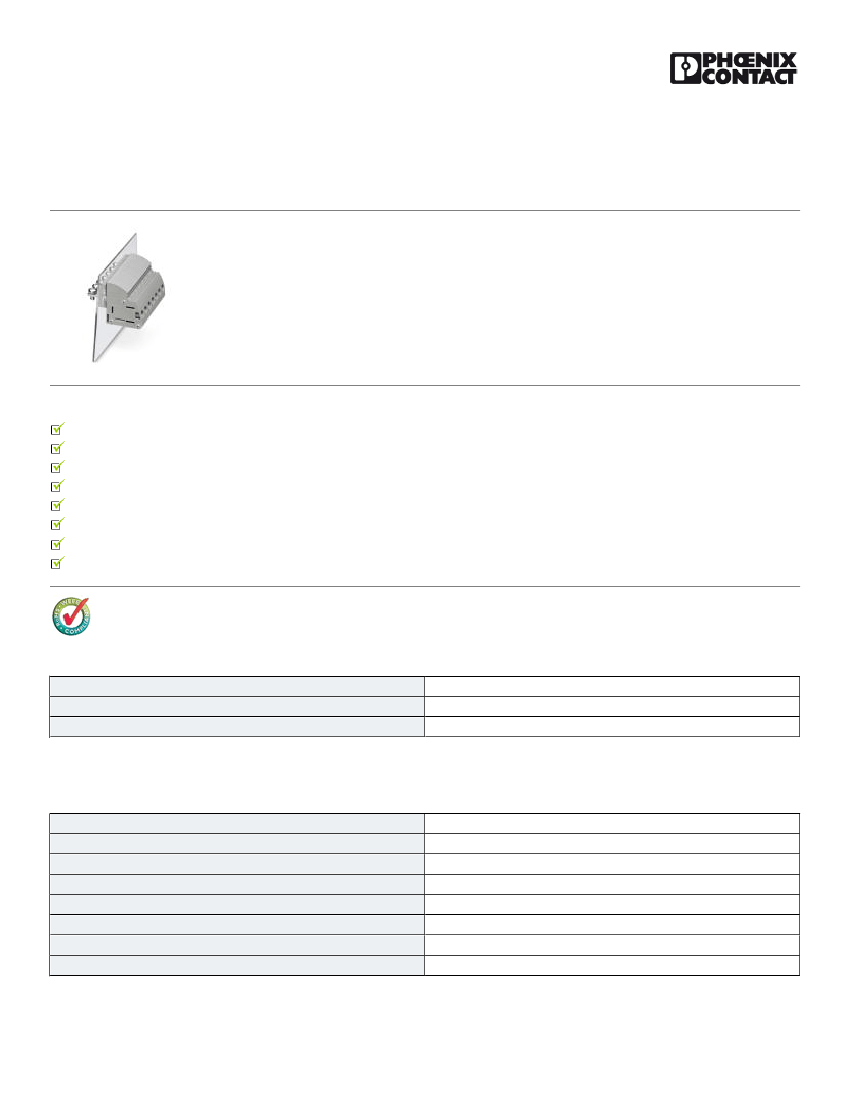

Panel feed-through terminal block, Connection method: Screw connection, Cable lug connection, Load
current : 101 A, Cross section: 6 mm² - 25 mm², AWG 10 - 4, Connection direction of the conductor to plug-in
direction: 90 °, Width: 12.1 mm, Color: gray
Product Features
Easy grouping with engagement pin versions
Both terminal halves can be easily assembled by simply snapping them together
Touch-proof insulating housing in a new design
Molded versions ensure maximum tightness of seal
Universal screw connection with screw locking
Automatic compensation of the panel thickness via the snap principle integrated in the insulation housing
Spacer plates increase clearances and creepage distances
Key commercial data
Packing unit
Custom tariff number
Country of origin
1 pc
85369010
China
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
1
2
gray
PA
V0
101 A (with 25 mm² conductor cross section)
6 kV
3
05/19/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/3073555
Panel feed-through terminal block - UWV 16-POT/S - 3073555
Technical data
General
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
III
I
IEC 60947-7-1
76 A
800 V (with spacer plate)
nein
1
Dimensions
Width
Plate thickness
12.1 mm
1 mm ... 6 mm
Connection data
Note
Connection side
Connection method
Note
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Terminal sleeve
Outside
Screw connection
Note: Product releases, connection cross sections and notes on
connecting aluminum cables can be found in the download area.
6 mm²
25 mm²
6 mm²
16 mm²
10
4
6 mm²
16 mm²
6 mm²
16 mm²
2.5 mm²
10 mm²
2.5 mm²
6 mm²
4 mm²
6 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
4 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
6 mm²
sleeve, max.
05/19/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/3073555
Panel feed-through terminal block - UWV 16-POT/S - 3073555
Approvals
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
10-4
85 A
600 V
C
10-4
85 A
600 V
EAC

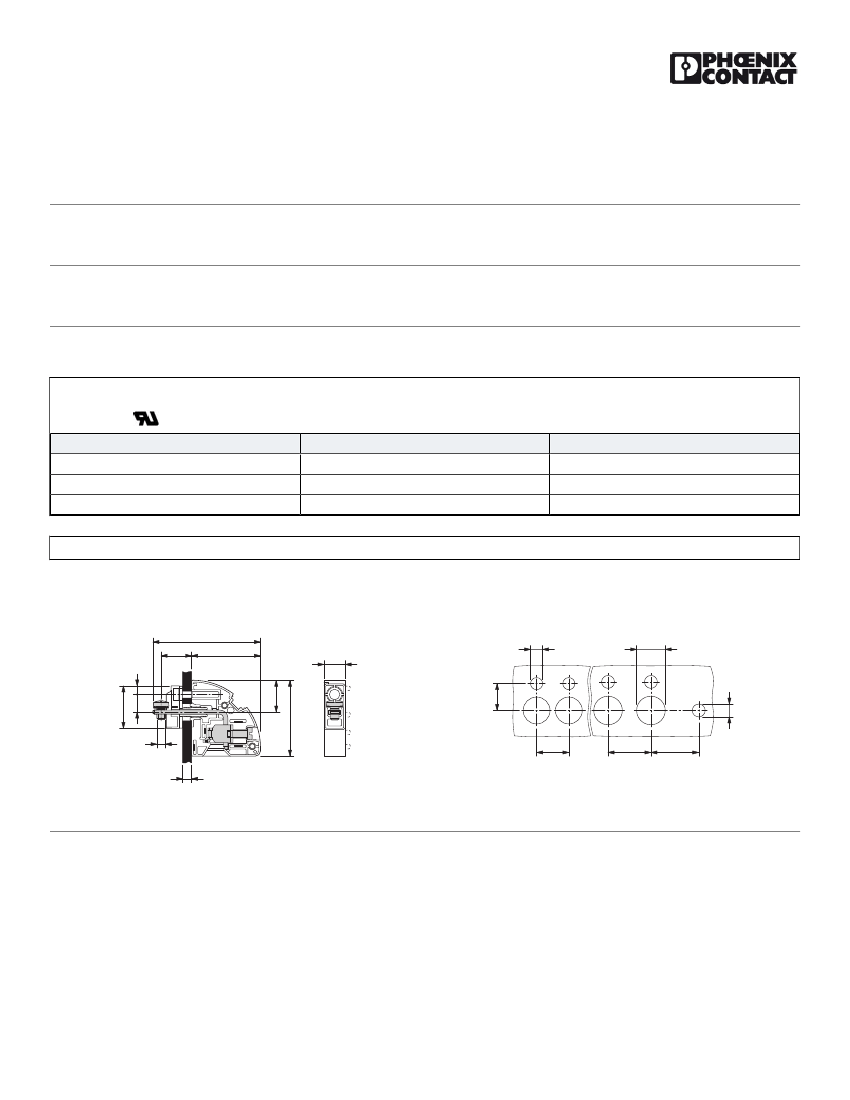

Drawings
Dimensional drawing
62,8
18,6
39,2
12
Ø4,5
12
15**
13,3*
Ø4,5
Ø10
Dimensional drawing
10 6
18,1
26
M5
1-6
43,1
* Only when using the UW...‑F flange plate
** Dimensions when using the DP-UW... spacer plate
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
10
05/19/2015 Page 4 / 4
