135-3333-001 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 135-3333-001

Preview

135-3333-001: DescriptionCONN MMCX JACK STR 50 OHM CRIMP; CategoryThe connector; File Size198KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

135-3333-001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	135-3333-001	-	-	View	Buy Now

135-3333-001 Overview

CONN MMCX JACK STR 50 OHM CRIMP

135-3333-001 Parametric

Parameter Name	Attribute value
Connector style	MMCX
Connector type	jack, female socket
Contact termination	Crimp or solder
Protective termination	crimp
impedance	50 ohms
Installation type	free hanging
Installation features	-
cable set	RG-179，187
Fastening type	snap-in
Frequency - maximum	6GHz
Number of ports	1
characteristic	-
Shell color	gold
Intrusion protection	-
include	3 pieces - 1 connector, 1 contact, 1 ferrule
Matrix material	brass
substrate surface	gold
Center contact plating	gold
dielectric materials	Polytetrafluoroethylene (PTFE)
Operating temperature	-55°C ~ 155°C
center contact material	copper beryllium
Rated voltage	170V
Number of patches	500
Insertion loss	-

Preview

Download Datasheet

View All

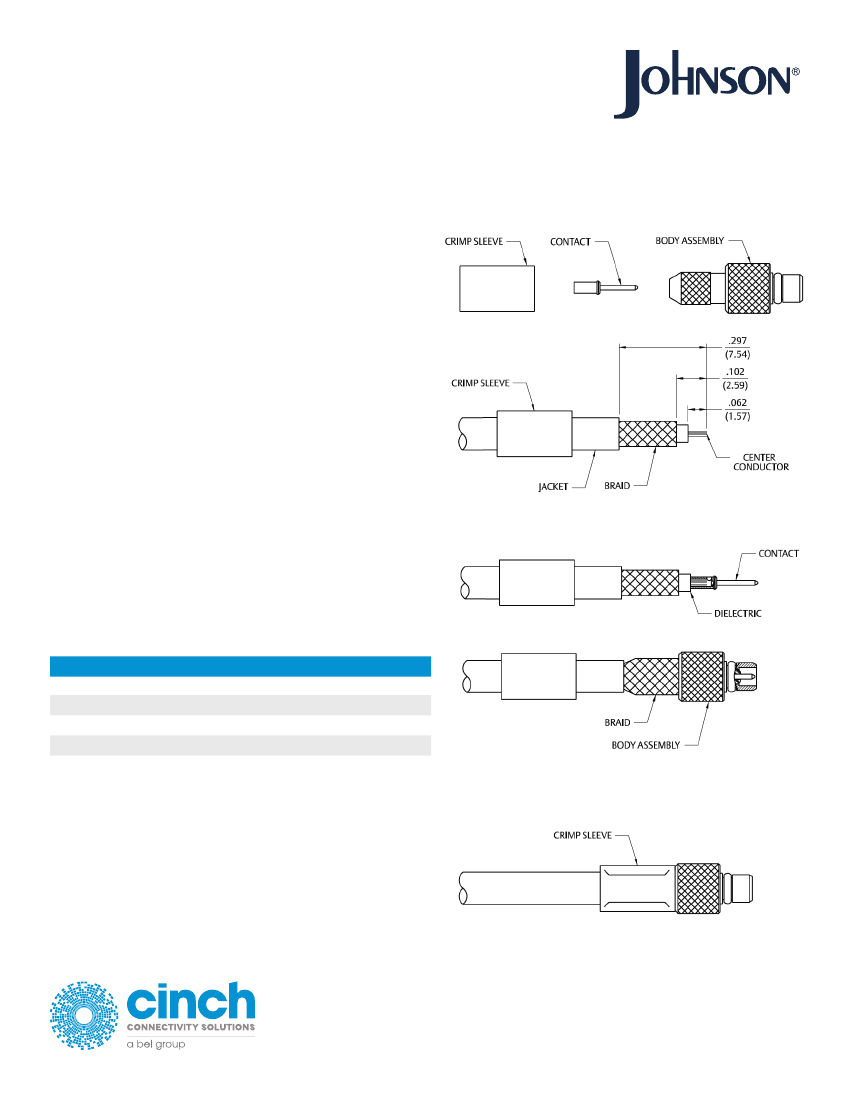

MMCX Straight Jack for RG-316, RG-316 DS and RG-179 Size Flexible Cable

1. Identify connector parts. (3 piece parts)

2. Strip cable jacket to dimensions shown. Do not nick braid

or center conductor during strip operations. Tin center

conductor if contact will be solder attached. Do not tin

center conductor if contact is to be crimp attached. Slide

crimp sleeve onto cable jacket.

3. Assemble contact onto cable.

Solder attachment:

Solder contact to center conductor.

Care should be taken that excess solder is not applied.

Crimp attachment:

Crimp contact to center conductor

using Johnson hand tool 140-0000-952 and die set 140-

0000-953. Crimp location should be centered between

end of contact and cross-hole. Crimp attachment to solid

center conductor cables is not recommended.

4. Slide body assembly over contact and under braid, then

seat firmly onto contact. The body assembly will “snap”

over the contact barb. The cable may have to be held in

a soft jawed clamping fixture. Slide crimp sleeve forward

and crimp using recommended crimp die hex.

Cable Group

RG-316/U, 188, 161, 174

RG-316 DS, 188 DS, 187 DS

RG-179/U, 187

RG-316/u, 188, 174

RG-316 DS, 188 DS

Part No.

135-3303-001

135-3304-001

135-3333-001

135-9403-001

135-9404-001

Crimp Hex

.128 (3.25)

.151 (3.83)

.128 (3.25)

.151 (3.83)

224

Cinch Connectivity Solutions Waseca

299 Johnson Avenue SW, Suite 100

Waseca, MN 56093 USA

+1 507.833.8822

inquiry@cinch.com

cinch.com

ccsjai 02.17

135-3333-001 Related Products

	135-3333-001	135-9403-001
Description	CONN MMCX JACK STR 50 OHM CRIMP	RF Connectors / Coaxial Connectors MMCX Non-Mag Plug Straight RG316
