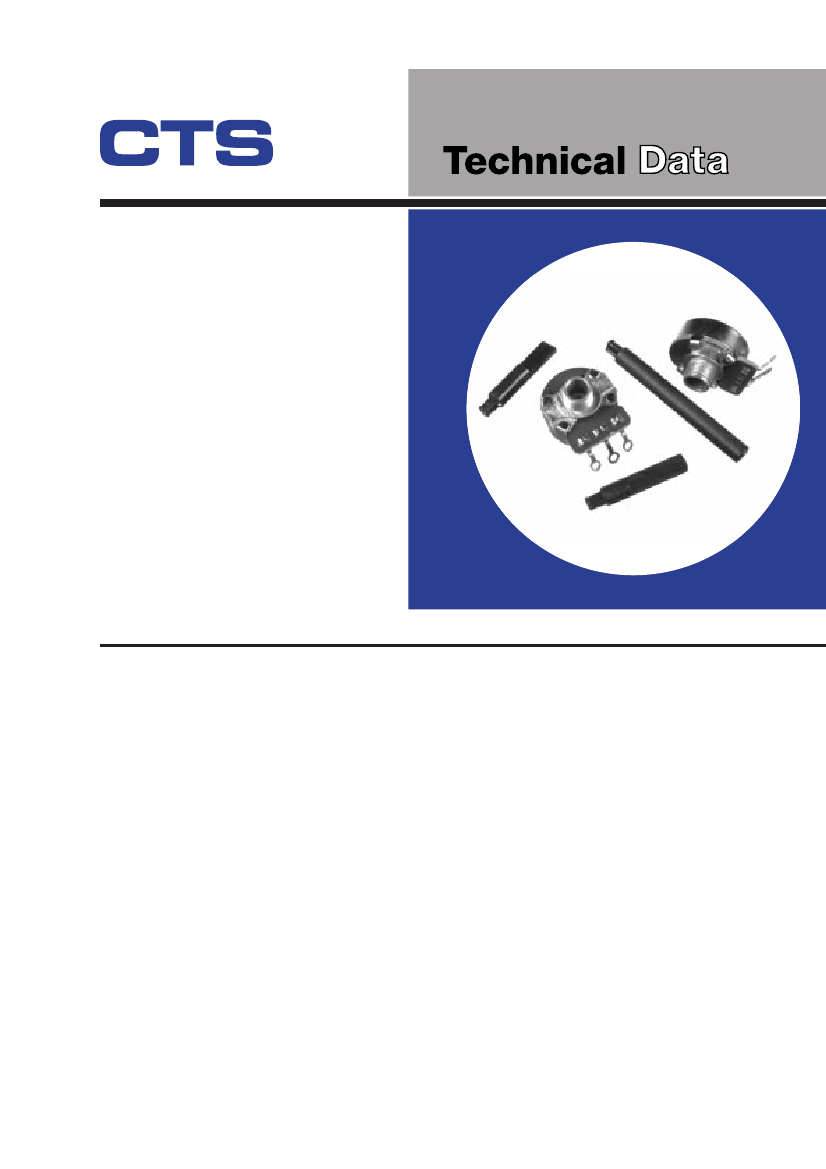

Series 450

Stock Pot™

Industrial

15/16" (24mm)

diameter 1/2 watt

composition

variable resistor

The CTS 450 Stock Pot™ Program provides

immediate off-the-shelf availability from select CTS

distributors. The program offers a choice of 11 of

the most commonly used resistance values, linear or

10% logarithmic tapers and 17 popular plug in

shafts which can be quickly assembled.

• Off-the-shelf availability

• Choice of linear or 10% logarithmic tapers

• Wide resistance range

• ±20% resistance tolerance

• Available with four shaft styles: knurled and

slotted, flatted or round, with a wide selection

of lengths and styles. Generally eliminates the

need for cutting or modification.

• Economical even in limited volume applications

• Supplied with mounting hardware

Electrical and Mechanical Specifications

Resistance Range

500 ohms through 1 Megohm

Resistance Tolerance

Standard ±20%

Power Rating, Watts

Through 10K ohms,

watt; above 100K ohms

through 100K ohms,

watt; above 100K ohms,

watt

Voltage Rating

Bushing to terminals:

High pot test, one minute — 1080 VAC

Operating maximum

— 750 VDC

Shaft Information

Diameter: .250" (6.35mm)

Angle of Rotation

Total Rotation: 300 degrees, ±5º

Effective Rotation: approximately 300 degrees

Bushing Information

Material: diecast zinc

Diameter: EIA std.

– 32 UNEF-2A thread

Length:

" ±

" (9.53mm ± 0.39mm)

Available with

" – 32 UNEF-2A thread only

Terminal Information

Solder lug, PC formed to rear

Locating Lug

Left side, terminals down

Optional Switch

SPST rotary switch 050 is available with limited shaft

and resistance options. See ordering information.

Technical Data Sheet 1448C

Technical Data Sheet 1450SPB

CTS CORPORATION /

MANUFACTURER OF RELIABLE ELECTRONIC COMPONENTS

CTS Type 450 Stock Pot™

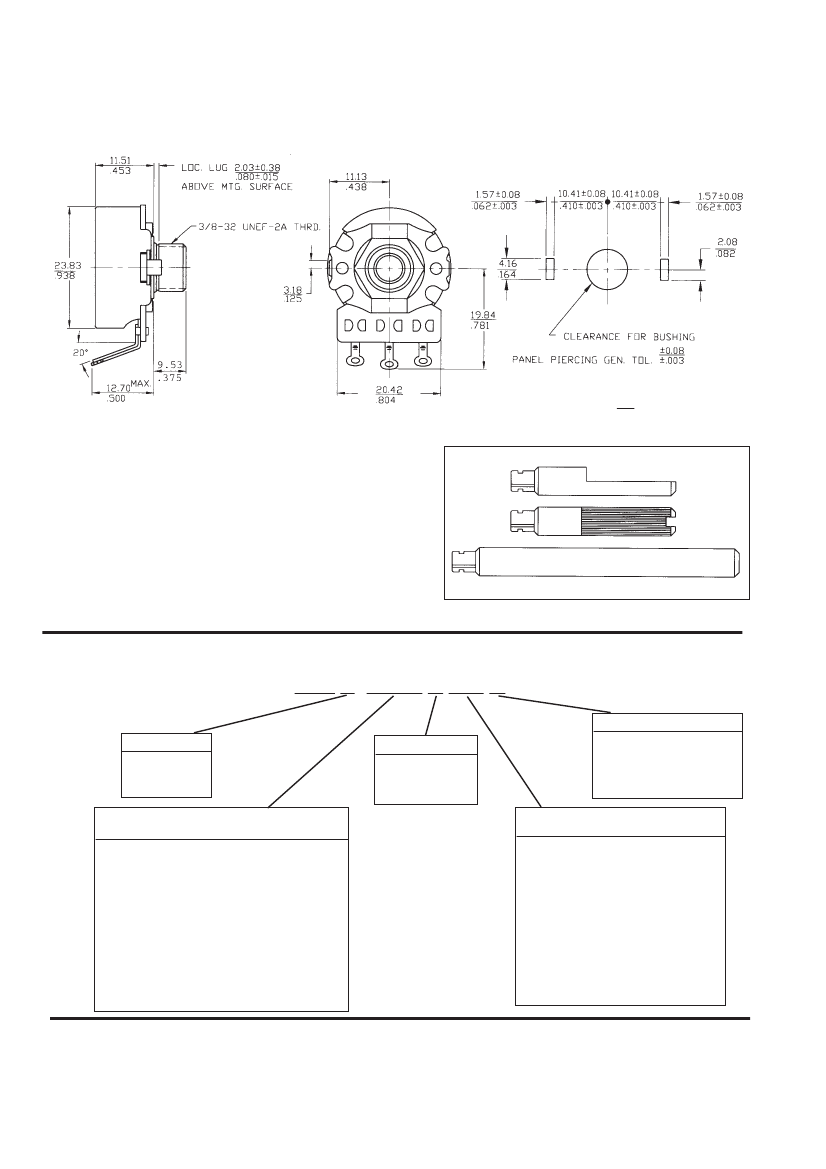

DIMENSION:

INCH

Plug In Shafts

Popular shaft styles are available with trim selections including

screwdriver slot (.047" wide x .063" or 1.19mm x 1.60mm),

flat (molded shaft flat is.156" wide x .500" long or

3.96mm x 12.7mm, brass shaft flat is .375” x .156” or

9.53mm x 3.69mm), knurled and slotted (diameter over knurl

molded is .240" - .246" or 6.10 - 6.25 mm, brass is

.231" - .241" or 5.87 - 6.12 mm), or full round.

See trim selections and shaft details in chart below.

Ordering Information

450 T A103 E M4 S

SWITCH

TERMINAL STYLE

– SOLDER LUG

– PC FORMED

TO REAR

RESISTANCE

OHMS

500

2.5K

10K

25K

50K

100K

250K

500K

LOG A

TAPER

—

A102

A252

A502

A103

A253

A503

A104

A254

A504

A105

LINEAR

D TAPER

D501

D102

D252

D502

D103

D253

D503

D104

D254

D504

D105

MOUNTING STYLE

– 3/8” DIECAST

BUSHING

– EAR MOUNT

BLANK – NO SWITCH

S –

SPST Rotary 050

Switch is supplied with an

assembled molded shaft.

Shaft Option M5 Only

SHAFT OPTIONS

BRASS

MOLDED

” SD Slot

- 1” SD Slot

” Flat

- 1” Flat

”

” K&S

”K&S

” K&S

- 1” K&S

” Flat

- 1” Flat

- 2” Round

K&S

Shaft M5 Required with Switch

Order From:

CTS CORPORATION, RESISTOR/ELECTROCOMPONENTS

/ 1601 Mishawaka Street / Elkhart, Indiana 46514

North America Toll Free (888) 287-4690 / (219) 296-6700 / FAX: (219) 293-1240 http://www.ctscorp.com

CTS COMPONENTS TAIWAN, LTD.

/ 7, Central 6th Road (Chung Liu Road) / P.O. Box 26-20

Kaohsiung Export Processing Zone / Kaohsiung, Taiwan, Rep. of China

(07) 8216145 / FAX: (07) 8417642.8110040

11-99I
