Dimensions M2
Oder Code
L (mm)
702911000
2.0 ± 0,2
702912000
2.5 ± 0,2
702913000
3.0 ± 0,2
702914000
3.5 ± 0,2
702915000
4.0 ± 0,2
702916000
4.5 ± 0,2
702917000
5.0 ± 0,3
702918000
5.5 ± 0,3
702919000
6.0 ± 0,3
702910000
8.0 ± 0,3
Drilling in Panel
O
3,0mm
Panel thickness 1,6mm
O
4,0
u
0,2

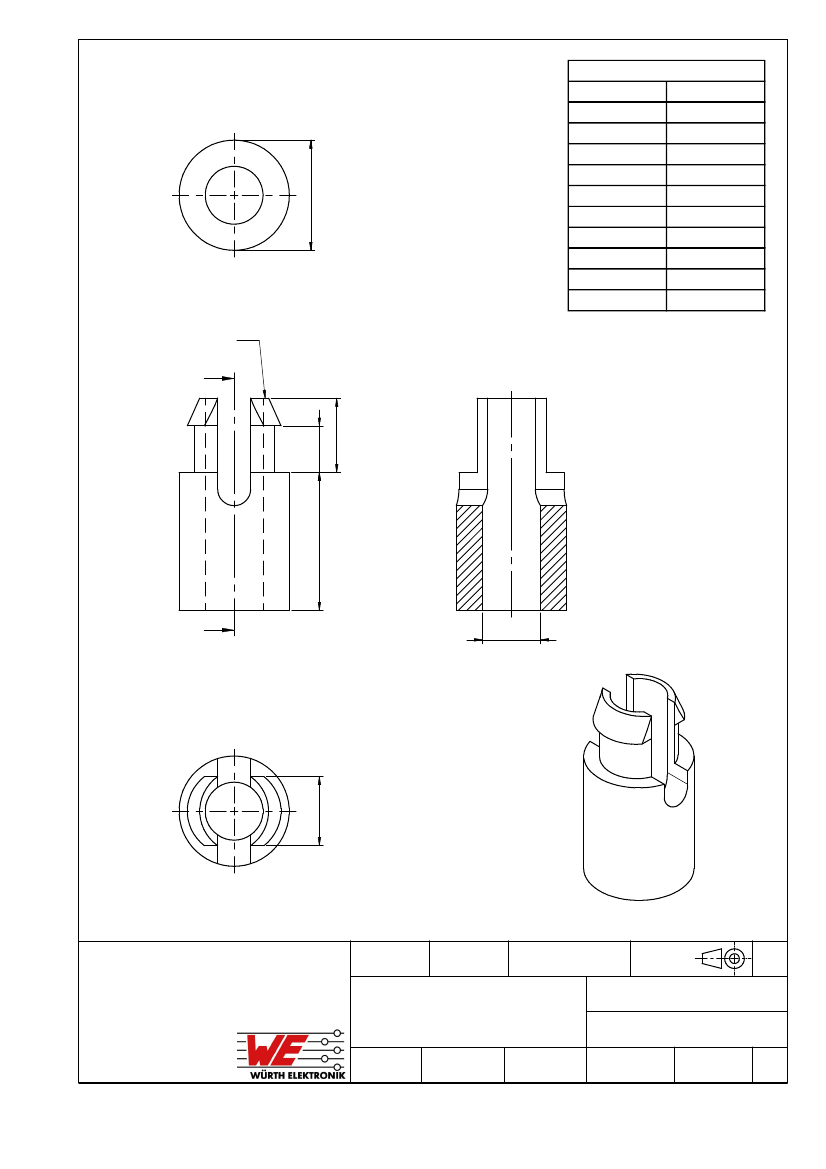

sectional drawing A-A
A
1,7
u
0,2
2,7
u
0,2
A
L
O
2,1
u
0,2
2,5
u
0,2
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
com. +49 79 42 945 - 0
www.we-online.de
eiSos@we-online.de
CREATED
CHECKED
GENERAL TOLERANCE
DaF
DESCRIPTION
SKl
DIN ISO 2768-1m
MATERIAL
PROJECTION
METHOD
SCALE
5:1
AsSNSR
Self-retaining spacer
SIZE
WEIGHT
STATUS
Nylon 66, natural
ORDER CODE
702 91x xxx
DATE
BUSINESS UNIT
PAGE
Screw M2
xxx
Released
2015-05-20
eiCan
1 /1
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is
especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation
(automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
