NC7SV126 — TinyLogic
®
ULP-A Buffer with Three-State Output
June 2014
NC7SV126
TinyLogic® ULP-A Buffer with Three-State Output
Features
0.9 V to 3.6 V V
CC
Supply Operation
3.6 V Over-Voltage Tolerant I/O’s at V
CC
from 0.9 V
to 3.6 V
Extremely High Speed t
PD
- 1.0 ns: Typical for 2.7 V to 3.6 V V
CC
- 1.8 ns: Typical for 2.3 V to 2.7 V V
CC
- 3.0 ns: Typical for 1.65 V to 1.95 V V
CC
- 3.5 ns: Typical for 1.4 V to 1.6 V V
CC
- 6.0 ns: Typical for 1.1 V to 1.3 V V
CC
- 13.0 ns:Typical for 0.9 V V
CC
Power-Off High-Impedance Inputs and Outputs
High Static Drive (I
OH
/I
OL
)
-
24
mA at 3.00 V V
CC
-18 mA at 2.30 V V
CC
-6 mA at 1.65 V V
CC
-
4
mA at 1.4V V
CC
-
2
mA at 1.1 V V
CC
-
0.1
mA at 0.9 V V
CC

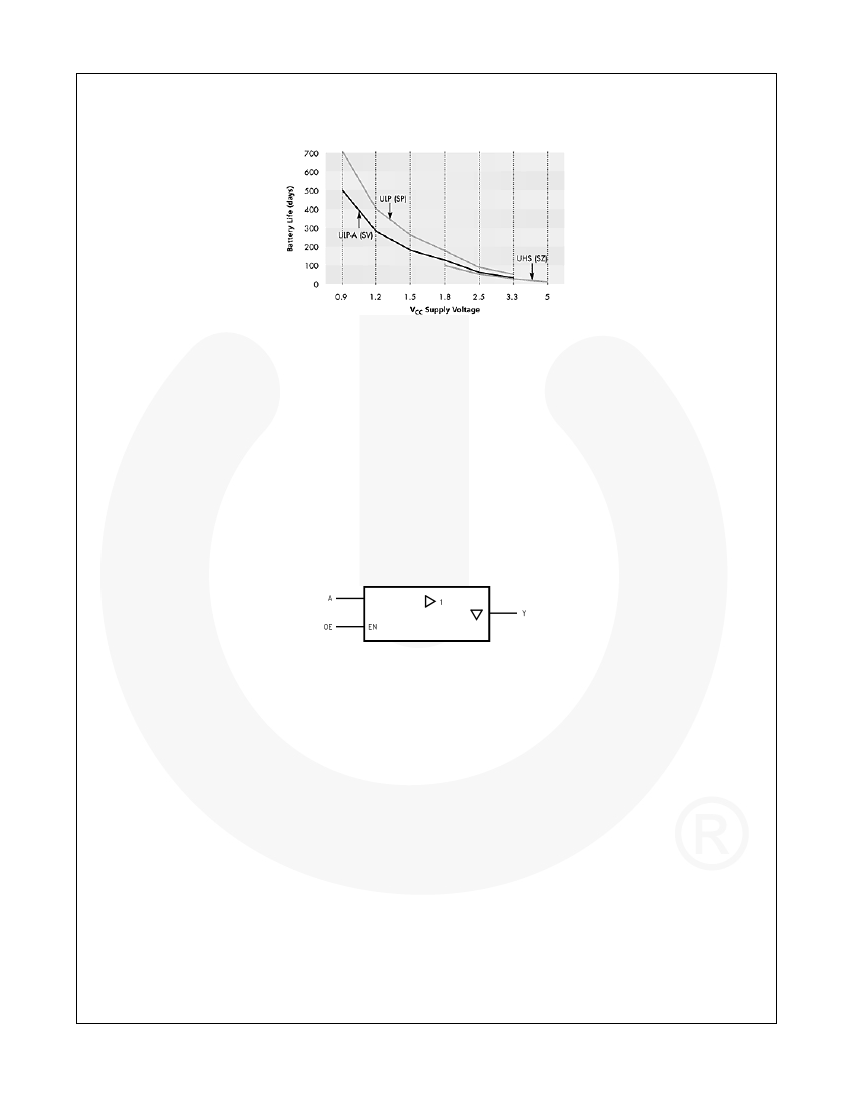

Description
The NC7SV126 is a single buffer with 3-STATE output
from Fairchild’s Ultra-Low Power-A (ULP-A) Series of
TinyLogic®. ULP-A is ideal for applications that require
extreme high speed, high drive, and low power. This
product is designed for a wide low-voltage operating
range (0.9 V to 3.6 V V
CC
) and applications that require
more drive and speed than the TinyLogic® ULP series,
but still offer best in class low power operation.
The NC7SV126 is uniquely designed for optimized
power and speed, and is fabricated with an advanced
CMOS technology to achieve high-speed operation
while maintaining low CMOS power dissipation.
Uses Proprietary Quiet Series™ Noise/EMI
Reduction Circuitry
Ultra-Small MicroPak™ Leadfree Package
Ultra-Low Dynamic Power

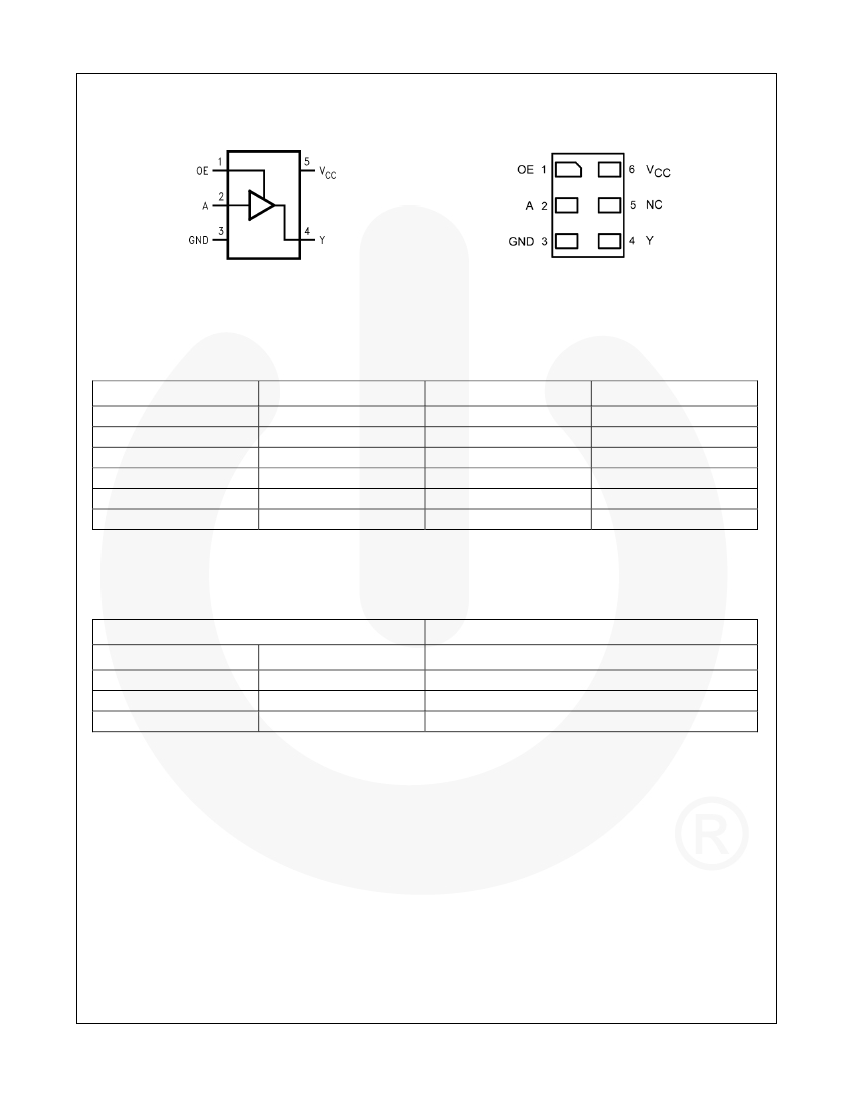

Ordering Information
Part Number
NC7SV126P5X
NC7SV126L6X
Top Mark
V26
H7
Package
5-Lead SC70, EIAJ SC-88a, 1.25 mm Wide
6-Lead MicroPak™, 1.00 mm Wide
Packing Method
3000 Units on
Tape & Reel
5000 Units on
Tape & Reel
For Fairchild’s definition of “green” Eco Status, please visit:
