Technical Data
4416
Effective October 2015
Supersedes September 2014
SS-5H
300V Subminiature, radial leaded, time-delay fuses
Pb
HF
FREE
HALOGEN
Applications
Primary and secondary circuit protection:
•
•
•
•
•
•
•
•
Power supplies
Notebooks and laptops
Appliances and white goods
Lighting ballasts
Power adapters
Set top boxes
LED/LCD televisions and displays
Air conditioners
Battery chargers
Product description
•
•
Radial leaded, time delay with high breaking
capacity
Designed to IEC60127-3
Plastic cap and base, flammability UL 94V0
Protects against harmful overcurrents in primary
and secondary applications
Small rectangular-leaded design utilizes less
board space
High frequency vibration: MIL-STD-202F,
Method 201A
Halogen free, lead free, RoHS compliant
Agency information
•
•
•
•
UL Recognition: File E19180, Guide JDYX2/
JDYX8
VDE: 40031800
TUV: J50190080
CQC: 11012056980
PSE: JET 1641-31007-1006 (1- 5A); JET 1641-
31007-1007 (6.3A)
KC: SU05011-11001 (1~2.5A); SU05011-11002
(3.15~6.3A)
•
•
•
•
•
•
•
•
Ordering
•
Specify part number and packaging suffix as
shown
Part number
SS-5H-1A
Packaging suffix
-AP
Packaging suffixes
250V Version
•
•
•
-AP (1000 parts Ammo pack, Pitch =12.7mm)
-BK (200 parts in a polybag, Lead L=4.3 ±0.3mm)
-BK2 (200 parts in a polybag, Lead L=21
±3.0mm)
-APH (1000 parts Ammo pack, Pitch =12.7mm)
-BKH (200 parts in a polybag, Lead L=4.3
±0.3mm)
-BK2H (200 parts in a polybag, Lead L=21
±3.0mm
300V Version
•
•
•
Technical Data
4416
Effective October 2015
SS-5H
300V Subminiature, radial leaded, time-delay fuses
Electrical characteristics
1.5l
n
min
minute
2.1l
n
max
minute
2.75l
n
min ms
2.75l
n
max s
4l
n
min
ms
4l
n
max
s
10l
n
min
ms
10l
n
max
ms
l
n
1A - 6.3A
60
2
400
10
150
3
20
150
Product specifications
Voltage
rating
1
AC
Interrupting
rating at rated
voltage (50Hz)
AC (amps)
Typical DC cold
resistance
2
(mΩ)
Typical melting
3
I
2
t (A2s)
Typical
voltage drop
4
(mV)
PSE+
JET
1
Part number
VDE
1
TUV
1
CURUs
1
CQC
1
KC
1
SS-5H-1A
SS-5H-1.25A
SS-5H-1.6A
SS-5H-2A
SS-5H-2.5A
SS-5H-3.15A
SS-5H-4A
SS-5H-5A
SS-5H-6.3A
300
300
300
300
300
300
300
300
300
100
100
100
100
100
100
100
100
100
78
57
43
31.2
23.0
17.5
12
7.35
7.4
7.4
12.8
23
29.8
40.3
67
87
120
176
94.5
87
79
75
73.5
62.5
60.5
43
59
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
1. CQC and KC-Mark voltage rating only 250Vac. VDE, TUV, cURus and PSE voltage ratings given at
both 250Vac and 300Vac
2. Typical cold resistance (measured at <10% of rated current)
3. I
2
T value is measured at 10I
n
DC
4. Typical voltage drop (voltage drop was measured at 20°C ambient temperature at rated current)

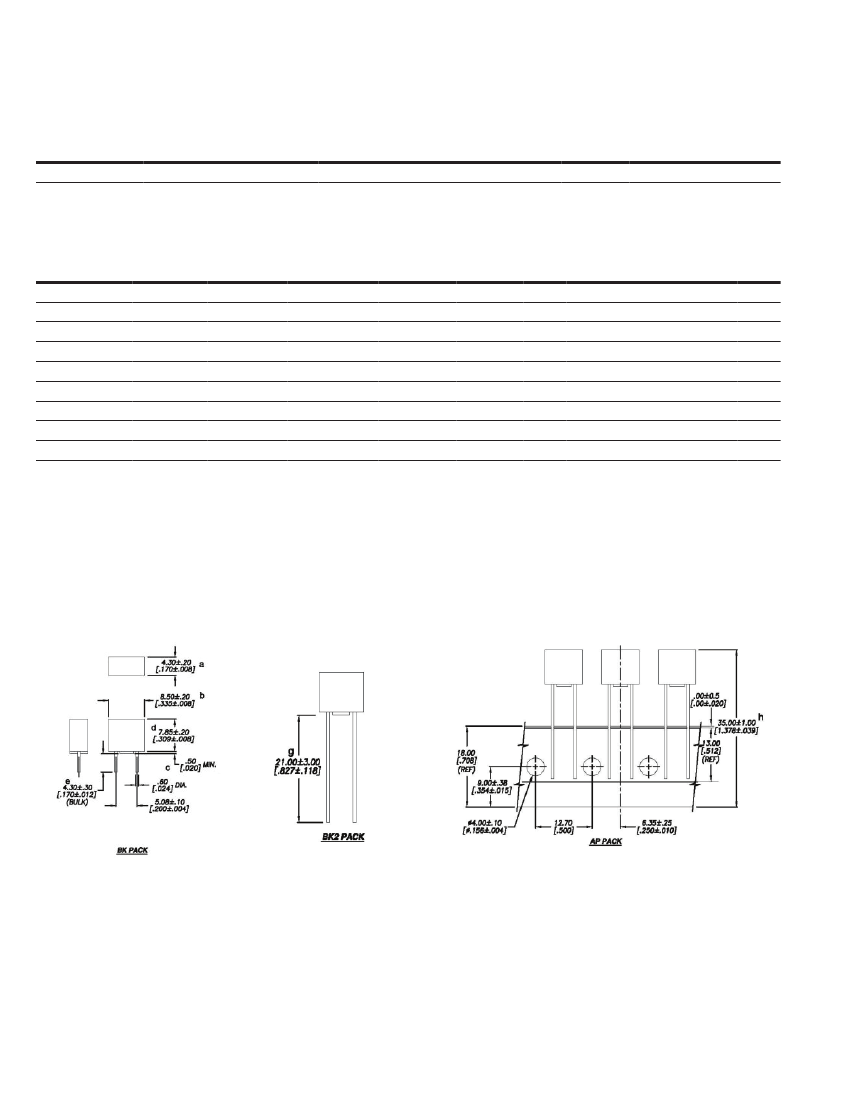

Dimensions and packaging (mm)
2
www.eaton.com/elx
SS-5H
300V Subminiature, radial leaded, time-delay fuses

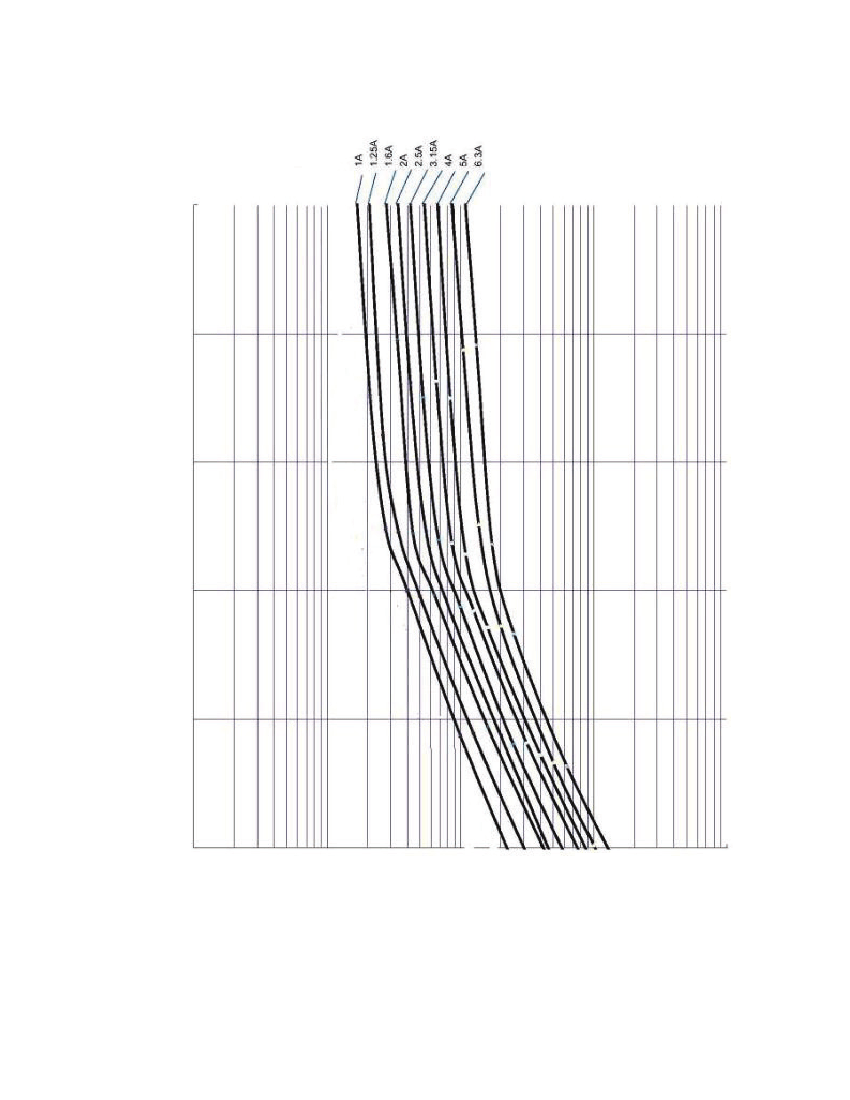

Time vs. current curve
Technical Data
4416
Effective October 2015
1000
100
10
Time in seconds (s)
1.0
0.1
0.01
0.1
1.0
10
100
1000
Current in amps (A)
www.eaton.com/elx
3
Technical Data
4416
Effective October 2015
SS-5H
300V Subminiature, radial leaded, time-delay fuses
Temperature derating curve
Normal Operating Temperature: 25°C±2°C
120
110
Factor of rated current (%)
100
90
80
70
60
-60
-40
-20
0
20
40
60
80
100
120
140
Ambient temperature (°C)
Environmental data
Operating temperature -40°C to 125°C w ith proper correction factor applied
Storage temperature -10°C to 40°C
Solderability-EIA-186-9E Method 9
High Frequency Vibration Test-Withstands 10-55Hz per MIL-STD-202F, Method 201A
Endurance Test-IEC60127-3/4
4
www.eaton.com/elx
SS-5H
300V Subminiature, radial leaded, time-delay fuses
Wave solder profile
Reflow soldering not recommended
t
p
T
p
Technical Data
4416
Effective October 2015
First Wave
Second Wave
Temperature
T
smax
T
styp
T
smin
Preheat area
Cool down area
Time
Reference EN 61760-1:2006
Profile Feature
Standard SnPb Solder
Lead (Pb) Free Solder
Preheat
• Temperature min. (Tsmin)
• Temperature typ. (Tstyp)
• Temperature max. (Tsmax)
• Time (Tsmin to Tsmax) (ts)
100°C
120°C
130°C
70 seconds
150°C max.
235°C – 260°C
10 seconds max
5 seconds max each wave
~ 2 K/s min
~3.5 K/s typ
~5 K/s max
4 minutes
100°C
120°C
130°C
70 seconds
150°C max.
250°C – 260°C
10 seconds max
5 seconds max each wave
~ 2 K/s min
~3.5 K/s typ
~5 K/s max
4 minutes
D
preheat to max Temperature
Peak temperature (TP)*
Time at peak temperature (tp)
Ramp-down rate
Time 25°C to 25°C
Manual solder
350°C, 4-5 seconds (by soldering iron), generally manual hand soldering is not recommended.
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
Eaton
Electronics Division
1000 Eaton Boulevard
Cleveland, OH 44122
United States
www.eaton.com/elx
© 2015 Eaton
All Rights Reserved
Printed in USA
Publication No. 4416 BU-MC15043
October 2015
Eaton is a registered trademark.
All other trademarks are property
of their respective owners.
