AUH
CONNECTOR
Disconnectable Crimp style connectors
Emboss Tape
Specifications –––––––––––––––––––
• Current rating: Signal circuit/ 1 A AC, DC
Power supply circuit/ 5 A AC, DC (AWG #22)
• Voltage rating: 30V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 100 MΩ min.
• Withstanding voltage: 200 VAC/ minute
• Applicable wire:
Signal circuit; Conductor size/ AWG #30 to #28
Insulation O.D./ 0.5 to 0.63 mm
Power supply circuit; Conductor size/AWG #26 to #22
AWG #22; Recommend UL3619 made by
Hitachi Cable, Led./Furukawa Electric Co., Ltd.
Insulation O.D./0.98 to 1.16 mm
* Refer to “General Instruction and Notice when using
Terminals and Connectors” at the end of this catalog.
* Contact JST for details.
* Compliant with RoHS.

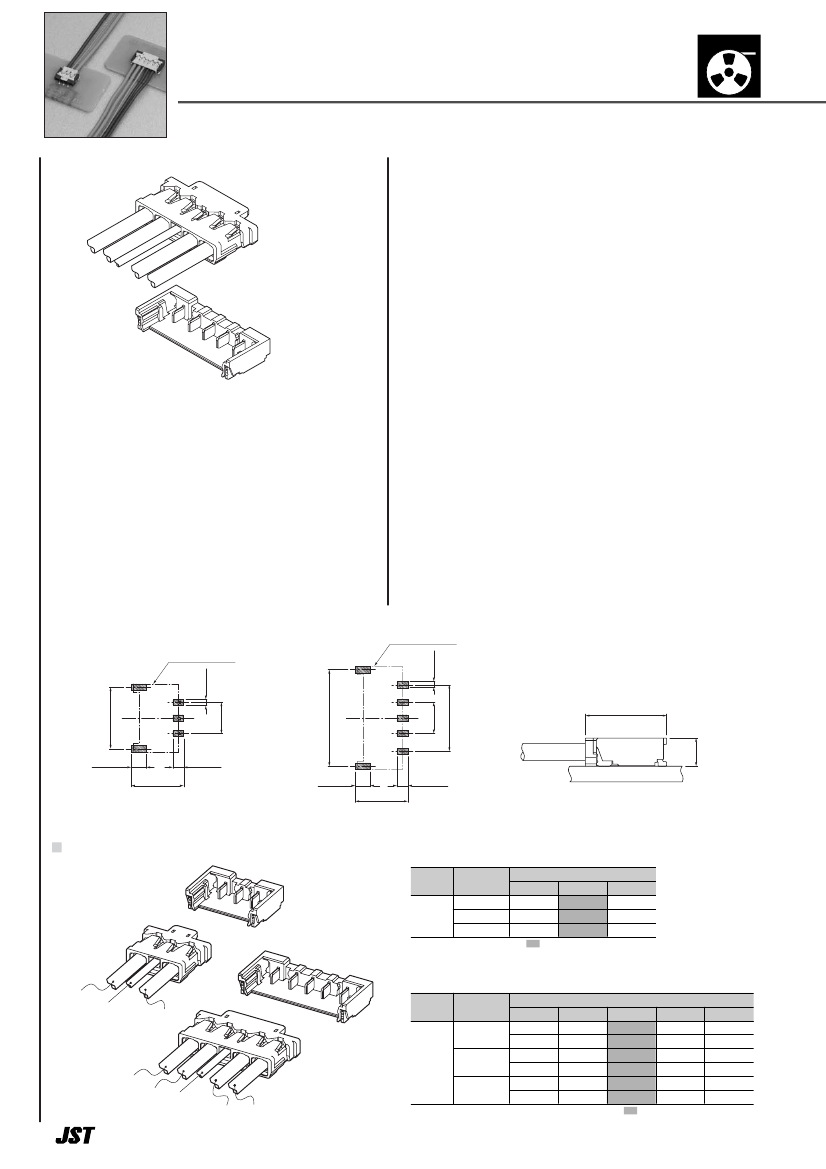

This AUH connector is compact and low
profile type, height 1.85 mm and width
5.2 mm, wire-to-board connector.
And also 5 A in rating current was realized.
• Space saving
• Top entry but side feed type
• Combination of power supply and signal circuits
3 circuits;
Power supply 2 circuits + Signal single circuit
5 circuits;
Power supply 4 circuits + Signal single circuit
• Connector for DC power supply (5 A)
<3 circuits>
Connector outline
±0.05
Standards ––––––––––––––––––––––
0
±0.05
Recognized E60389
<5 circuits>
Connector outline
5.9
±0.05
0.6
±0.05
0.6
±0.05
±0.05
9.3
6.4
3
3
±0.05
(5.2)
1.45
±0.05
5.05
±0.05
1.05
±0.05
1.45
±0.05
1.05
5.05
±0.05
±0.05
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative:
±
0.05 mm for all centers. The dimensions above should serve as a guideline. Contact JST for details.
Table of current rating combinations
<3 circuits>
Circuits
Current unit: A
Power supply
contact
Wire to be used
AWG #22
AWG #24
AWG #26
Circuits No.
No.1
5
4
3.5
No.2
1
1
1
No.3
5
4
3.5
3
<5 circuits>
：Signal
contact AWG#30∼#28
1.85
Current unit: A
No.1
No.2
No.3
Circuits
Power supply
contact
Wire to be used
AWG #22
Circuits No.
No.1
5
4
No.2
1
4
1
3.5
1
3
No.3
1
1
1
1
1
1
No.4
1
4
1
3.5
1
3
No.5
5
4
4
3.5
3.5
3
5
AWG #24
4
3.5
No.1
No.2
No.3
No.4
No.5
AWG #26
3.5
3
：Signal
contact AWG#30∼#28
1

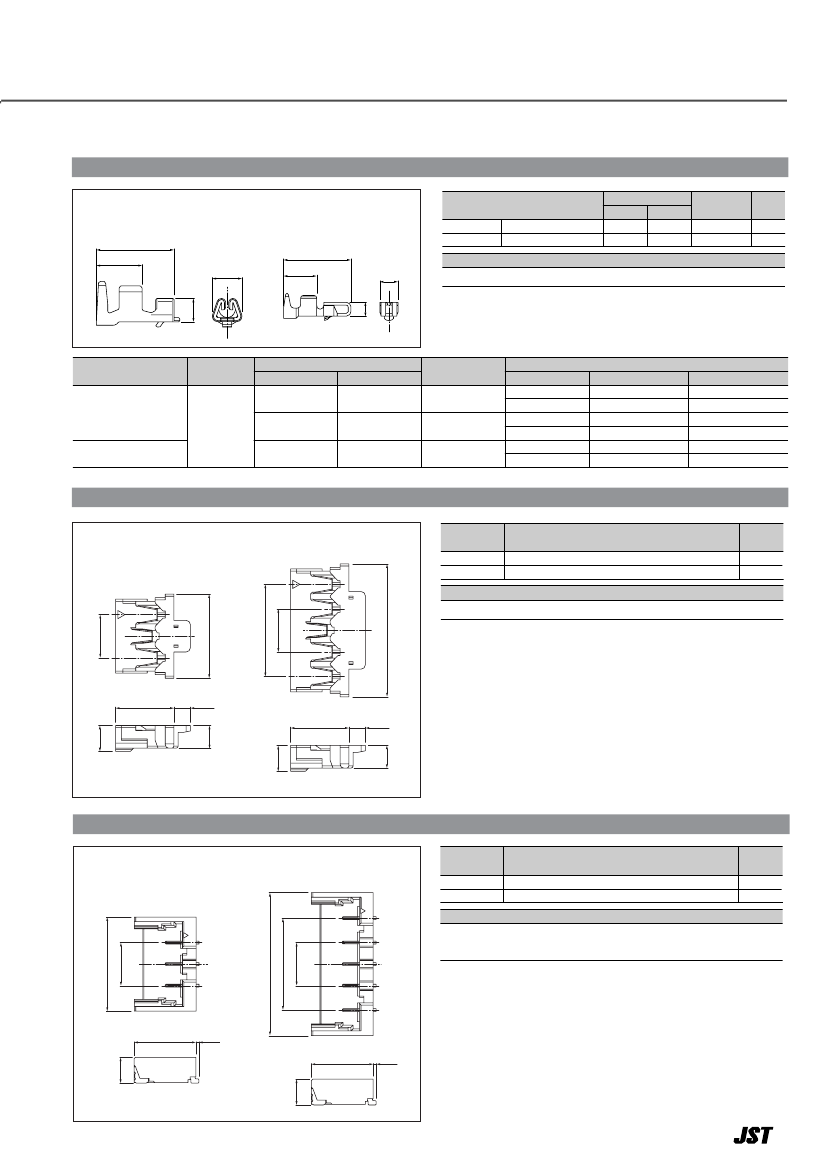

AUH CONNECTOR
Contact
For power supply
3.4
2
1.3
2.95
1.45
0.8
For signal
Power supply
Signal
Model No.
SAUH-001G-M0.2
SACH-003G-P0.2
Applicable wire Insulation O.D. Q’ty/
reel
(mm)
mm
2
AWG#
0.13∼0.33
0.05∼0.08
26∼22
30∼28
0.98∼1.16
0.5 ∼0.63
18,000
30,000
Material and Finish
Copper alloy, nickel-undercoated, selective gold-plated
RoHS compliance
1.02
0.6
Model No.
Crimping
machine
Applicable wire
AWG#
mm
2
0.13∼0.21
26∼24
22
30∼28
Insulation O.D.
(mm)
0.98∼1.11
0.98∼1.16
0.5∼0.63
Crimp applicator
MKS-L-10
―
MKS-L-10
―
MKS-L-10-3
―
Applicator
Dies
MK/SAUH-001-02
―
MK/SAUH-001-02-K
―
MK/SACH-003-02
―
Crimp applicator with dies
APLMK SAUH001-02
―
APLMK SAUH001-02-K
―
APLMK SACH003-02
―
SAUH-001G-M0.2
AP-K2N
0.33
0.05∼0.08
SACH-003G-P0.2
Housing
<3 circuits>
<5 circuits>
Circuits
3
5
Model No.
AUHR-03V-H
AUHR-05V-H
Material
PBT, UL94V-0, gray
Q'ty/box
1,000
1,000
9.25
6.4
4.05
1.15
4.05
1.15
1.85
1.58
5.85
3
3
RoHS compliance
Shrouded header
<3 circuits>
<5 circuits>
Circuits
3
5
1.85
1.58
Model No.
BM03B-AUHKS-GA-TB
BM05B-AUHKS-GA-TB
Material and Finish
Q'ty/reel
5,000
5,000
6.55
Contact: Copper alloy, nickel-undercoated, gold-plated (nickel-stripe)
Housing: Heat resisting resin, UL94V-0, black
Reinforcing tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
9.95
6.4
3
3
RoHS compliance
This product displays (LF)(SN) on a label.
4.3
0.2
4.3
0.2
1.85
1.85
2
