MIKROE-2524

Description
CURR SENSE XFMR 30A IN-LINE
CategoryPower/power management
File Size169KB,1 Pages
ManufacturerMikroElektronika
Websitehttps://www.mikroe.com
Environmental Compliance
Download Datasheet Parametric View All

MIKROE-2524 Online Shopping

Suppliers Part Number Price MOQ In stock
MIKROE-2524 - - View Buy Now

MIKROE-2524 Overview

CURR SENSE XFMR 30A IN-LINE

MIKROE-2524 Parametric

Parameter NameAttribute value
Frequency Range-
typeNon-invasive type (split core)
Rated current30A
Energy Time (ET)-
Turns Ratio - Primary:Secondary-
Current ratio-
DC resistance (DCR)-
grade-
Installation typefree hanging
size/dimensions-
Height - Installation (maximum)-
Terminal typeWire leads with connectors

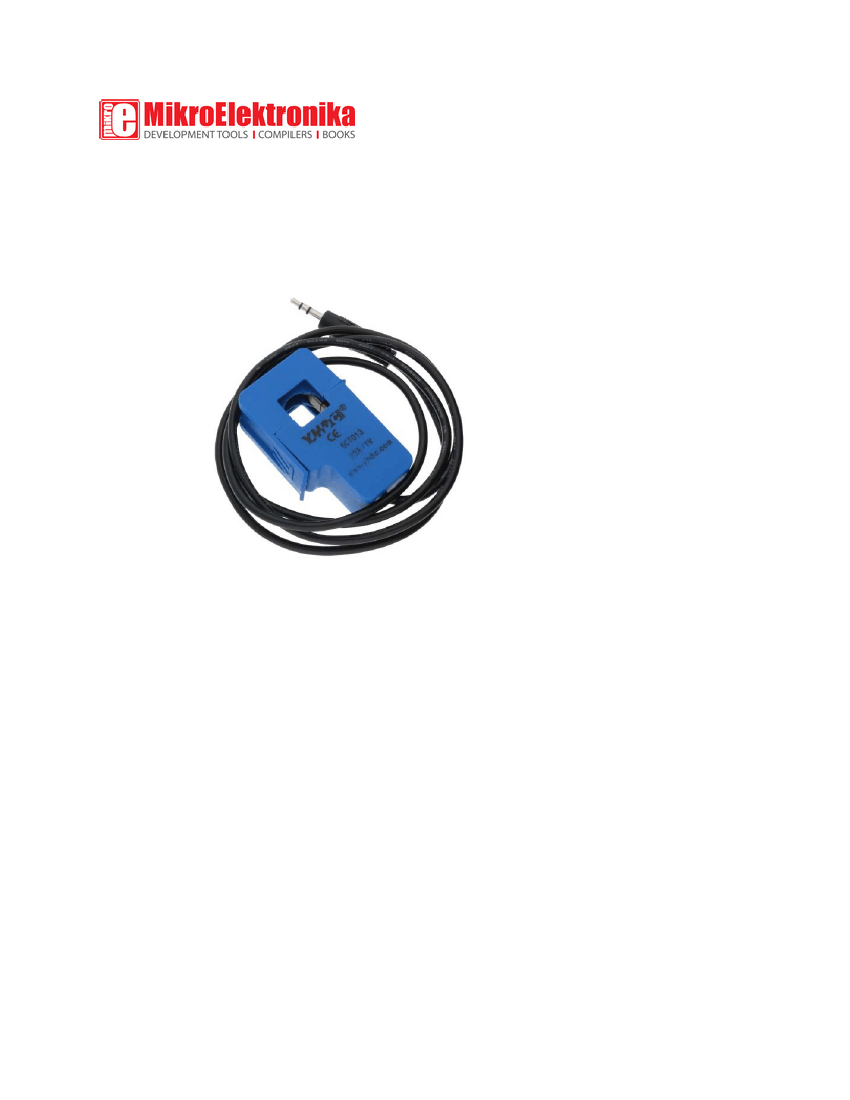

AC Current sensor
PID: MIKROE-2524 Weight: 18 g
Applications
Suitable for the current measuring
Monitoring and protection of AC motor
Lighting equipment
Air compressor
Key features
Open Size: 13mm x 13mm
Leading Wire in Length: 1m
Dielectric Strength (between shell and output): 1000V AC/1min 5mA
Work Temperature: ‐25°C ~ ﹢70°C
Resistance Grade: Grade B
Build‐in sampling resistance(RL): 186Ω
Non‐linearity: ±3%
Output Mode: 0~1V
Input Current: 0~30A AC
Fire resistance property: in accordance with UL94‐VO
https://shop.mikroe.com/accessories/sensors/ac-current 2/24/2017
