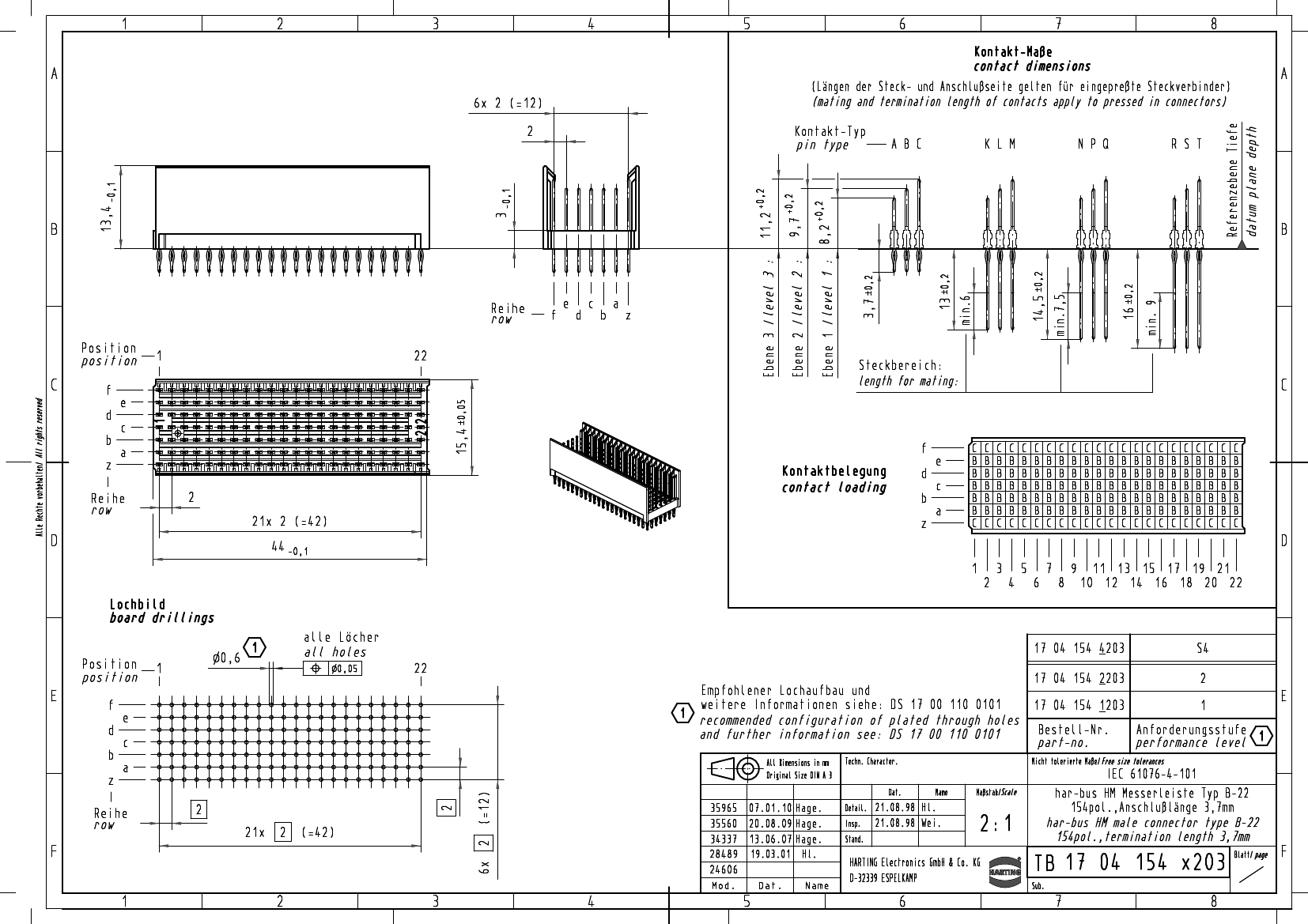

PDF
Preview

17041541010

Description
HAR-BUS HM MEL., TYP B22, AFS 1,
CategoryThe connector    The connector
File Size459KB，1 Pages
ManufacturerHARTING
Environmental Compliance
Download Datasheet Parametric Compare View All

17041541010 Online Shopping

Suppliers Part Number Price MOQ In stock
17041541010 - - View Buy Now

17041541010 Overview

HAR-BUS HM MEL., TYP B22, AFS 1,

17041541010 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other features44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded7
OptionsGENERAL PURPOSE
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts154
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

17041541010 Related Products

17041541010 17041544010 17041544203 17041542010 17041322001 17041542002 17041541002 PDI-25RS-SW-A R7S2017ESYA 17041542201
Description HAR-BUS HM MEL., TYP B22, AFS 1, Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal hard metric connectors har-bus HM mel typ b22 afs S4 tube hard metric connectors har-bus HM mel typ b22 afs 2 tube hard metric connectors har-bus HM mel typ b22 afs 2 tube hard metric connectors har-bus HM mel typ b22 afs 2 tube hard metric connectors har-bus HM mel typ b22 afs 1 tube D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Plug Rectifier Diode, 1 Phase, 1 Element, 700A, 100V V(RRM), Silicon, R7S, 2 PIN hard metric connectors 154p HM header
Reach Compliance Code compliant unknow unknown compliant compliant compliant compliant compliant unknown compliant
Is it lead-free? Lead free - - Lead free Lead free Lead free Lead free Lead free - Lead free
Is it Rohs certified? conform to - - conform to conform to conform to conform to conform to - conform to
Other features 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 44 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE 44 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 22 GROUND SHIELD CONTACTS IN 1 ROW AVAILABLE 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE - - 44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR D SUBMINIATURE CONNECTOR - BOARD CONNECTOR
Contact to complete cooperation GOLD OVER NICKEL - - GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL - GOLD OVER NICKEL
Contact completed and terminated Gold (Au) - with Nickel (Ni) barrier - - Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Tin (Sn) - Gold (Au) - with Nickel (Ni) barrier
Contact point gender MALE MALE MALE MALE MALE MALE MALE FEMALE - MALE
Contact material NOT SPECIFIED - - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED BRASS - NOT SPECIFIED
DIN compliance NO NO NO NO NO NO NO NO - NO
Filter function NO NO NO NO NO NO NO NO - NO
IEC compliance NO NO NO NO NO NO NO NO - NO
JESD-609 code e4 - - e4 e4 e4 e4 e3 - e4
MIL compliance NO NO NO NO NO NO NO NO - NO
Mixed contacts NO NO NO NO NO NO NO NO - NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT - - STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD CABLE - BOARD
Number of rows loaded 7 5 5 7 6 7 7 2 - 7
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE - GENERAL PURPOSE
Terminal pitch 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm - - 2 mm
Termination type PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT SOLDER - PRESS FIT
Total number of contacts 154 110 110 154 132 154 154 25 - 154
UL Flammability Code 94V-0 - - 94V-0 94V-0 94V-0 94V-0 94V-0 - 94V-0
Base Number Matches 1 1 1 1 1 1 1 - - 1
