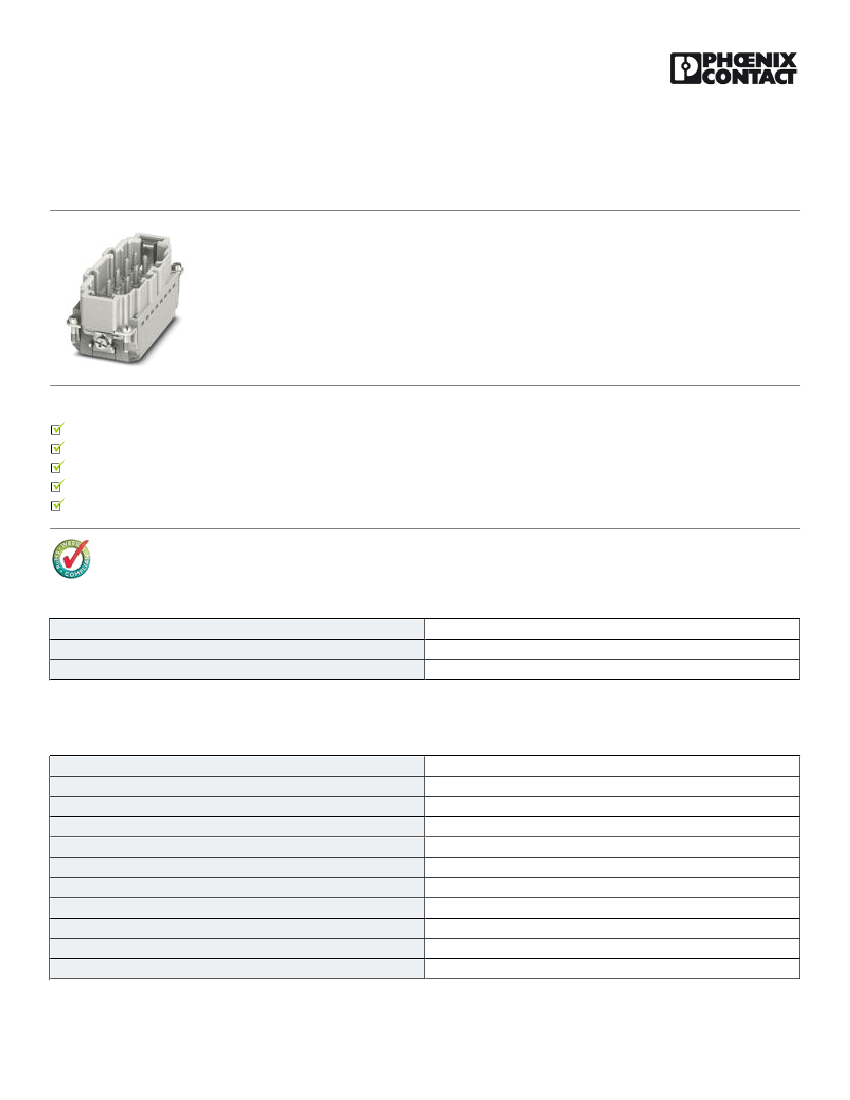

Contact insert - HC-HV06-I-PT-M - 1407740
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
HEAVYCON pin insert, HV6 series, 6-pos. + 2 switching contacts + PE, 830 V, push-in connection
Product Features
For fast coding with plastic profile
Conductor connection without tools
Significant time savings during conductor connection
Test connection for 2 mm test plug
Key commercial data
Packing unit
Custom tariff number
Country of origin
1 pc
85389099
China
Technical data
General
Connection method
Pollution degree
Surge voltage category
Number of positions
No. of power contacts
No. of control contacts
Insertion/withdrawal cycles
Type
Conductor cross section
Push-in connection (power contacts)
Push-in connection (control contacts)
3
III
6+2+PE
6
2
≥ 500
B16
0.14 mm² ... 2.5 mm² (power contacts)
0.14 mm² ... 2.5 mm² (control contacts)
05/13/2015 Page 1 / 5
https://www.phoenixcontact.com/us/products/1407740
Contact insert - HC-HV06-I-PT-M - 1407740
Technical data
General
Connection cross section AWG
Stripping length
26 ... 14 (power contacts)
26 ... 14 (control contacts)
8 mm ... 10 mm (power contacts)
8 mm ... 10 mm (control contacts)
Assembly instructions
Connection
Coding also using the CP-HC (1686478) coding profiles. HC-B6../ HC-
B10..for two coding profiles. HC-B16../ HC-B24..for four coding profiles.
Connectors may only be operated when there is no load/the power is
switched off. Can be used for solid wires and stranded wires with ferrule.
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C (including heating up of contacts)
Material data
Inflammability class according to UL 94
Contact material
Material of contact surface, power contact
Material of contact surface, control contact
Contact carrier material
V0
Copper alloy
Ag
Ag
PA
Electrical characteristics
Rated voltage (III/3)
Rated surge voltage
Rated current
830 V (power contacts)
500 V (control contacts)
8 kV (power contacts)
6 kV (control contacts)
16 A (power contacts)
16 A (control contacts)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140816
27140816
27143424
27143424
27143424
27440209
27440205
ETIM
ETIM 3.0
EC000437
05/13/2015 Page 2 / 5
https://www.phoenixcontact.com/us/products/1407740
Contact insert - HC-HV06-I-PT-M - 1407740
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC000438
EC000438
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211923
39121522
39121522
39121522
39121522
Approvals
Approvals
Approvals
CSA / UL Recognized / EAC
Ex Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
14
13 A
800 V
UL Recognized
mm²/AWG/kcmil
14
05/13/2015 Page 3 / 5
https://www.phoenixcontact.com/us/products/1407740
Contact insert - HC-HV06-I-PT-M - 1407740
Approvals
Nominal current IN
Nominal voltage UN
13 A
800 V
EAC
Drawings
Diagram
Dimensional drawing
83,5
34
27
77,1
Dimensional drawing
34,4
Derating
diagram
for
2.5 mm²
Dimensional drawing
82
72
27
20
77,5
Ø3,4
Panel cutout
35
05/13/2015 Page 4 / 5
https://www.phoenixcontact.com/us/products/1407740
Contact insert - HC-HV06-I-PT-M - 1407740

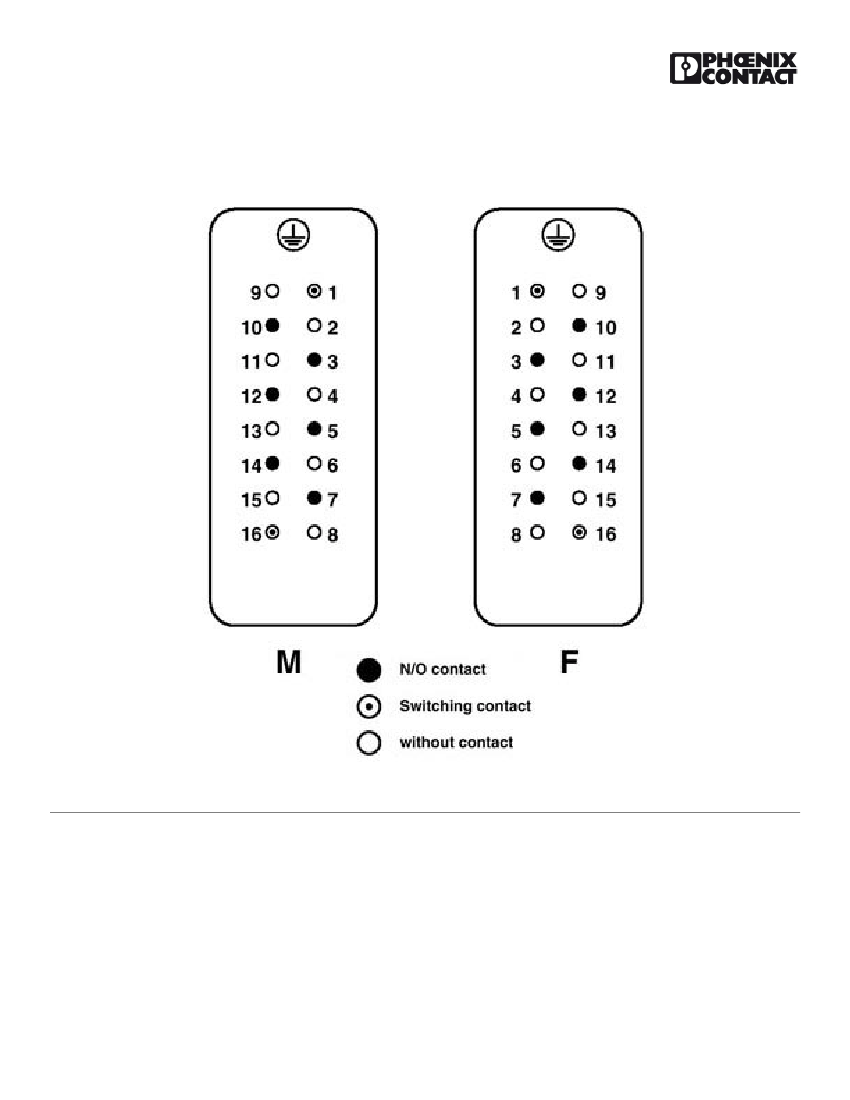

Schematic diagram
View termination side
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
05/13/2015 Page 5 / 5
