SDI40-12-U2-P6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> SDI40-12-U2-P6

SDI40-12-U2-P6: DescriptionAC/DC DESKTOP ADAPTER 12V 36W; CategoryPower/power management; File Size534KB，6 Pages; ManufacturerCUI; Websitehttp://www.cui.com; Environmental Compliance

Download Datasheet Parametric View All

SDI40-12-U2-P6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SDI40-12-U2-P6	-	-	View	Buy Now

SDI40-12-U2-P6 Overview

AC/DC DESKTOP ADAPTER 12V 36W

SDI40-12-U2-P6 Parametric

Parameter Name	Attribute value
Use area	Europe
form	Desktop (Class I)
input type	Soft cord
Voltage - input	90 ~ 264 VAC
Voltage - Output	12V
Current - Output (maximum)	3A
Power (W)	36W
No-load power consumption	75mW (maximum)
polarization	positive center
application	ITE (Business)
efficiency	Class VI
Operating temperature	0°C ~ 40°C
Output connector	Round tube plug, 2.5mm inner diameter x 5.5mm outer diameter x 9.5mm
size/dimensions	4.37" long x 2.05" wide x 1.27" high (111.0mm x 52.0mm x 32.3mm)
Approval	CE，cULus，GS，PSE
input connector	IEC 320-C14
Wire length	60.2"（1.53m）

Preview

Download Datasheet

View All

For more information, please visit the

product page

For information on related products, view

Dc Power Connectors

date

page

04/23/2018

1 of 6

SERIES:

SDI40-U

│

DESCRIPTION:

AC-DC POWER SUPPLY

FEATURES

• up to 40 W continuous power

• DoE Level VI, CoC Tier 2 efficiency

•

universal input voltage range

compact size

no load power consumption < 0.075 W

over voltage and short circuit protections

UL/cUL, GS, and PSE safety approvals

custom designs available

MODEL

SDI40-12-U

SDI40-15-U

SDI40-19-U

SDI40-24-U

Notes:

output

voltage

(Vdc)

output

current

max

(A)

output

power

max

(W)

ripple

and noise

max

(mVp-p)

efficiency

level

2.7

2.1

1.7

40.5

40.8

200

300

1. Measured at 100~240 Vac input, full load, 20 MHz bandwidth oscilloscope, output terminated with a 10 µF aluminum electrolytic and 0.1 µF ceramic capacitor.

2. CoC Tier 2 compliant

PART NUMBER KEY

SDI40

- U

XXX

CXX

Base Number

Output Voltage

AC Inlet Type:

IEC320/C14

Reserved for Custom

Configurations

DC Plug Type:

XXX = See output plug options

on page 5 for more details

ST = Stripped and Tinned

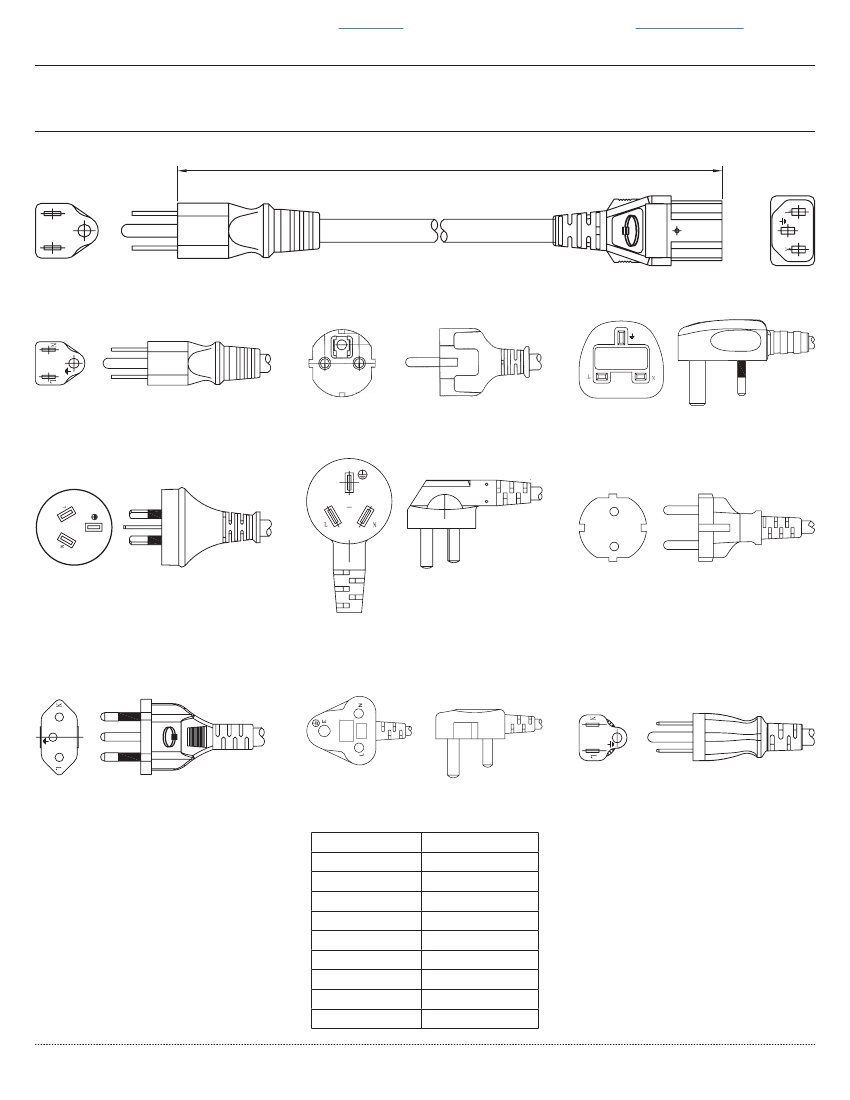

Input Cable:

“Blank” = No Cable

C = North America input cable

2 = Europe input cable

3 = United Kingdom input cable

4 = Australia input cable

5 = China input cable

6 = South Korea input cable

7 = Brazil input cable

8 = South Africa input cable

9 = Japan input cable

cui.com
